Install Ford F-150 Truck Bed Edge-Mounted LED Pod Lights

This guide will show you how to install the truck bed edge 40W high powered CREE LED pod lights for the 2015 and later Ford F-150 to function as a backup reverse light or a search light. Use this to enhance the off-roading or work site look of your Ford truck.

Open Your Tailgate.

This will give you access to the white screws located at the top end of your F-150's truck bed where you will be mounting the LED pod lights.

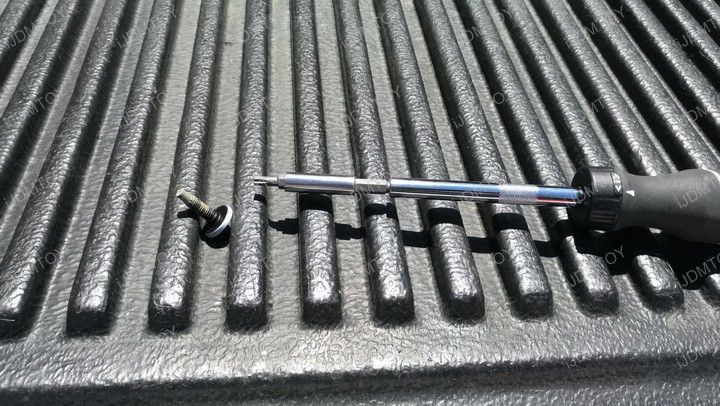

Use a 6-point Star Bit Screwdriver to Take Out the White Screw.

Reapply the Screw to Secure the L-shaped Metal Mounting Bracket.

Secure the support bracket by the lowest possible hole so that your LED pod lights don't look awkward. We recommend pointing the brackets outwards to prevent impedance during your loading/unloading activities.

Final Steps

Mount the LED pod lights onto the metal mounting support bracket facing the rear.

Route the wire downward to connect it to your reversing tail light harness. Repeat steps 2-4 on the other side.

Make sure the LED pod lamps light up. Once you have confirmed that it does, you may now enjoy your Ford F-150's 40W high powered CREE LED pod lights!
