Install 100W CREE LED Lightbar Foglamps for Ford Raptor

This is a tutorial on how to install the 100W high powered CREE LED light bar fog lights for the 2010 through 2014 Ford F-150 Raptor. This installation process is made simpler thanks to the exclusively designed metal mounting brackets, which allows you to just loosen screws so you won't lose any essential hardware. Once you mount and wire these LED light bar fog lights, your Ford Raptor will be equipped with one of the strongest set of LED fog lights out today.

These screws are easily accessible by hand so these should be unbolted first.

Unscrew the bolts holding the wheel well and the plastic piece behind it.

Line your lower bumper with a cloth or packing material to protect its paint job.

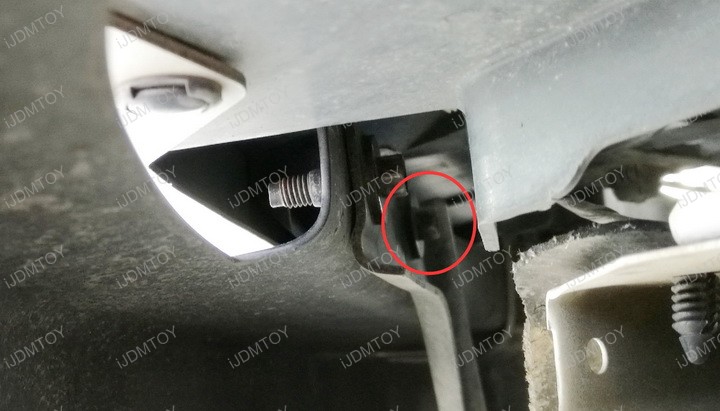

Use a long screwdriver to use as a lever to push the plastic piece up, revealing screw 1.

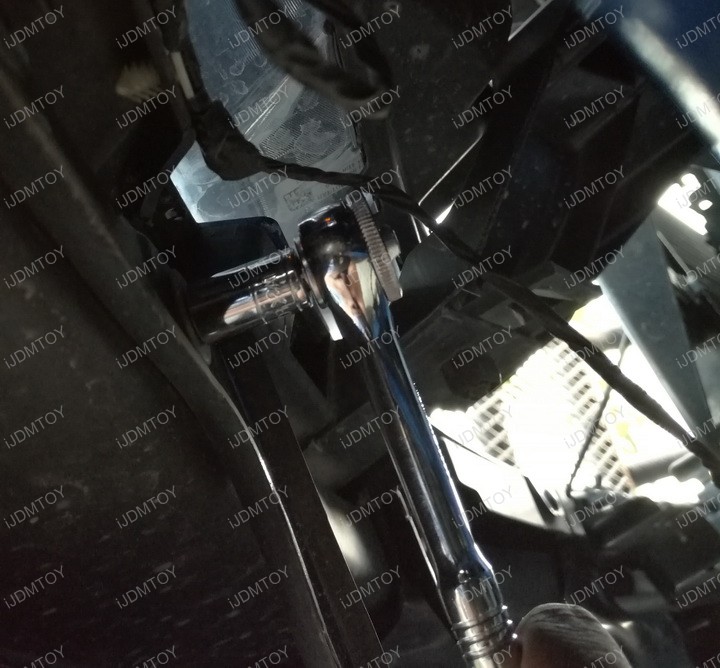

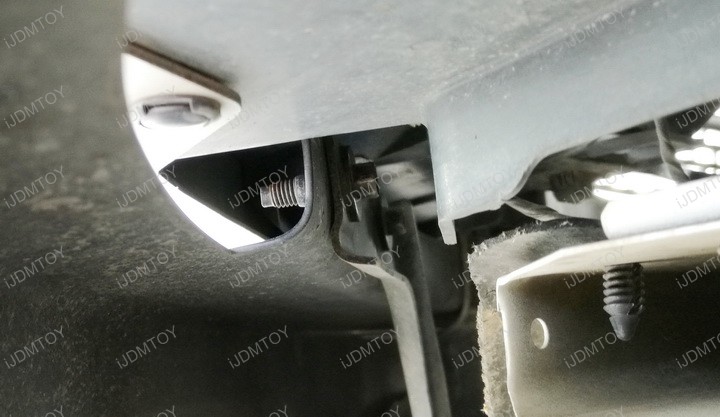

Insert a socket over the screw, apply the wrench onto the socket, and loosen the screw.

Tighten the bolts to secure the metal mounting brackets.

Make sure you secure the mounting brackets its corresponding sides, with the curved edge facing the fog light opening.

Secure the rail cap onto the rail piece using a washer and nut.

Tighten the LED light bar to the specially designed metal mounting bracket with a nut. Repeat steps 1-4 for the other side.

Use the included relay wiring harness with on/off switch.

Test the LED light bar fog lights to make sure they light up.

Once you've confirmed that they light up, you may now enjoy your Ford F-150 Raptor's new set of LED light bar fog lights!
