Install 07-17 Jeep Wrangler Tow Hook Mounted LED Light Bar

This tutorial will show you how to install the 25" 144W double-row LED light bar on your 2007-2017 Jeep Wrangler JK. After some testing and a road trip, we have found that it's possible to mount an LED light bar on top of your bumper using the existing tow hooks. This is by far the most hassle-free LED light bar mounting method. This LED light bar will sit flush and be fully secured.

The package includes the following hardware: 2 L-shaped mounting brackets, 2 rectangular brackets, 2 washers, 2 nuts and bolts combination, 4 washers, and 4 2" screws.

We crafted the LED light bar's length to match the center section's length so it can sit flush on top.

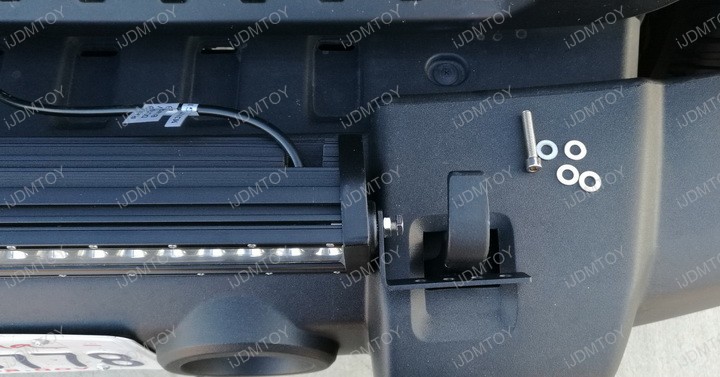

Do not fully secure it. You will be making some adjustments with the tow hook end of the mounting brackets before fully tightening.

This will sandwich the tow hook to create a sturdy, rigid fit.

Use the 2" screws and nuts to firmly secure the two metal brackets together.

Fully tighten the L-shaped bracket to the LED light bar.

Wire the LED light bar with the included relay wiring harness.

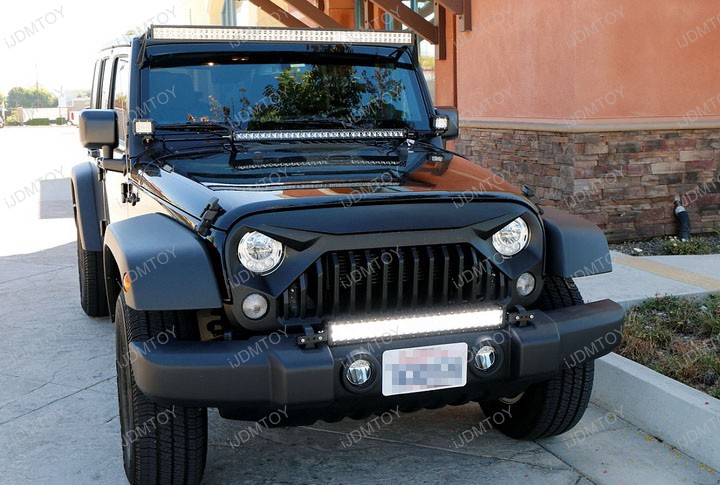

Make sure your LED light bar lights up. Once it does, you can now enjoy your Jeep Wrangler's new tow hook mounted LED light bar!
