How to Make a Inside Hanging Clothes Rack

by coolbeansbaby68 in Workshop > Home Improvement

13032 Views, 319 Favorites, 0 Comments

How to Make a Inside Hanging Clothes Rack

latter hanger.png
  I came across this same  idea which someone used  a cut down apple picking ladder .
So i decided to make one for our laundry room.

Rack Dimension Illistration

latter hanger.png

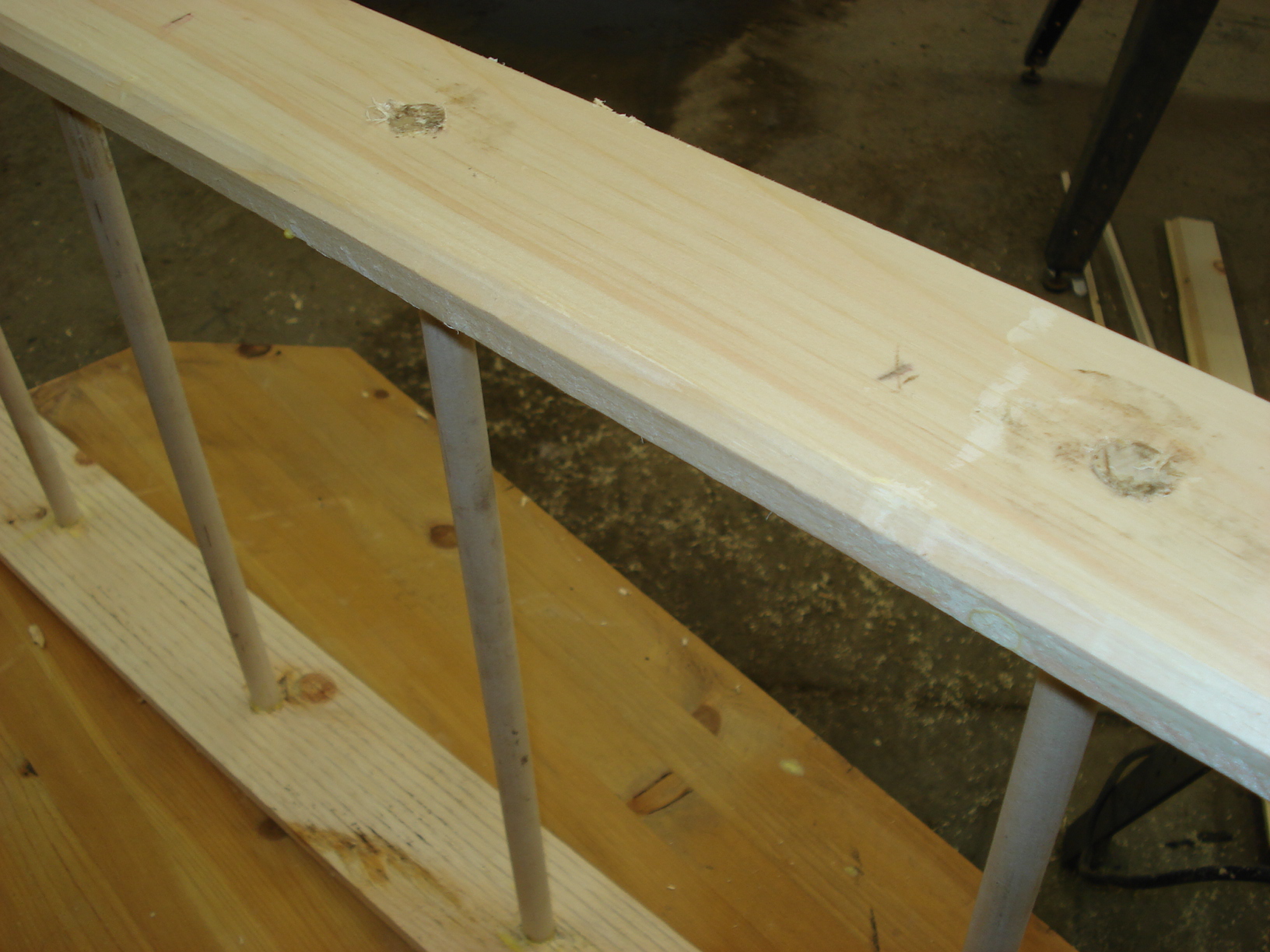

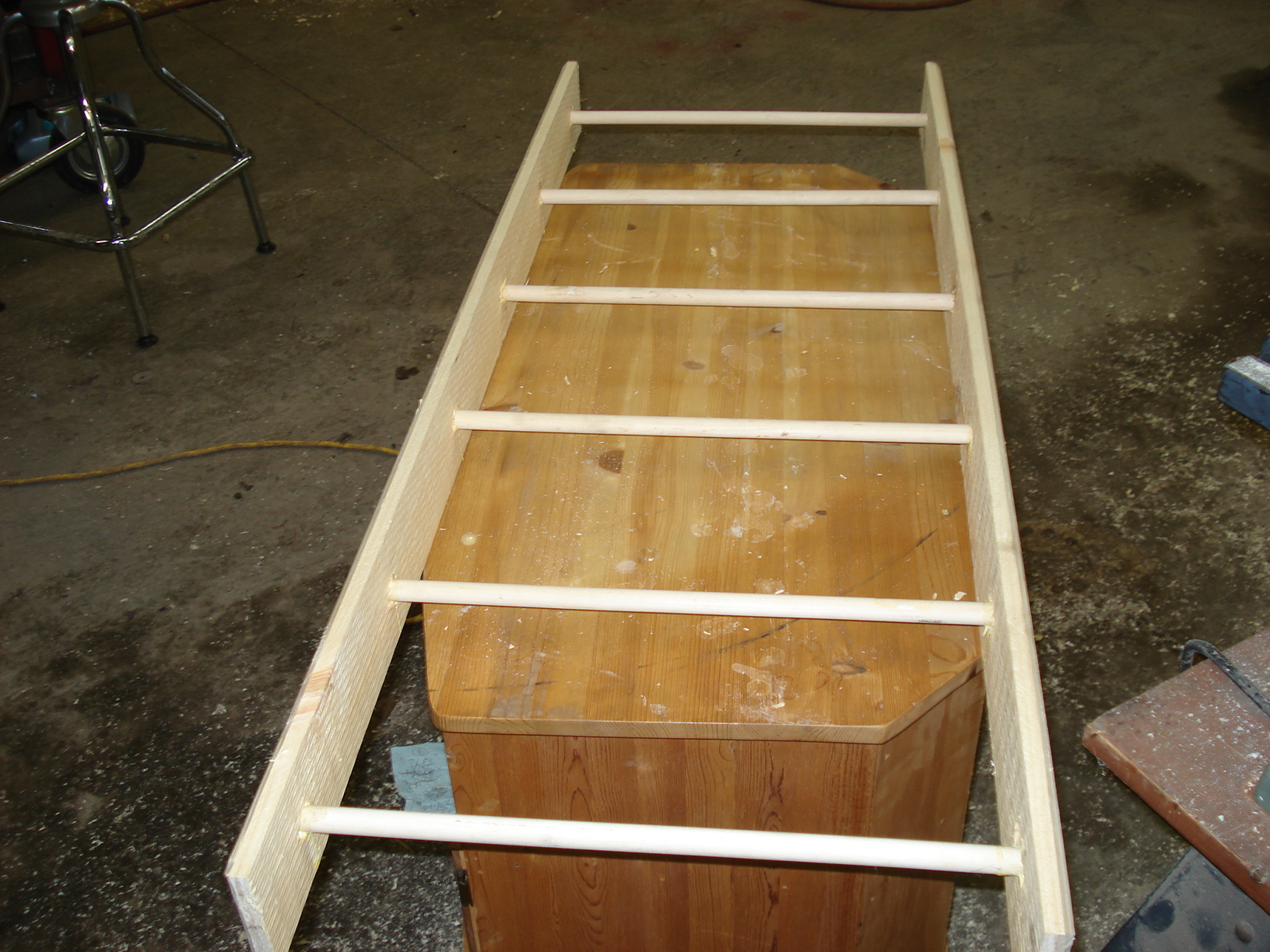

Building the Rack

1st- I bought a 1x8x8 pine board.I  I then cut it to 4 foot long.

2nd- I then ripped  2 boards 3 1/2 inches wide by 4 foot long on the table saw.

3rd- I put the 2 boards together and marked out 3 inches on center of the board  for the 1st and 6th dowel  on each end .Then 7 inches on center  for the remaining 4 dowels.

4th- I then used a 1/2 inch drill and drilled all 6 holes.

5th- Next i cut 6   1/2 inch dowels 18 inch long and glued the ends and fitted them in the holes.

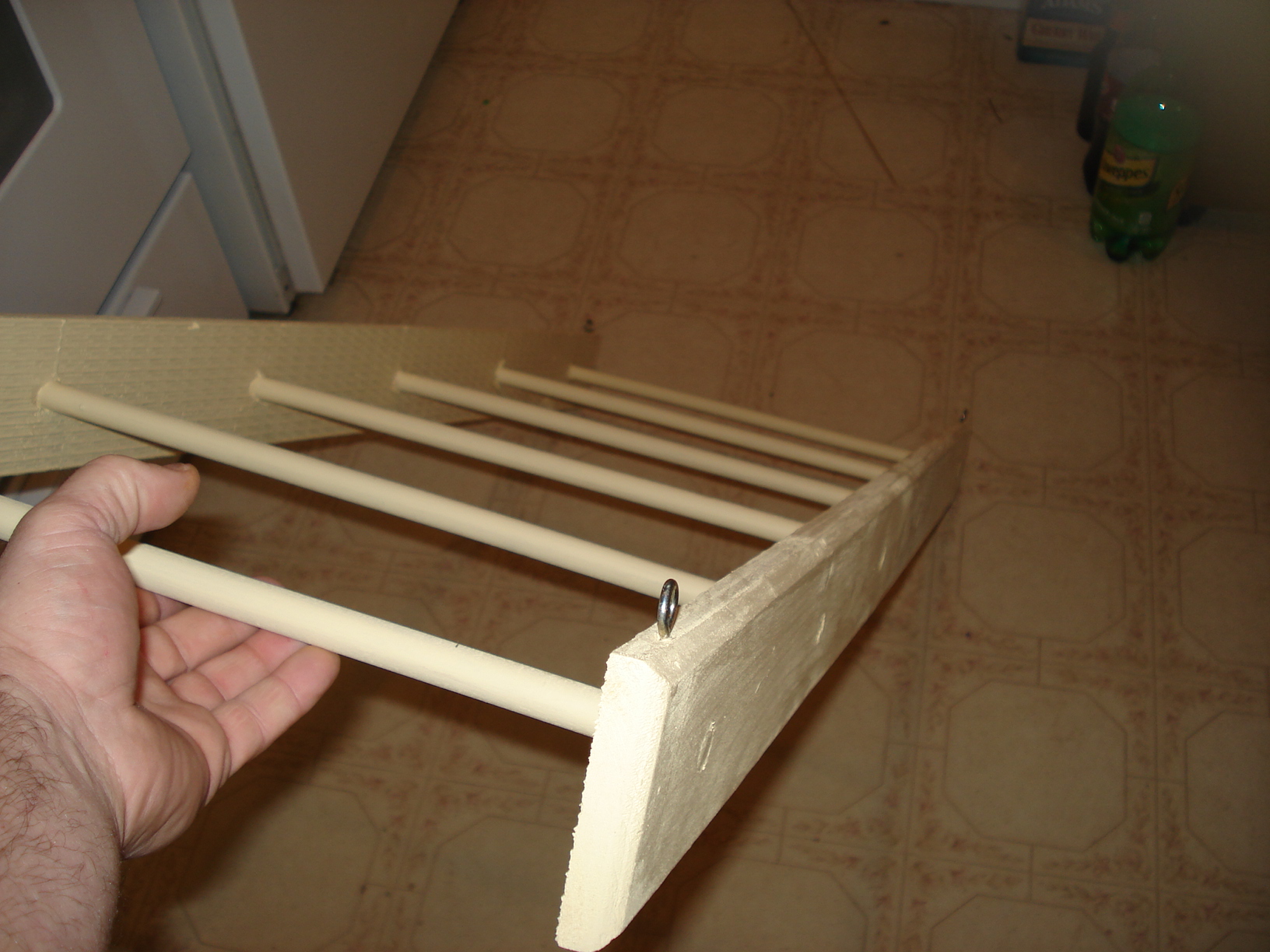

Edges

1st- I used a router and a 45 degree router bit to chamfer  all the edges.

2nd- Sand smooth the entire  rack  and put a coat of paint on it.

Accessories

 (4)  screw eyes
 (4) pieces of  # 6 chain 5 inches long
(4) 3/16 x2 inch  toggle bolts.

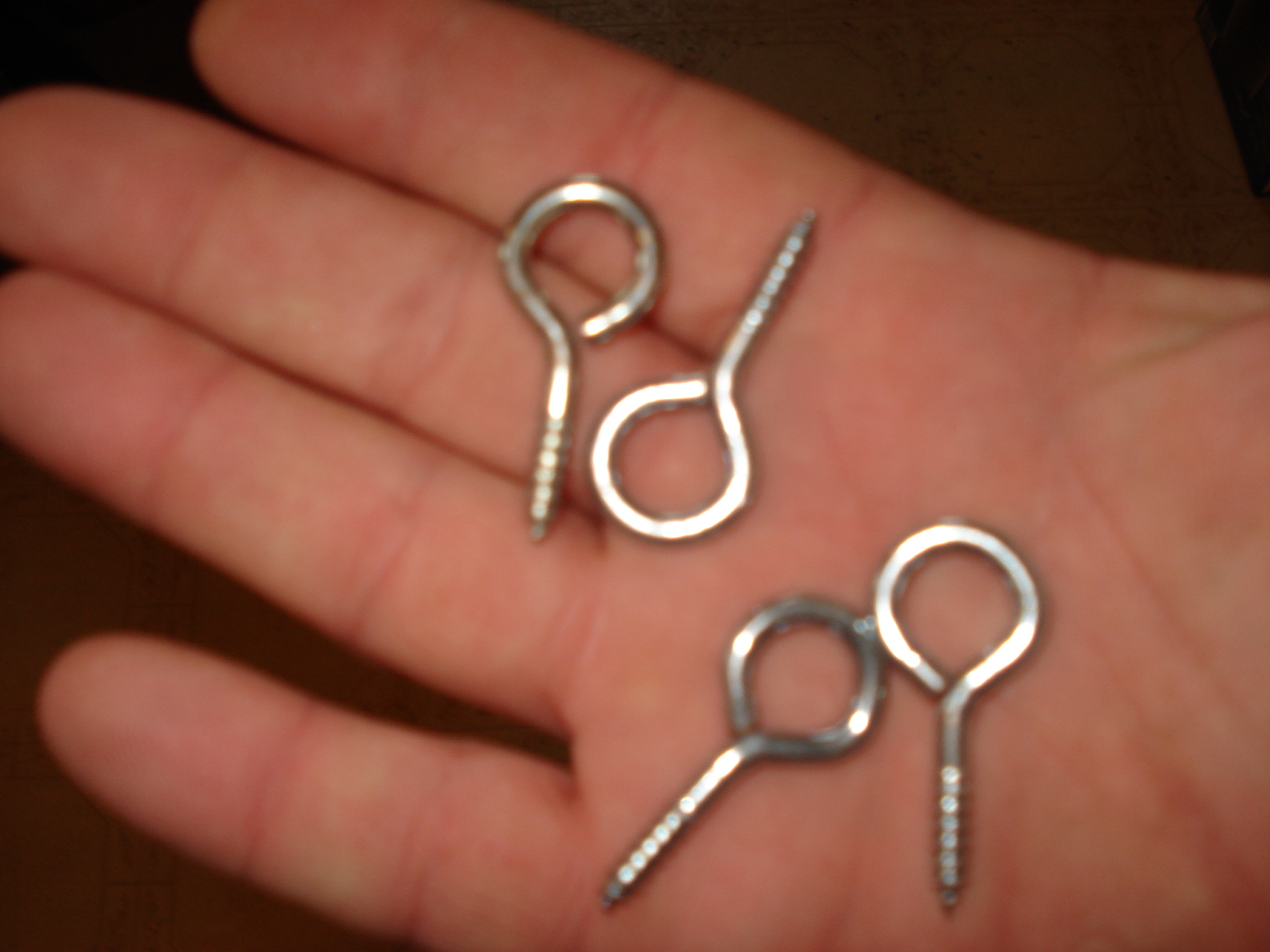

Screw Eyes

I measured in on all 4 sides 2 inches . Then screwed in the 4  screw eyes.

Toggle Bolts

Ist -  I first measured out from the wall 5 inches from each corner.The 18 inches out from there .

2nd-  I drilled ( 4) 1/2  holes for the toggles bolts

3rd- I then cut (4)  5 inch long pieces of chain  and installed the toggles bolts in the holes and tightened them up.

4th- Hook the chain to the screw eyes and your finished and ready to hang clothes up to dry..

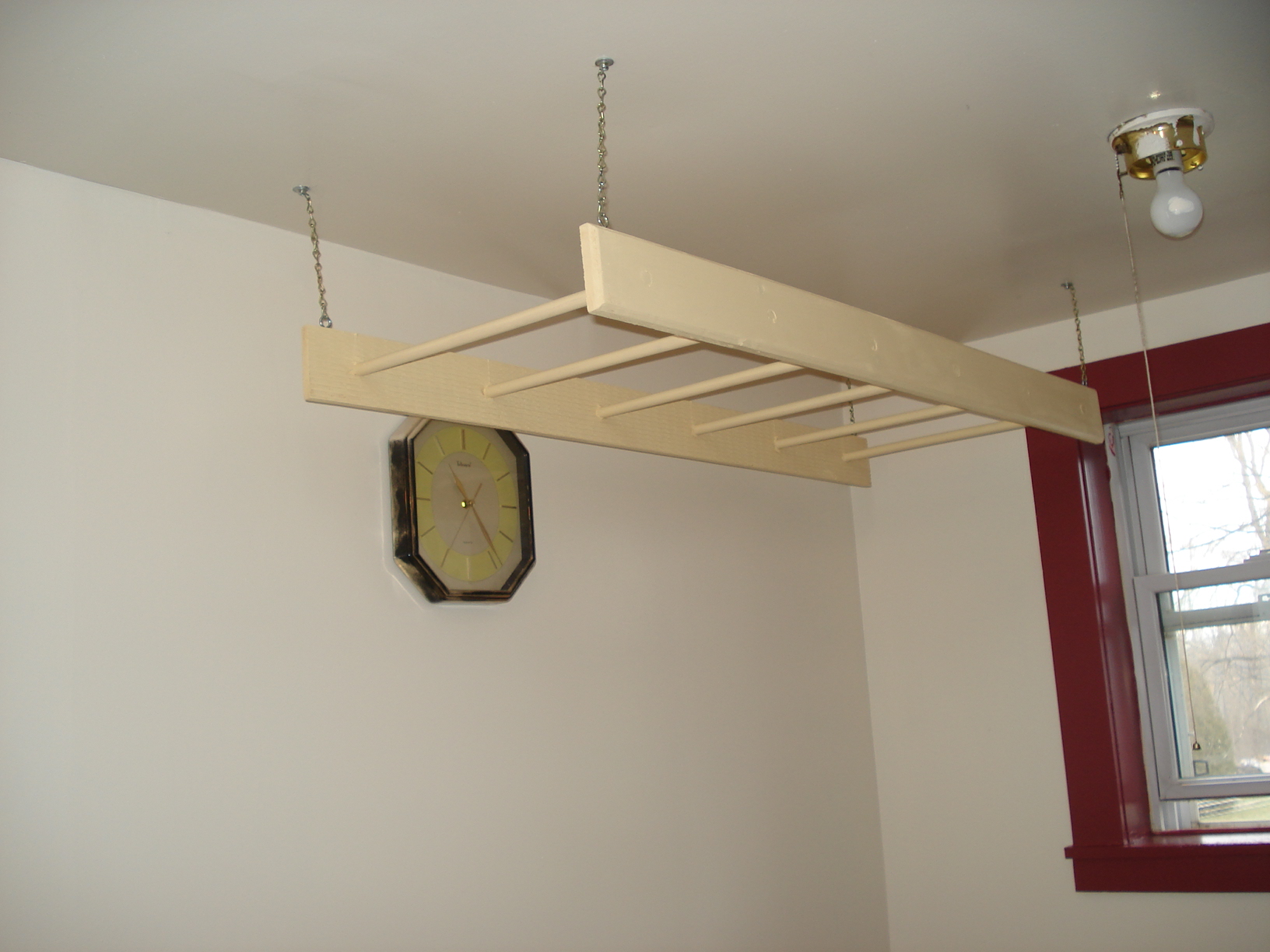

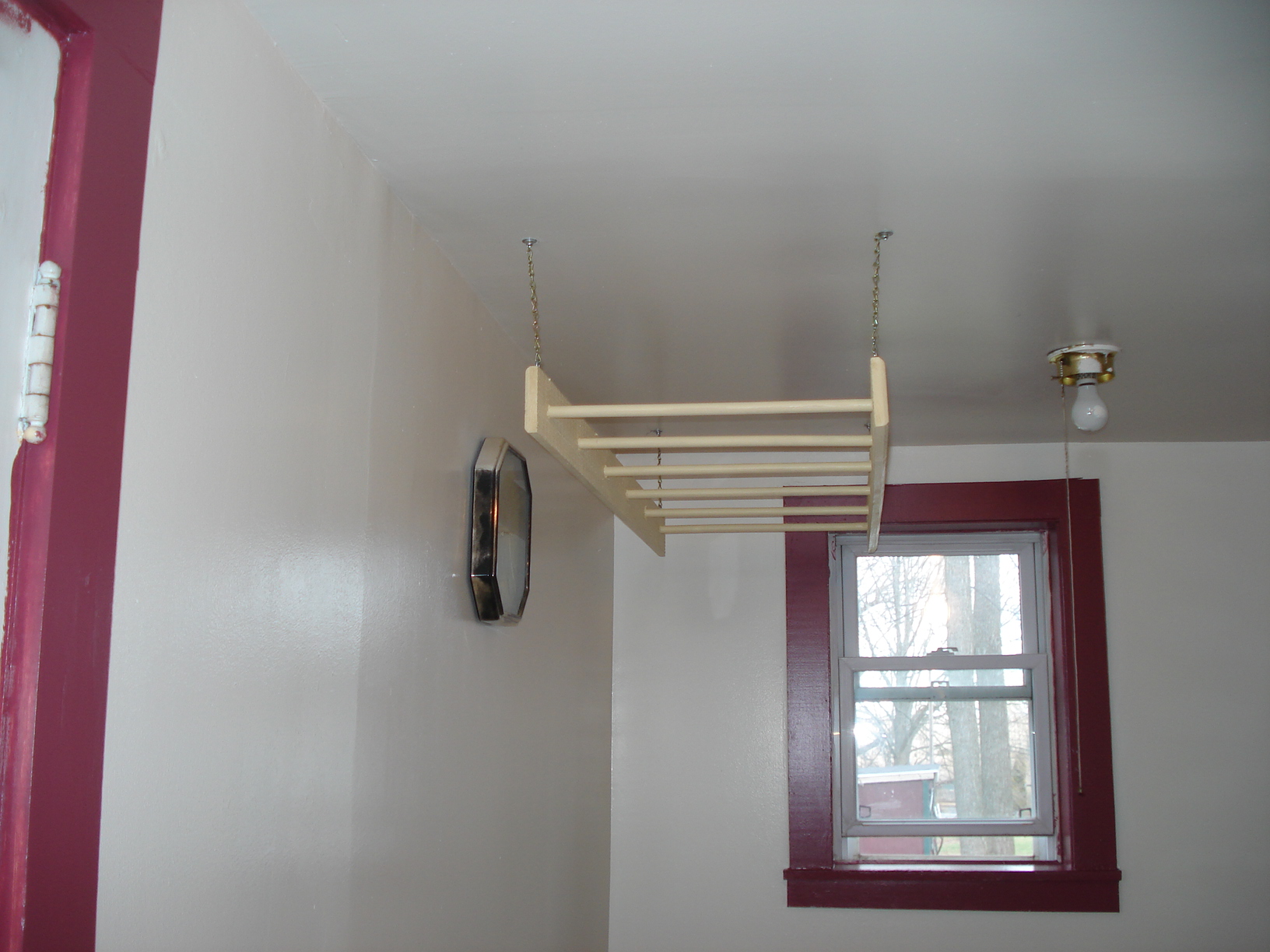

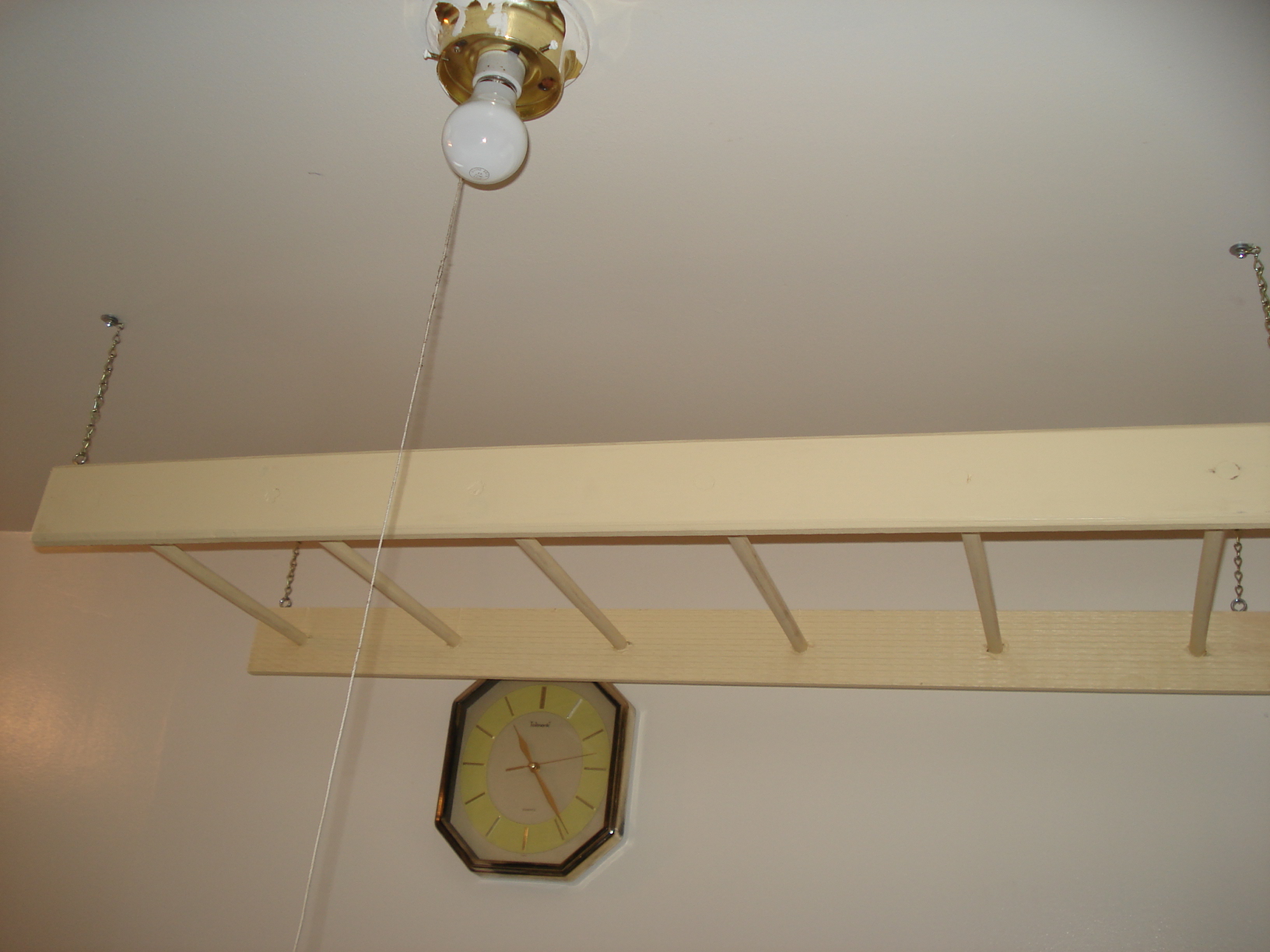

Finished
