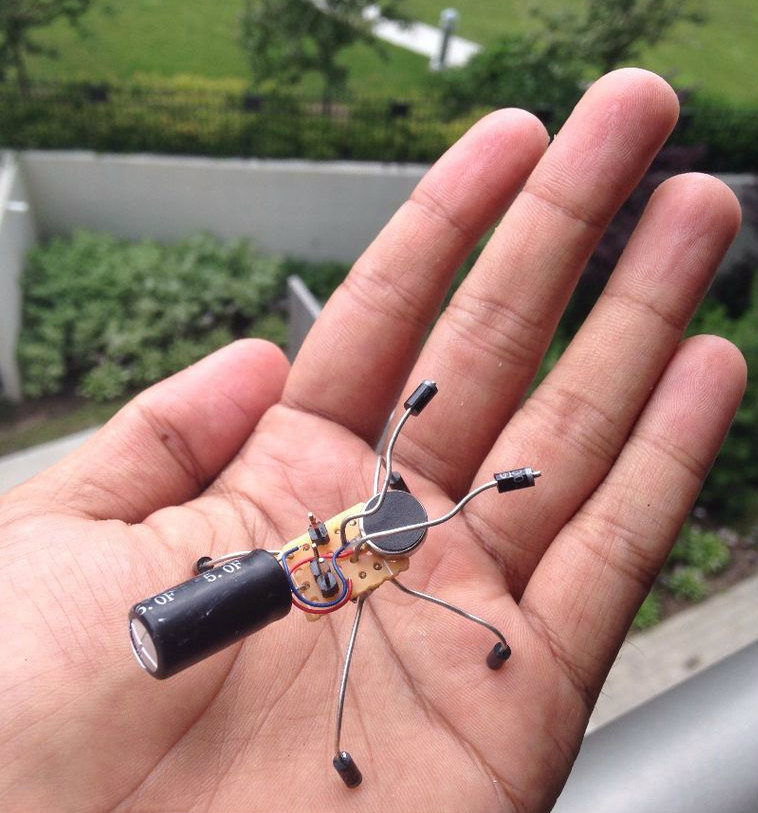

Insect Bot
Want to test your Soldering Skills !! here is an easy to make insect robot that you can build in about 20 minuets.
The insect bot uses a vibration motor as its head, which is powered by a capacitor as its abdomen, which I salvaged from an old toy plane, with specification - 2.8V 5F, you can get one of ebay for a couple of dollars.
Use diodes for the Legs and Antenna , you can also use resistor. All these components are then soldered together on a small etched PCB which forms the thorax of the insect.
Now since we are using a super capacitor to power the insect bot, we will use 2 AA batteries to power it up as shown in the video above.
If your new to soldering, check out the awesome guide on How to Solder - by noahw..
Collect/Scavenge the Electronic Components You'll Need
Collect the electronic components you'll need to complete the build
For the insect bot
- Vibration motor
- Super Capacitor 2.8V 5F - I salvaged mine from a old toy plane.
- Male header pins
- Jumper
- Etched perf borad
For the charger
- 2 AA Batteries
- AA battery Holder with a On/Off switch preferably
- Female jumper wire to solder to the battery holder wire
- Heat shrink
In addition here are the tools you'll need to complete the build
- Solder
- Soldering Iron
- Helping hand
- Scissors
- Plier
- Wire stripper
Cutting a Piece of the PCB Board

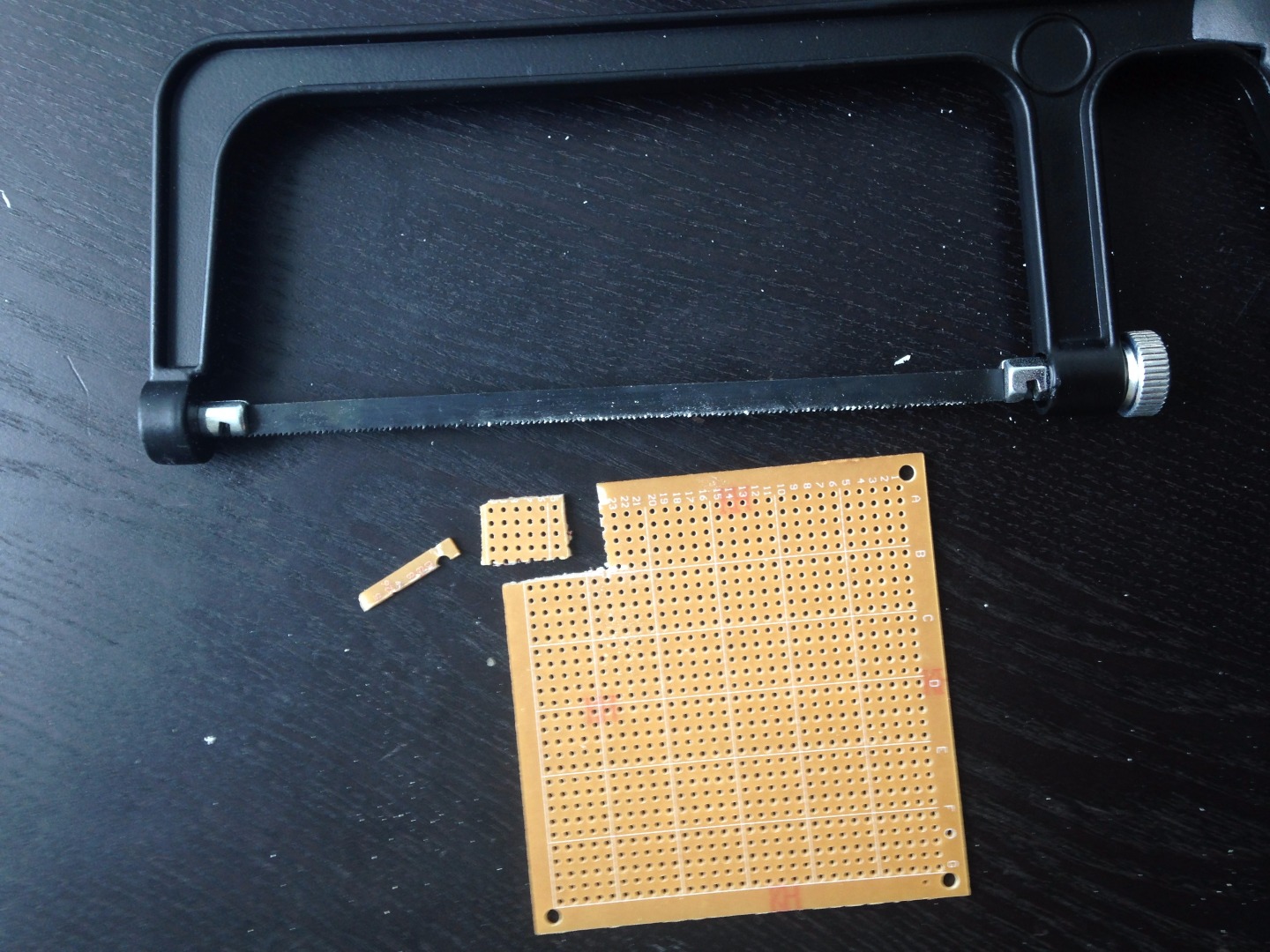

Cut a small piece of the etched PCB board, you'll need at-least 6 X 4 holes size as shown in the picture above.But if you are new to soldering cut an 8 X 5 holes size so that you can have a lager spacing between your solder joint.
In addition also cut off the mail header, here you will need two pieces , one with two header pins and the other with just on header pins.
Soldering the Capacitor and Header Pins

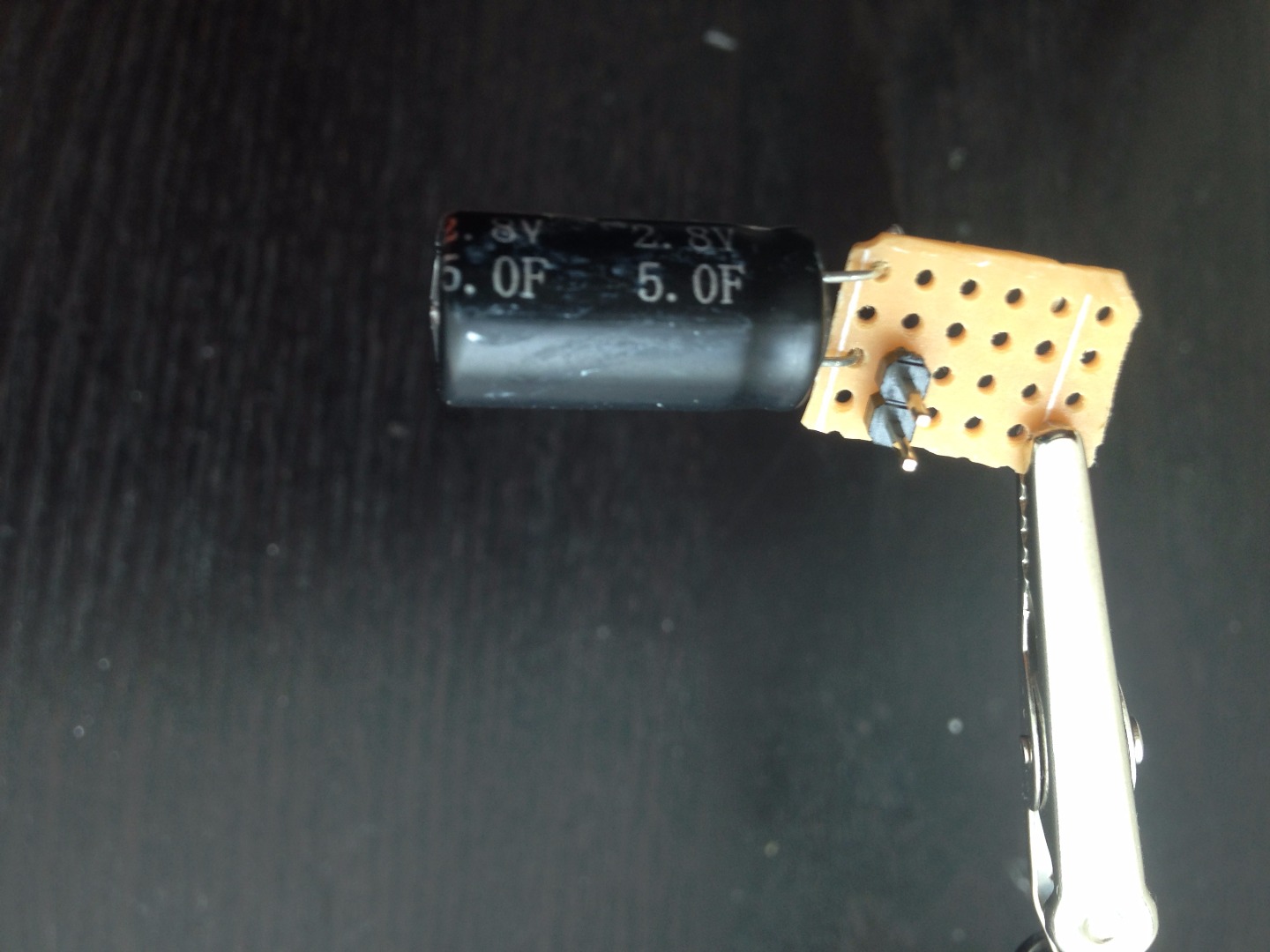

Solder the capacitor to one end of the PCB board as shown in the picture.
Using a set of pilers solder the header pins, for the placement of the header pins check out the second picture above, once done connect the inner most header pin to the capacitor +ve pin with solder.
Solder the Motor
Peal of the tape from the sticky side of the motor and stick it to the PCB as shown in the first picture above.
Thread the +ve red wire around the header pins if the wire is too long and solder it just below the outer most header pin.
Once done connect the outermost header pin and the +ve of the vibration motor as shown in the third picture above.
Now solder the blue -ve wire of the motor just below the -ve of the capacitor. And then solder a single header ping just below blue wire as shown in the fourth picture above.
Solder the Antenas and Legs
Now for the antennas and legs you can use diodes or resistors , I basically choose to use diodes as I a lot of them lying around in my parts bin.

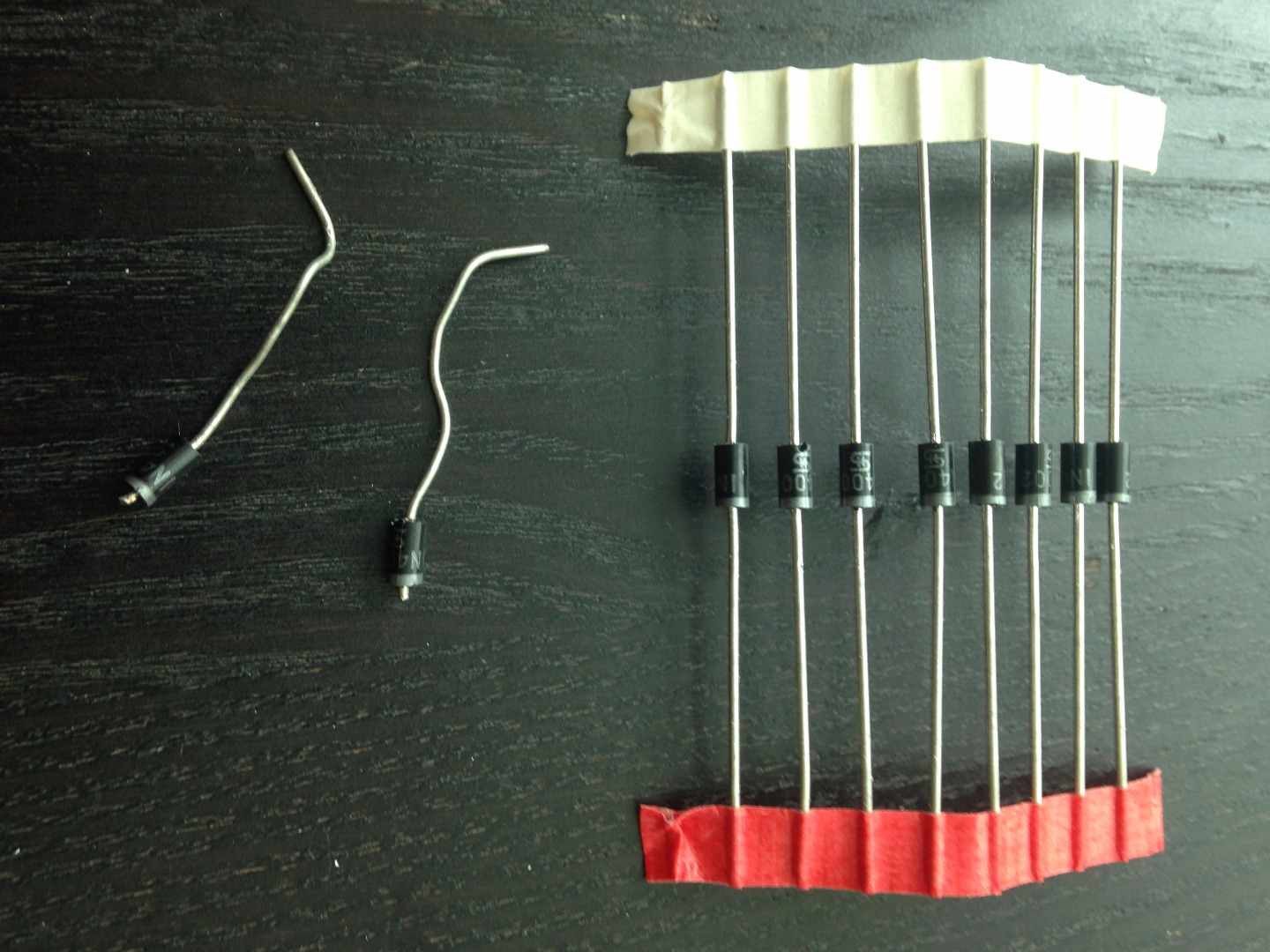

Cut about 6 diodes using scissors at one end as shown in the picture above
Solder two diodes just below the vibration motor which will act as the fake antennas of the insect bot.
And then solder four more diodes as the legs as shown in the picture above.
Soldering Lead to the Charger
Now to make the charger to the charge the capacitor of the insect bot, cut the ends of the female jumper cable.
Strip and tin the ends of the jumper wire and the battery holder
Cut two pieces of heat shrink tubing and thread it through the battery holder wire as shown in the third picture.
Solder the female jumper ends to the battery wires
Using a heat source, shrink the tubing ..
Charging and Testing the Insect Bot
To charge the super capacitor on the insect bot connect the batter holder to the male header pins just below the capacitor pins on the PCB and hit the ON switch on the battery holder.
Once you hit the ON switch count to 10 and then hit the OFF switch.

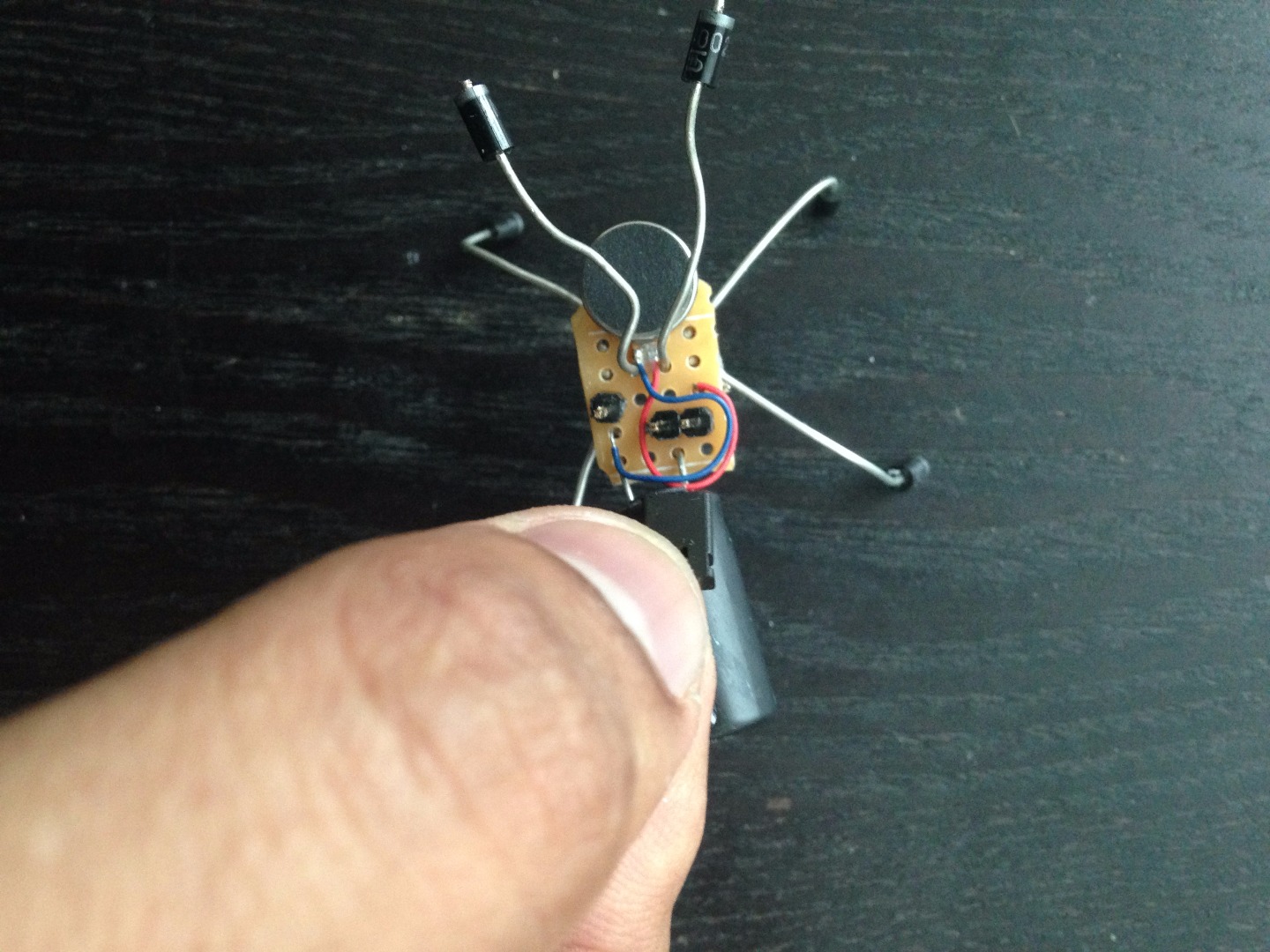

Then use the Jumper to connect two header pins as shown in the video above and watch your bot move like an insect.
Soldering Tips
If you have followed along and your at this step , Congratulations!! your have successfully completed the super charged insect bot.
Here are few Soldering Tips
- While connecting two wires always tin the wires before soldering them together
- Once you solder a component like a capacitor or the diodes , wiggle the competent slightly to check for a scenario of insufficient wetting as shown in the second picture above.
- If for some reason you make a mistake while creating a joint , it is always a good idea to desolder using a desolder pump or heating up the joint and then use fresh solder to create a joint, instead of trying to repair the joint.
- Once your done soldering always clean you soldering iron tip
- For heat shrink - instead of using a lighter or a flame, just roll the tubing over your soldering iron tip as shown in the picture above.
