Infrared Remote Controlled Robot Car Based on Arduino

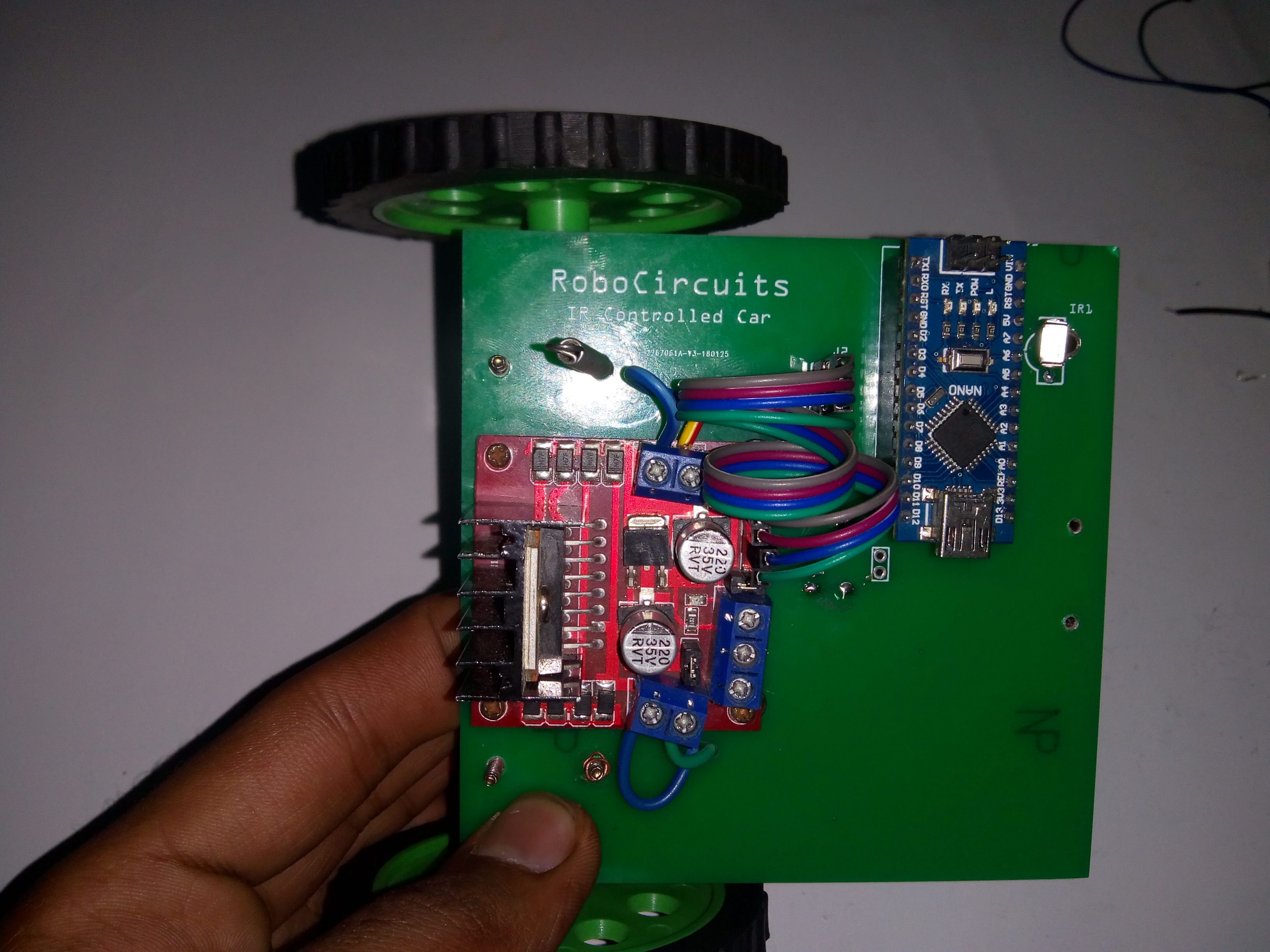

This is an Infrared Controlled Robot Car based on Arduino Nano.

Components needed

1. Arduino Nano V3

2. L298N Motor Driver Board

3. 2 DC Motors

4. PCB designed by RoboCircuits and Made by JLCPCB.com

5. Male Female Header Pins

This remote controlled car can be moved around using practically any kind of remote such as TV,AC etc.

It makes use of the fact that the remote emits IR(infrared). This property is made use of by using an IR receiver,which is a very cheap sensor. In this instructable you will learn how to Interface IR receiver to Arduino.

jlcpcb.com is the largest pcb manufacturing company making pcb prototypes for projects. visit jlcpcb.com

visit jlcpcb.com/quote

upload your gerber files

files for this project are

These codes are just a demo. Modify them to run the car according to the signal.

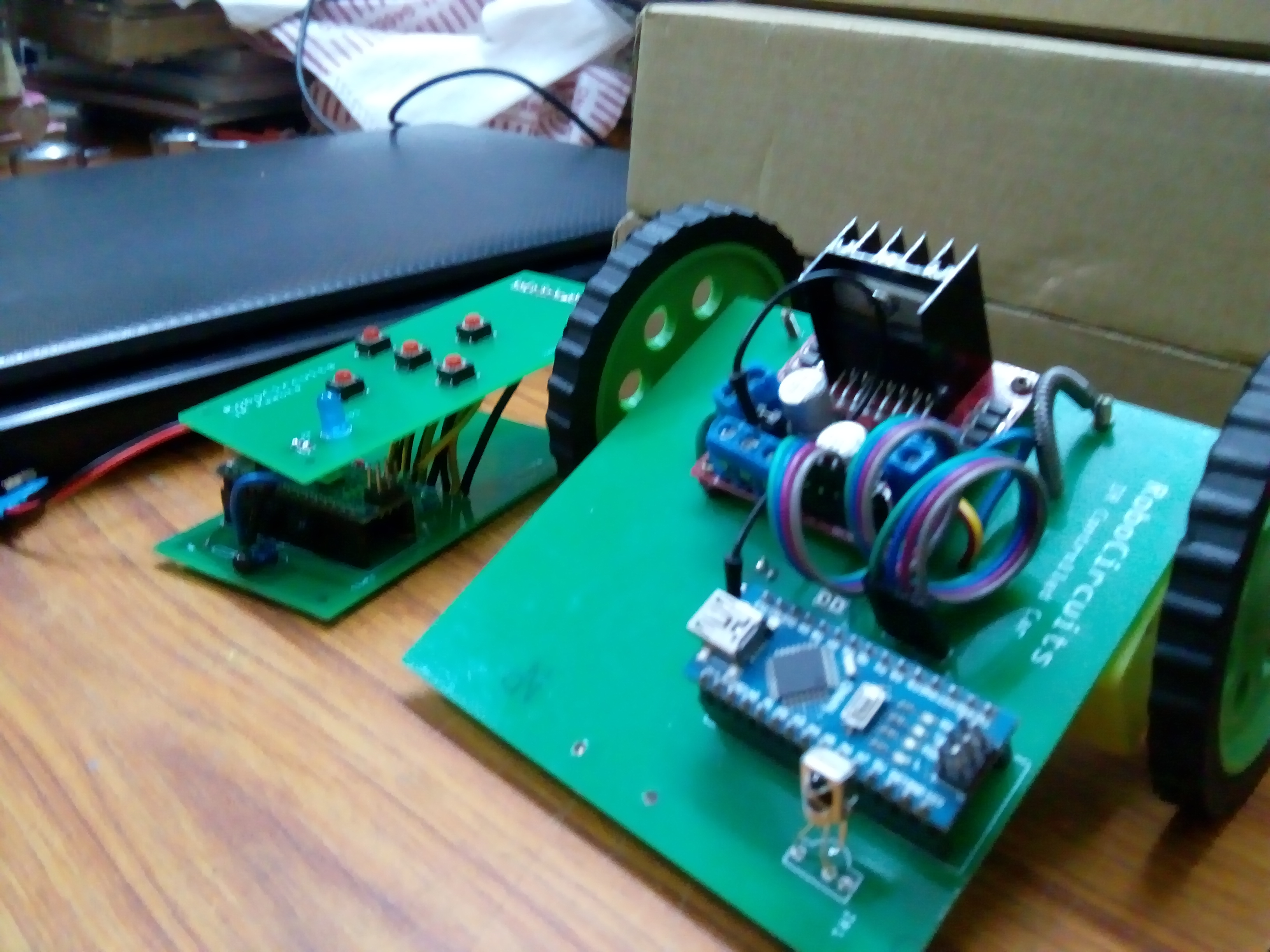

now we will make an ir remote for our ir car

we made a pcb design for our ir remote using fritzing check the files for the same

i ordered pcbs from jlcpcb.com hich is one of the best pcb manufacturing company in china.

they sent me best class pcbs for my project.
