Industrial Style Adjustable Lamp
by F_A_B_A_S in Workshop > Metalworking
3940 Views, 34 Favorites, 0 Comments
Industrial Style Adjustable Lamp
![DSCF4734.jpg](/proxy/?url=https://content.instructables.com/FB9/S1AB/LAS8AP4M/FB9S1ABLAS8AP4M.jpg&filename=DSCF4734.jpg)
![DSCF4721.jpg](/proxy/?url=https://content.instructables.com/FC8/MJWK/LAS8AOXT/FC8MJWKLAS8AOXT.jpg&filename=DSCF4721.jpg)
![DSCF4709.jpg](/proxy/?url=https://content.instructables.com/FJU/4TSF/LAS8AOXS/FJU4TSFLAS8AOXS.jpg&filename=DSCF4709.jpg)
![DSCF4710.jpg](/proxy/?url=https://content.instructables.com/F3S/ZO0U/LAS8AOXP/F3SZO0ULAS8AOXP.jpg&filename=DSCF4710.jpg)
I recently moved an old desk to use as a small craft area, now it's facing a wall and I don't have enough light so I decided to brighten it up a bit.
I wanted to do something with an industrial style, so the scrap I had at home was perfect.
I emphasize that in this project I do not use a welding machine, for the most part I used screws or rivets, only in some cases I used tin, but this is easy to apply.
Supplies
![1668964300290.jpg](/proxy/?url=https://content.instructables.com/F8Q/QUL4/LAPDEUN8/F8QQUL4LAPDEUN8.jpg&filename=1668964300290.jpg)
As I mentioned I used scrap metal for almost the entire project, anyway this is what I had:
- 1/2" Tee connector
- 1/2" Copper tee
- 1/2" Pipe
- 1 1/2" Steel angle
- 1" Iron angle
- 3/4" steel plate
- An square steel plate
- 1/2" Threaded rod
- Handwheels or similiar
- Some bolts, nuts and washers
- LED strip ligths
- White or semi-translucent plastic sheet
First Pieces
![Mesa de trabajo 1-50.jpg](/proxy/?url=https://content.instructables.com/F7Z/TW47/LAPDFJHB/F7ZTW47LAPDFJHB.jpg&filename=Mesa de trabajo 1-50.jpg)
![Mesa de trabajo 1 copia-50.jpg](/proxy/?url=https://content.instructables.com/F41/NOQ2/LAPDFJH9/F41NOQ2LAPDFJH9.jpg&filename=Mesa de trabajo 1 copia-50.jpg)
![Mesa de trabajo 1 copia 4-50.jpg](/proxy/?url=https://content.instructables.com/FO0/Y5RF/LAPDFJH3/FO0Y5RFLAPDFJH3.jpg&filename=Mesa de trabajo 1 copia 4-50.jpg)
![Mesa de trabajo 1 copia 2-50.jpg](/proxy/?url=https://content.instructables.com/FP1/6TLM/LAPDFJH2/FP16TLMLAPDFJH2.jpg&filename=Mesa de trabajo 1 copia 2-50.jpg)
![Mesa de trabajo 1 copia 5-50.jpg](/proxy/?url=https://content.instructables.com/F45/AHSM/LAPDFJH7/F45AHSMLAPDFJH7.jpg&filename=Mesa de trabajo 1 copia 5-50.jpg)
![Mesa de trabajo 9 copia-50.jpg](/proxy/?url=https://content.instructables.com/FYQ/4VT3/LAPDFJHF/FYQ4VT3LAPDFJHF.jpg&filename=Mesa de trabajo 9 copia-50.jpg)

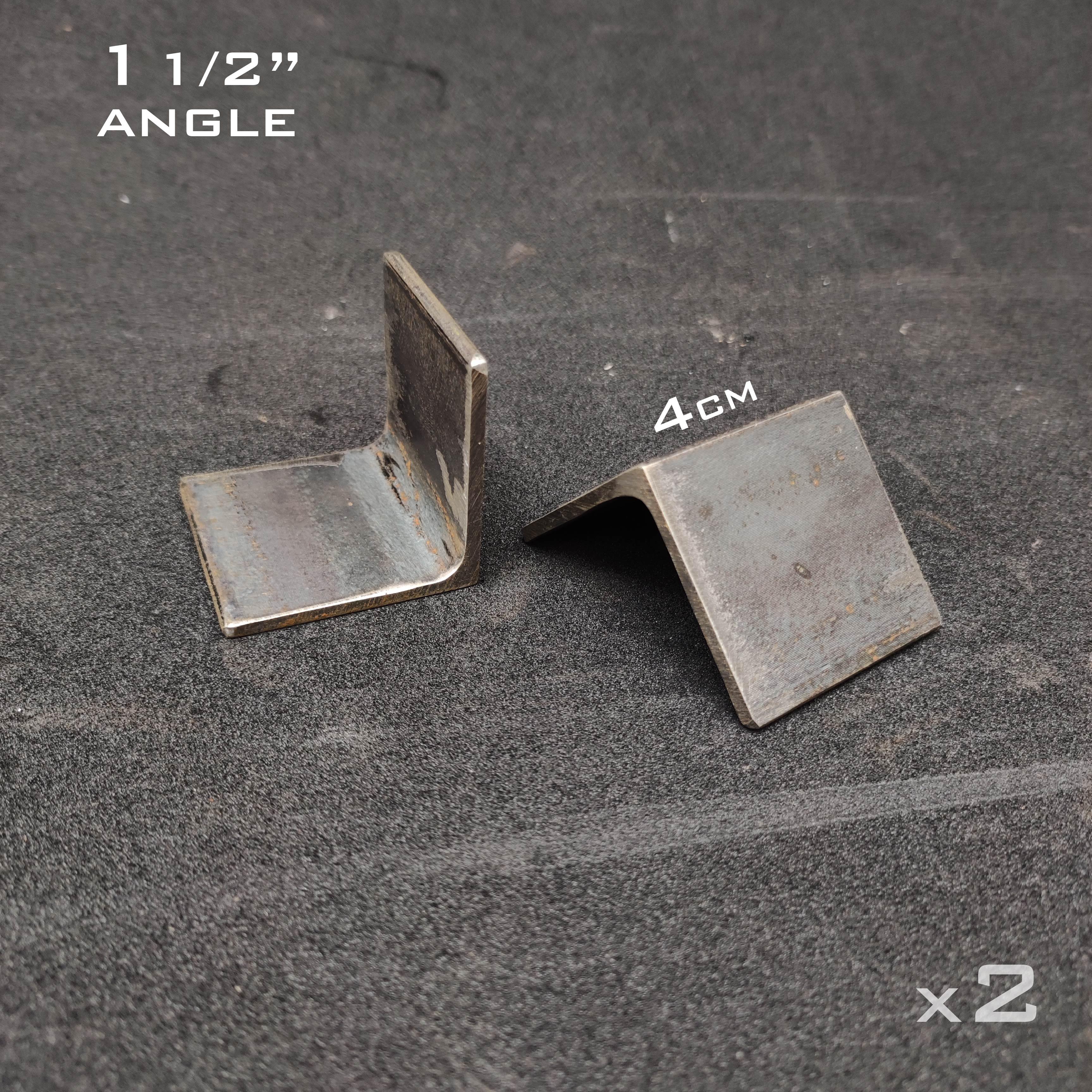

These are the measurements I used for the main pieces
Handwheels
![1668964300316.jpg](/proxy/?url=https://content.instructables.com/F0F/TRJ4/LAPDFJGZ/F0FTRJ4LAPDFJGZ.jpg&filename=1668964300316.jpg)
![1668982291250.jpg](/proxy/?url=https://content.instructables.com/FIP/QGOG/LAPDFJH0/FIPQGOGLAPDFJH0.jpg&filename=1668982291250.jpg)

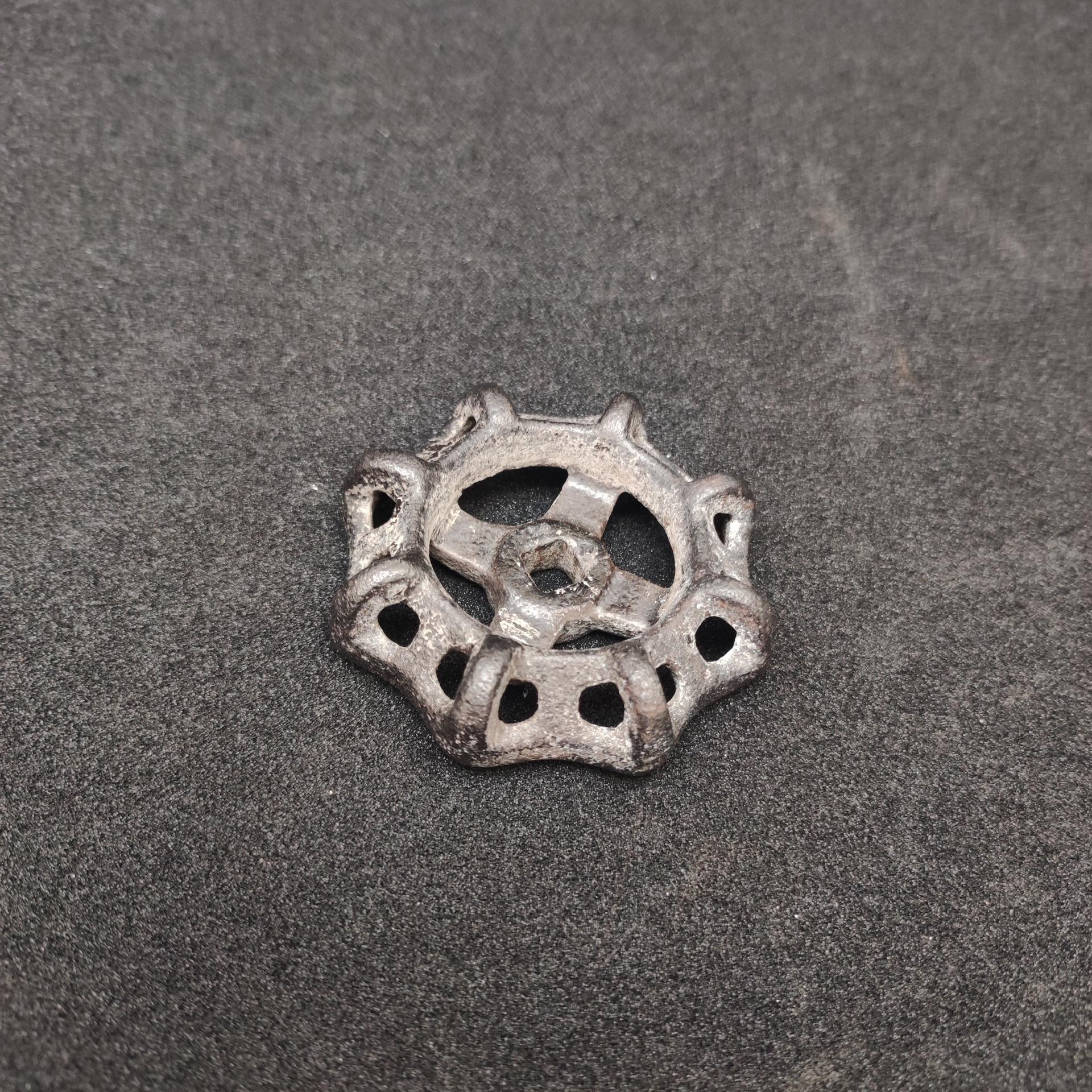

These are the handlewheels that I managed to get, one is adapted to be used with a 1/4" screw and another for a 1/2" screw. Depending on what you can get, some of the measures I mention will change.
Modifications: Steel Tee Conector
![1668740306915.jpg](/proxy/?url=https://content.instructables.com/FE9/0O6W/LAPDFJGT/FE90O6WLAPDFJGT.jpg&filename=1668740306915.jpg)
![Mesa de trabajo 9 copia 2-50.jpg](/proxy/?url=https://content.instructables.com/F07/YS57/LAPDFK5Z/F07YS57LAPDFK5Z.jpg&filename=Mesa de trabajo 9 copia 2-50.jpg)
For the first joint axis I used the steel tee connector, here I had to adapt the 1/2" bolt.
I took two 1/2" nuts, rounded them up a bit and embedded them inside the tee, here the bolt should spin freely so I removed the thread from both nuts

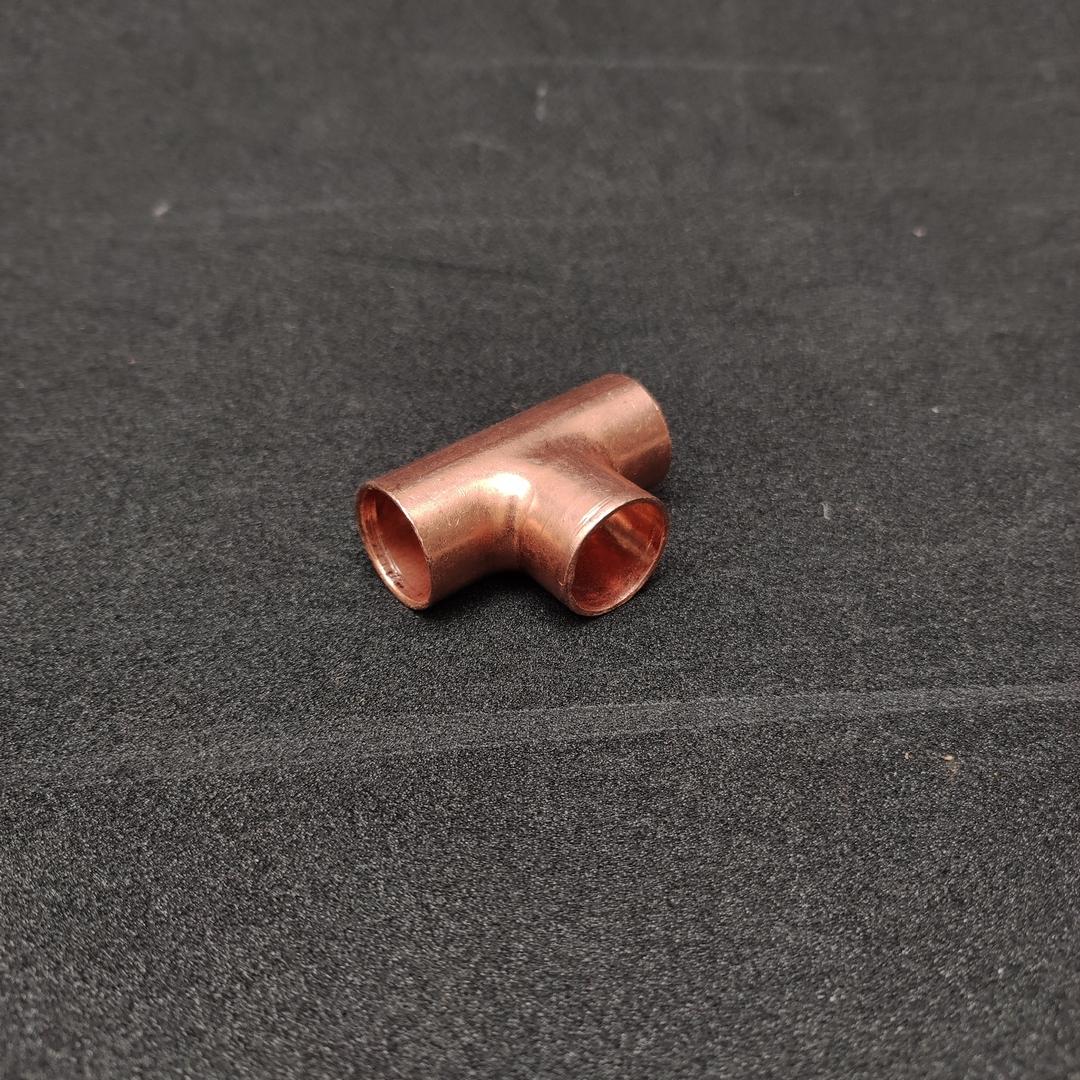

Modifications: Copper Tee Conector
![1668740306940.jpg](/proxy/?url=https://content.instructables.com/FCG/I2PJ/LAPDFJGU/FCGI2PJLAPDFJGU.jpg&filename=1668740306940.jpg)
![Mesa de trabajo 9 copia 3-50.jpg](/proxy/?url=https://content.instructables.com/FB6/47B6/LAPDFJHD/FB647B6LAPDFJHD.jpg&filename=Mesa de trabajo 9 copia 3-50.jpg)
![Mesa de trabajo 9 copia 4-50.jpg](/proxy/?url=https://content.instructables.com/FF3/QMZJ/LAPDFKBG/FF3QMZJLAPDFKBG.jpg&filename=Mesa de trabajo 9 copia 4-50.jpg)
This step is very similar to the previous one, the difference is that now a smaller nut must be embedded inside the main nut (this was my solution because I needed a smaller screw diameter to adapt the handle)
Arms
![Mesa de trabajo 1 copia 7-50.jpg](/proxy/?url=https://content.instructables.com/F9C/070T/LAPDFJH8/F9C070TLAPDFJH8.jpg&filename=Mesa de trabajo 1 copia 7-50.jpg)
The arms will join the copper tee connector with the lampshade and will also allow two more articulation axis.
One arm has two 1/4 holes at each end, the other a 1/4 hole at the short end and a threaded hole at the long end, this is so you can lock the shaft with the bolt and handle.
Lampshade 1
![1668740306815.jpg](/proxy/?url=https://content.instructables.com/FEQ/243N/LAPDFJGS/FEQ243NLAPDFJGS.jpg&filename=1668740306815.jpg)
![1668964300215.jpg](/proxy/?url=https://content.instructables.com/FU5/FKGR/LAPDFJGY/FU5FKGRLAPDFJGY.jpg&filename=1668964300215.jpg)
![1668964300196.jpg](/proxy/?url=https://content.instructables.com/F1Z/O0N8/LAPDFJGX/F1ZO0N8LAPDFJGX.jpg&filename=1668964300196.jpg)

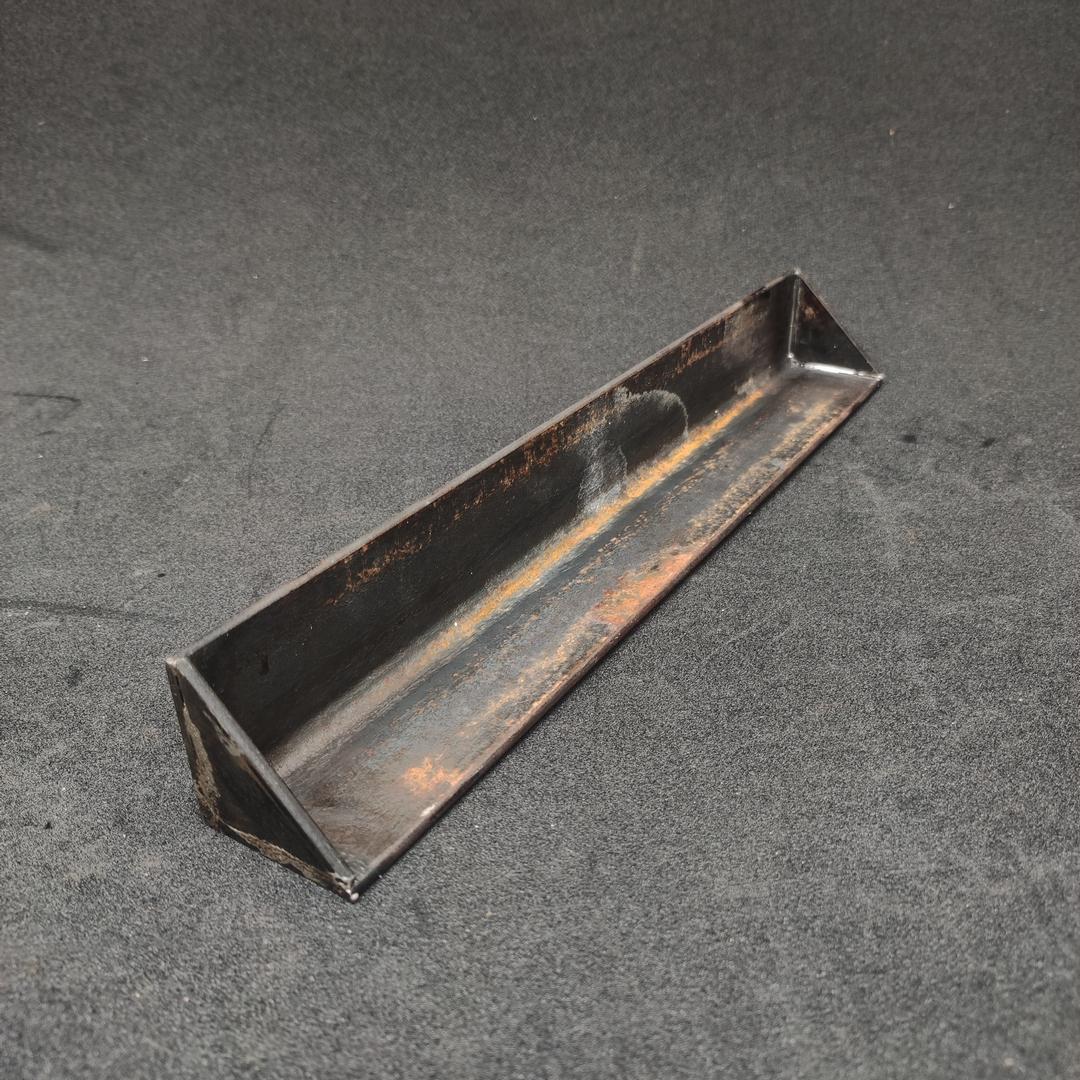

Here it is only necessary to cover the ends of the angle and make a few holes to guide the cable and to rivete the anchor points.

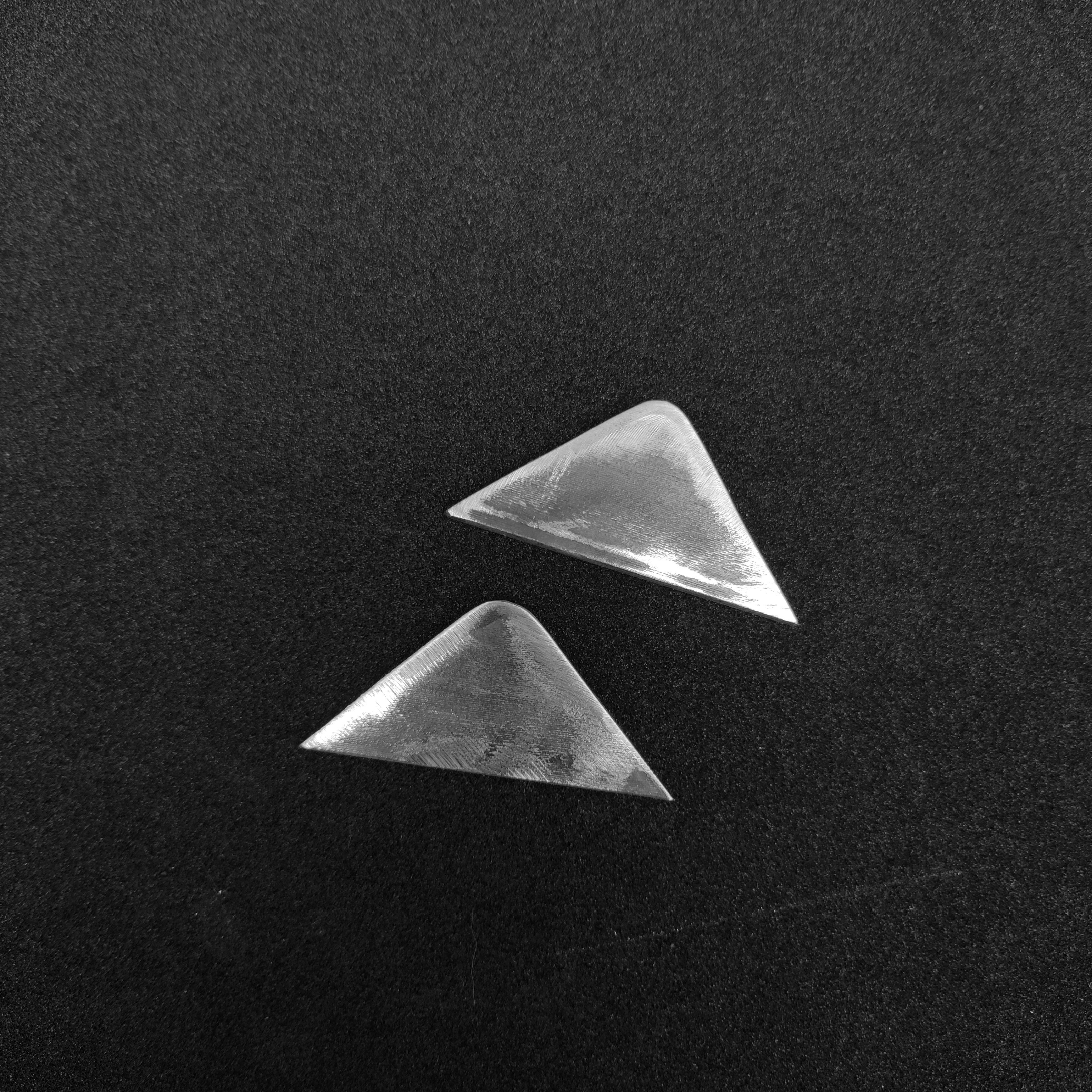

For this I cut two small triangles from a plate with the internal measure of the angle, then on the stove I joined them using tin.
Lampshade 2
![1668964300140.jpg](/proxy/?url=https://content.instructables.com/FX6/9T4N/LAPDFJGV/FX69T4NLAPDFJGV.jpg&filename=1668964300140.jpg)
![1668989279008.jpg](/proxy/?url=https://content.instructables.com/FD2/RU3I/LAPDFRUD/FD2RU3ILAPDFRUD.jpg&filename=1668989279008.jpg)
![1669165497933.jpg](/proxy/?url=https://content.instructables.com/F7D/AZVL/LAS8AOC5/F7DAZVLLAS8AOC5.jpg&filename=1669165497933.jpg)
![1669165497922.jpg](/proxy/?url=https://content.instructables.com/FN7/AQ5N/LAS8AOC6/FN7AQ5NLAS8AOC6.jpg&filename=1669165497922.jpg)

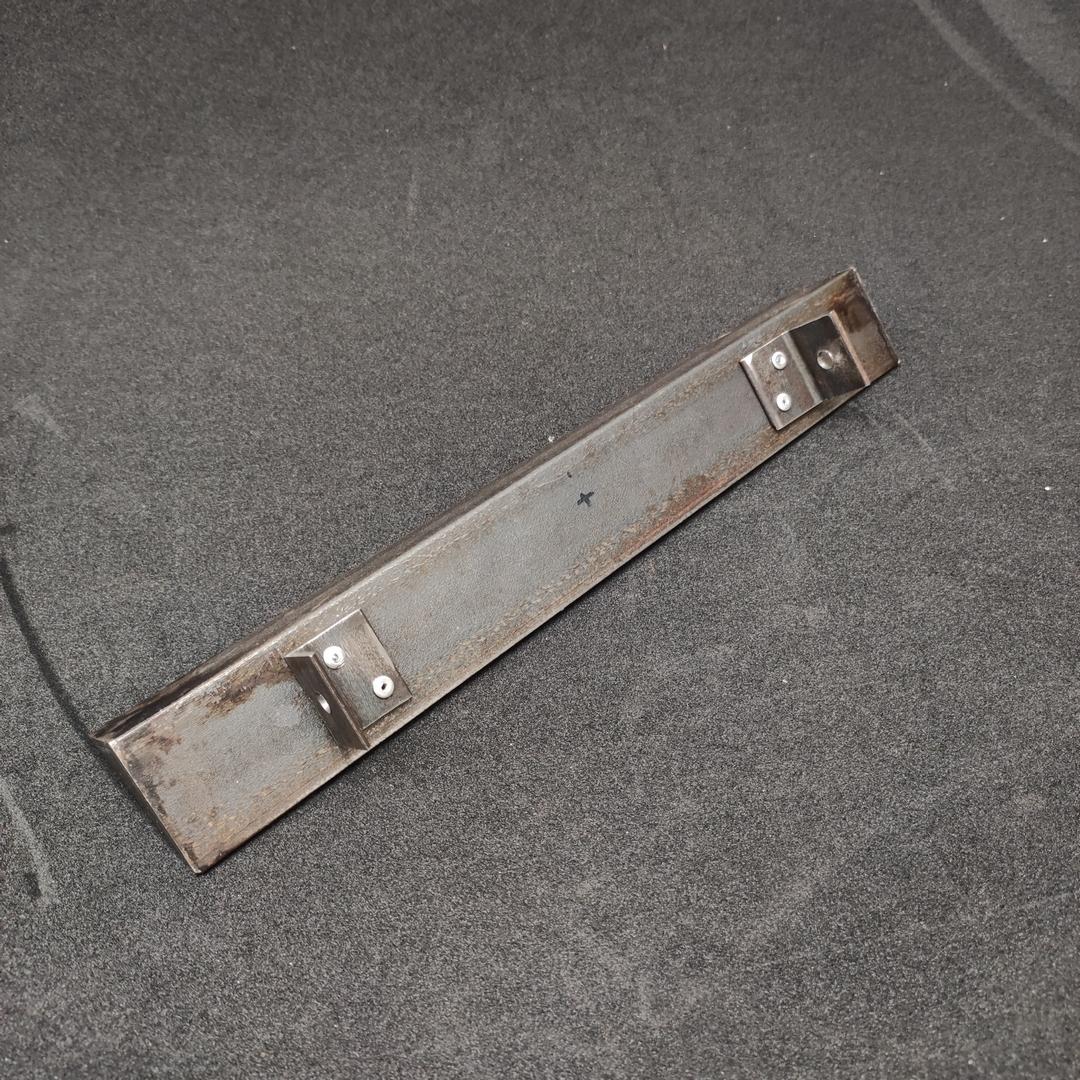

Now I joined the two 1" angles with rivets, previously I made a 1/4" hole for each one, which is where it will be joined with the arms.
I added a hole in the center to guide the power cable and painted the entire interior with a light color, so the light will reflect better. To test I placed the led strip temporarily (I wanted to place a longer one but only had that one available)

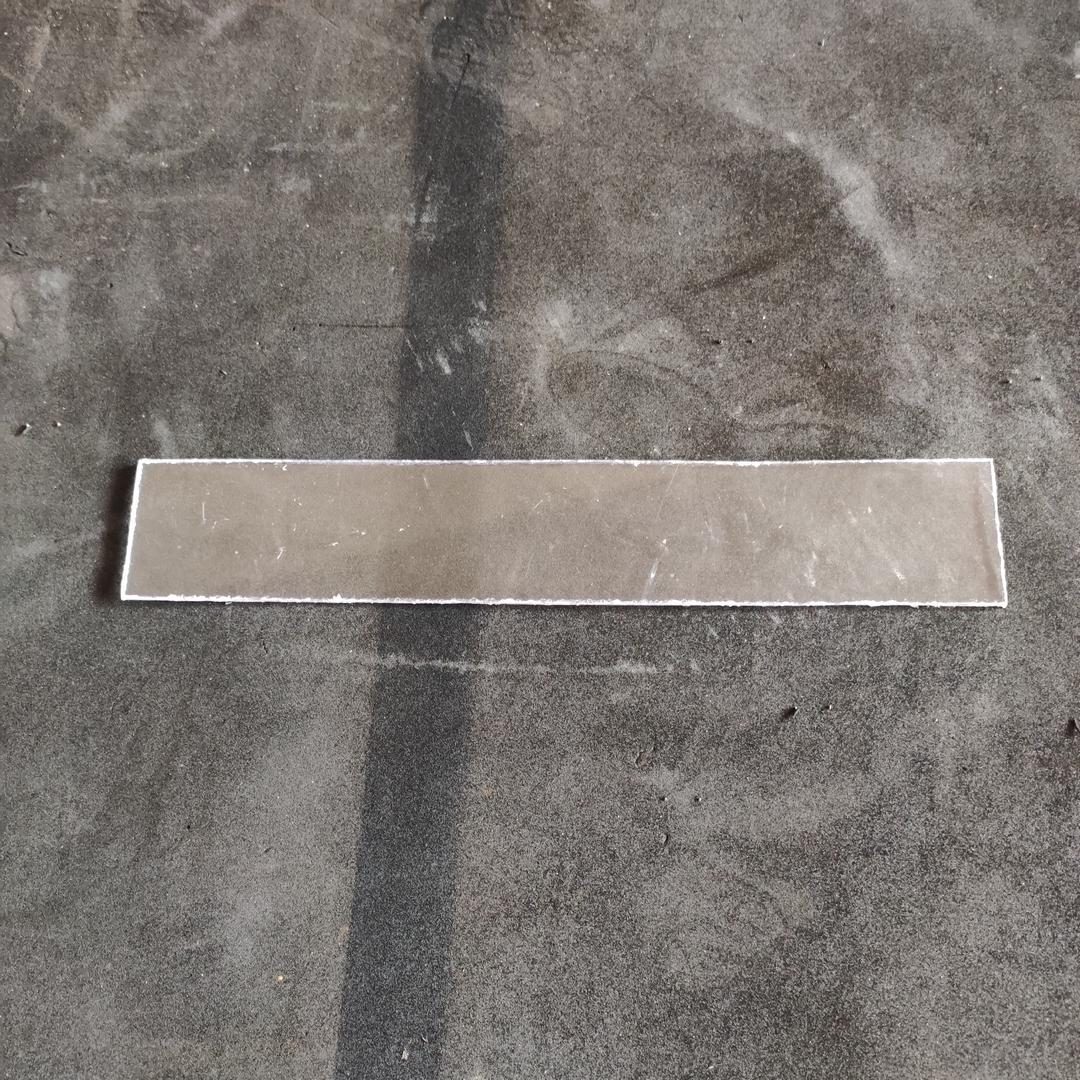

For the light diffuser screen I used a piece of acrylic, I just sanded it to dull it
First Joint
![D-50.jpg](/proxy/?url=https://content.instructables.com/F78/M66I/LAPDFRTG/F78M66ILAPDFRTG.jpg&filename=D-50.jpg)
![E-50.jpg](/proxy/?url=https://content.instructables.com/FJI/ZO6G/LAPDFRTH/FJIZO6GLAPDFRTH.jpg&filename=E-50.jpg)

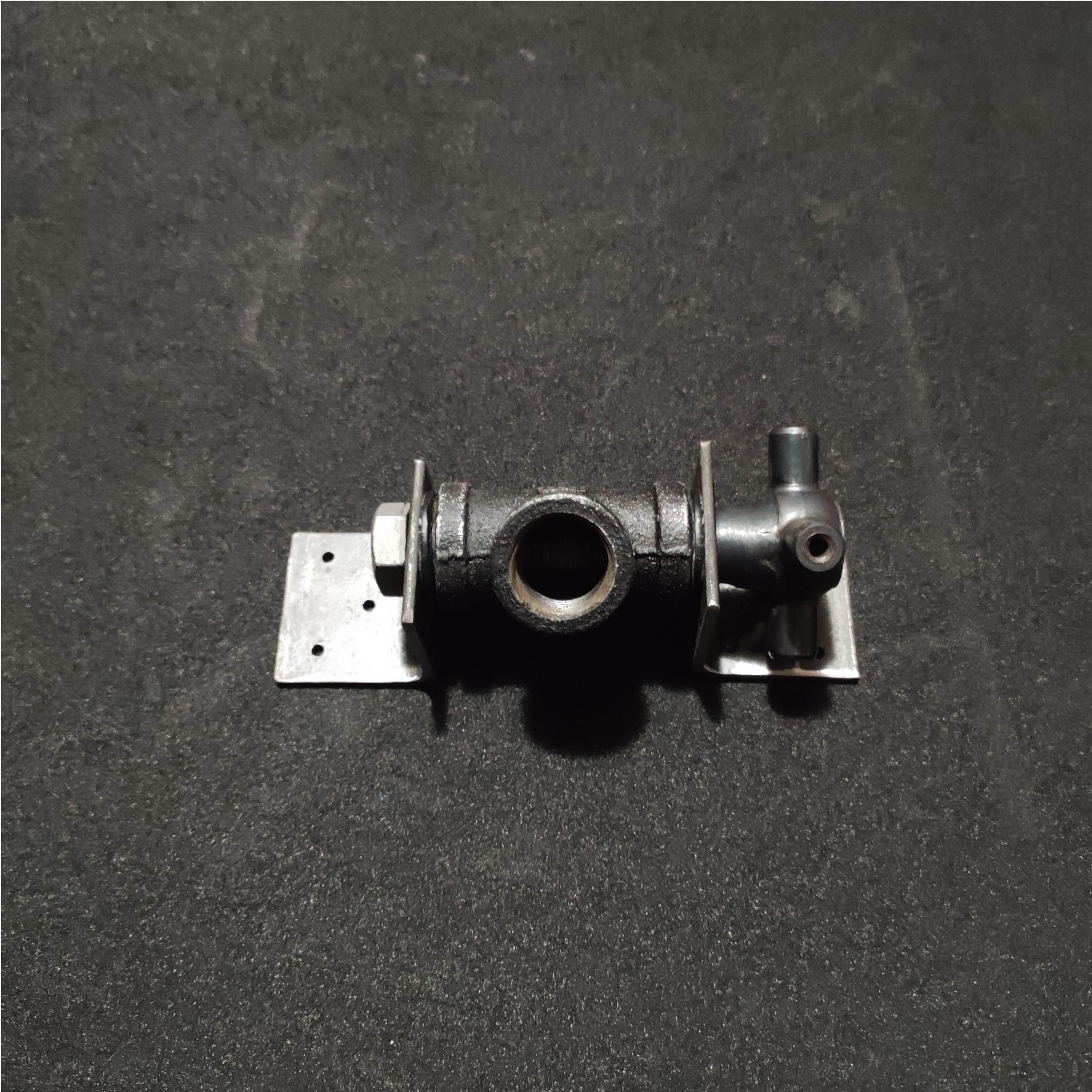

These are the parts that make up the first joint.
To the Wall
![1669075670877.jpg](/proxy/?url=https://content.instructables.com/FZG/BSAT/LAS8AOC8/FZGBSATLAS8AOC8.jpg&filename=1669075670877.jpg)

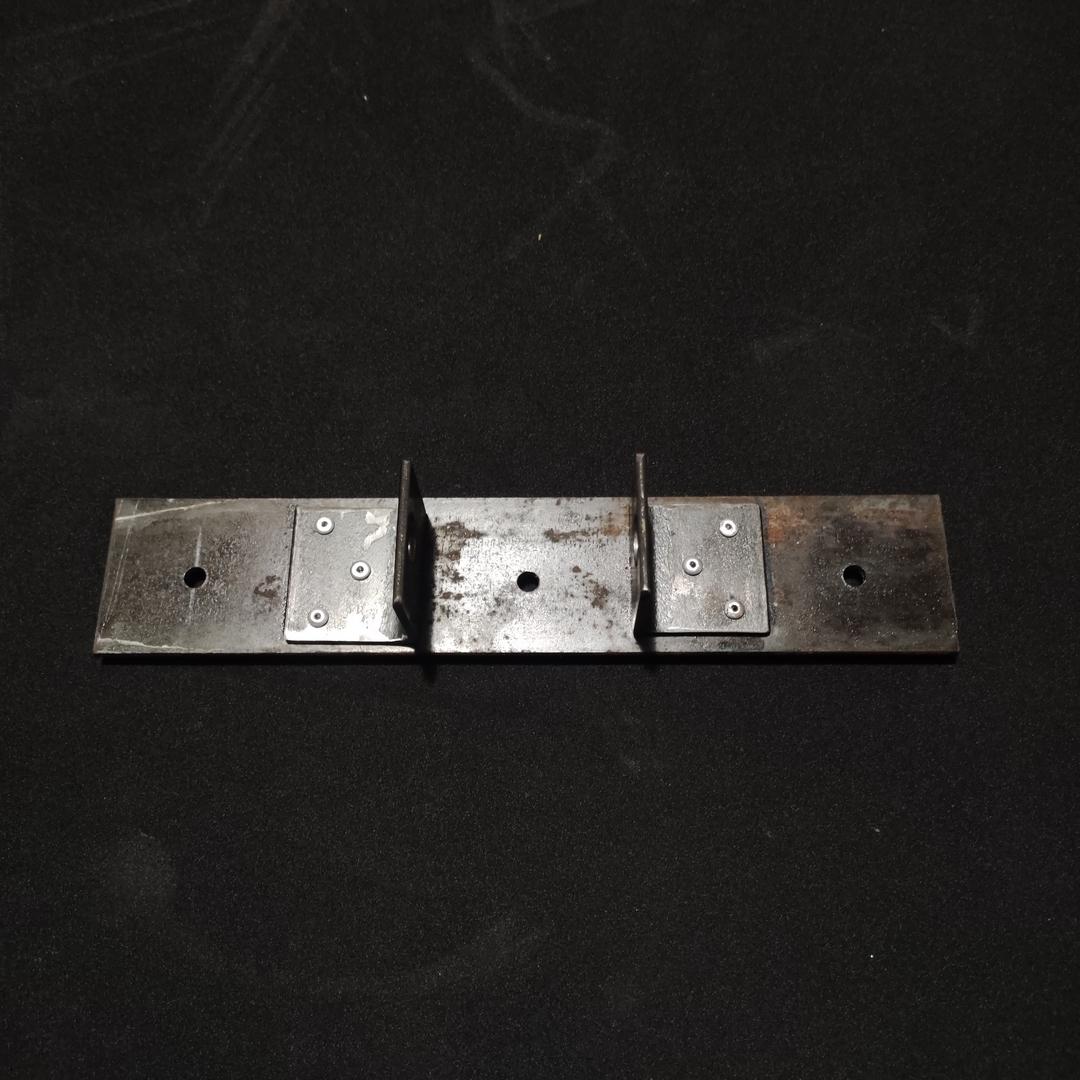

With screws and a plate I made a base to rivete the angles and leave the union very solid.

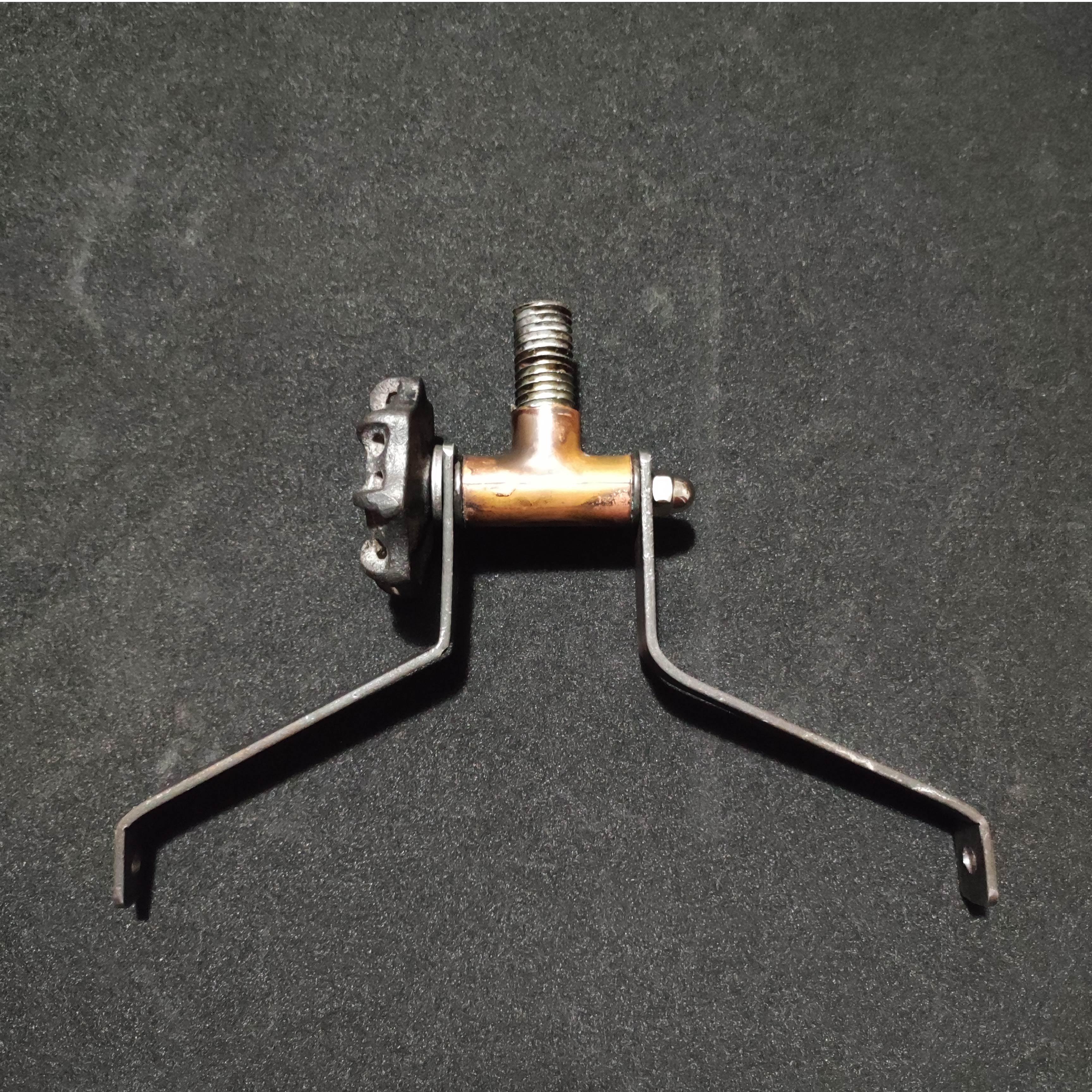

Neck and Arms

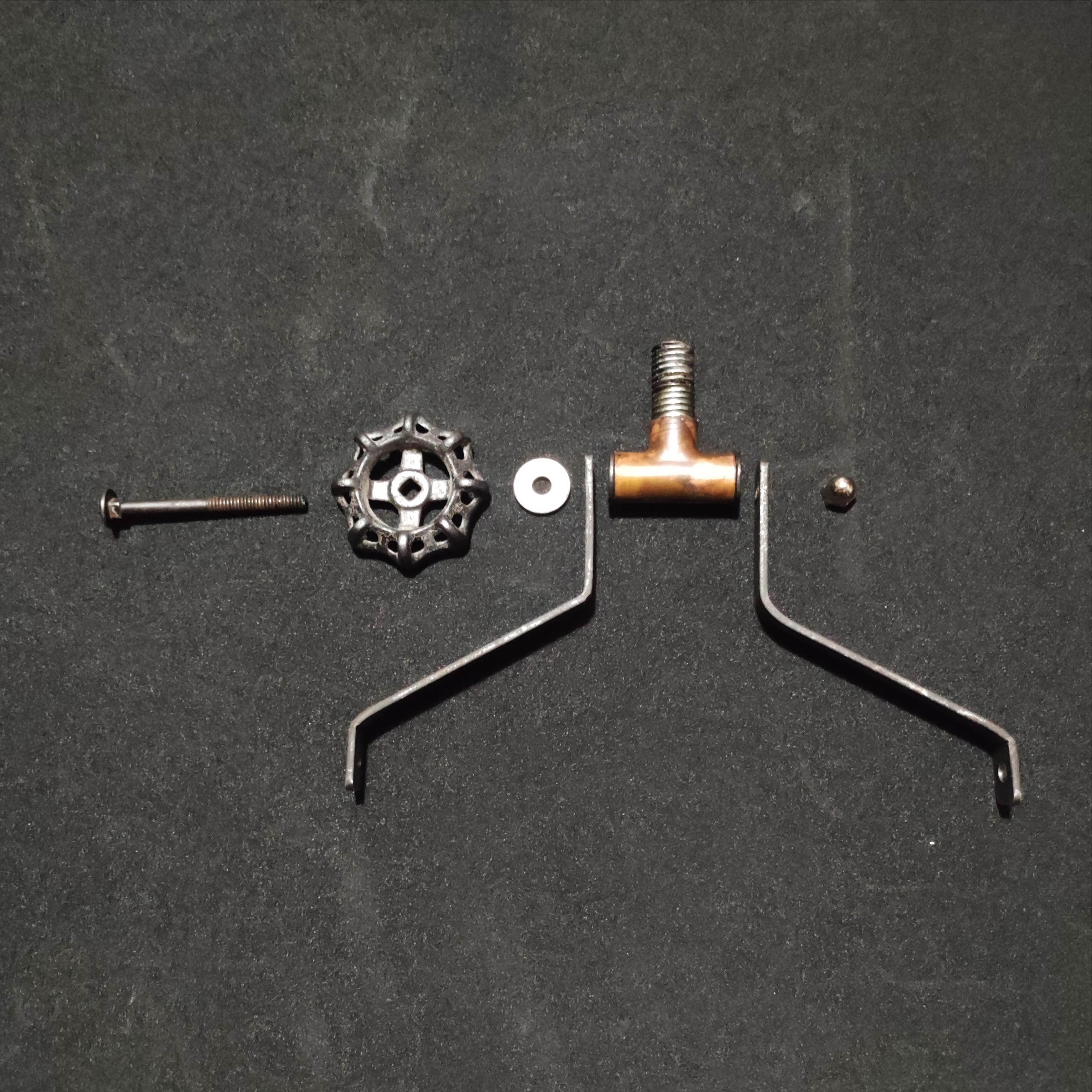

![B-50.jpg](/proxy/?url=https://content.instructables.com/FZ6/L0PV/LAPDFRTF/FZ6L0PVLAPDFRTF.jpg&filename=B-50.jpg)
![F-50.jpg](/proxy/?url=https://content.instructables.com/F68/FPZA/LAPDFRTD/F68FPZALAPDFRTD.jpg&filename=F-50.jpg)
![A-50.jpg](/proxy/?url=https://content.instructables.com/FBJ/CP32/LAPDFRTE/FBJCP32LAPDFRTE.jpg&filename=A-50.jpg)
The neck is formed by the 1/2 pipe, which has two holes, one with a thread that will serve as a lock for the second joint and another to guide the cable internally.
I attached the copper tee to the threaded rod with tin, and it will lock inside the pipe with the 1/4 screw.
All the Pieces
![IMG_20221121_190407-01.jpeg](/proxy/?url=https://content.instructables.com/FQD/LXS5/LAS8AOC7/FQDLXS5LAS8AOC7.jpg&filename=IMG_20221121_190407-01.jpeg)

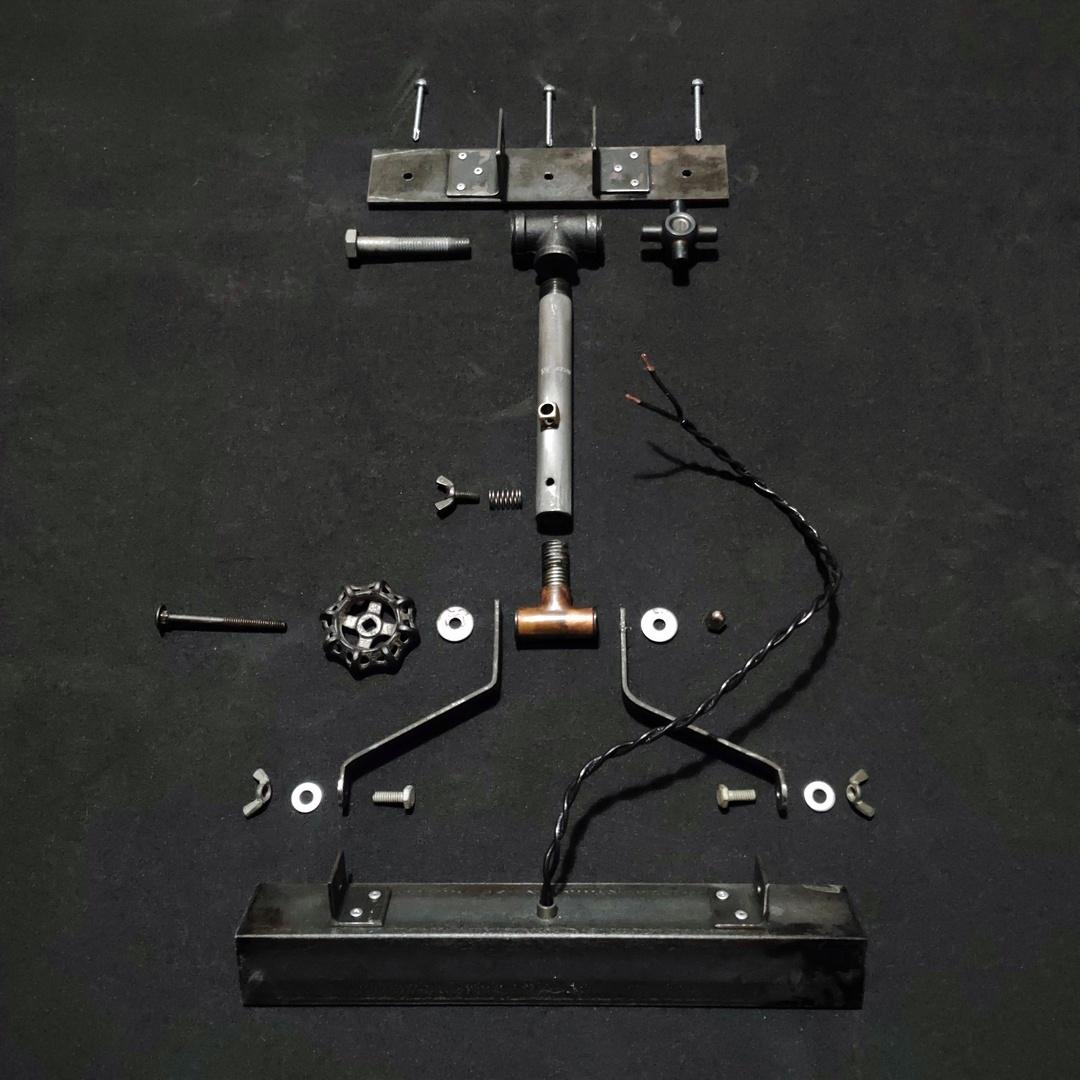

And those are all the pieces ready to be assembled.
Finished!
![71t9ln.gif](/proxy/?url=https://content.instructables.com/FKM/KDDF/LAS8AOND/FKMKDDFLAS8AOND.gif&filename=71t9ln.gif)

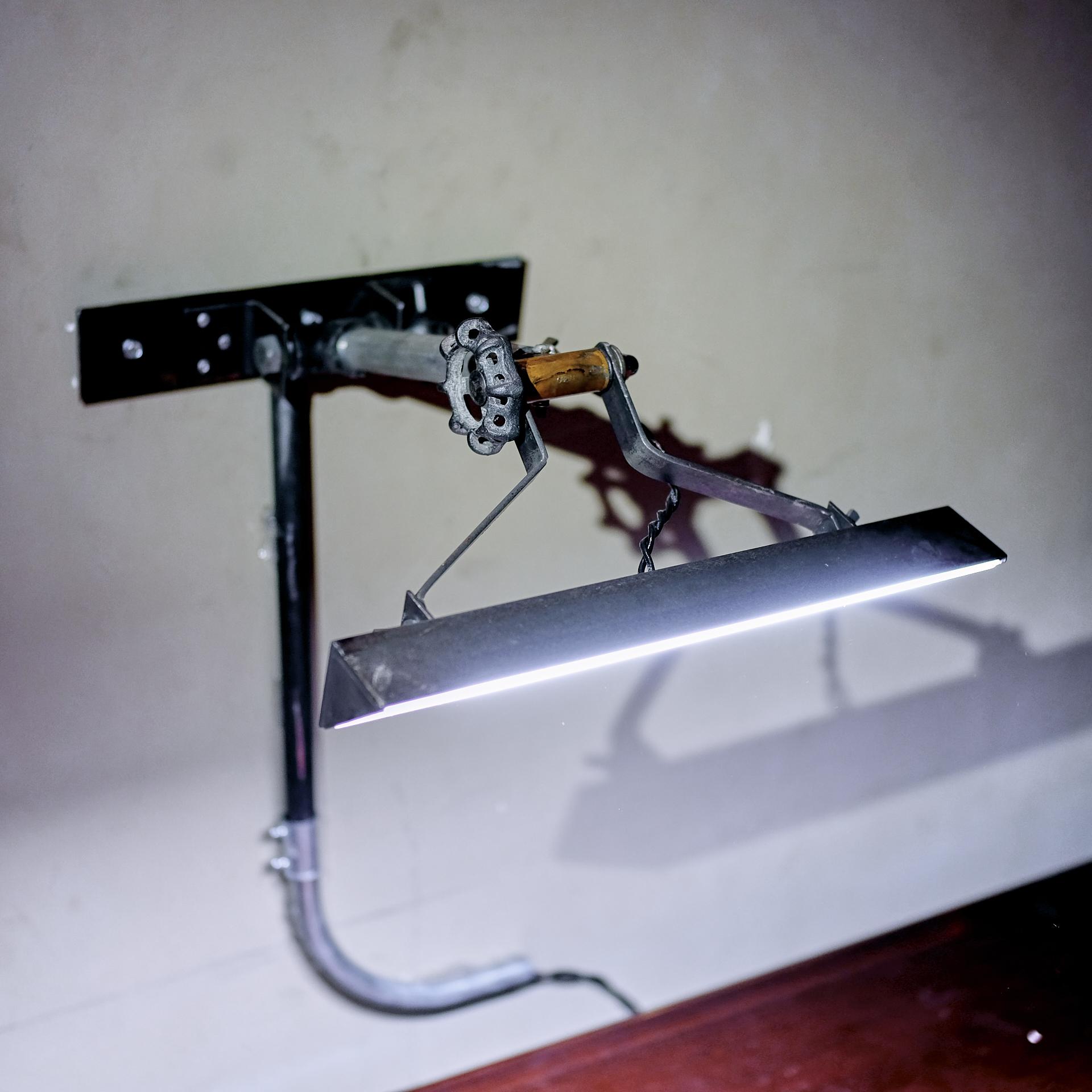

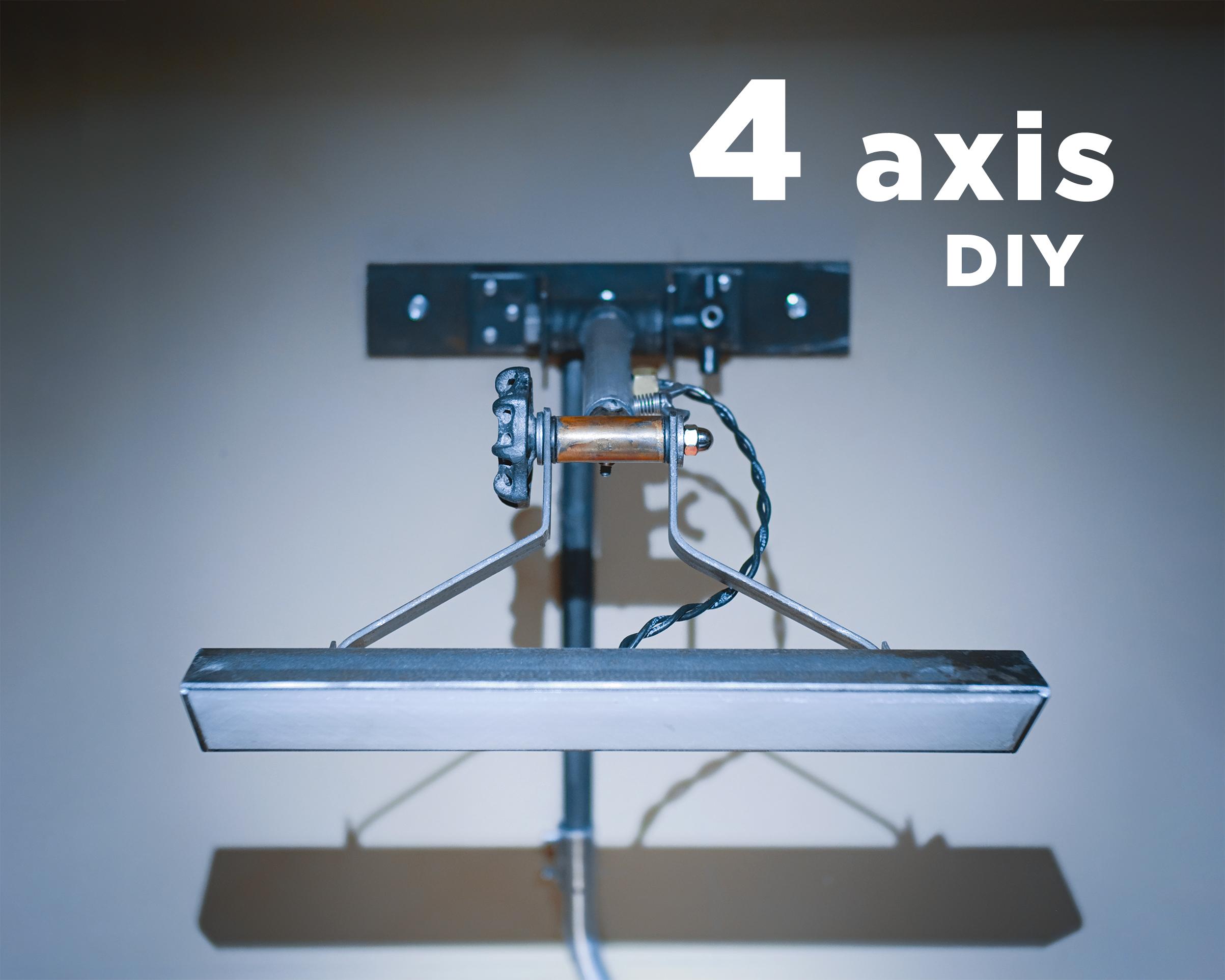

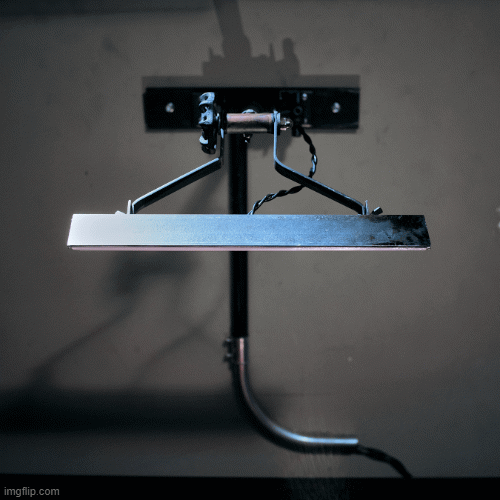

Now it is assembled and working, now with these 4 axis I can illuminate my entire work area.
I had this project in my head and I finally finished it!
Thanks for watching! :)
