Indoor Boomerang
I teach a class called "Make and Throw a Boomerang in One Hour." Actually you make three boomerangs in this class:
1. A light weight indoor boomerang to learn the basics.
2. A heavy cardboard one that flies outdoors in a light wind
3. A boomerang made from heavy polystyrene foam that flies in light to moderate breezes.
All three use the same template. This instructable is for the indoor model.
1. A light weight indoor boomerang to learn the basics.
2. A heavy cardboard one that flies outdoors in a light wind
3. A boomerang made from heavy polystyrene foam that flies in light to moderate breezes.
All three use the same template. This instructable is for the indoor model.
Template
1. Download this template
2. Cut it out
3. Trace around it onto a piece of cardboard. Cereal boxes work well as does the poster board.
2. Cut it out
3. Trace around it onto a piece of cardboard. Cereal boxes work well as does the poster board.
Downloads

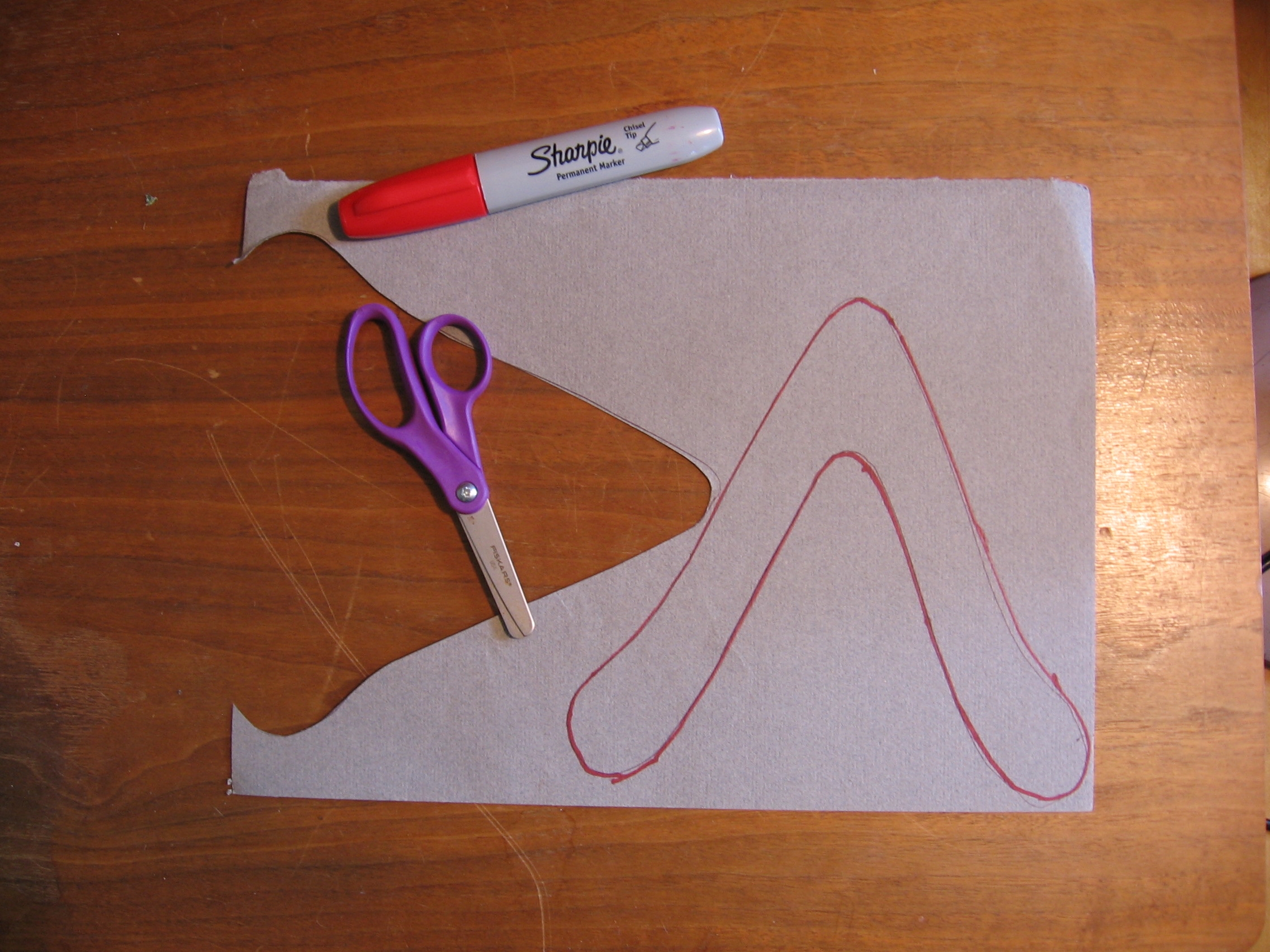

Start Cutting
Ready to cut

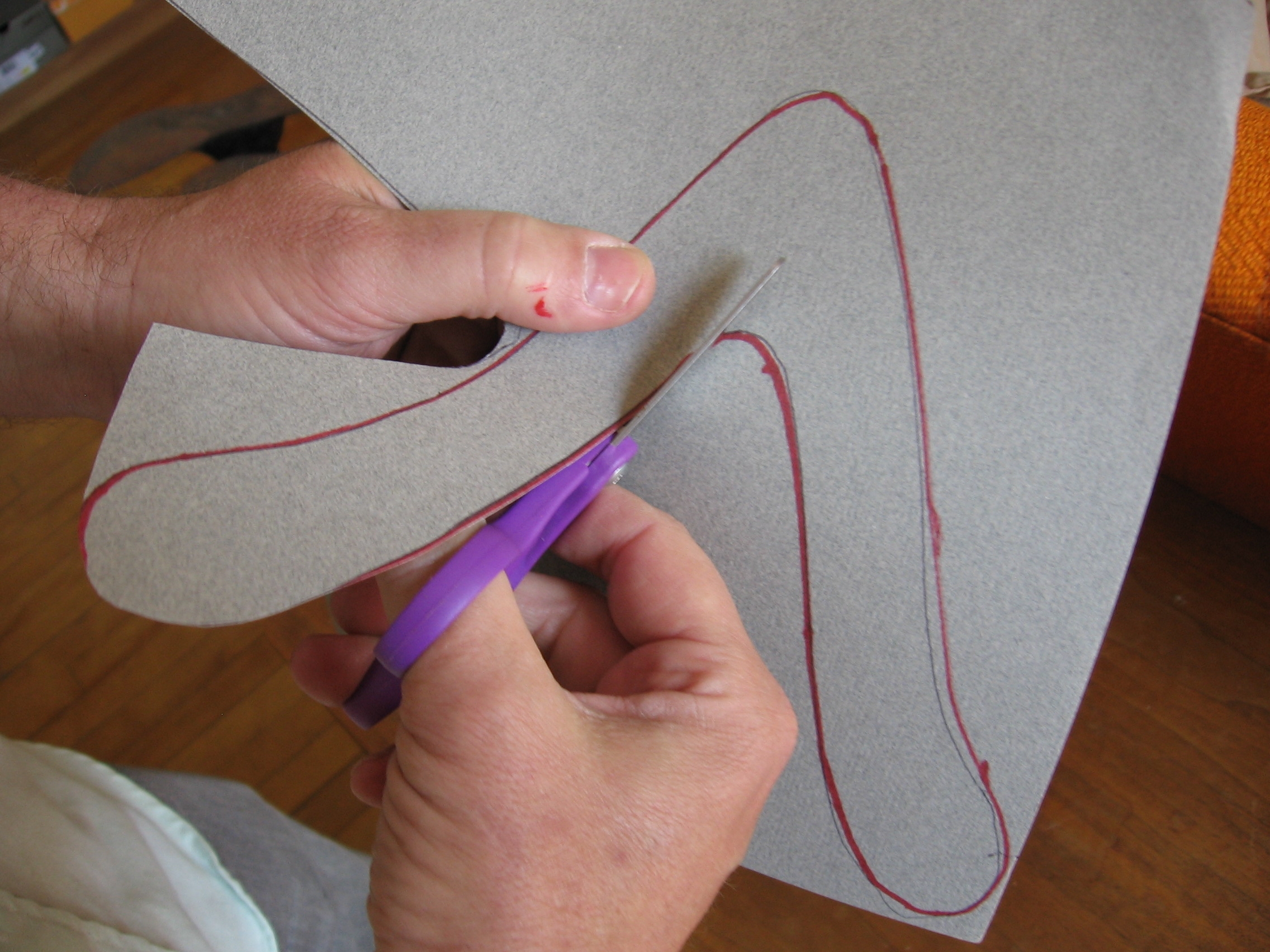

Cut, Cut, Cut
The card board can bend a bit as you cut as long as you don't overdo it and put a heavy crease in it.
Camber the Leading Edge
Boomerangs use aerodynamic lift (among other things) to help it fly and return. This is a "right handed" boomerang, pinch and bend along the "leading wing" as shown below.
Camber Trailing Wing
Pinch and bend the trailing wing.
Tuning
This part can be tricky but typically both wings need to be bent up just a little bit

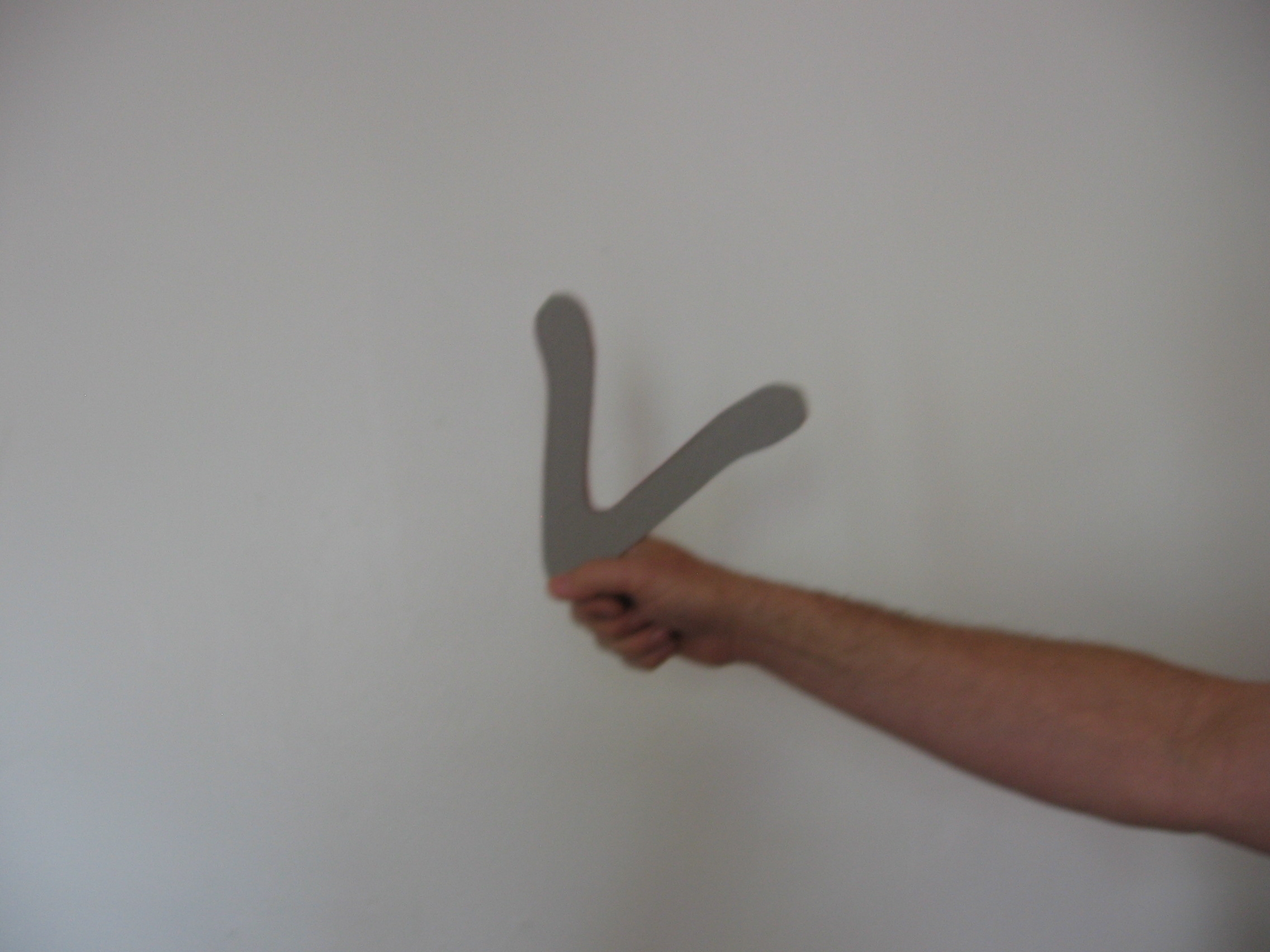

Throwing
Throwing is just like a real boomerang.
Safety First:
1. Do not throw at anybody. Yes this is cardboard but NOT practicing dangerous behavior can be a useful process.
2. D0 not throw it like a frisbee. It tends to make a rapid ascent and and even more rapid descent in most instances with little predictability. Again not super dangerous with cardboard but . . .
Throwing:
1. The grip is a light clasping between the thumb and knuckle/first joint of the index finger.
2. The throw is like snapping a whip. You don't need to "twist your wrist" to make it come back.
Youtube helps as always:
http://www.youtube.com/watch?v=WTjl6zUnh8Y
http://www.youtube.com/watch?v=3Z6x2yYfGlw
These youtube videos are for outdoor but very good:
http://www.youtube.com/watch?v=JC61CtcYSGI
http://www.youtube.com/watch?v=a4ihRxoeaPk
Safety First:
1. Do not throw at anybody. Yes this is cardboard but NOT practicing dangerous behavior can be a useful process.
2. D0 not throw it like a frisbee. It tends to make a rapid ascent and and even more rapid descent in most instances with little predictability. Again not super dangerous with cardboard but . . .
Throwing:
1. The grip is a light clasping between the thumb and knuckle/first joint of the index finger.
2. The throw is like snapping a whip. You don't need to "twist your wrist" to make it come back.
Youtube helps as always:
http://www.youtube.com/watch?v=WTjl6zUnh8Y
http://www.youtube.com/watch?v=3Z6x2yYfGlw
These youtube videos are for outdoor but very good:
http://www.youtube.com/watch?v=JC61CtcYSGI
http://www.youtube.com/watch?v=a4ihRxoeaPk
