Incredible Soda Bottle Pontoon Boat
by deceiver in Outside > Boats
289558 Views, 403 Favorites, 0 Comments
Incredible Soda Bottle Pontoon Boat
FOURTH UPDATE: The Incredible Soda Bottle Pontoon Boat is gone, no more, nada. It's at the dump in pieces or recycled. Watch for a new build in the spring. Sleeker, lighter, svelter, cooler. Drawing on what I've learned.
THIRD UPDATE: So, the boat has as of this writing been in the water for 7 years. It's never been pulled out just beached and left outside in winter. I noticed a few pieces of plywood coming loose and the batteries are nearing end of useful life. When you deep charge/discharge marine batteries over and over they eventually lose their ability to hold a full charge.
The third picture you see below is ugly. It's the final pictures before total and complete dismantling of the Incredible Soda Bottle Pontoon Boat. In the spring I'll start again. this one will be different. Basically sleaker, lighter, faster. and simpler. I consider the first one a prototype. I learned a lot and I found out what works and what doesn't. I had lots of fun and many, many pleasant hours cruising, fishing, and fielding questions from people on lake from the banking and from boats.
This is the end of the ISBPB. Tomorrow it's a date with the sledgehammer.
SECOND UPDATE: I have had problems with burning out switches with the high current. I have recently installed 4 automobile solenoids. Wired properly they act like a DPDT switch. I have one small three position toggle switch for a control now. Forward-off-reverse. I might have to replace two of them with continuous duty solenoids though I don't know how long the intemittent ones will hold up going long periods in forward. I'll post pictures of the set-up when I get the chance.
UPDATE PARAGRAPH: Below is the barge, as it's called now, 4 years later. The one without the canopy is the original launched picture. The canopy is a rather expensive but impervious to weather material called 'sunbrulla'. The pipes are galvanized 1" electrical conduit. Other changes: the seats didn't weather well so they were covered with latex sheeting. An American flag and holder, Oh, and a new pier I welded up.
I made a soda bottle raft a few years ago. It was just 940 two liter bottles enclosed on all sides with a deck. Later on I decided to make a pontoon boat. A sort of movable raft or barge out of soda bottles and materials from Home Depot. When I'm making a boat suddenly all stores carry boat making materials. It's fun to improvise with what's available.
The boat is basically wood pontoons with 2400 soda bottles filling them. It's electric and has become a wonderful place to spend an afternoon to glide silently on the water or to fish. It's big, 20' by 12' and heavy, I'd estimate about a ton. but it moves nicely even in a stiff wind, rolls with waves but doesn't overly rock, and is highly maneuverable. It just isn't very fast but here in Maine that the way we like it. A BBQ grill, a tall Moxie, a fishing pole and you've got it made on the water on the incredible soda bottle pontoon boat (alias the Pahty bahge). You need to pronounce that with a Maine accent,no R's allowed.
THIRD UPDATE: So, the boat has as of this writing been in the water for 7 years. It's never been pulled out just beached and left outside in winter. I noticed a few pieces of plywood coming loose and the batteries are nearing end of useful life. When you deep charge/discharge marine batteries over and over they eventually lose their ability to hold a full charge.
The third picture you see below is ugly. It's the final pictures before total and complete dismantling of the Incredible Soda Bottle Pontoon Boat. In the spring I'll start again. this one will be different. Basically sleaker, lighter, faster. and simpler. I consider the first one a prototype. I learned a lot and I found out what works and what doesn't. I had lots of fun and many, many pleasant hours cruising, fishing, and fielding questions from people on lake from the banking and from boats.
This is the end of the ISBPB. Tomorrow it's a date with the sledgehammer.
SECOND UPDATE: I have had problems with burning out switches with the high current. I have recently installed 4 automobile solenoids. Wired properly they act like a DPDT switch. I have one small three position toggle switch for a control now. Forward-off-reverse. I might have to replace two of them with continuous duty solenoids though I don't know how long the intemittent ones will hold up going long periods in forward. I'll post pictures of the set-up when I get the chance.
UPDATE PARAGRAPH: Below is the barge, as it's called now, 4 years later. The one without the canopy is the original launched picture. The canopy is a rather expensive but impervious to weather material called 'sunbrulla'. The pipes are galvanized 1" electrical conduit. Other changes: the seats didn't weather well so they were covered with latex sheeting. An American flag and holder, Oh, and a new pier I welded up.
I made a soda bottle raft a few years ago. It was just 940 two liter bottles enclosed on all sides with a deck. Later on I decided to make a pontoon boat. A sort of movable raft or barge out of soda bottles and materials from Home Depot. When I'm making a boat suddenly all stores carry boat making materials. It's fun to improvise with what's available.
The boat is basically wood pontoons with 2400 soda bottles filling them. It's electric and has become a wonderful place to spend an afternoon to glide silently on the water or to fish. It's big, 20' by 12' and heavy, I'd estimate about a ton. but it moves nicely even in a stiff wind, rolls with waves but doesn't overly rock, and is highly maneuverable. It just isn't very fast but here in Maine that the way we like it. A BBQ grill, a tall Moxie, a fishing pole and you've got it made on the water on the incredible soda bottle pontoon boat (alias the Pahty bahge). You need to pronounce that with a Maine accent,no R's allowed.

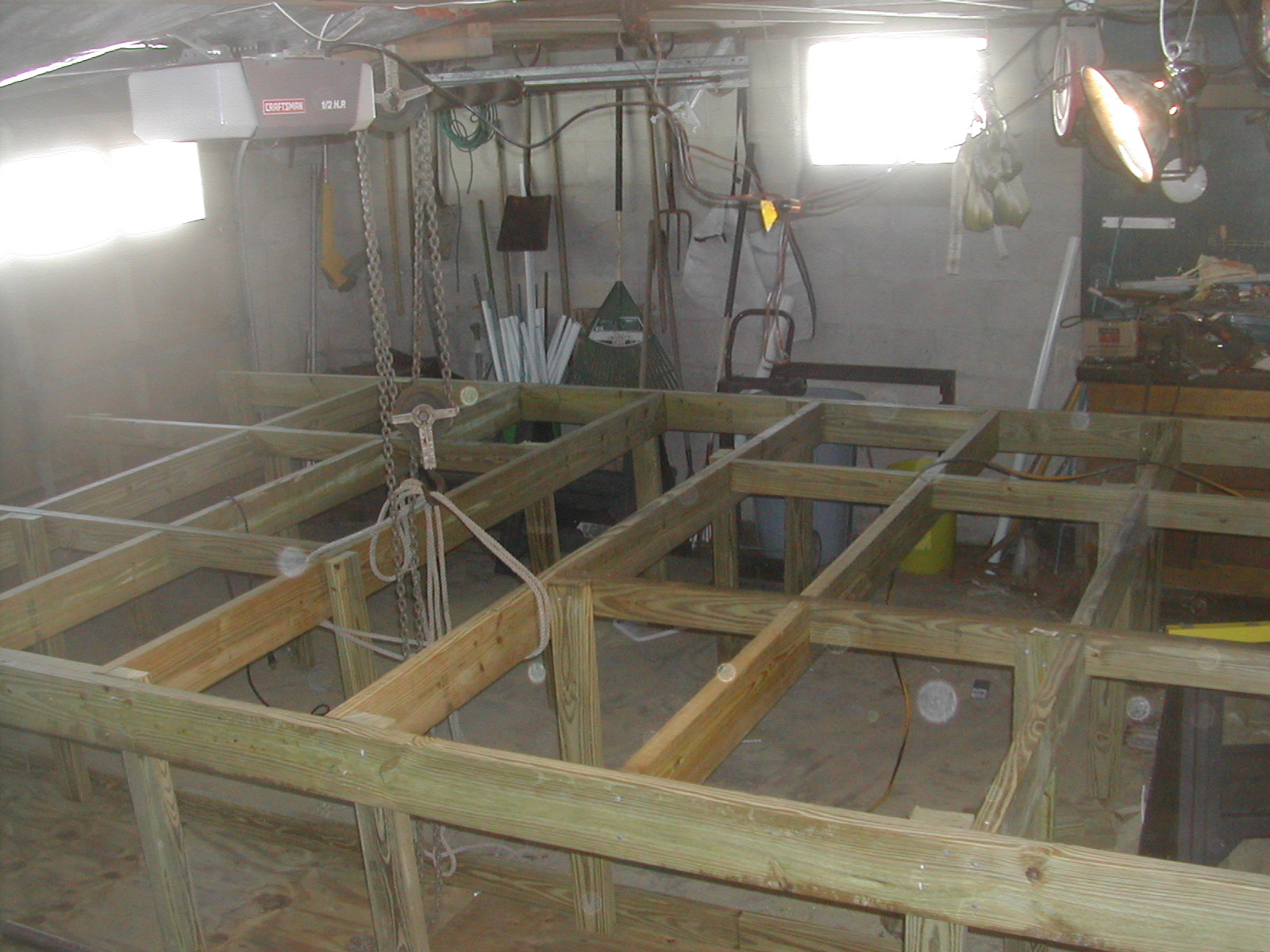

Framing It Up
Materials are mostly from Home Depot. Pressure treated lumber is used for the skeleton. and yes, most of it is the non toxic kind. I don't know if it will stand up in the water as well as the old stuff used to though.

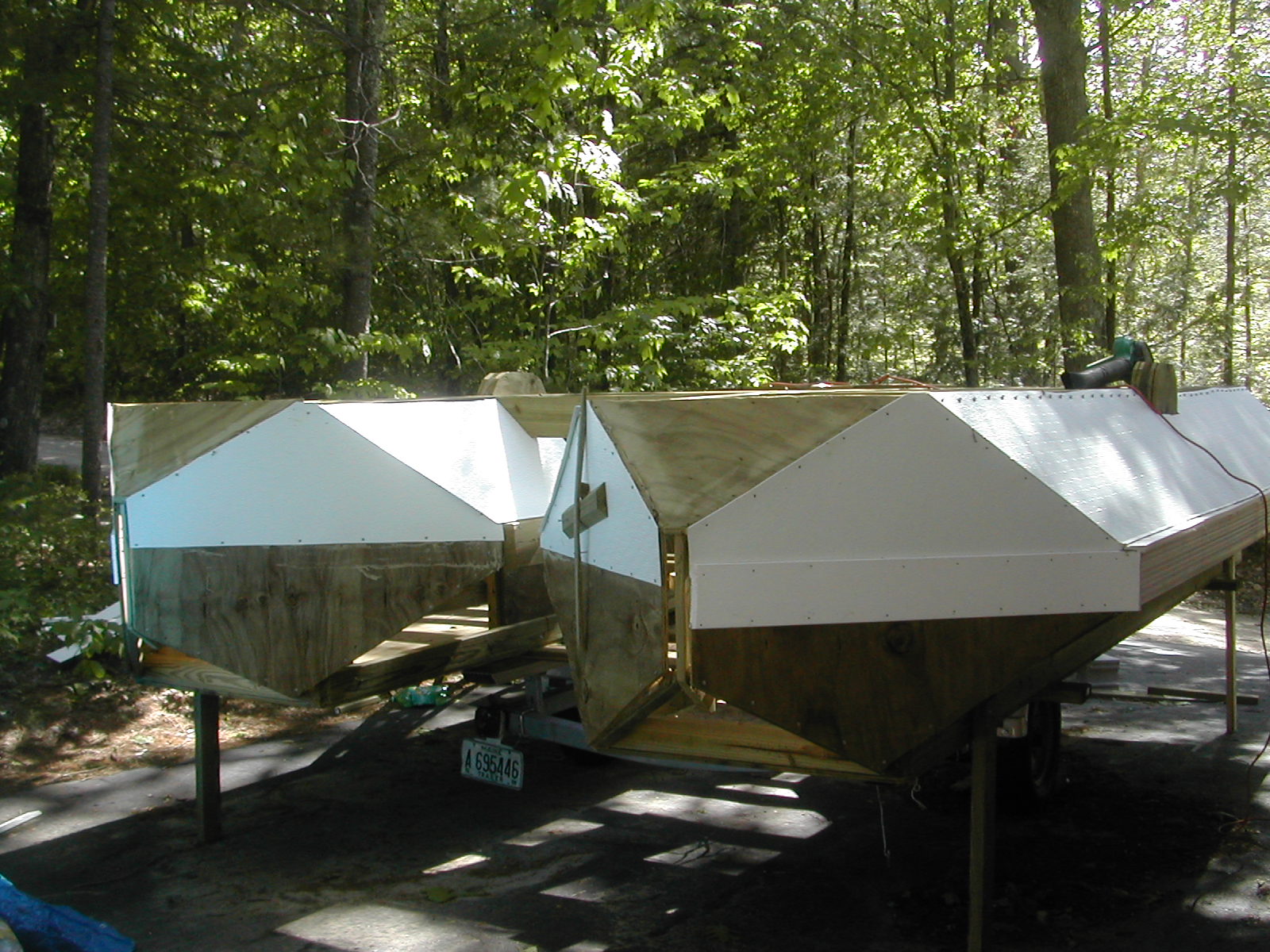

Floatilla
About 2400 soda bottles in two wood pontoons float this beast. I tried to do some buoyancy calculations by estimating final mass and volume. And I predicted that it would float about 50 percent of the boat below the surface. I was right.
Finish Work and the Seat
I knew I couldn't make it look like a new pontoon boat with that plastic and cushy look so I went instead for the Jules Verne look.

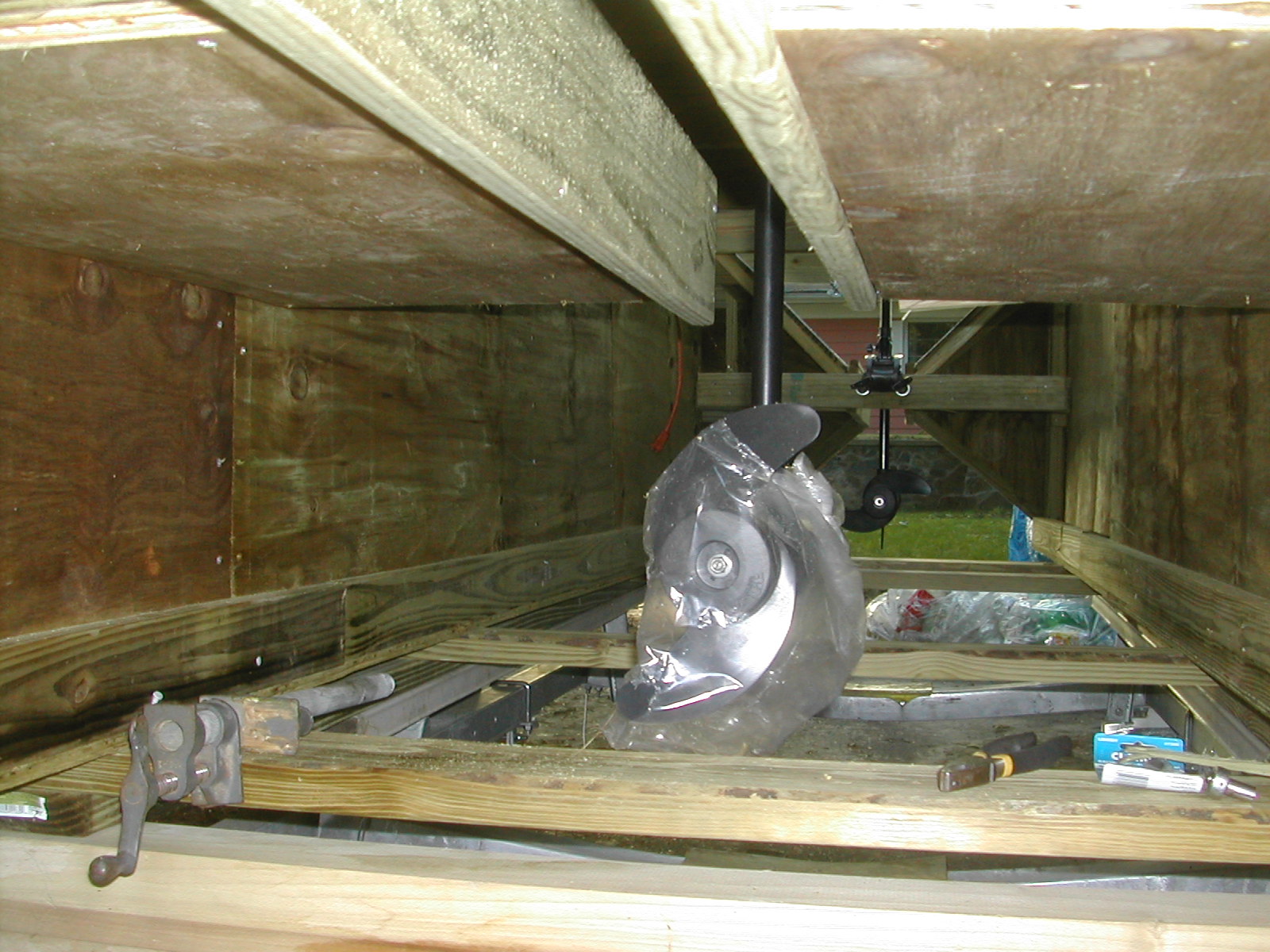

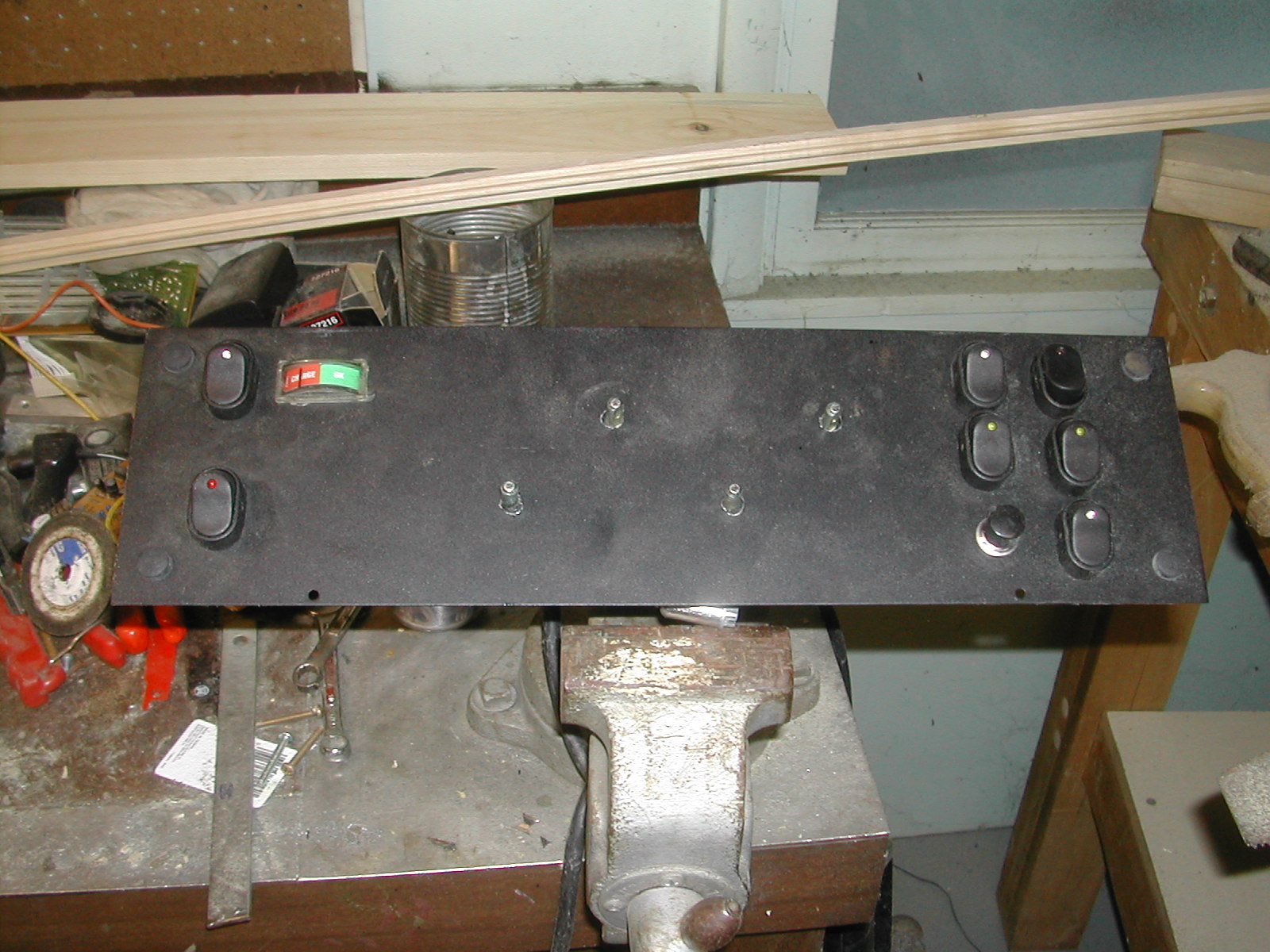

Propulsion and Electrical
See the picture descriptions for more information. The boat runs (slowly, about 5 mph) using Four modified trolling motors made by Minn Kota.

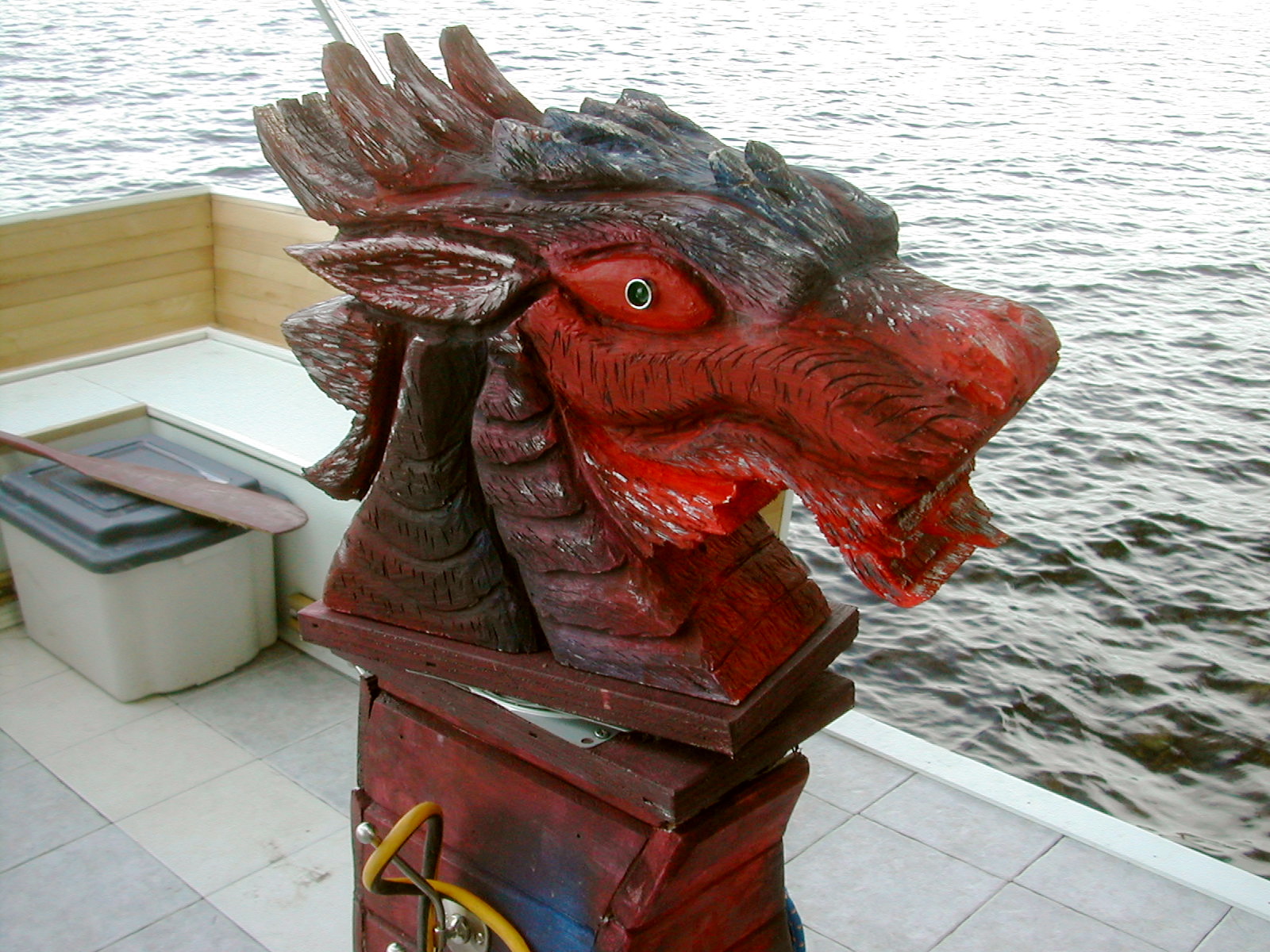

Figure Head
A carved dragon's head turns in the direction you're steering. It also has two LED lights for Eyes, one green and one red as required for night riding.
A Few Conveniences
Joyce is my wife BTW. And a ladder is needed after a cool swim and of course an anchor so you can swim and not get stranded.
Launched and Doing Fine
We launched it at night as to not draw too much attention at the boat landing. Evening rides are nice and serene. No noise besides the gentle rippling of the water that is pushed aside by the boat as it glides along. And, it's great for fishing too.
