Improvement for 3D Printed Rope Maker by B33ma247

Improvement for 3D Printed Rope Maker By b33ma247:

https://www.instructables.com/3D-Printed-Rope-Make...

Materials Needed:

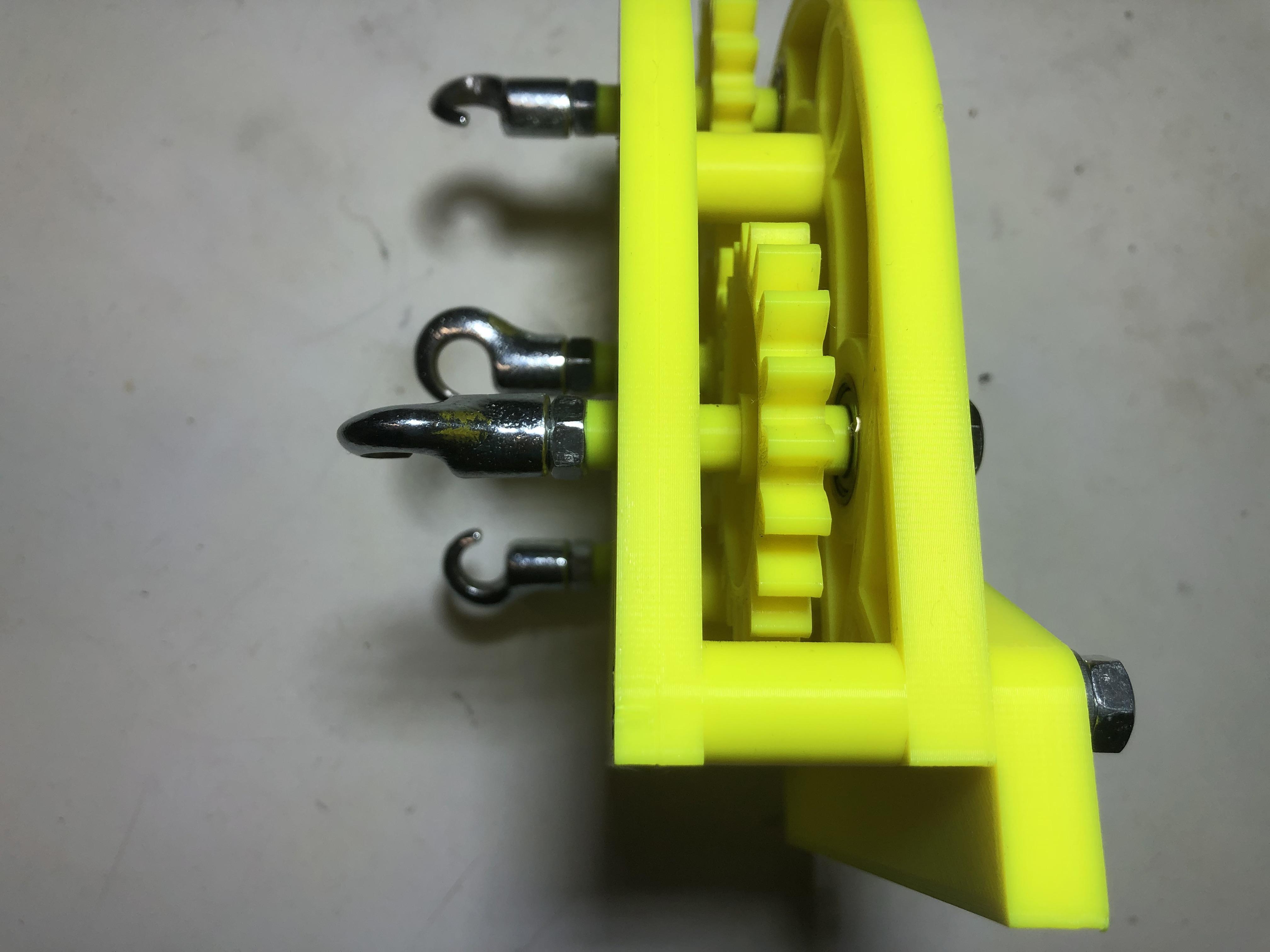

For 3 axes wiht hooks (I put another hook into central axis):

1. 4x Hex Bolts M6x60 mm
2. 4x M6 Nuts
3. 4x Hooks M6 (for example https://www.rationalstock.es/catalogo/producto/fi...
4. 16x Spacer for hook axe by angellopsa
5. 1x RopeMaker_Cogsx4 By b33ma247 (it include 4 units to print)
6. 8x 606ZZ Bearings

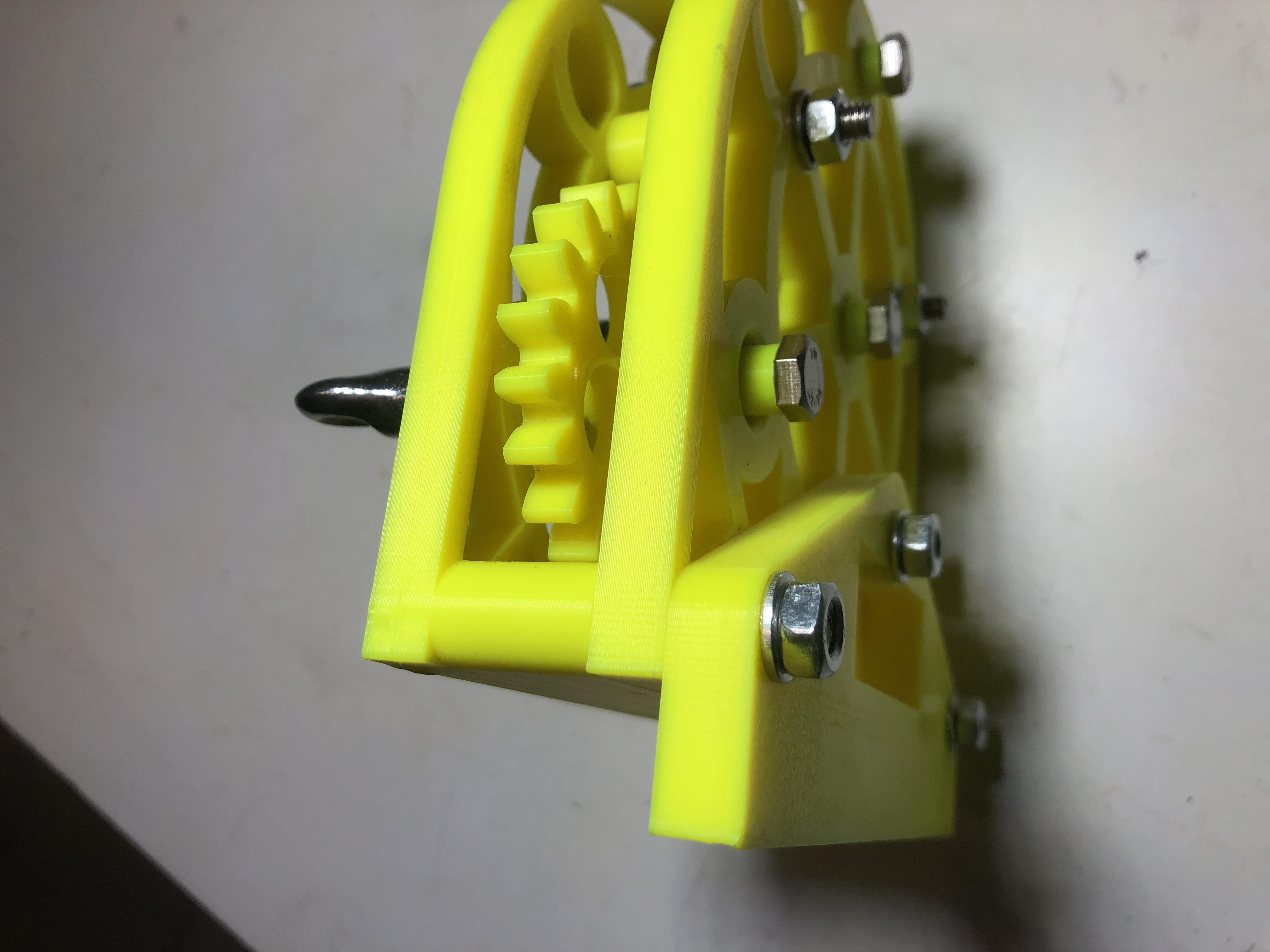

For hooks assembly:

1. 1x RopeMaker_Front_Plate(1) by b33ma247
2. 1x RopeMaker_Back_Plate by b33ma247
3. 1x RopeMaker_Front_Plate_border by angellopsa
4. 2x Hex Bolts M6x45 mm
5. 3x Hex Bolts M6x50 mm
6. 5x Washers M6
7. 5x M6 nuts
8. The 3 axes with hooks described above

For Hook tower:

1. 1x RopeMaker_Weight_Trough by b33ma247
2. 1x HookTower with bearings by angellopsa
3. 2x Spacer for hook axe by angellopsa
4. 1x Hex Bolt M6x45 mm
5. 1x M6 Nuts
6. 1x Hook M6 (for example https://www.rationalstock.es/catalogo/producto/fi...
7. 2x 606ZZ Bearings
8. 4x 623ZZ bearings
9. 4x Cylindrical DIN-6325 pin (https://www.rationalstock.es/catalogo/producto/materiales/calibrados-y-mecanizables/chavetas--pasadores-y-fijacion/pasador-din-6325-cilindrico--templado--de-acero-/30052000007)
10. 2 meter cord to tie the Weight_Trough and the HookTower with bearings

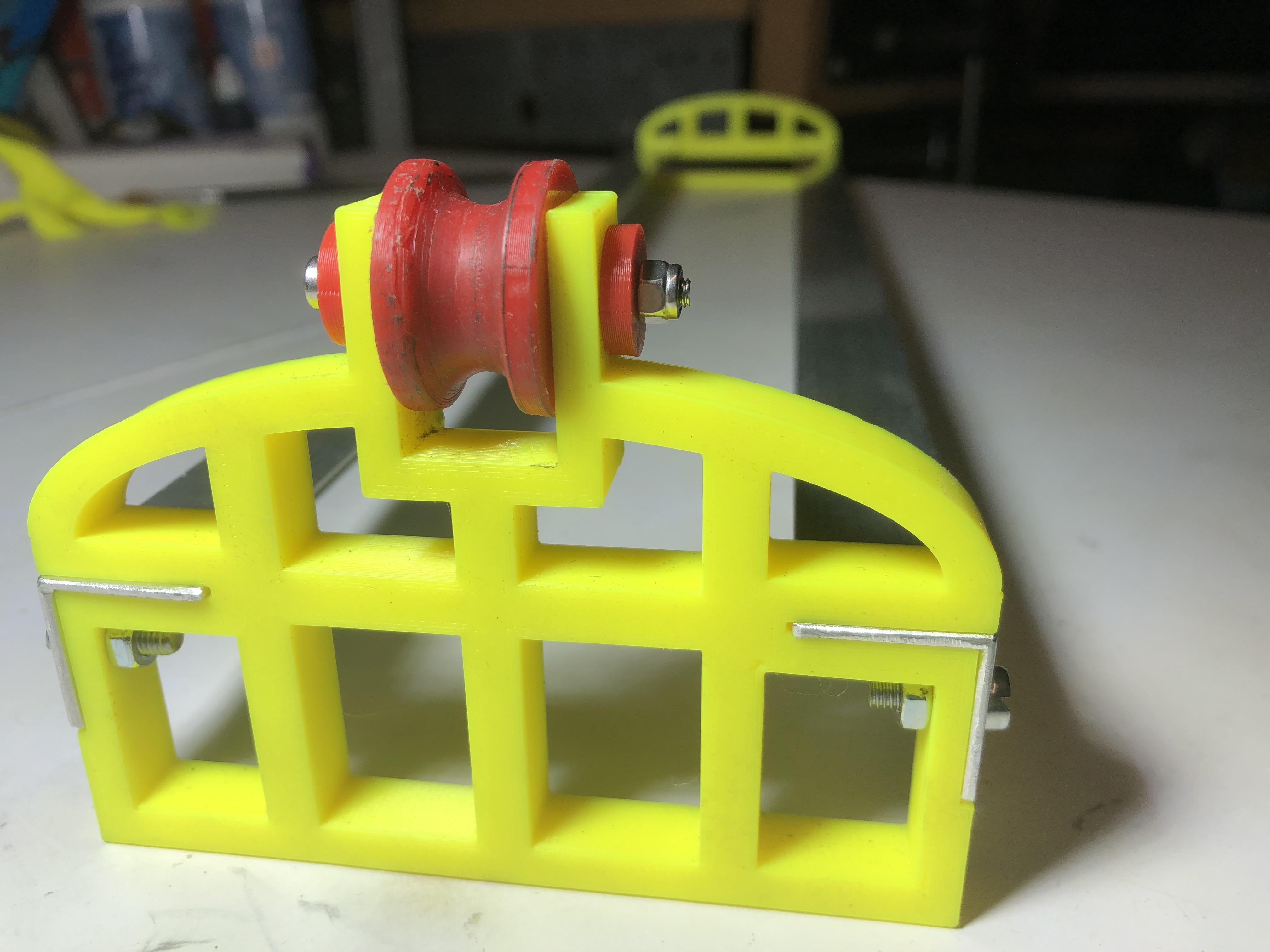

For Guide rail assembly:

1. 1x RopeMaker_GuideRail by b33ma247
2. 2x pulley adapter to Guide rail by angellopsa
3. 1x Pulley with bearings by angellopsa
4. 2x 500 mm length Aluminum "L" Angle 20mm x 1.5mm
5. 2x 623ZZ bearings
6. 4x M4x10 screws (hex or Allen, as you like)
7. 4x M4 nuts

Other:

1. 1x RopeMaker_StringSlide by b33ma247

It's design with FreeCad 0.18 If you want the files tell me to send them. This website does not allow uploading
