here is how to make your own nuts - from trash (plastic/bottles).
this technique works for machine-threads as well as wood-screws etc.
Materials:
![15626023843670.jpg](/proxy/?url=https://content.instructables.com/FD3/NULJ/JXSTKCI7/FD3NULJJXSTKCI7.jpg&filename=15626023843670.jpg)
![15626024186082.jpg](/proxy/?url=https://content.instructables.com/FFP/35OR/JXSTKCI6/FFP35ORJXSTKCI6.jpg&filename=15626024186082.jpg)
![15626024026111.jpg](/proxy/?url=https://content.instructables.com/FIN/GRXP/JXSTKCHX/FINGRXPJXSTKCHX.jpg&filename=15626024026111.jpg)

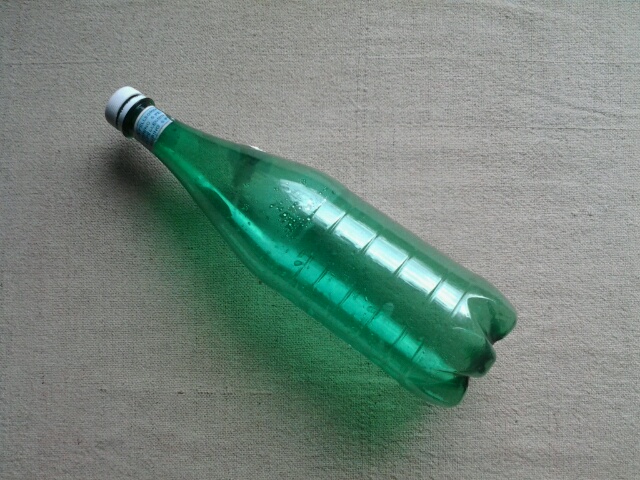

here i use a water-bottle (no.1 plastic, p.e.t.)
cut out a ring/strip (whatever size you desire)
Starting:
![15626024340573.jpg](/proxy/?url=https://content.instructables.com/FG8/G783/JXSTKCI8/FG8G783JXSTKCI8.jpg&filename=15626024340573.jpg)
for demonstration-purpose i use a 10mm bolt (we use for rock-climbing).
wrap the strip about twice around the thread, tightly.
Weld the Edges:
![15626024493554.jpg](/proxy/?url=https://content.instructables.com/F9L/DDPN/JXSTKCI1/F9LDDPNJXSTKCI1.jpg&filename=15626024493554.jpg)
join to the edges of the wrap (hear i use a soldering-iron).... so that the wrap cant come loose.
Create a ´profile´:
![15626024656045.jpg](/proxy/?url=https://content.instructables.com/F5Q/44PP/JXSTKCHY/F5Q44PPJXSTKCHY.jpg&filename=15626024656045.jpg)
the first windings will make the ´foundation´ of the nut. ´burn´ the profile of the thread into the plastic (without actually burning the wraps) ... (strike... brush... over the plastic with the soldering-iron. p.e.t. will shrink once exposed to heat. between shrinkage and softened plastic the thread-profile will get ´burned´ in.
( btw, this might come handy here : https://www.instructables.com/id/Diy-Custom-tips-... )
Build Up Layers
![15626024822926.jpg](/proxy/?url=https://content.instructables.com/FHZ/R3QK/JXSTKCI2/FHZR3QKJXSTKCI2.jpg&filename=15626024822926.jpg)
![15626024966647.jpg](/proxy/?url=https://content.instructables.com/FJN/S5VP/JXSTKCIA/FJNS5VPJXSTKCIA.jpg&filename=15626024966647.jpg)
now, with the foundation being locked in, build up the actual nut by additional windings of the plastic-strip.
again, join the edges of the wrap.
and pack the wrap down and tight with the striking-technique (see above - btw, you can use a heatgun etc as well, but _A i dont have enough power to plug one in here, and, _B, i prefer the more subtle soldering-iron)
Done
![15626049128059.jpg](/proxy/?url=https://content.instructables.com/FC9/U2KZ/JXSTKFUJ/FC9U2KZJXSTKFUJ.jpg&filename=15626049128059.jpg)
![15626048938488.jpg](/proxy/?url=https://content.instructables.com/FFL/KHYH/JXSTKG12/FFLKHYHJXSTKG12.jpg&filename=15626048938488.jpg)
you can create a nut as thick and as wide etc as you wish.
obviously, the more profile-surface you create the stronger the function as a nut.
note: the cover-image above shows the original nut being cut in half.
anyhow, thats it for now (another, maybe better technique to create nuts from trash/plastic will follow at some point)
,
any questions and any critique is welcome.
