Impromptu Wing Screw

by ezman in Workshop > Metalworking

1561 Views, 8 Favorites, 0 Comments

Impromptu Wing Screw


Introduction
The task was a simple dust off and set up a gate to keep a dog out of a room. But since the last time this toddler gate was used the Wing Screw went missing. It wasn't worth a trip to a hardware store. So I put on my thinking cap, follow along to see what I did to make an Impromptu Wing Screw.

You lost your fastener, you do not know what to do,
No need to fret or become upset,
Follow this list to make an Impromptu Wing Screw.

Next Materials and Tools

Materials and Tools


Materials

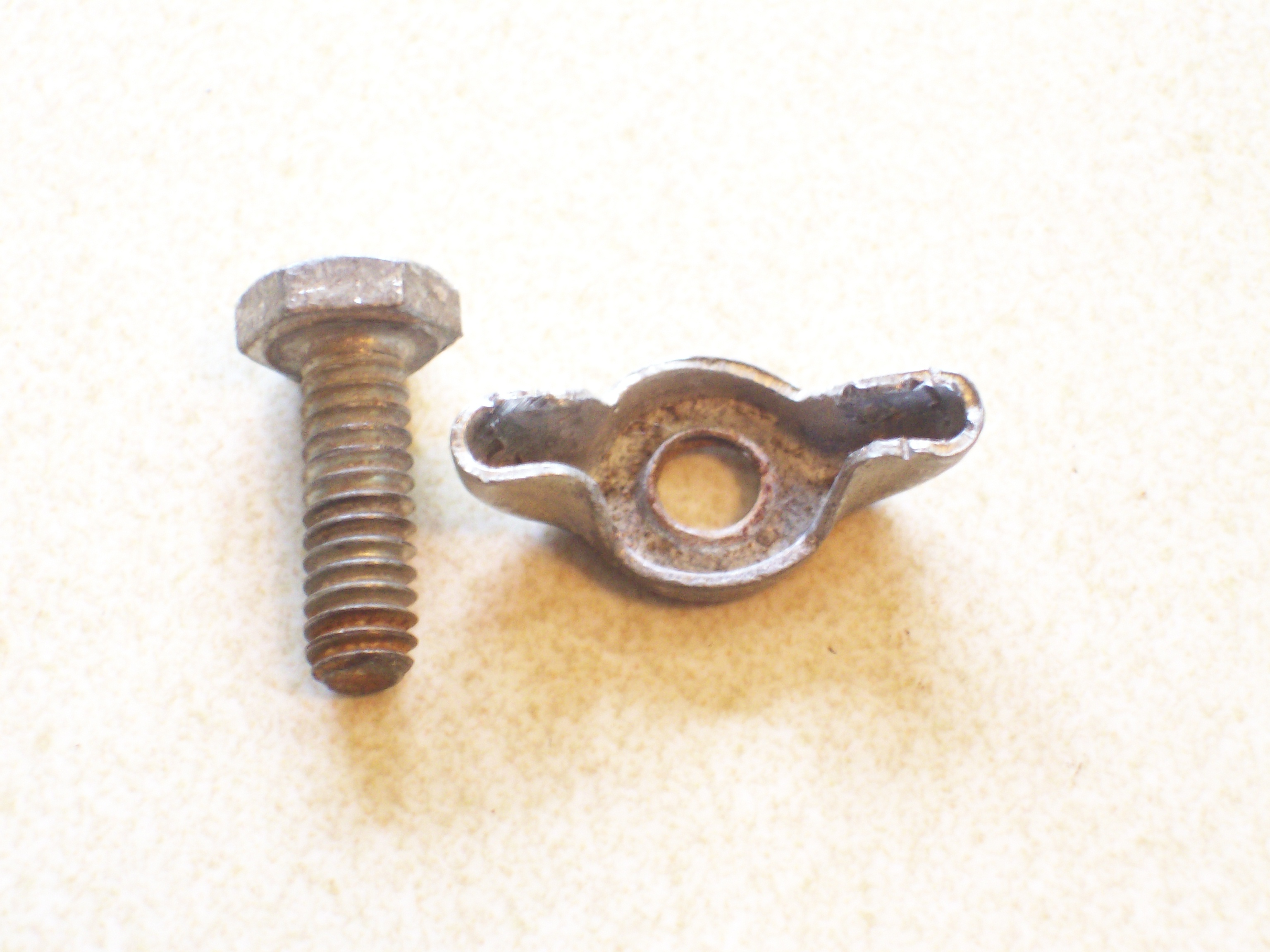

1. Wing Nut
2. Hex Bolt

Tools
1. Water Pump Pliers
2. Common Screw Driver

Time to Complete
3 - 5 Min.

Skill Level
Easy

Next Tread, Spread & Set

Tread, Spread & Set


1. Twist the Wing Nut as far on the Bolt as you can.
2. Use the Screw Driver to spread both wings.
3. Twist the Wing Nut the rest of the way.

Next Crimp, Crimp, Crimp

Crimp, Crimp, Crimp

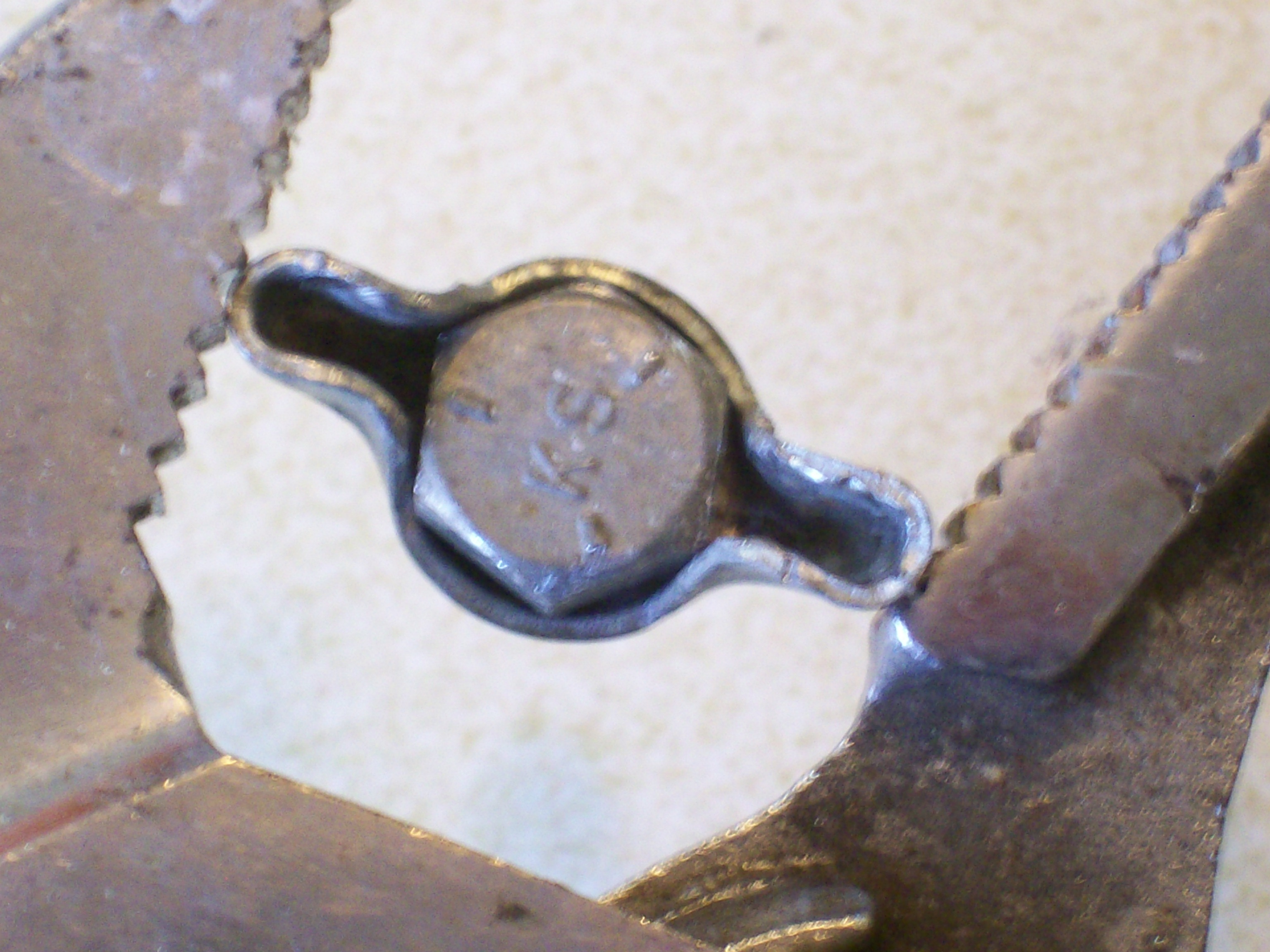

There is a little play so you need to crimp the empty space so the Wing Nut sits tightly on the Bolt head.

Crimp the Wings,
Crimp the Sides,
Crimp the Top,
Crimp until the cows come home.

Next Observations and Summary

Observations & Summary


Observations:
This is an easy way to make a Wing Screw.

The benefits of this design are
No Cutting,
No Filing,
No Gluing,
No Welding,
No Baloney.

Summary:
The dog stayed out of the room. I am satisfied with the results.

Then I saw, and considered it well. I looked upon it, and received instruction..
