Ice Cube Tray

Hello! Today I going to learn you how to do an Ice Cube Tray in Fusion 360 just in few steps. This projects is really useful especially for students living in a Dorms. By printing it, you can use it every day! So let's get

First of all, click on origin point and drag your mouse out. Then type 12 inches for the length and 4 inches for the width. You would see a rectangle that going to be a base for our Ice Tray.

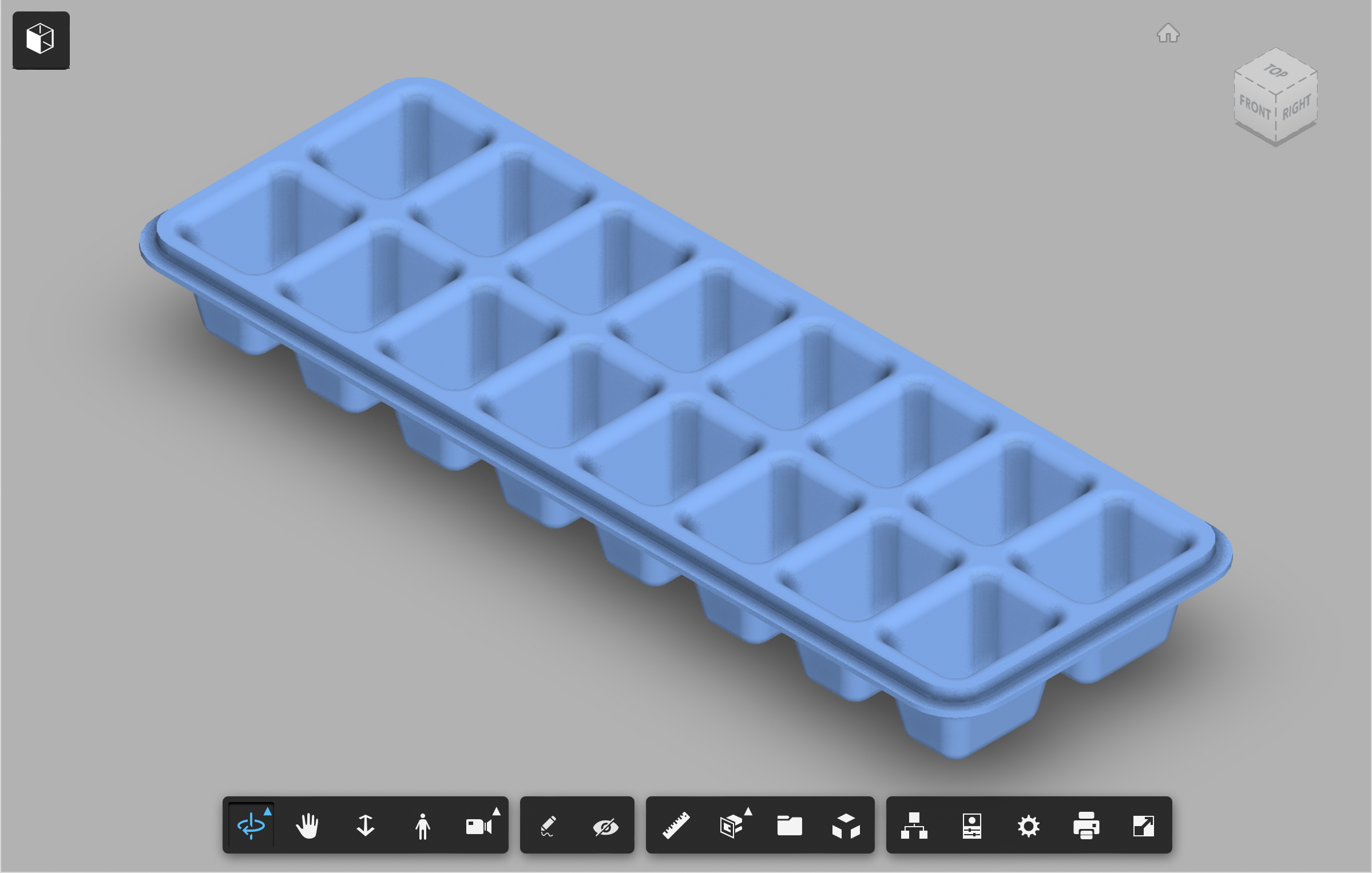

Click latter "E" to extrude an Ice Tray. Click arrow, put 2 inches for height and click Enter. Click letter "R" and pick top surface. And here we start working on the notches for the ice. On picture 3 you can see demotions for it.

Click "D" for dimension shortcut. Then click on rectangle line, after on outer-line and drag mouse to the left and click somewhere. Type 2.5 inches and click Enter. Do the same instructions with the left side of in side rectangle.

Click letter "E" for endure. Drag arrow down and put -1.30 inches (be sure that you put negative sign before dimension so you will get a space for ice). Next we want to add taper so ice cube pop out from tray. Type in -10.0 degrees in Taper Angle box.

Click "F" for fillet modify. Select all of the lines to make this cut. Put 0.13 for a radius. So now we have one slot for and ice cube.

The last step is to create more slots for ice cubes. Click Create on your upper menu. Then go down and click Pattern-Rectangular Pattern. Click Select and then Extrude and Fillet. After click on Directions and type 10.4 for a distance and 8 for a number of times that we want our cut out to be copy. Next drag the arrow up, type 2 for number of copies and 1.95 for a distance.

Click "S" for a shortcut menu and type Shell into the box and press Enter. Select all 4 sides and the bottom of Tray. Put 0.07 in Inside Thickness box and click Ok.

Click "F" for a Fillet and select all four corners. Put 0.4 inches for radius.
