ITEAD Intelligent Switch Work With Arduino and Android
by ITEAD STUDIO in Circuits > Arduino
231 Views, 0 Favorites, 0 Comments
ITEAD Intelligent Switch Work With Arduino and Android
ITEAD now offer the Intelligent switchs that support touch and remote control, and it will be very easy to hack and make it work with your Arduino and Andriod phone. Here we show you a small demo, and more pleasantly surprised will be released post by post, and keep following our blog and welecom to discuss in our forum.

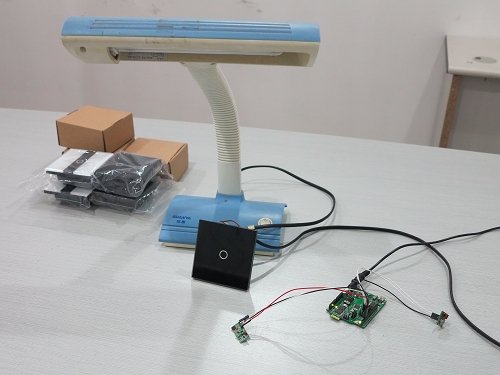

First, the ITEAD intelligent switch support one line power supply, so you don't need to change anything but just replace it to your traditional wall switch directly, and them the hardware will connect like this:
In order to better display effect., we use the small table lamp, but it's the same effect to your ceiling lights when you replace it to your wall switch.
And we need a Iteaduino BT and a couple of 433M RF link kit. Using the Iteaduino BT, we can make the Arduino talk with Android phone by Bluetooth, and with the RF link kit, we can control the ITEAD intelligent switch. Connec the TX module of RF link kit to the D3 of the Iteaduino, and connect the RX module to D2 pin – which can be used as external interrupt. RF link kit module can get the 5V power supply on Iteaduino BT board – there are much 3pin electronic brick interface, you can use any GND and VCC pin of them.
Please remember to deploy the HC-05 serial Bluetooth module first, set it into slave mode but master mode, and the right baud rate – depend on your code. About how to config the Iteaduino BT, please refet to the Iteaduino BT datasheet , and you can find more information about Itaduino BT on its product page here: http://imall.iteadstudio.com/featured-product/im120411006.html
Upload the demo code below into Iteaduino BT. This part of the code is written in very rough. Just to show you a demo : )
Install the Droidlight app on your phone. Open the software and connect your phone with Iteaduino BT, and you can use it to switch the ITEAD Intelligent Switch now.
Now just the beginning, and we will go on publishing more posts about hack the ITEAD Intelligent switch and bulid your smart home step by step. Stay tuned and enjoy!
Get More Detailed and Download the source files here:
http://blog.iteadstudio.com/itead-intelligent-switch-work-with-arduino-and-android/
