IRON MAN Themed Rechargeable Flashlight
by Chauhan Vivek R in Circuits > Gadgets
5681 Views, 74 Favorites, 0 Comments
IRON MAN Themed Rechargeable Flashlight


Hi friends....
it is a rechargeable flashlight which we can control by hand's moves.
Iron man themed flashlight.
it is a rechargeable flashlight which we can control by hand's moves.
Iron man themed flashlight.
What You Need...







- LEDs

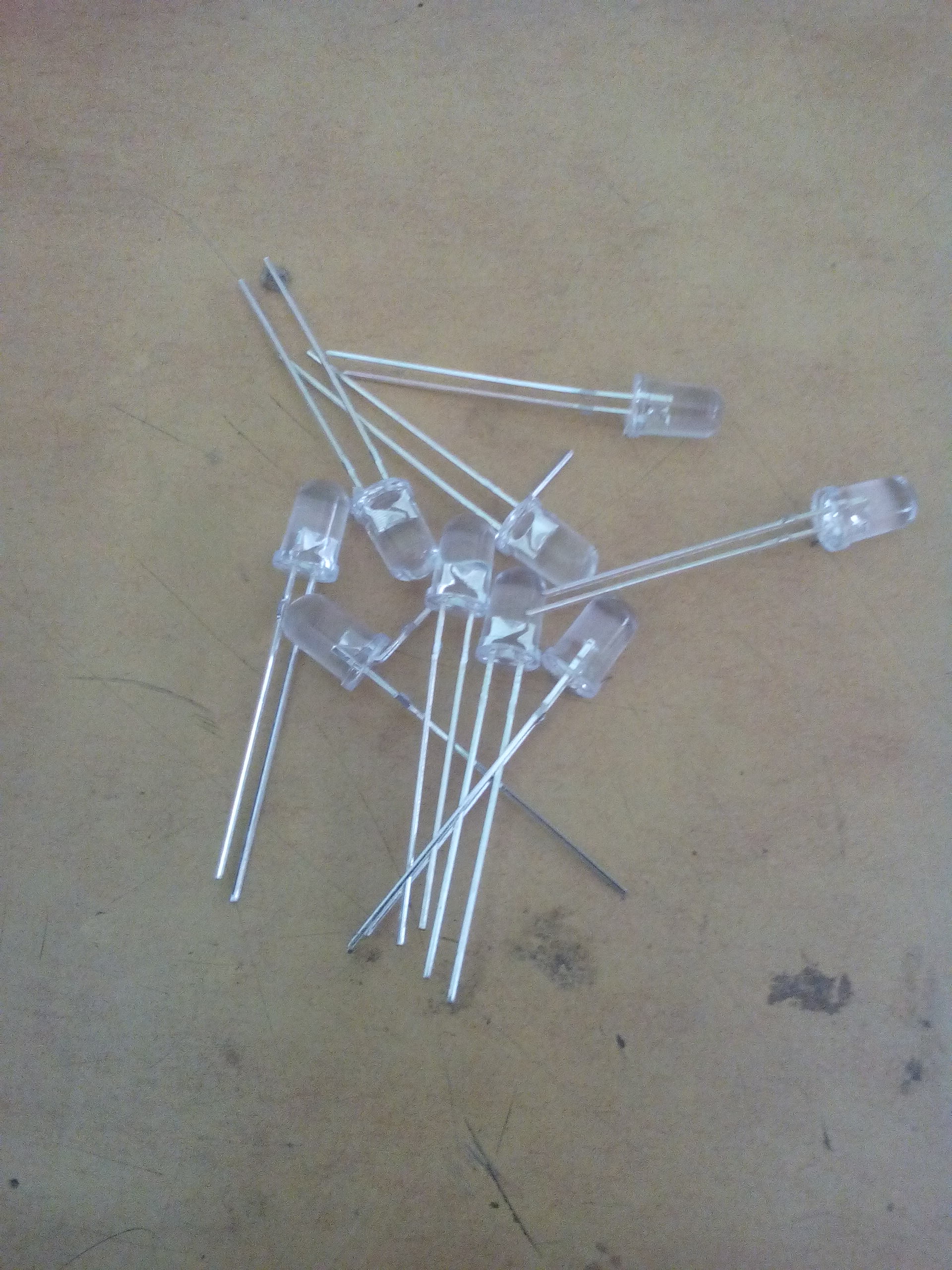

here I use 13 White LEDs
-TP4056 charger circuit
- stainless steel wire
- PCB
- plastic ring
- Li-iron battery
- switch
here I make simple hand control switch. I use magnets,PCB strip, metal ring
.- one diode (1N4007)
here I use 13 White LEDs
-TP4056 charger circuit
- stainless steel wire
- PCB
- plastic ring
- Li-iron battery
- switch
here I make simple hand control switch. I use magnets,PCB strip, metal ring
.- one diode (1N4007)
Join All LEDs in PCB.



cut the round shep PCB.
And solder all LEDs parallel connection.
And solder all LEDs parallel connection.
Now Plastic Ring

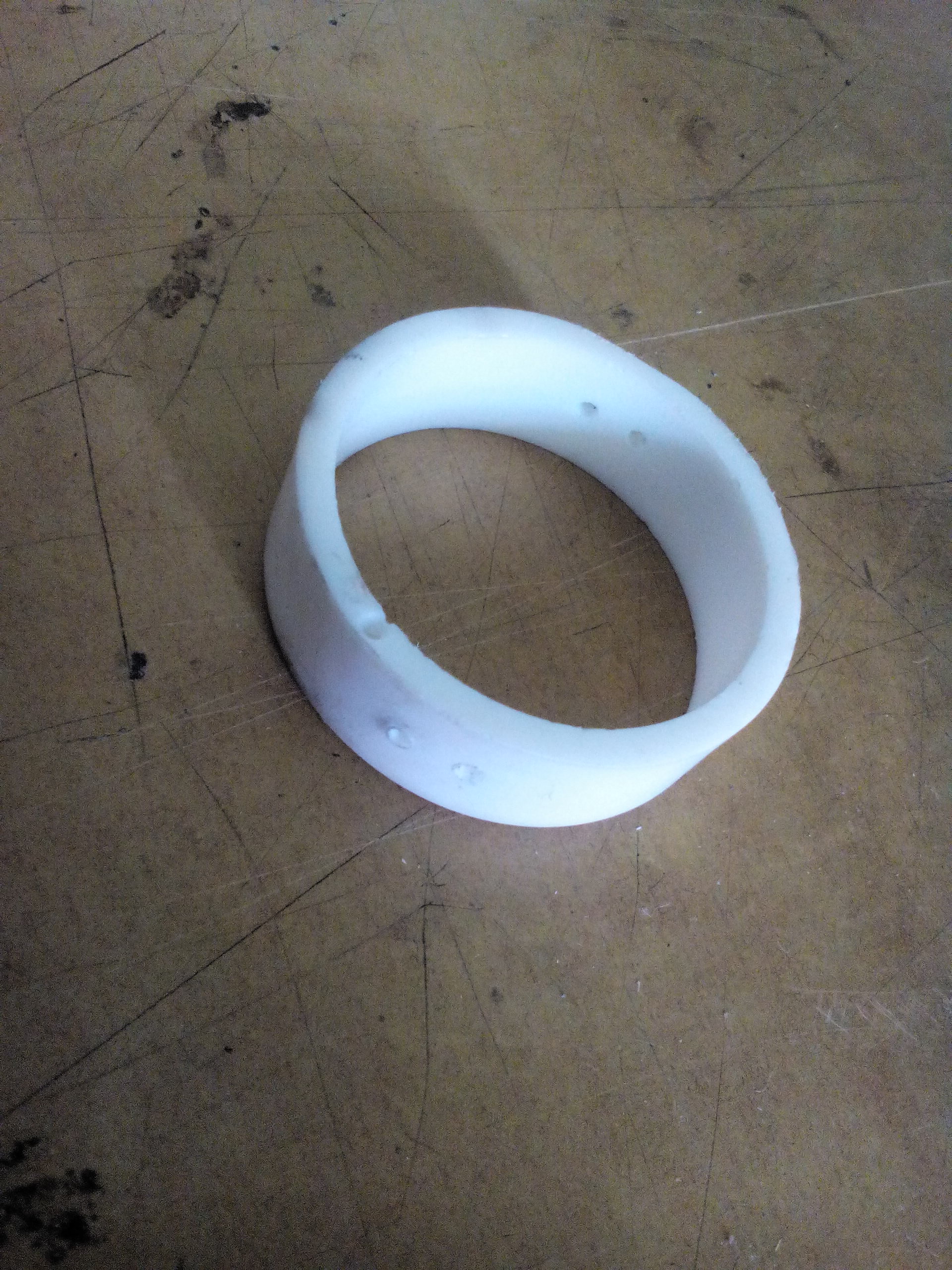

here I use 350mm diameter plastic ring.
drill two holes.
you can make it by 3D printer.
after drilling holes placed in stainless steel wire.
drill two holes.
you can make it by 3D printer.
after drilling holes placed in stainless steel wire.
Led Circuit and Plastic Ring

join LED circuit and plastic ring using hot glue gun.
Connection




Now make all connection as diagram.
solder positive terminal of battery to PCB strip.
solder Positive terminal of LEDs to metal ring.
and connect ground of battery to negative of LEDs
solder positive terminal of battery to PCB strip.
solder Positive terminal of LEDs to metal ring.
and connect ground of battery to negative of LEDs
Make a Switch

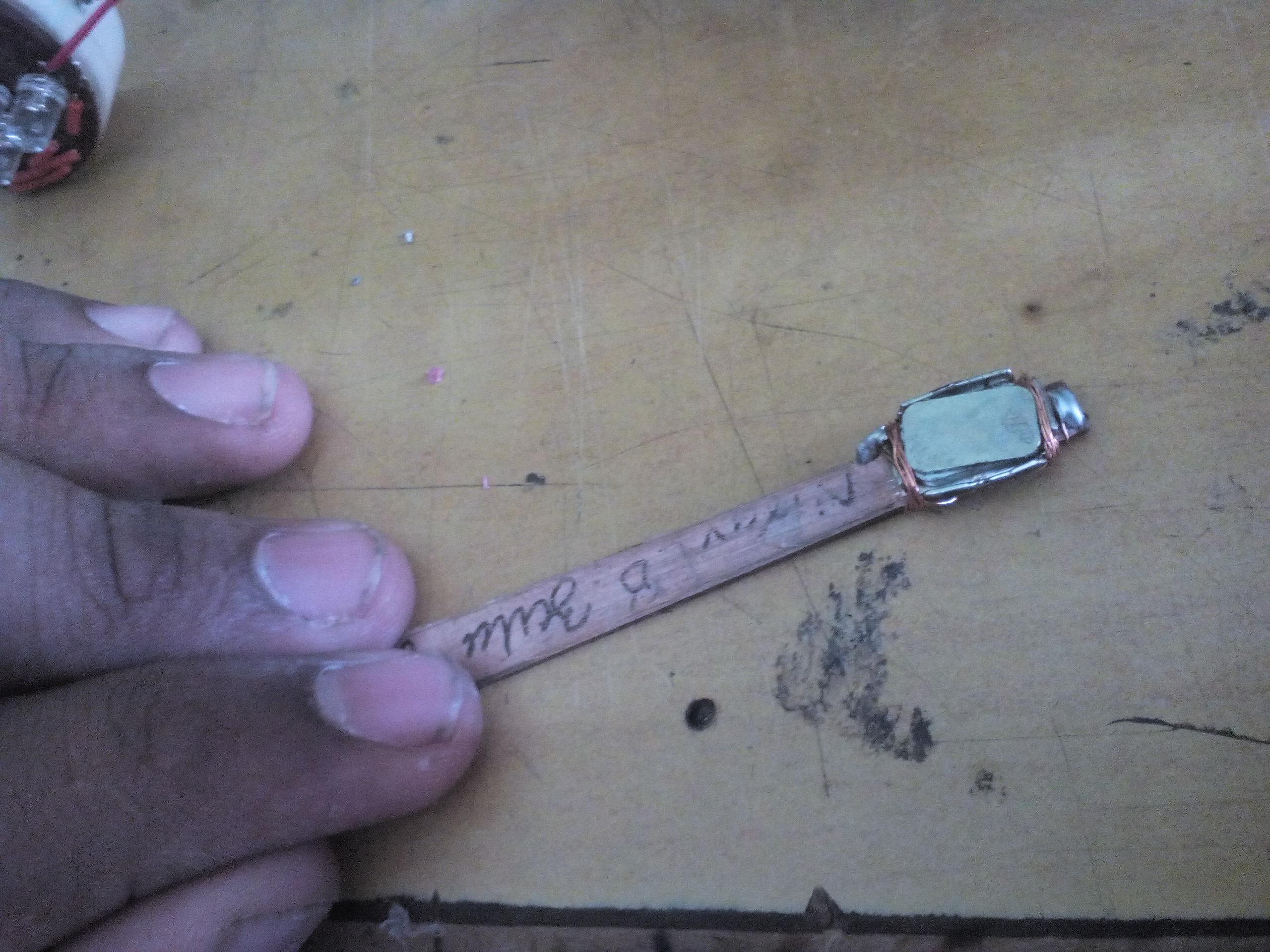

here I use PCB strip, magnets and metal ring.show on figure. solder positive terminal of battery to PCB strip.solder Positive terminal of LEDs to metal ring.
Done



now fold the stainless steel wire size of hand.
Demonstration
