IR Remote Upgrade to Rf

by zankhariyaharsh in Circuits > Electronics

346 Views, 2 Favorites, 0 Comments

IR Remote Upgrade to Rf


I'm trying to make a normal remote to make RF Remote

Supplies


Jast 2 think

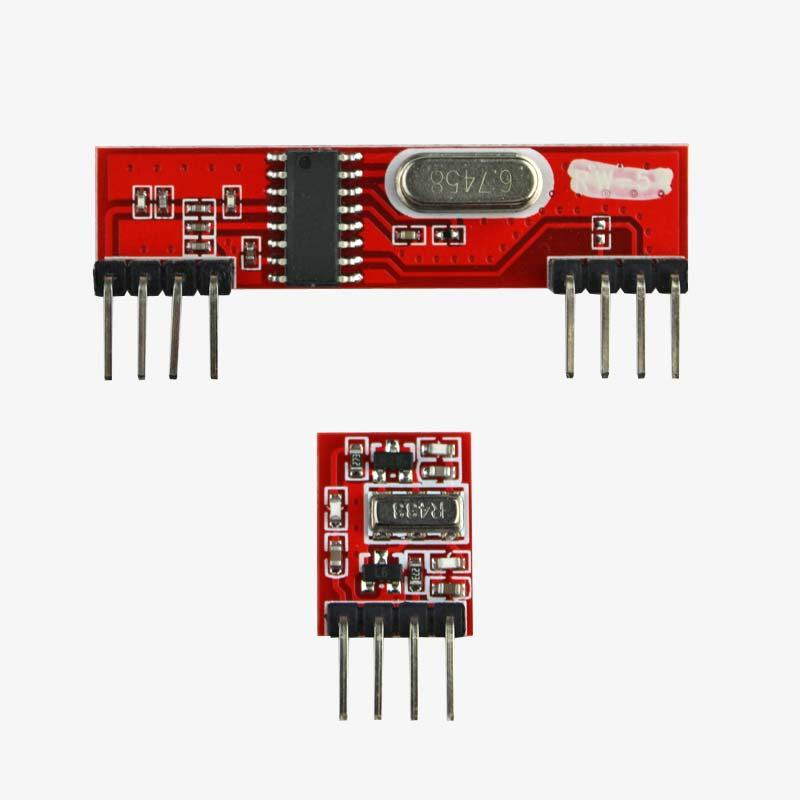

RF transmitter and RF Receiver 433MHZ

Replace IR to RF(receiver)


Replace IR receiver to RF receiver

Make sure Data=data

Vcc=vcc

Gnd=gnd



Replace IR to RF(Receiver


RF transmitter short a data and vcc lines and canect 2 wire gnd and vcc and canect this 2 wire in your remote ir led spes

Remove the remote infrared led and install RF transmitter



That's Done 👍

Hacked!!! Convert Any IR Remote Into RF 433MHZ (Smart) Remote

But this project problem is remote warking range is maximum 12ft

If you increase range increase the transmitter power

Transmitter supported 3v to 12v

More information chek video but video is Hindi language
