IOT Switch to Control Any Appliance Over WiFi

Implementation of power socket controlled over Wifi. Switch can be controlled either from a webpage or using Blynk App.

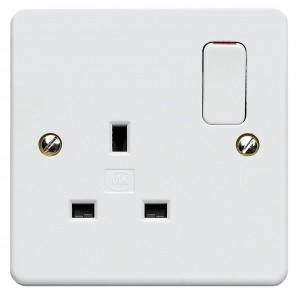

1. Power socket.

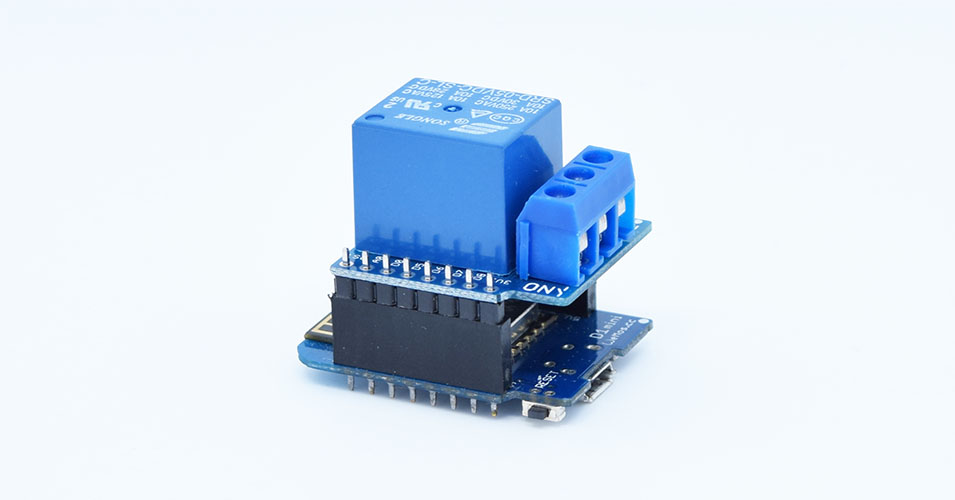

2. Wemos D1 Mini with Relay Shield.

3. Hard board box.

4. 3 Pin Plug.

5. Electrical wires.

Connect one end of the electrical wires to the 3 pin plug and other end to the socket. Terminate the live wire from Mains on the center terminal of relay and connect a wire from NO terminal of relay to the socket.

Click here for the program to control the socket from a web page. Alternatively, you can control the socket through the Blynk App as shown
