INTERACTIVE LOGIC GATES AND OR

Logic gates are the basic building blocks of any digital system. It is

an electronic circuit having one or more than one input and only one output. The relationship between the input and the output is based on a certain logic. Based on this, logic gates are named as AND gate, OR gate

THAT’S WHY I WILL SHOW YOU HOW TO MAKE A VERY NICE LOGIC GATES FOR LEARN ABOUT BOOLEAN MATH AND ALSO FOR CIRCUITS, SO LET´S GET STARTED.

IN THIS PROJECT THE MAIN OBJECTIVE IS CREATE THE LOGICS GATES “AND, OR”, FOR THE PEOPLE WHO WANT TO LEARN ABOUT BOOLEAN MATH AND THE LOGIC GATES, AND GIVE A BETTER COMPREHENSION FOR THEM.

WE MADE THIS PROJECT BECAUSE THE BOOLEAN MATH ARE VERY IMPORTANT IN THIS AREA, AND THE CREATION OF THIS GATES ARE VERY EASY, SO EVERY PERSON CAN DO IT, FROM KIDS TO ADULTS.

FOR THIS PROJECT YOU WILL HAVE THIS MATERIALS

· PAINTS

· CARDBOARD

· 8 MATCHBOXES

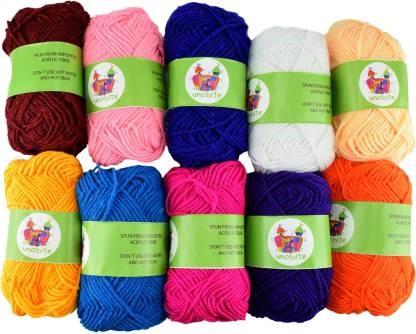

· WOOL THREADS

· CLIPS

· TAPE

· GLUE

· MARKERS

· SCISSORS

TAKE THE MATCHEBOXES AND MAKE HOLES IN IT WITH

SCISSORS, IN ONE SIDE ONE HOLE AND IN THE OTHER 2 HOLES.

WE MADE THIS HOLES FOR LATER INTRODUCE THE THREADS, IF YOU DON’T HAVE THE MATCHBOXES YOU CAN CREATE THE BOXES WITH PAPER.

THE SECOND STEP YOU HAVE TO PAINT THE BOXES, I

USED THE COLOR SILVER FOR MAKE MORE REALISTIC THE GATES, I RECOMMEND YOU THE SPRAY PAINT AND PAINT THE BOXES IN A PLACE AWAY FROM THE CARDBOARD.

CUT THE WOOL IN THREADS YOU HAVE TO CHOOSE 2

COLORS ONE COLOR FOR NEGATIVE, FALSE OR 0 AND THE OTHER COLOR FOR POSITIVE, TRUE OR 1. NOT CUT THE THREADS TOO LONG.

IN THIS STEP YOU HAVE TO OPEN THE CLIPS AND PASTE

ON WITH TAPE IN THE CARDBOARD LIKE IN THE IMAGE, I RECOMMEND YOU USE ROOLER FOR GET A BETTER DIMENTION.

IN THIS STEP YOU HAVE TO PUT THE WOOL THREADS THROUGH

THE HOLES THAT WE MADE IN THE FIRST STEP, YOU HAVE TO CONNECT THEM IN AN ORDER IF ARE THE AND GATES AND IN A DIFFERENT ORDER IF ARE THE OR GATES.

YOU CAN USE THE TRUTH TABLE OF THEM FOR GET A BETTER IDEA OF HOW TO CONNECT THE THREADS

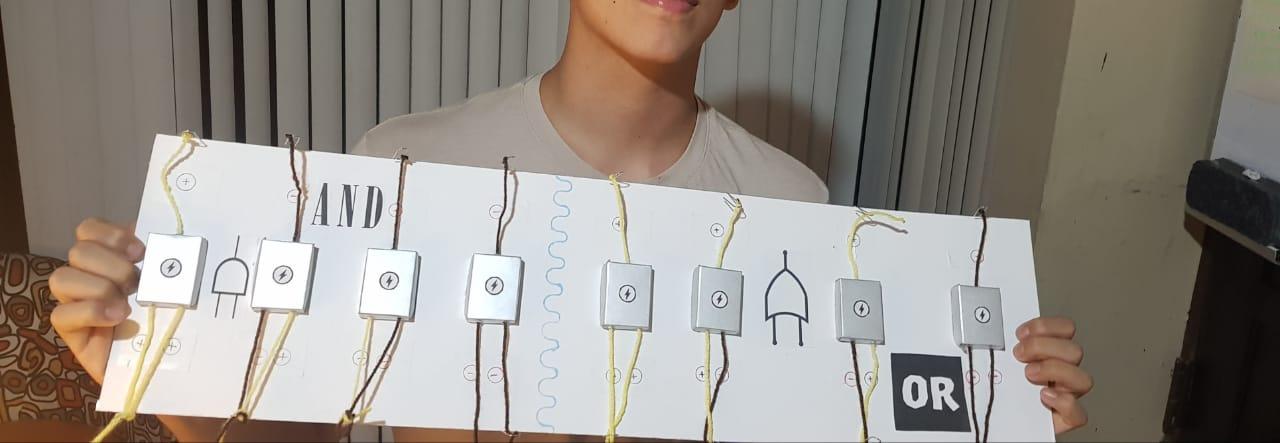

PASTE THE BOXES IN THE CARDBOARD AND TIE THE

THREADS AROUND THE CLIPS. I ALSO PASTE ON THE CARDBOARD AND IN THE BOXES SOME DECORATION AND I PUT WITH MARKERS IF IS POSITIVE OR NEGATIVE FOR IDENTIFY.
