IKEA Commode Hack (Under $25)


Upon learning about how expensive portable commodes are, I wanted to build an alternative that would be easily affordable and parts easily accessible. This product is under $25 and requires no power tools. Other than its sleek design, it is also extremely simple to make and takes less than 45 minutes to fully build.

It's also very comfortable and easy to sit in, as well as weighs less than 10 pounds total.

Supplies


Supplies (with links):

- IKEA ADDE chair (black or white) $15.00

- Pipe (Metal/PVC) $4.51

Length: 2'0" - 2'3"

Diameter: 1" - 2"

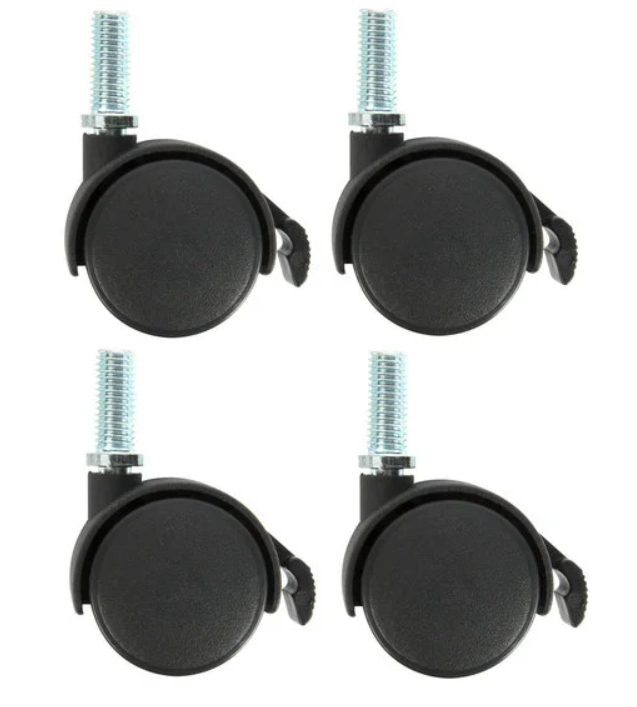

- Plastic Caster Wheels (set of 4) $3.69

- Total: $23.20


Tools Used:

- Hammer

- Screwdriver

- Wrench

- Handsaw/Jigsaw (whichever is available)

- Scissors


Addition Household Items:

- Tape (preferably thicker style)

- Zip ties

- Sandpaper (optional)

Building the IKEA ADDE Chair

Screenshot 2022-04-25 212618.png

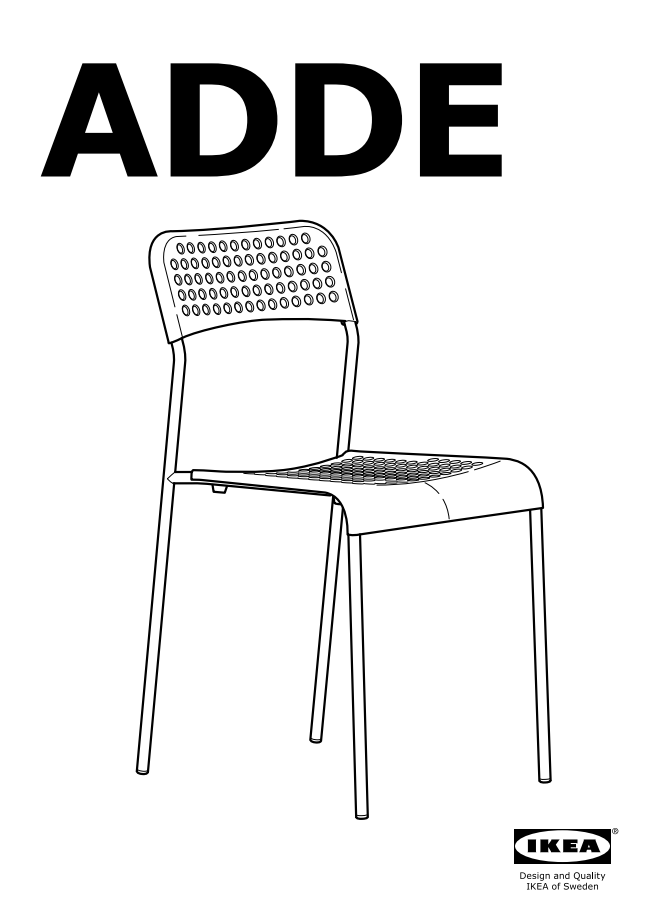

The IKEA Adde Chair Instructions can be found here: IKEA ADDE Chair PDF

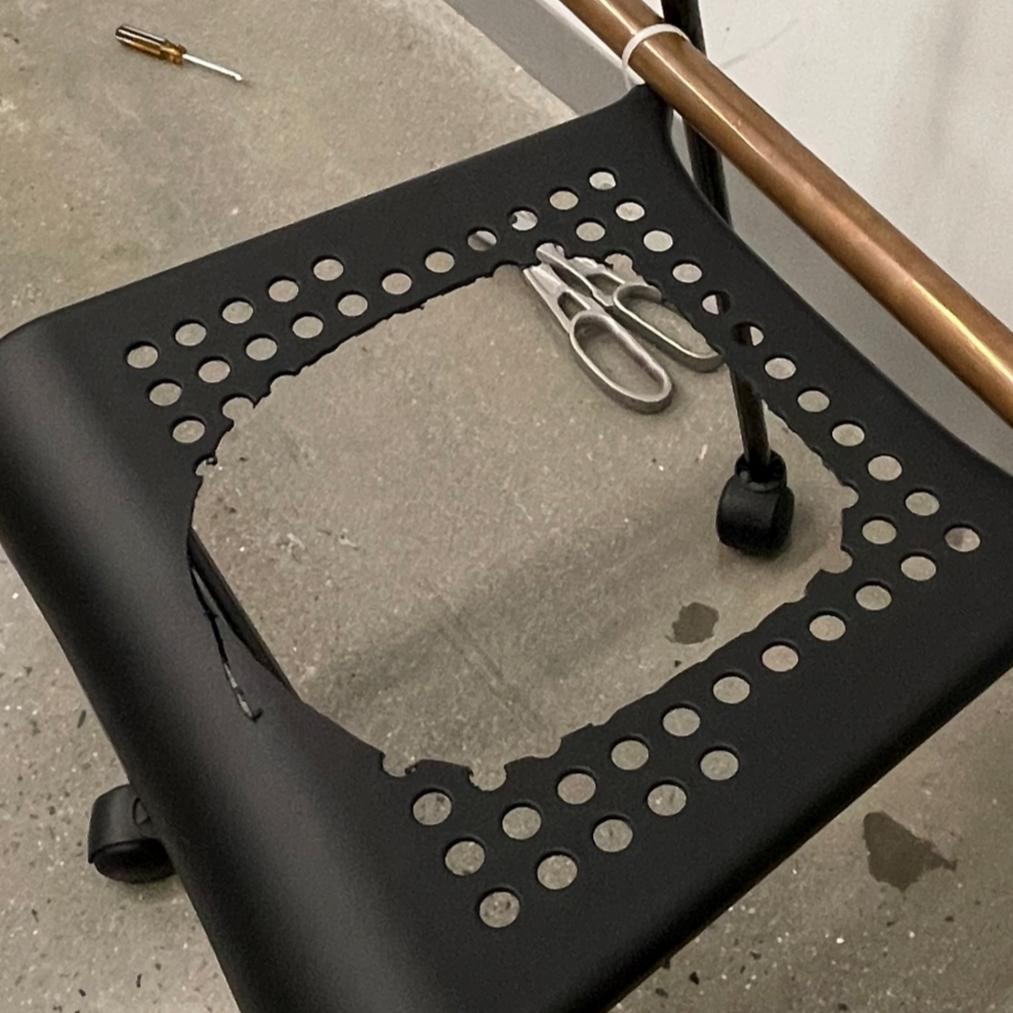

Cutting Seat Hole


Using a Handsaw or Jigsaw, cut the center portion of the seat. This cutting can be fit per personal need. Make sure to leave at least a 2" perimeter to maintain structural integrity of seat design. Once final cut is made use sandpaper to sand down possible sharp edges (not always needed depending on handsaw tool used).

Adding Wheels

Screenshot 2022-04-25 213218.png

Adding the wheels can be a bit tricky. The diameter of the steel pipe of the Adde and the diameter of the wheels are different. Using tape, add thickness to the caster wheels to make them just fit into the Adde chair legs. Finding thick tape can be very helpful.

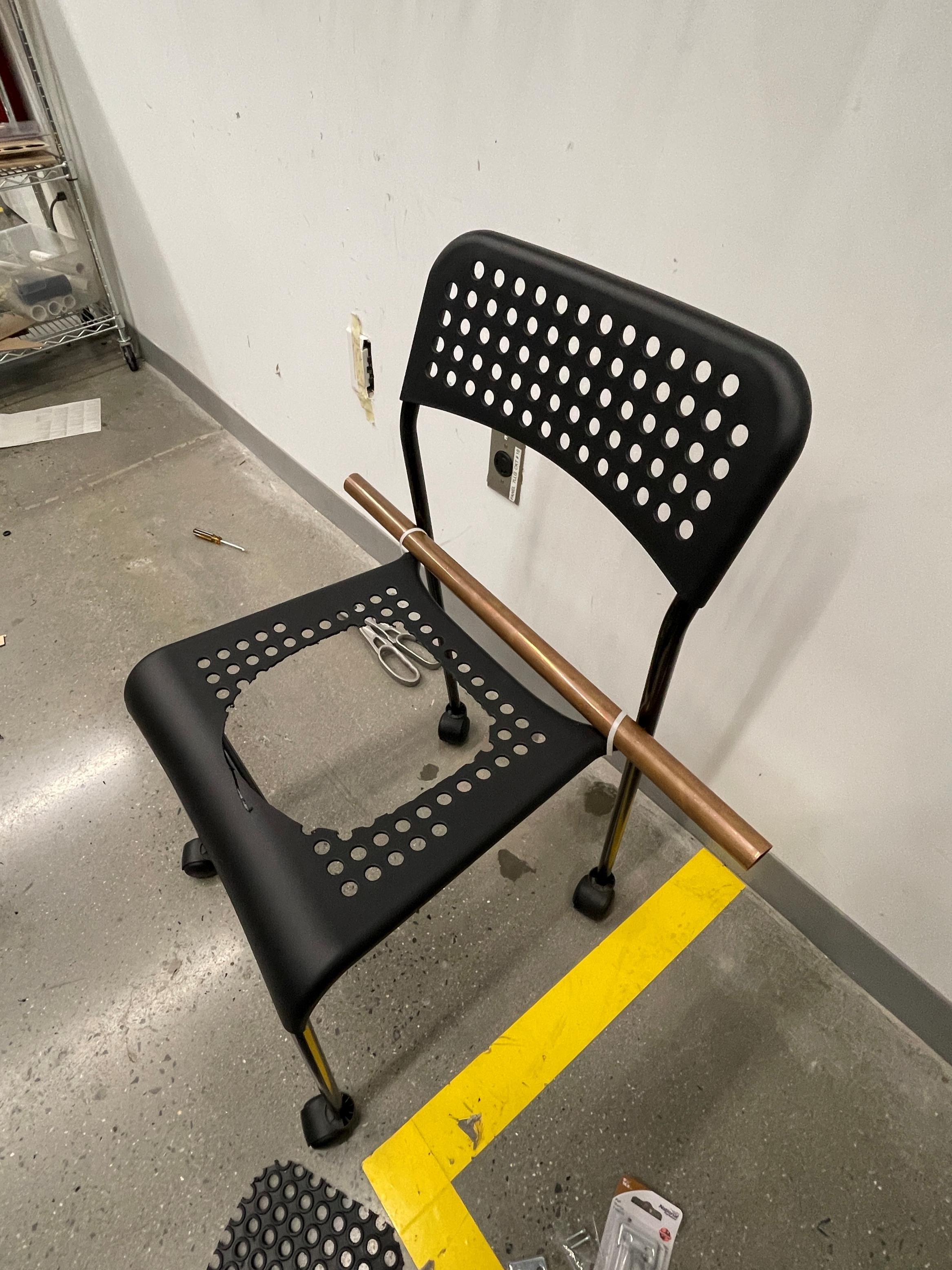

Adding Support Handle


Using zip ties and a 2' pipe, add to chair between back of seat and bottom of seat rest. This part of the process can be deferred to customer liking.
