ICSP Connector for Arduino Nano Without Soldered Pin Header But Pogo Pin
Make a ICSP connector for Arduino Nano without soldered pin header on the board but Pogo Pin.
Parts
3×2 Pin Socket x1 — A
Pitch 2.54mm Dupont Line Wire Female Pin Connector Housing Terminals x6 — B
P75-E2 (1.3mm Conical Head) Spring Test Probe Pogo Pin 1.0mm Thimble x6 — C
2mm Heat Shrink Tube x6 — D
Clothes Peg — E
Remove Pins of Pin Socket.
Pins of pin socket are not used.
Pull to remove use long-nose pliers.
Widen the Holes of Pin Socket.
Drill the holes to make diameter 1mm.
Crimp the Female Housings to the Pogo Pin.
Crimp the female housings to the pogo pin.

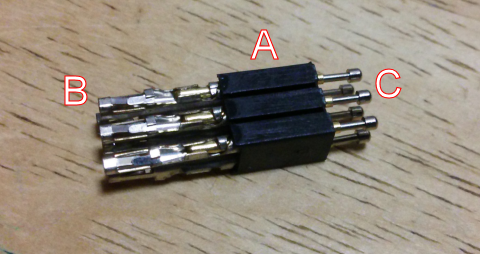

Insert Pogo Pins in the Pin Socket.
Insert and adhere pogo pins with pin socket.
Insulation.
Insulate every pin by heat shrink tube.
Make a Part by 3D Printer.
Make a clothes peg part by 3D printer.
Finished.
