IBLOPPER - a Fermentation Logger for Homebrewing!

iBLOPPER is activity fermentation logger to be attached to your (S)airlock. It works by detecting tiny vibration when a bubble is released.

To build an iBLOPPER you need

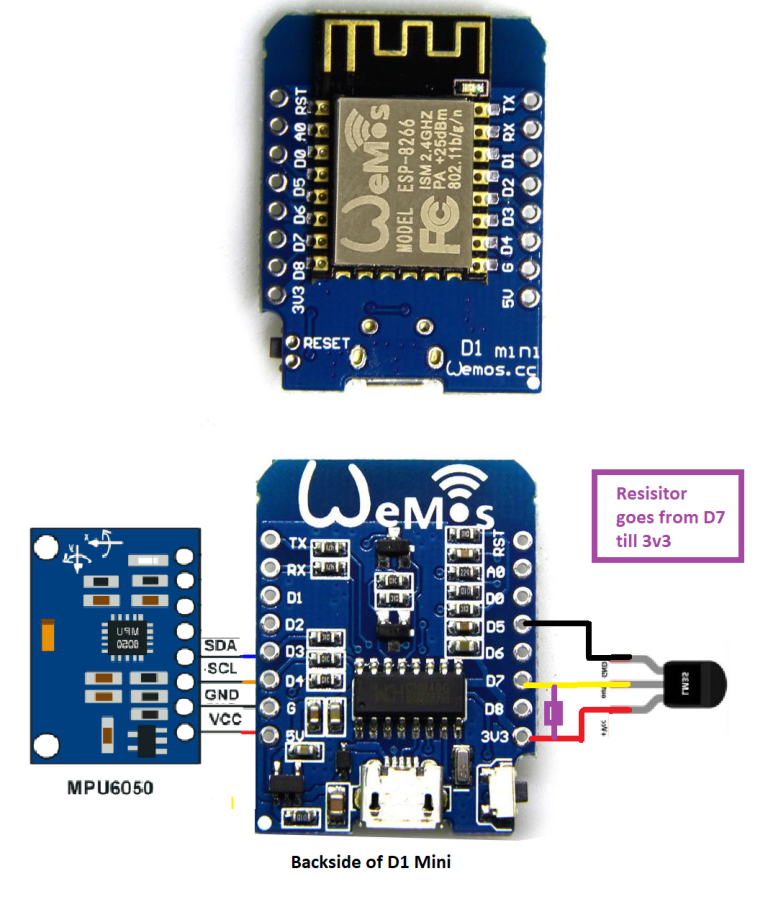

• 1x NodeMCU AMICA or one Wemos D1 Mini.
• 1x Box or some plate/foundation of 55×35mm. Or just use logger hard side towards airlock.
• 1x DS18b20 probe, 1 meter, + resistor.
• 1x MPU6050.
• Moisture protection (Balloon and some tape. 12cm balloons fits proposed box, or just use tape for simplicity or normal balloons.)

Full project can been seen on: www.iBLOPPER.bubble-logger.com

The iBLOPPER is an Arduino device (ESP8266). It monitor your yeast activity by motioning the CO2 blops pr. minute (BPM). Besides BPM, also “Sum blops/L” and temperature is logged. Based on Sum Blops/L indicative gravity estimate is given by polynomial/modelistic approach.

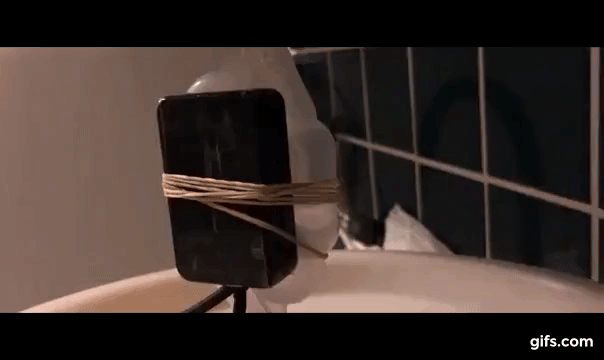

It works by placing iBLOPPER on the outside of the airlock, and iBLOPPER then detects the tiny movement the airlock makes at the release of a bubble. Hence, it need placed away from vibrations sources (flamingo mat in cooler or similarly).

The software can though the “Sum Blops/L” be used to give an indicative SG/rG (reduction in gravity) by polynomial approach. To ensure a reliable SG estimation and to account for the many factors affecting CO2 release the users needs to conduct a midterm “one hydrometer reading” when preferably high kreuzen has just passed and hence re-calculating and updating the polynomial for the current brew by simple maths.

Hence, the idea of iBLOPPER is to simply adding one more hydrometer reading on top of the OG, and the 2 FG measurement we all recommend. This 4th sampling at preferably just after high kreuzen can tell us something about the speed of fermentation, thus, giving us an indicative estimate of the SG. All while we monitor on the outside of fermenter.

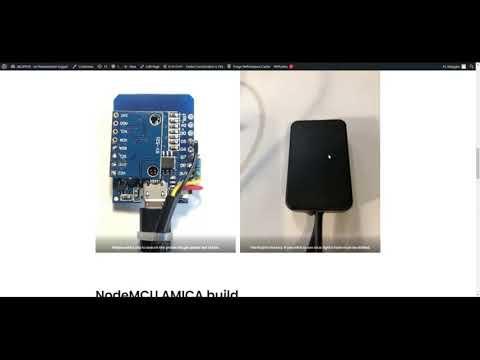

Please see attached video on hot to build.

iBLOPPER CLOUD

All data is uploaded till iBLOPPER CLOUD and all controlling of the logging process is handled at iBLOPPER CLOUD. Hence, please register with your 7-8 cipher unique iBLOPPER Number at iBLOPPER CLOUD.

At the CLOUD you can set brew name, size, OG and polynomial for speed of fermentation. You can ofcouse start, stop and delete logged brews.

You can change setting for Fahrenheit, set time zone and forward the current Active Brew till Brewfather or Brewersfriend if you wish.

It is also possible to send your iSPINDEL data till iBLOPPER CLOUD and hence join these dataset together of gravity from angle detection joint together with iBLOPPER activity data. See more at https://iblopper.bubble-logger.com/2352-2/.

iBLOPPER CLOUD do also support the control of “TempControl for iBLOPPER CLOUD” and hence let you control the fermentation temperature, see more at https://iblopper.bubble-logger.com/2111-2/ .

iBLOPPER CLOUD is a crude installment for a CLOUD service, but continuedly work is planned.
