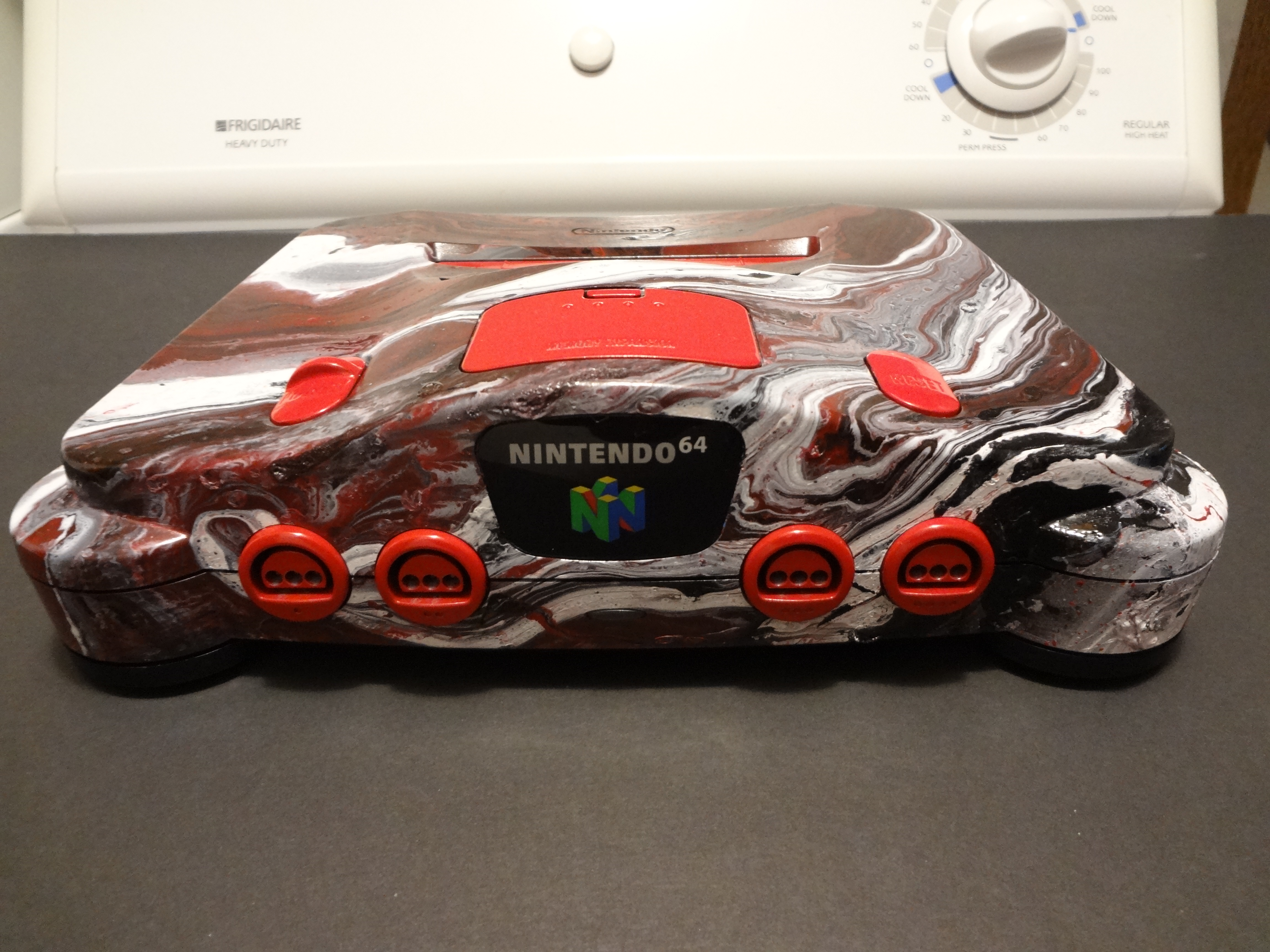

Hydro Dipped Nintendo 64 Console.
![DSC04412.JPG](/proxy/?url=https://content.instructables.com/F5R/LQE3/IMYAW55Z/F5RLQE3IMYAW55Z.jpg&filename=DSC04412.JPG)
A few days ago I learned of this method of applying paint in a swirl pattern which is called hydro dip. I immediately began thinking of trying it out on an nintendo 64 console & the next few steps will show what I did.
Prepare the Console for the Dip.
![DSC04393.JPG](/proxy/?url=https://content.instructables.com/FD4/V6I0/IMY3YWZI/FD4V6I0IMY3YWZI.jpg&filename=DSC04393.JPG)
![DSC04394.JPG](/proxy/?url=https://content.instructables.com/FLH/DTJF/IMY3YWZM/FLHDTJFIMY3YWZM.jpg&filename=DSC04394.JPG)
First I dug out an old nintendo 64 console. As you see it's not too exciting with it's stock dull colors. I disassembled each component & removed the motherboard putting it to the side for the time being.
Mask Off the Parts & Clean Thoroughly.
![DSC04398.JPG](/proxy/?url=https://content.instructables.com/F6I/7771/IMY3YXDG/F6I7771IMY3YXDG.jpg&filename=DSC04398.JPG)
![DSC04395.JPG](/proxy/?url=https://content.instructables.com/FP2/5QTW/IMY3YWZR/FP25QTWIMY3YWZR.jpg&filename=DSC04395.JPG)
![DSC04396.JPG](/proxy/?url=https://content.instructables.com/FVJ/1FRE/IMY3YX2C/FVJ1FREIMY3YX2C.jpg&filename=DSC04396.JPG)
After masking off all the parts I did not want paint on I filled my sink with hot water & dishwashing liquid & put all the parts to be dipped in letting them soak. I then scrubbed all the pieces with a dishrag & washed them off. I dried them best I could with a cloth & sit them outside in the sun to dry. Once they dried I used paper towels & rubbing alcohol & q-tips to clean all the parts.
Fill the Dipping Tub & Ready the Paint.
![DSC04397.JPG](/proxy/?url=https://content.instructables.com/FD6/XYXJ/IMY3YX9A/FD6XYXJIMY3YX9A.jpg&filename=DSC04397.JPG)
![DSC04399.JPG](/proxy/?url=https://content.instructables.com/FX0/V9XD/IMY3YXEL/FX0V9XDIMY3YXEL.jpg&filename=DSC04399.JPG)

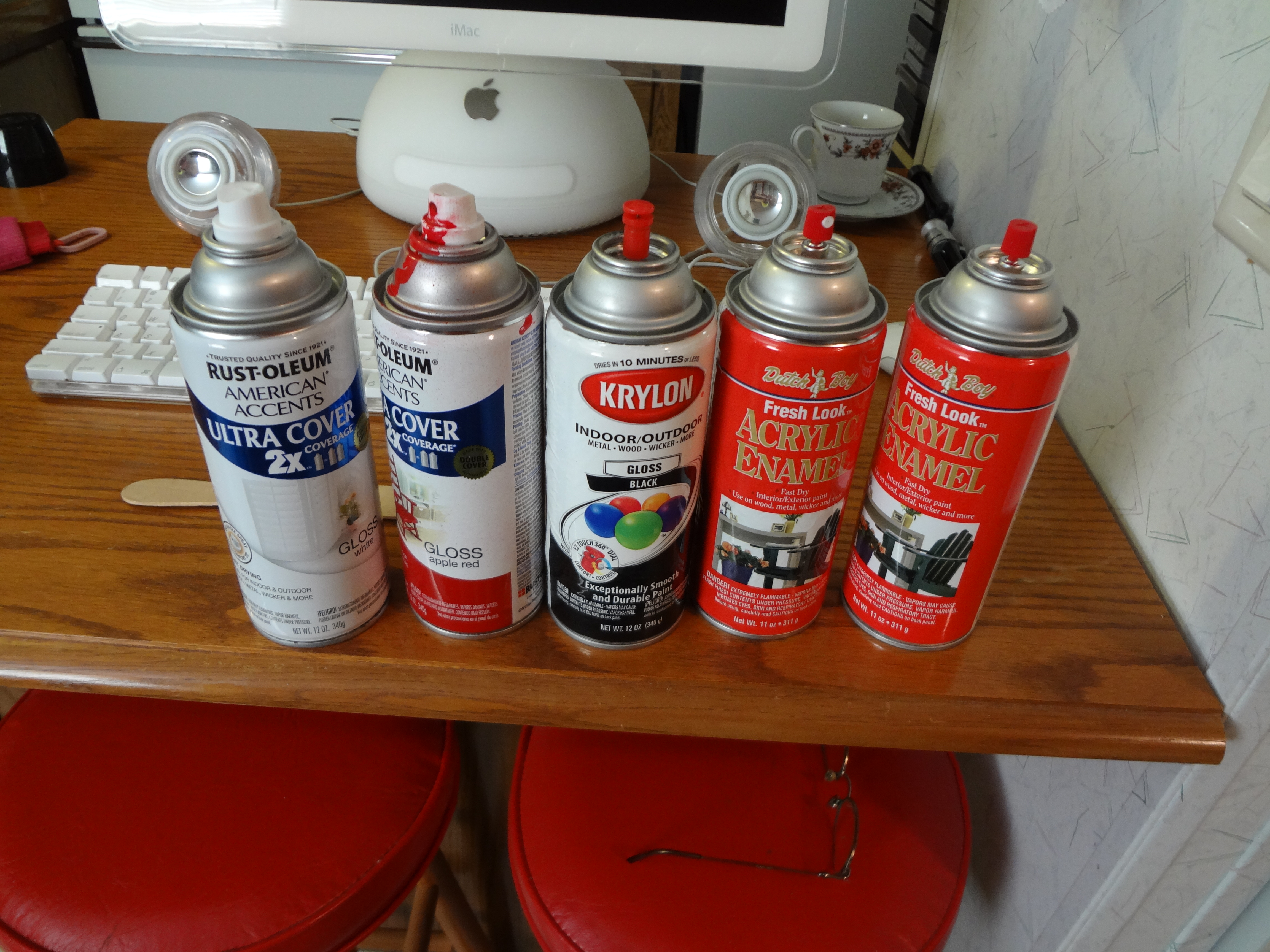

As the parts were drying I went ahead & filled a large tote with water. As it was filling I decided what colors I was going to use & got those ready & shaken up. As you can see I used various brands of spray paint.
Dipping & Painting the Parts.
![DSC04401.JPG](/proxy/?url=https://content.instructables.com/FUV/4A2S/IMYAW5YR/FUV4A2SIMYAW5YR.jpg&filename=DSC04401.JPG)
I sprayed the paint in the water starting in the center & would spray for maybe 15 seconds before switching to the next color. With each color I'd spray the same spot which pushed the color before out in the water in a sort of ring which is what leads to the swirl pattern being possible. I then spray more areas of paint around the spot I started closer to the edge of the tub the same way I did the center. Once I felt I had enough paint on the water I then used a paint stick to drag through the paint in a circular motion to get a design I liked on top the water. I had the console halves screwed together so as the pattern would go around the entire shell so it would match up. This is why it requires such a large tub. There is quite a lot of surface area so you have to imagine the paint on the water wrapping around the entire shell as you dip it. I wore latex gloves & held the console by the inner part where the av multi out port is normally located & held the shell at a angle as I slowly dipped it into the water. I twisted it a bit as I lowered it to make the colors go a desired direction around the console shell. Once it was completely submerged I slowly swished it around a little & used the paint stick to move the remaining colors on top the water out of the way so I'd have a clean path to pull the shell back out without having to worry about picked up anymore paint. I let the pieces dry in the sun for several hours over a 2 day period. During that time I painted the smaller parts red & let those dry several hours in the sun as well.
Masking Off & Painting Controller Ports. Wiring in Led Lights.
![DSC04403.JPG](/proxy/?url=https://content.instructables.com/FR9/0ERX/IMYAW63X/FR90ERXIMYAW63X.jpg&filename=DSC04403.JPG)
![DSC04406.JPG](/proxy/?url=https://content.instructables.com/FVX/RP2H/IMYAW67O/FVXRP2HIMYAW67O.jpg&filename=DSC04406.JPG)
![DSC04408.JPG](/proxy/?url=https://content.instructables.com/FY1/DCNY/IMYAW67T/FY1DCNYIMYAW67T.jpg&filename=DSC04408.JPG)

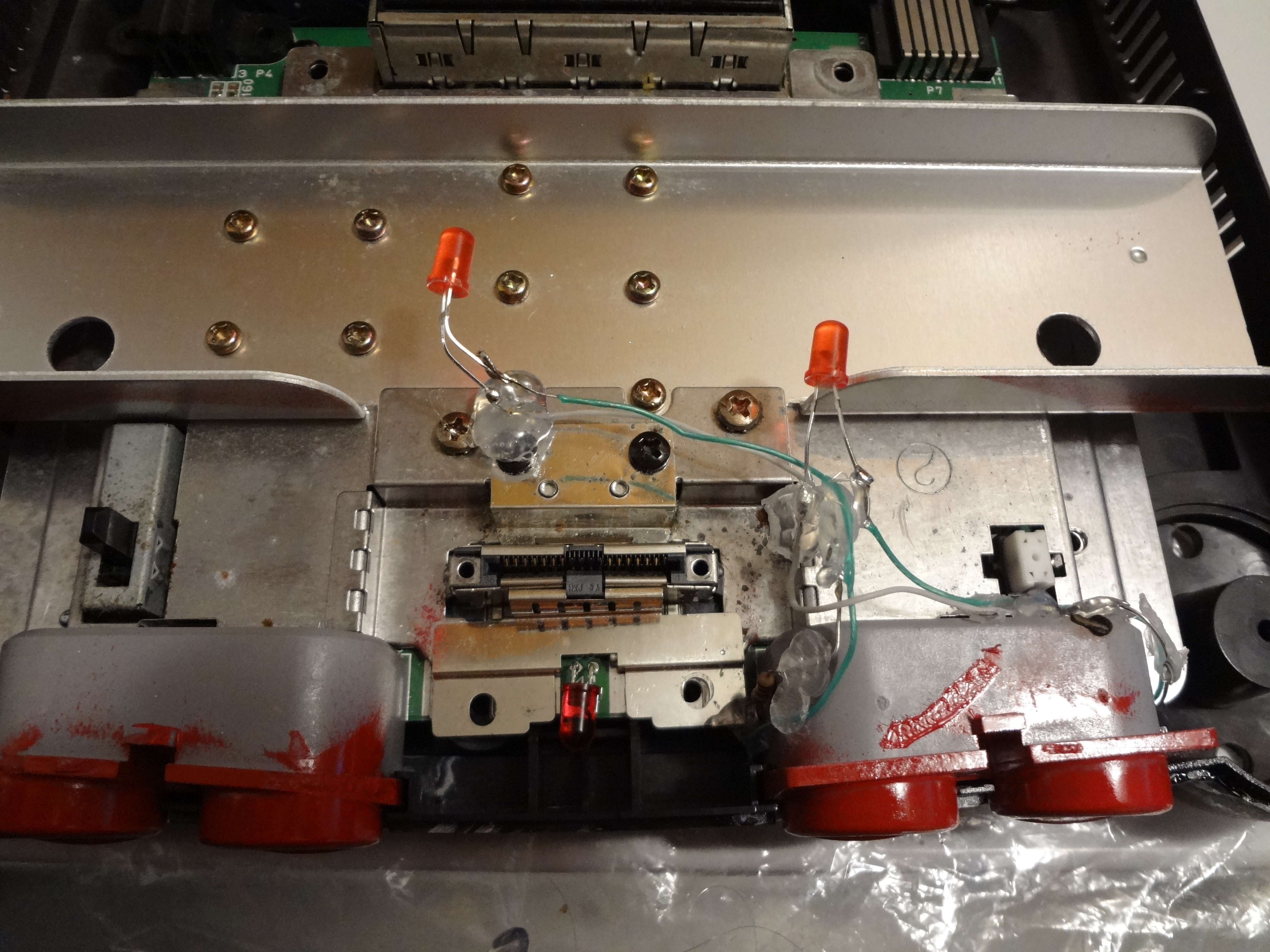

During the drying process I masked off the motherboard so I could paint the controller ports. I wanted to be sure not to get paint on the pin connectors inside the ports so I simply cut plastic q-tip tubes to a length where I could slide them over the pins & leave enough sticking out to prevent any spray paint from getting to them. At this time I decided to add 2 red led lights under the upper vent to make it glow red. I used controller port 3 and 4 to power each led by 1st soldering a 100 ohm resistor to the left pin which is the 3.6 volt pin & soldering a ground wire to the right pin. I then soldered the positive leg of the led (the longer leg) to the end of the 100 ohm resistor & the ground wire to the negative leg. I repeated this for the other led & tested to make sure it worked before hot gluing them in place & making sure the shell would fit over all the wires & led's.
Reassemble & Enjoy.
![DSC04414.JPG](/proxy/?url=https://content.instructables.com/FW0/0461/IMY3YWYG/FW00461IMY3YWYG.jpg&filename=DSC04414.JPG)
![DSC04411.JPG](/proxy/?url=https://content.instructables.com/FJD/NL3Q/IMY3YWRQ/FJDNL3QIMY3YWRQ.jpg&filename=DSC04411.JPG)
![DSC04413.JPG](/proxy/?url=https://content.instructables.com/FYR/T5AV/IMY3YWVC/FYRT5AVIMY3YWVC.jpg&filename=DSC04413.JPG)
![DSC04410.JPG](/proxy/?url=https://content.instructables.com/FRR/BA23/IMYAW52G/FRRBA23IMYAW52G.jpg&filename=DSC04410.JPG)
![DSC04409.JPG](/proxy/?url=https://content.instructables.com/F4X/3SZ6/IMYAW688/F4X3SZ6IMYAW688.jpg&filename=DSC04409.JPG)
The cool thing I like about the swirl is you really never know how it's going to look but you can be sure it will be unique & unlike any other paint job before. I'm pleased with how mine turned out overall especially since it was my 1st attempt at this fascinating painting process. I suggest checking out youtube videos as I did to see the different methods people use to do this. I chose the simplest method because I already had all the stuff I needed without having to go out and buy anything. What I think the most important factors are is the temperature outside (it was around 65 degrees here), the water temperature (water I used was more toward the cool side I'd guess), & using the right amount of paint & do so quickly because the paint tries to film up on top the water if it sits too long. If you are thinking of doing this by all means give it a try. Have fun & good luck.
