Huawei E220 External Antenna +7db
![IMG_0267.JPG](/proxy/?url=https://content.instructables.com/FDX/OILE/HP1Q2FB9/FDXOILEHP1Q2FB9.jpg&filename=IMG_0267.JPG)
![sma_male_sma_female-60cm.jpg](/proxy/?url=https://content.instructables.com/FIZ/SI2Q/HP0CN0ZM/FIZSI2QHP0CN0ZM.jpg&filename=sma_male_sma_female-60cm.jpg)
![IMG_0270.JPG](/proxy/?url=https://content.instructables.com/FF8/8BTI/HP0CQOQR/FF88BTIHP0CQOQR.jpg&filename=IMG_0270.JPG)
![IMG_0272.JPG](/proxy/?url=https://content.instructables.com/FRI/4Z6B/HP1QA23A/FRI4Z6BHP1QA23A.jpg&filename=IMG_0272.JPG)
A quick and easy hack to boost the signal on a E220 modem.
Parts required:
Huawei E220 modem. Warrenty will be voided ;)
Soldering Iron
Wire Strippers
Female SMA RF connector
7db omnidirectional magnetic base antenna with 3m cable (or what suits your price range). Mine was 200 Bucks. ($20)
1: Remove the SIM tray and faceplate covering the signal LED with a small screwdriver. (Plastic is better as not to scuff)

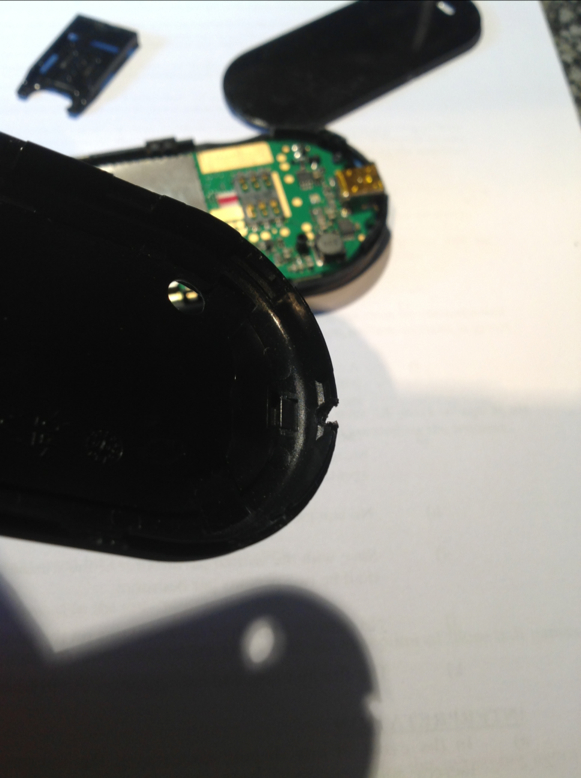

2: Remove the Torx screw just next to the LED and carefully unclip the cover.
3: Once opened, remove the clear plastic standard antenna. Opposite to the USB port.
4: Strip and solder the SMA cable to the pins where we removed the plastic antenna.
5: Heat up a screwdriver with the same width as the tail, then melt a space for the cable to sit outside the housing.
6: Put it all back together, test, then superglue.

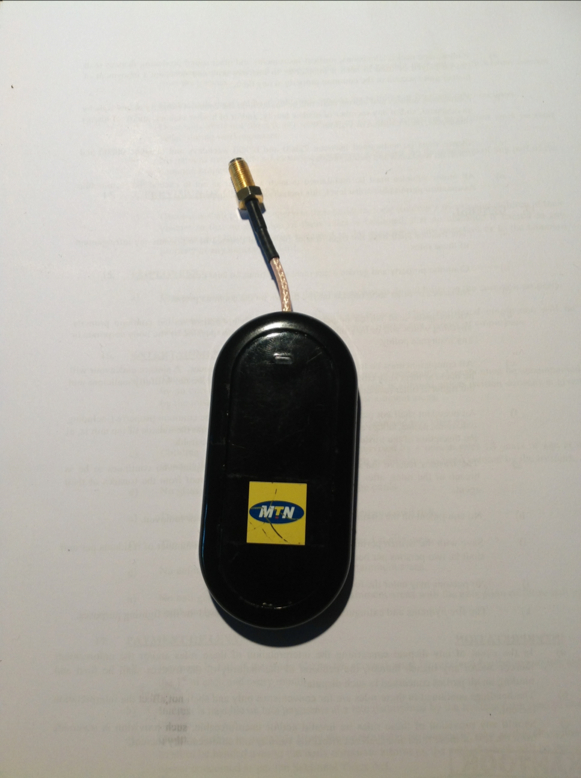

I have kept the tail short so i can travel with the modded antenna.
Happy Hacking :)
