How to Open and Replace the MagSafe Cord on an Apple AC Adapter

Having owned several Apple notebooks which utilize the MagSafe adapters I've seen my share of failures.
Anything in from stuck pins which prevent the computer from charging to my cats deciding the adapters are made out of some rare form of addictive kitty-crack and shorting out the cord by chewing on it.

I used to buy new MagSafe adapters but that got expensive fairly quickly. Then I decided to splice out the shorted sections of cord; which did work but left me with relatively short cords for charging the computer. Next, I decided to figure out how to crack open the adapter and replace the entire cord and that's the process I'll demonstrate with this instructable.

Be careful and make sure the adapter is completely discharged. Capacitors can hold a charge for a while so it's best to leave the adapter unplugged for a bit prior to working on it.

Materials/Tools needed:
Needle Nose Pliers
Soldering Iron
Solder
Desoldering Braid
Flux (optional)
Super glue
Clamp(s) or even a heavy book will do.
Replacement MagSafe cord- I found mine on eBay for like $16.

Some other tutorials online have used things like a Dremel and a cutting wheel to cut the casing apart or they used a screw driver to gouge the plastic apart. This not only makes reassembly more difficult but makes the reassembled adapter a bit ugly. We're actually going to use a pair of needle nose pliers and some leverage to crack open the case along its two halves. This leaves really no deformed plastic and makes the adapter much easier to reassemble.

Flip open the cord winding ears and insert the plier ends as the picture shows.
Open the pliers until you hear a satisfying pop and then do the same on the other winding ear.

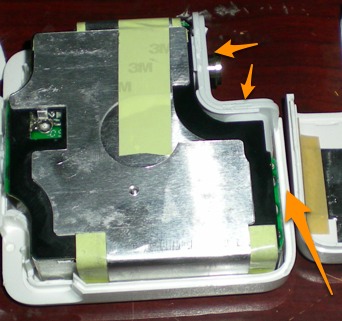

This will typically separate the two halves almost completely but the case will still be held together near the wall plug and along that back seam. To get those to release you'll need to grab the two halves and pull them apart until those also pop apart.

Ok so now you've got the adapter open. You'll see two winding ears, two spring clips, the electrical internals and then the two halves of the outer case.

Take the internals completely out and set the case components aside so we can use them later for reassembly. Then you'll want to peel the 3M tape up so we can move some of the metal shielding out of the way so that way we can access where we need to solder.

Bend the shielding out of the way to allow you to access the two solder points we'll need to desolder to be able to remove the current cord. These are labeled white and black in the picture below.

Use desoldering braid to desolder the cord and then remove the old cord from the main board.

Solder in the new cord. Pretty self explanatory really.
Then once you complete that bend the shielding back into place and retape the other flap of shielding back down.

Insert the charger back into half of the outer casing and then reinsert the spring clips. These clips keep the winding ears either held open or closed so they don't just flop around on their own.

Next replace the winding ears in their little holes in the outer casing.

Then place little dots of super glue at the indicated spots, slide on the other half of the case and clamp them together.
