How to Hook Up Voltage Divider

Hi all.In this simple tutorial i will show you how to set up votage divider whith 2 resistors.I use 2 100Ohm resistor so i should get voltage divided in half.So lets get started.

We need to add resistors in series to get voltage drop on each,that is purpose of voltage divider.

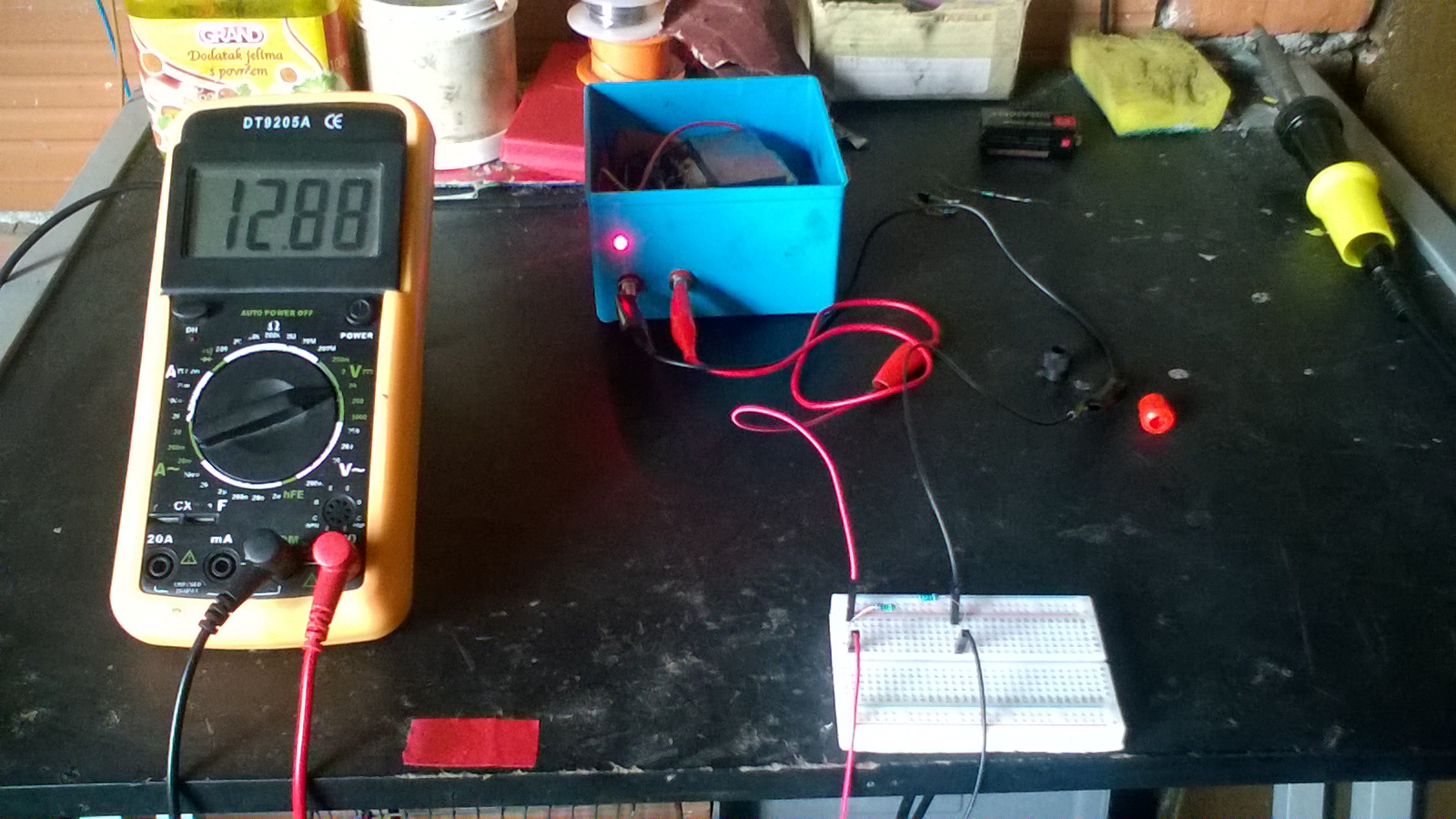

So the voltage drop on all resistors is 12.88V.Now we are going to mesure voltage drop accros single resistor.You see the voltage drop on first resistor is 6.46V.Now we are going to mesure voltage drop on second resistor.And it is also 6.46V because we used same resistors.

The down side of voltage divider is the heat wasted in resistors.Also,the maximum current on divided voltages is very low,you can add resistor whith less resistance but the heat will probably kill them.

This is my video of smoking resistor https://youtu.be/i_wmfTJANP0
