How to Make a Transparent Kite With Text

This is a kite that's easy to build and fly. We designed it to carry text in a beautiful way, so that the letters appear to be floating against the sky. We believe it can be useful for carrying icons and messages in demonstrations, or plain old fun.

You will need:

- 1 piece of transparent plastic at least 3ft x 3ft (1x1 meter)
- 2 sticks the same length of your plastic (can be carved out of bamboo)
- box tape
- line - a thick cotton line will probably be enough, but you can play safe and get dacron  or spectra lines

If you use a thin plastic, such as garbage bags, the kite will fly on lighter winds, but it will last less. We used a thicker (but not the thickest plastic), which here in Brazil is very used as table cover. But here's a picture of the garbage bag kite:

Here is how the plastic should be cut. The holes are very important for stability, but they can be cut in other shapes, like circles.

This "sled kite" was patented by William A. Allison. Luckily for us, his patent expired a long time ago. Check other kite patents on this beautiful blog.

To hook the bridle, make a reinforced loop with tape and pass the line through. The bridle should be the exact same size on both sides and each side should be as long as the kite length.

Reinforce with tape the edges of the holes and the places where the bridle is attached to the sled.

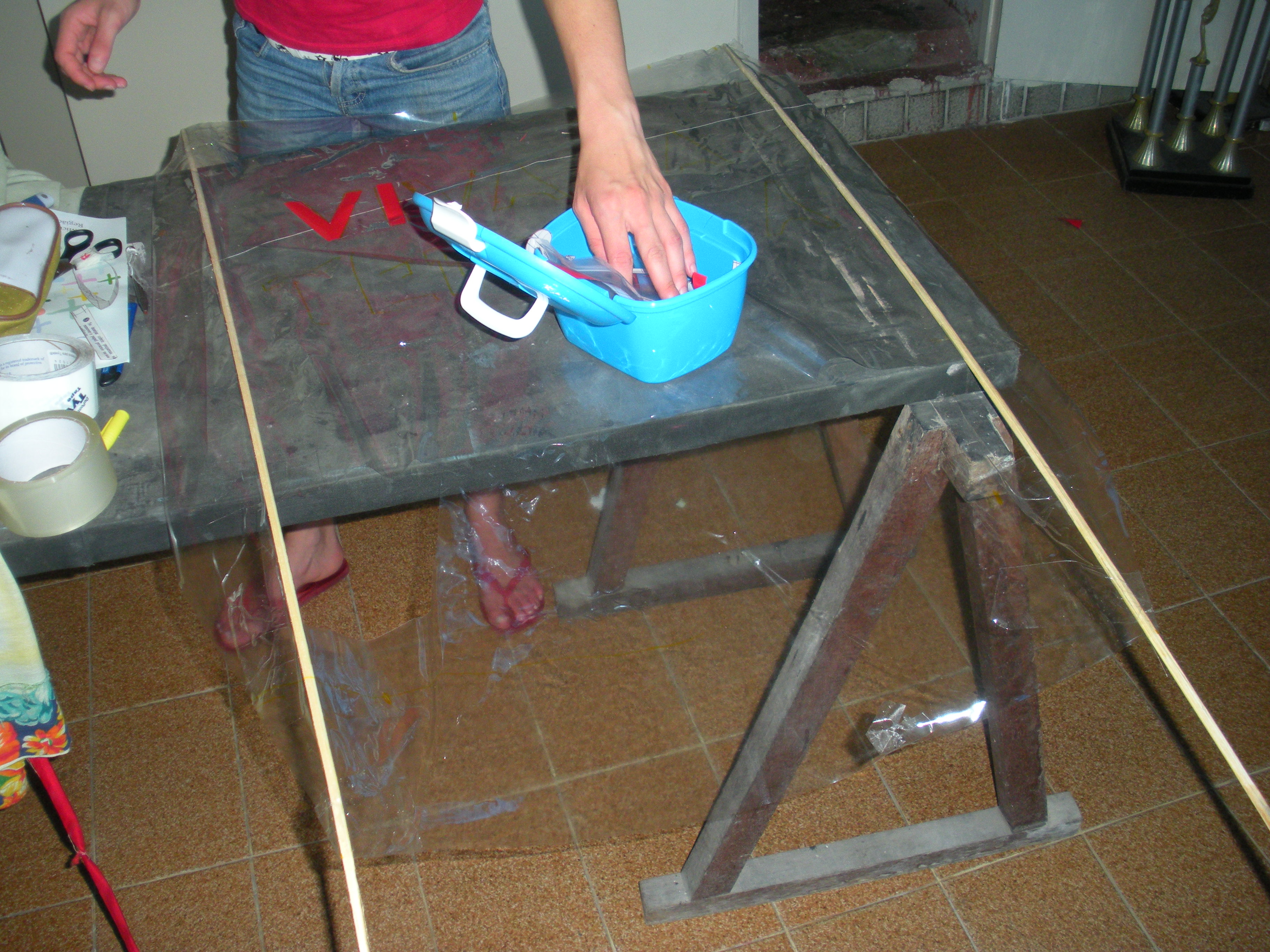

The sticks can be attached folding the tape on the edges and in some points along their length.

We used adhesive plastic to make the letters. To make sure they'd look good, we picked a projector to draw the text on it. We had to invert the image to get it right on the other side, but it would work either way.

If you make a big-ass kite, you'll probably be able to carry some more text. I think it would work well with some symbols. You can also use a different sled shape, there's a bunch to choose from.

We picked a text that is a homage to the neightborhood we're doing the kite residency, Brasília Teimosa, in Recife. Teimosa means obstinate, stubborn. The place got its name from the way it was squatted, evicted and stubbornly re-occupied in the 50's, the same time when the country's new capital, Brasília, was being built. It ended up becoming one of the biggest favelas (shantytowns) in Recife. So the kite says something like "hurray to obstination".

We've drawn the letters on the plastic so we'd get them on the right place.

Sled kites are remarkably stable and easy to fly. Just pick a place away from power lines, poles and other obstacles and you're set.

This kite was designed on the Eletropipas residency, part of the "Interações Estéticas em Pontos de Cultura",  from the Ministry of Culture, Brazil. Check other projects on our blog http://eletropipas.blogspot.com/. More instructables coming soon!
