How to Make a Lifesize, Wearable Iron Man Helmet

I think this is the biggest project I’ve done yet. My favourite movie is the Iron Man and I wanted to get an Iron Man helmet, but I’m a student and I couldn’t afford it. Then I decided to make one. Now I’ve done and I really like this helmet. I’m happy that I didn’t buy one.

You are going to work with dangerous materials. Always wear respirator while you are working with resin or you are sanding. Resin isn't good to touch before drying, so it's recommended to use rubbergloves too.

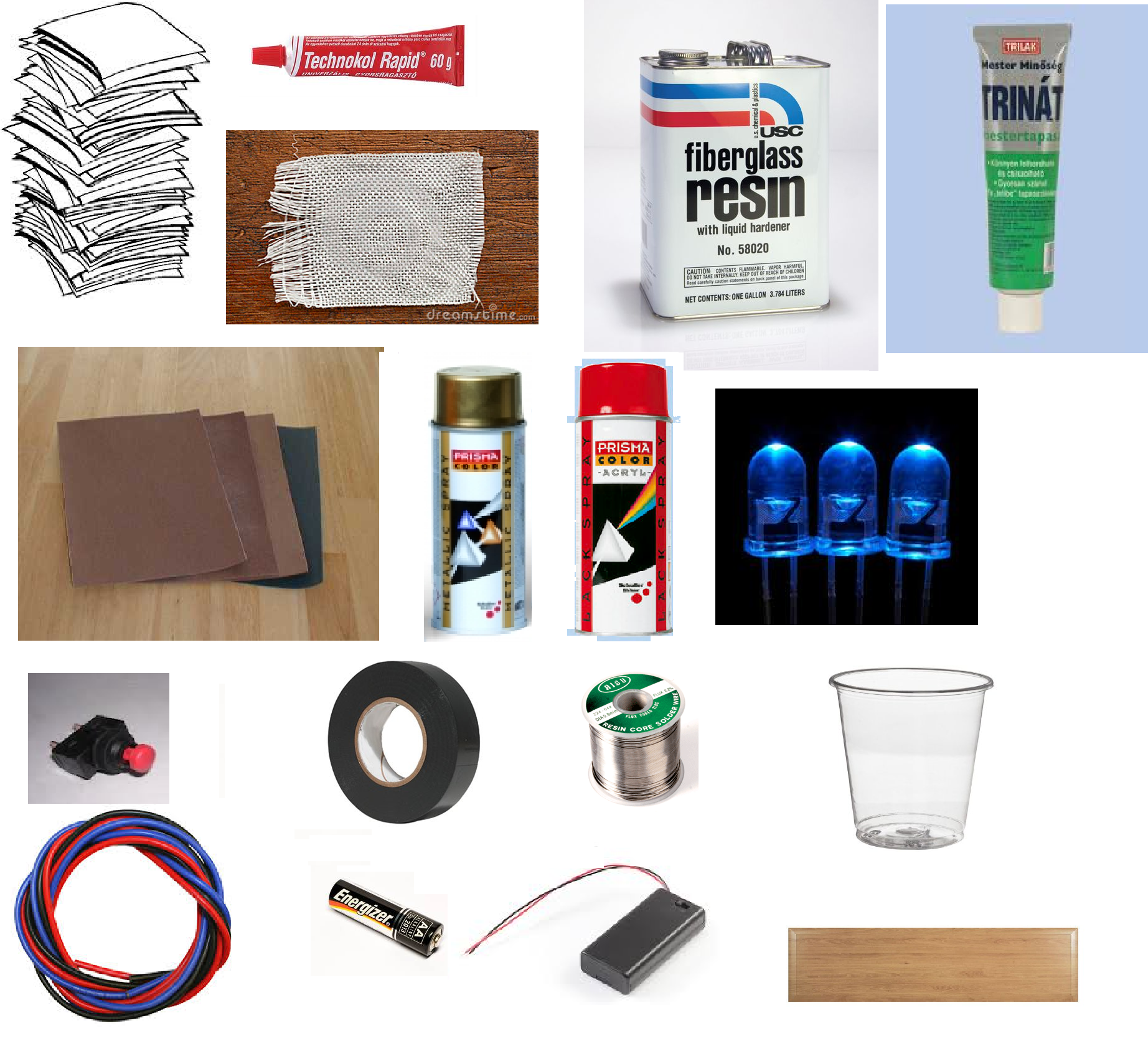

What will you need:
-17 hard papers (I used 210gsm paper. (gsm = gramms per square meter). I tried 250gsm paper too, but it was too hard and it couldn't suck the resin in.
-Technokol Universal glue
-Polyester resin
-fiberglass cloth
-resin based filler
-metallic gold spray paint
-rally red spray paint
-sand papers (60, 120, 360)
-6 LEDs
-a small switch
-2 batteries
-a battery holder
-wires
-soldering wire
-electrical tape
-a piece of transparent plastic (for the eyes)
-two pieces of wood (10cmx2,5cm)
-small magnets

The tools:
-hot glue gun
-soldering iron
-scalpel or scissors
-engraver (isn't necessary)

Warning!

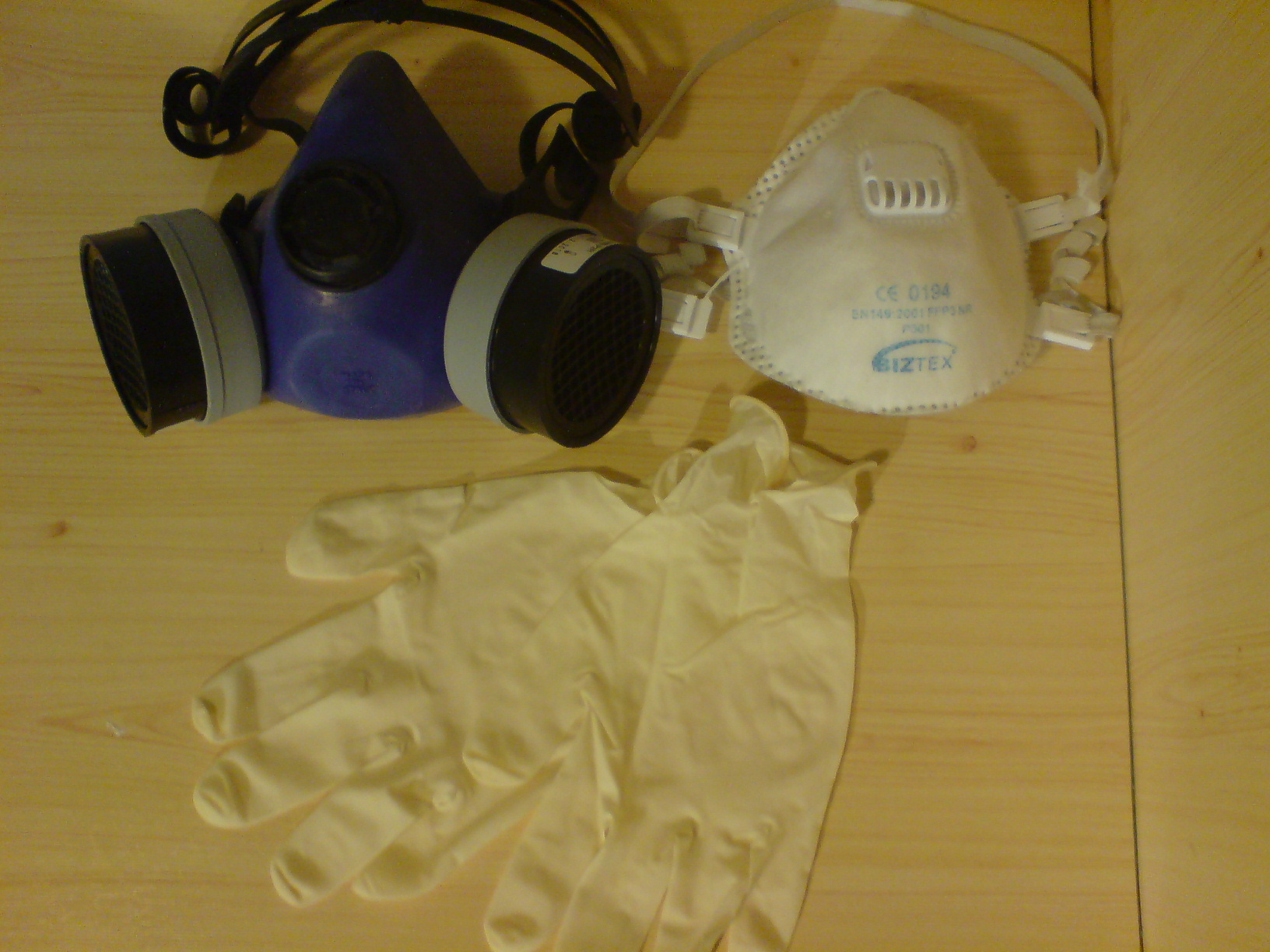

Always wear respirator while you are working with resin, paint or you are sanding! Fumes and dust can damage you lung, if you are not careful enough.

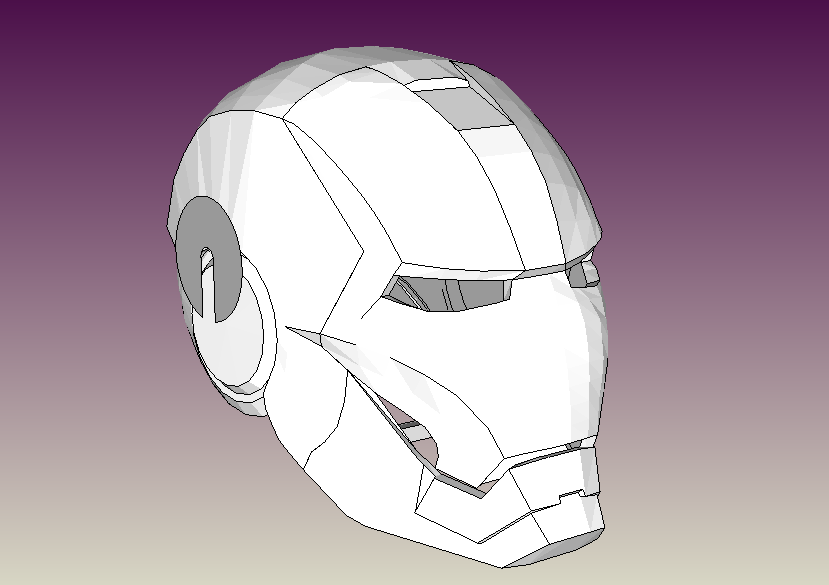

The mask has a paper base, which is designed by a program named Pepakura. It makes 2D parts from a 3D model. Fortunately, you don’t have to design the model, here is the .pdf file. You have to print them to hard paper. Normal paper doesn’t work perfectly.
After you have printed you have to cut the staight lines out (don’t cut the interrupted lines). You can use scissors or scalpel.
If someone knows how to use pepakura here is a link where you can download the pdo file: http://www.4shared.com/file/Kd2YFv88/IronmanA4.htm

You can use almost any kind of glue you want. I tried glues and the Technokol  Rapid universal glue worked the best for me. It dries fast, so you don’t have to wait much.

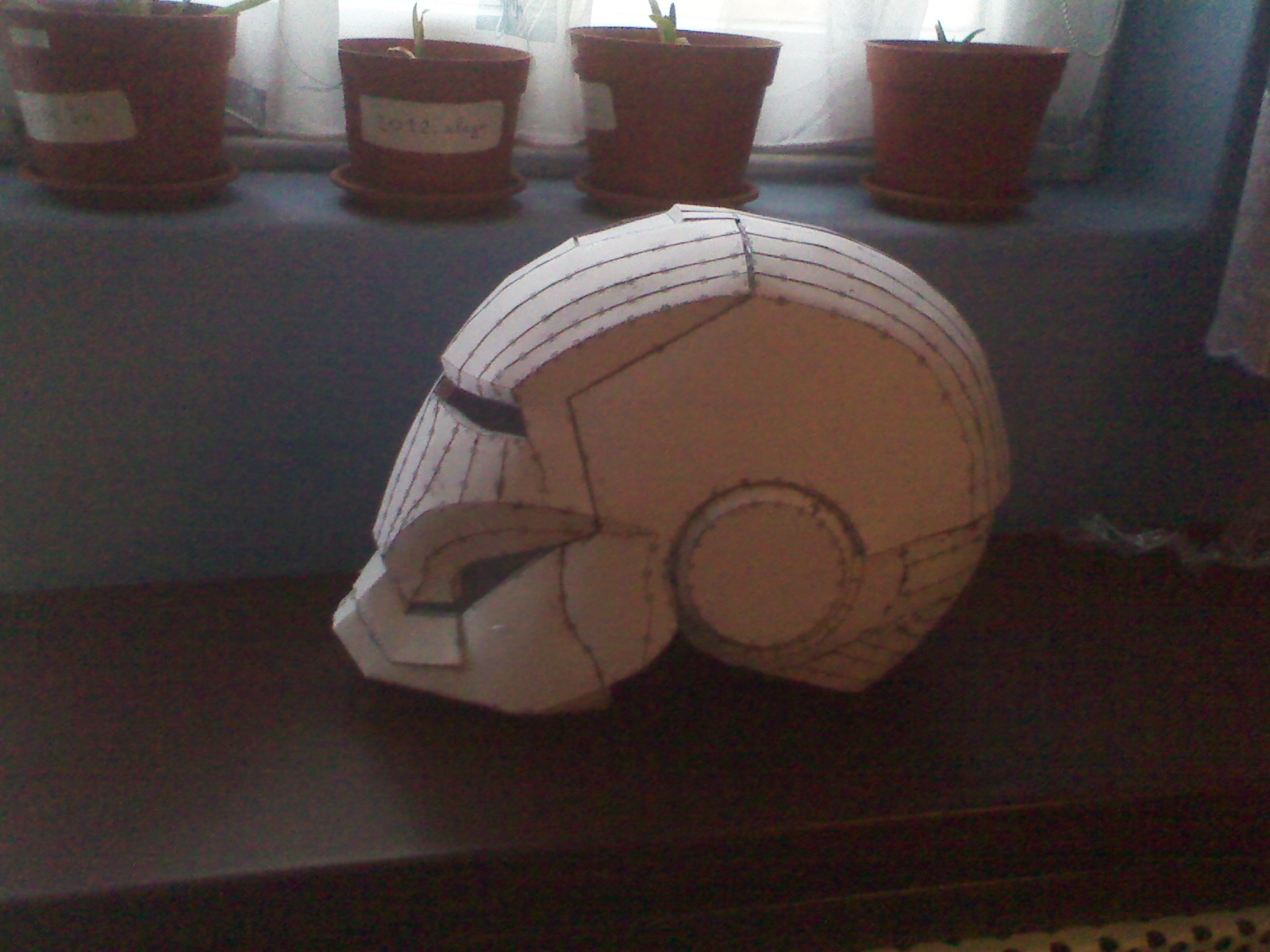

As you can see there are two of every numbers ont the parts. Every number goes to the same number. It helps you to match the parts together.
The helmet will have a drop down back, so don’t glue it to the front part.
There are two triangular parts. You need those parts until you resin the helmet. They hold the two sides close until the helmet hardens. After that you don't need them. You can see on the pictures where you should put them.

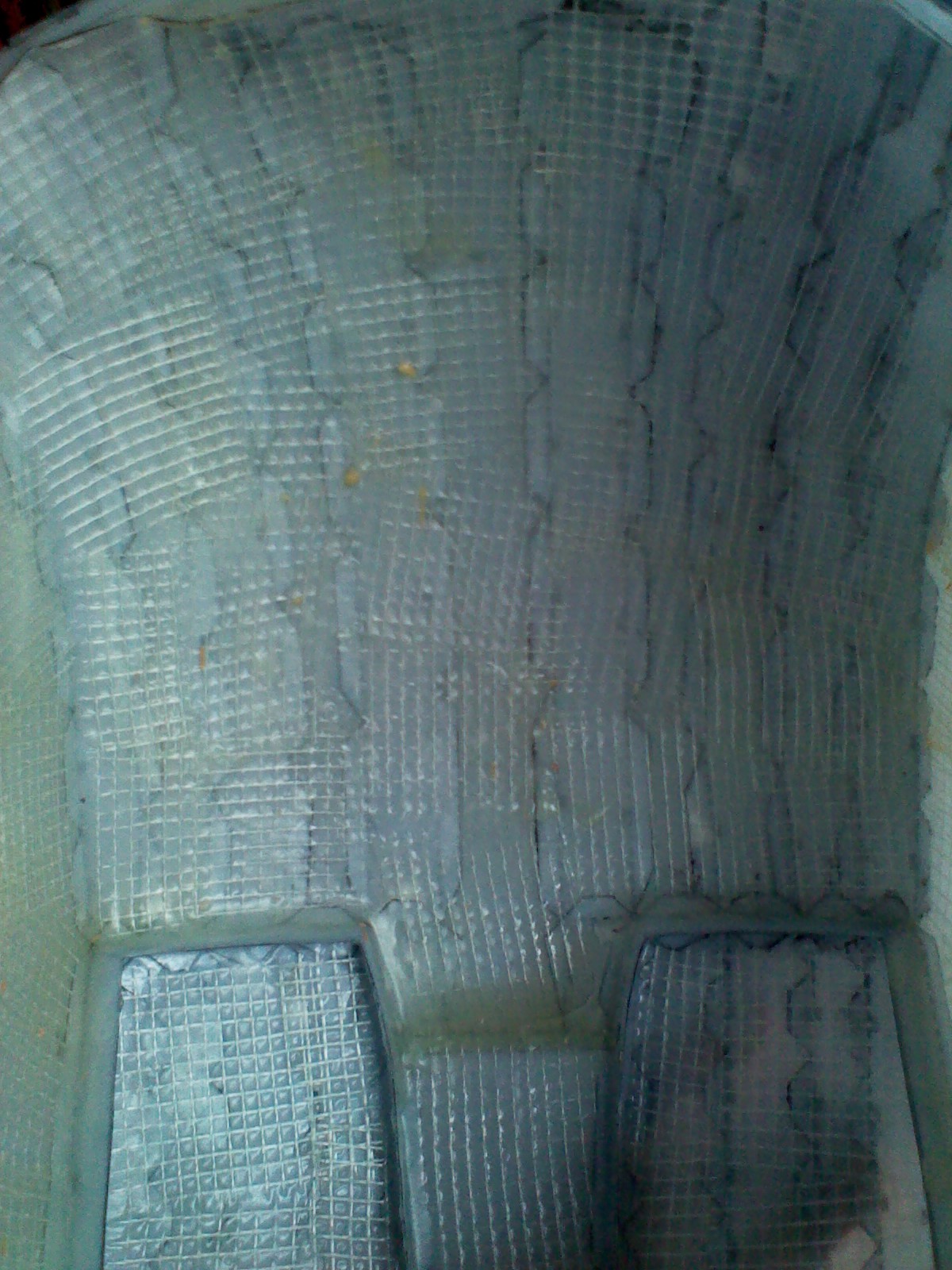

The polyester resin and the fiberglass makes the helmet strong and durable. The first layer should be only resin ont he outside of the helmet. The next layer should be resin with fiberglass in the inside. Then add two or three more layers of fiberglass with resin to the inside.

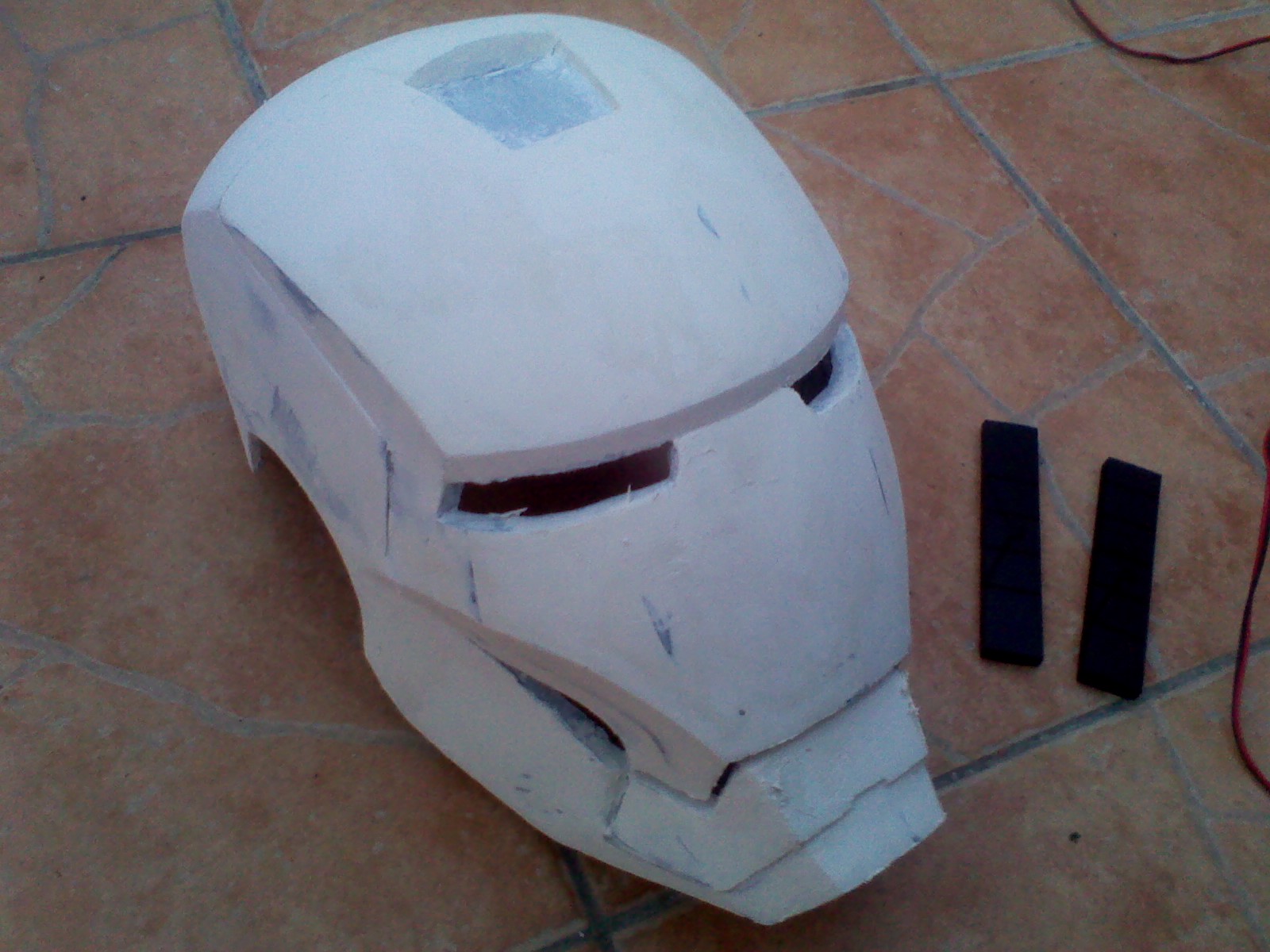

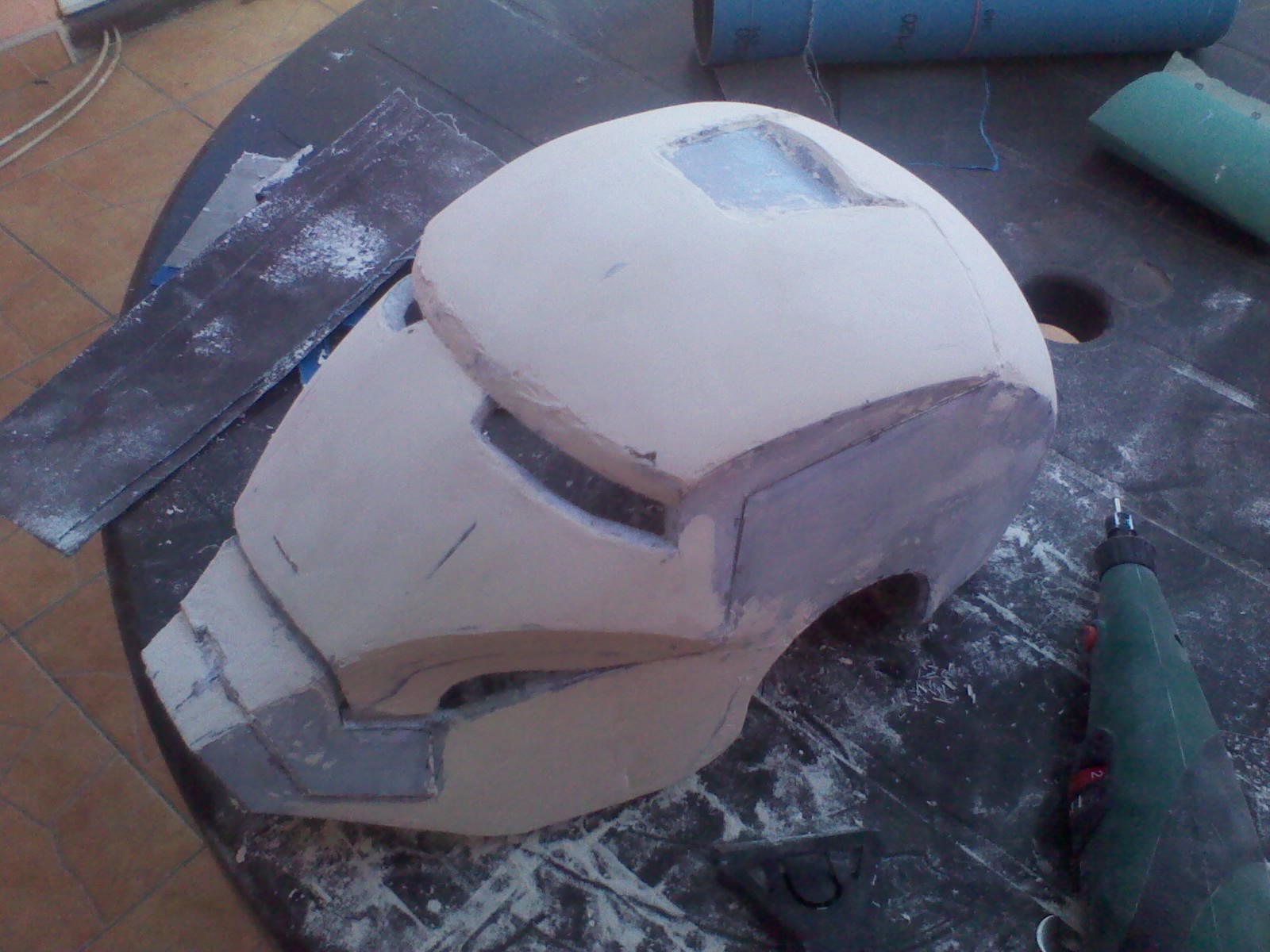

I used Trinat filler, which is a one component, resin based filler. I added about 3 layers and sanded after each layer. The numbers of the sandpapers I used were 60,120 and 360. I This step takes longest time, so be patient.

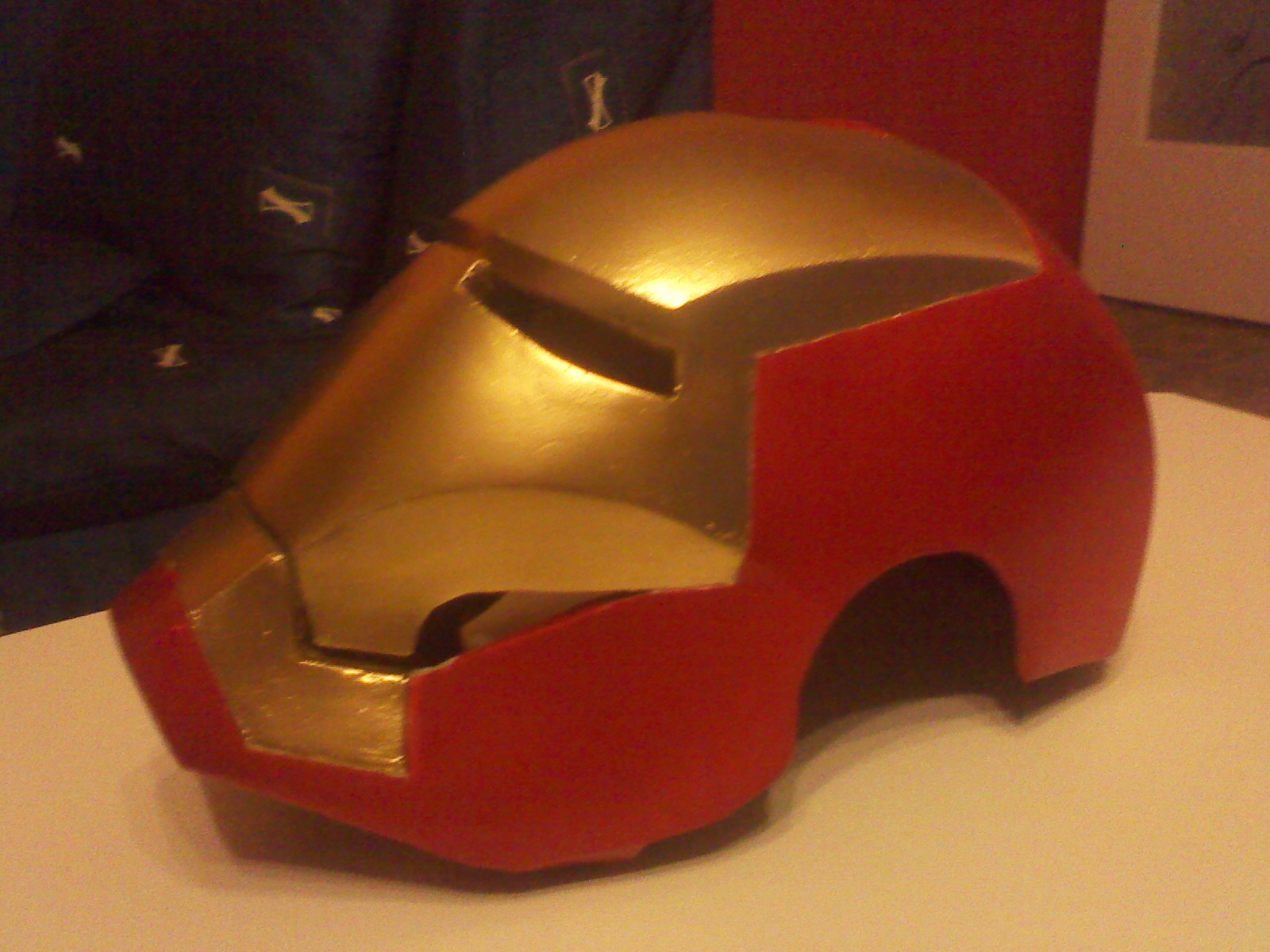

I used masking tape to cover the places I don't want to paint. The paint sprays I used were a metallic gold and a rally red. I painted two layers.
It is highly recommended to paint the inside too, so you don't have to inhale the resin.

The method is the same: Resin, fiberglass, fill, sand, paint. In the real Iron Man helmet the ears are not just a simple circle, but on the paper base they are. I made the original ears from a 3mm thick wood plate and glued a piece of plastic to the bottom of them. After that I glued the ears in place.
You can't put your head inside until you have removed the back part, so you'd better use magnest to make it removable.

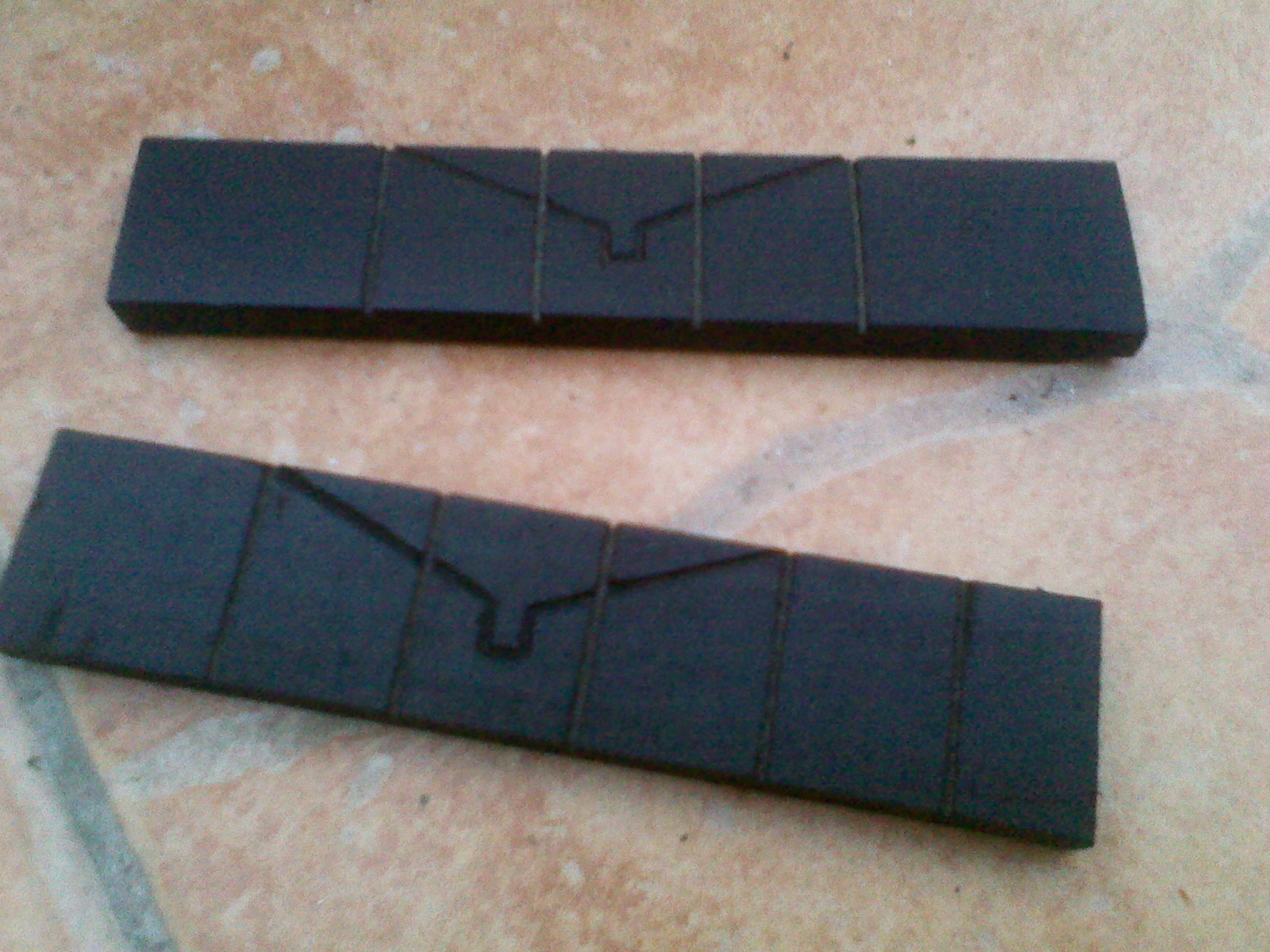

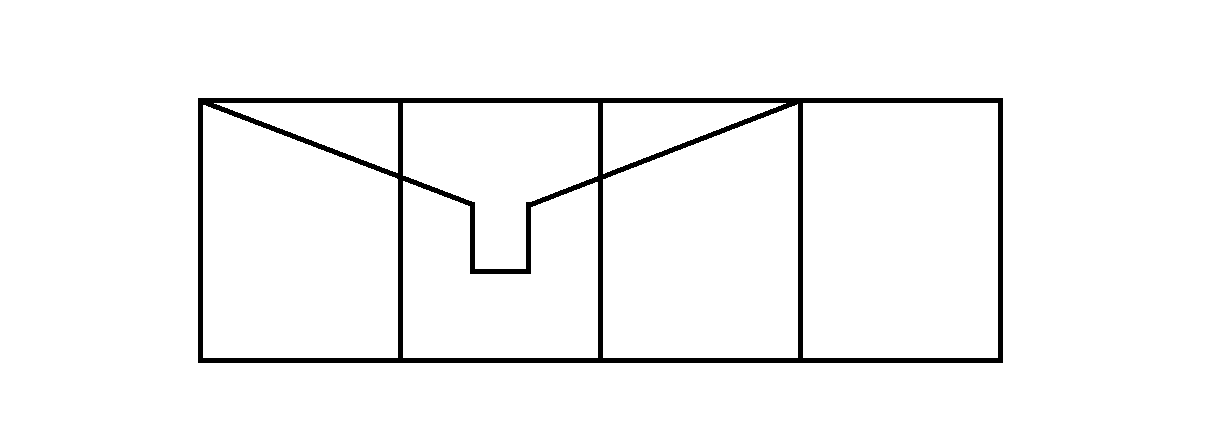

The teeth are two piece of wood (10cmx2.5cm) with thease engraved lines. I painted them black and glued inside the helmet  using hot glue.

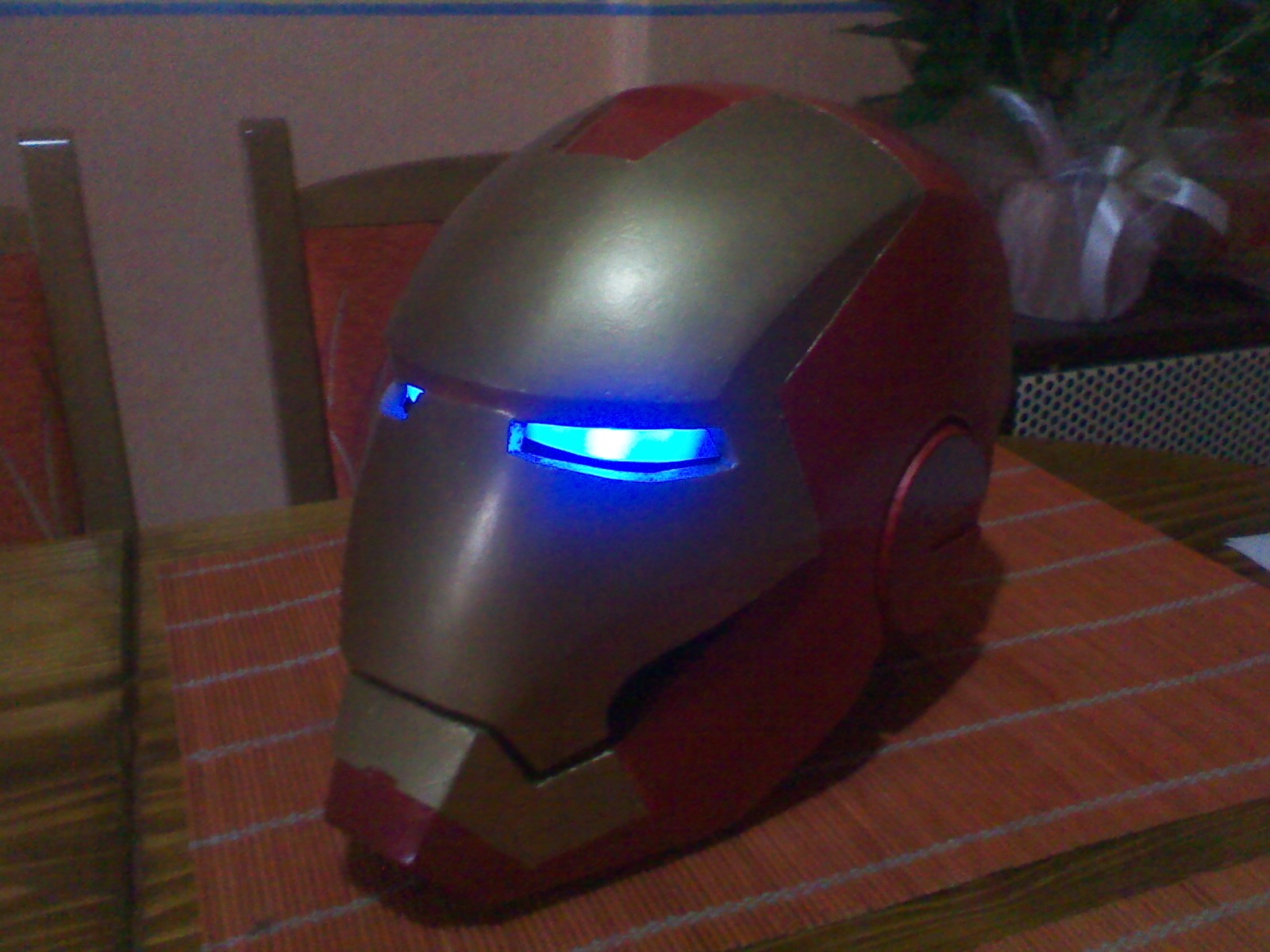

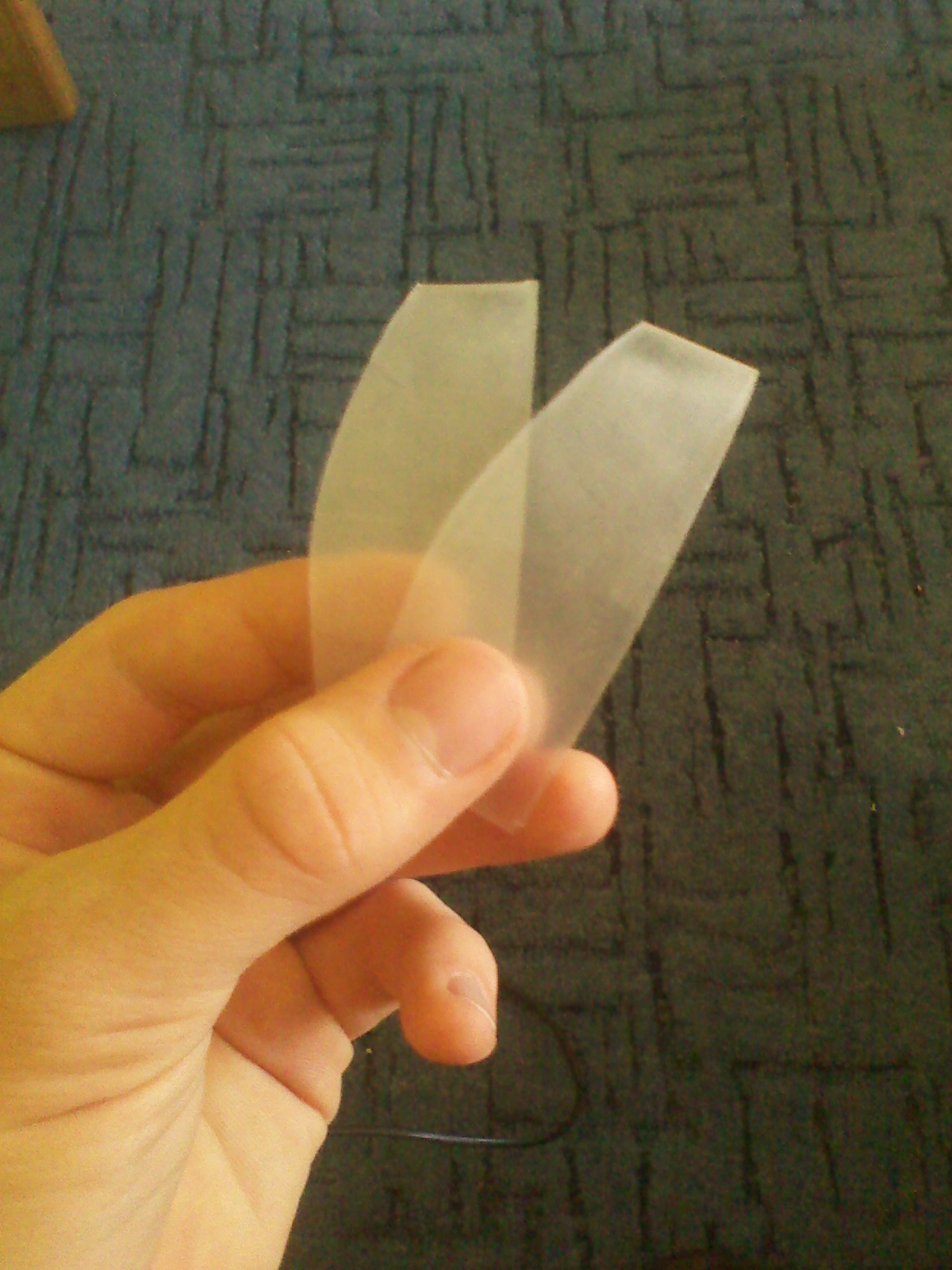

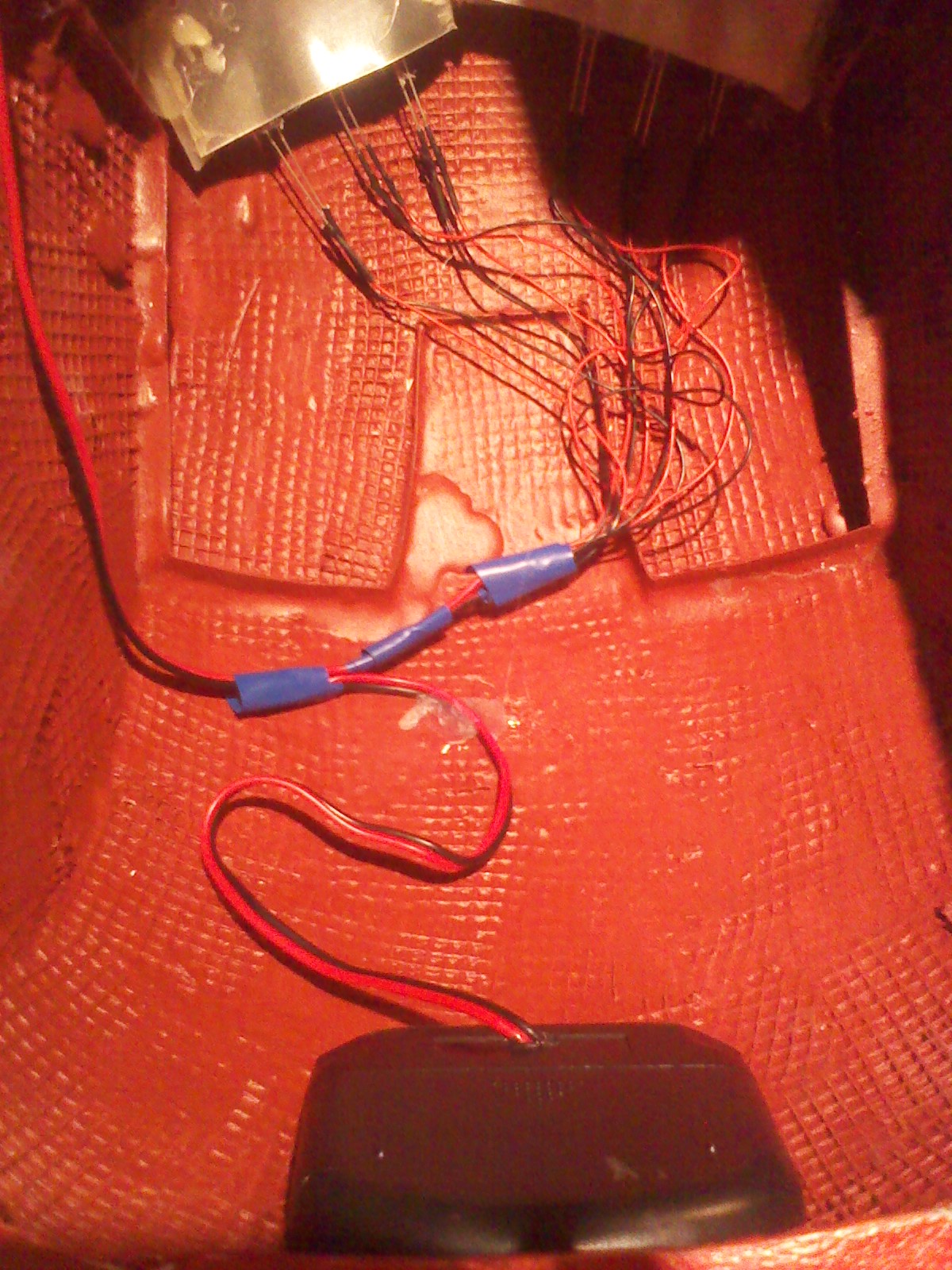

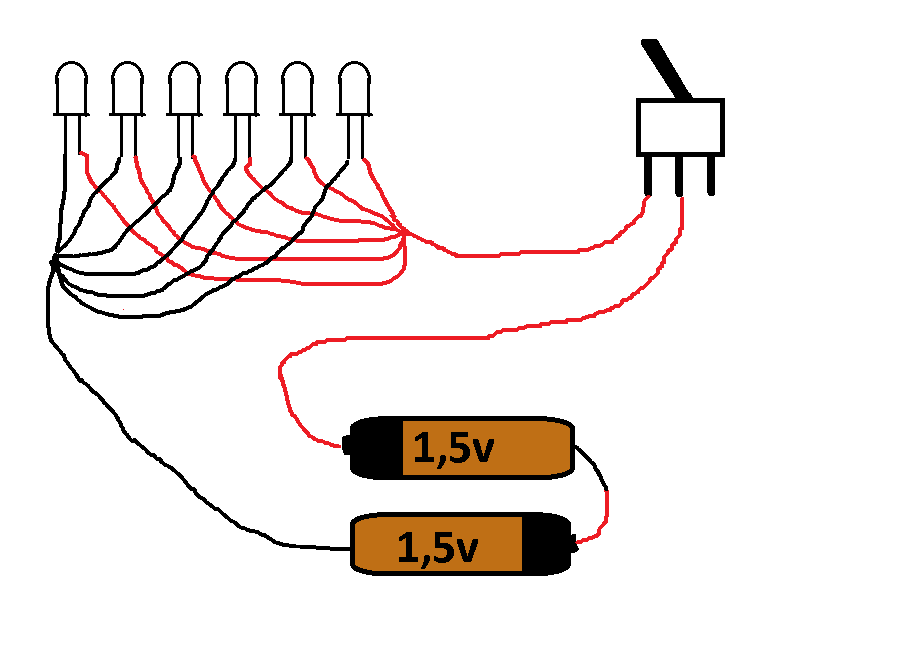

The eyes are LEDs behind scrached transparent plastic (you can get it from for example plastic cups). You can scarth the plastic using sand paper. Then you should glue the LEDs using hot glue. After that, you have to add a piece of aluminium foil or beer can to reflect the lights. Don't forget to leave a few milimeters under the eye lights, so you can see trough.

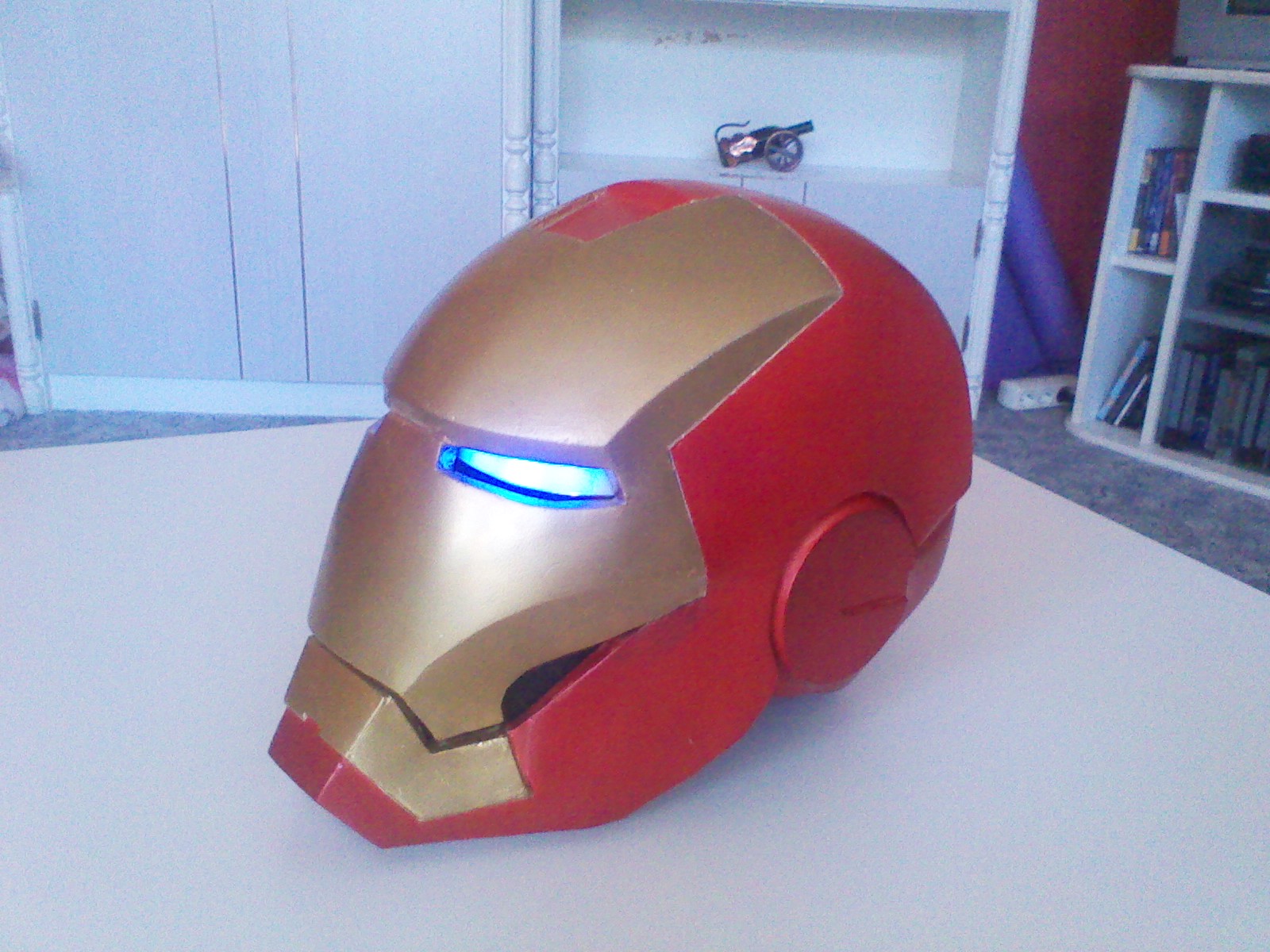

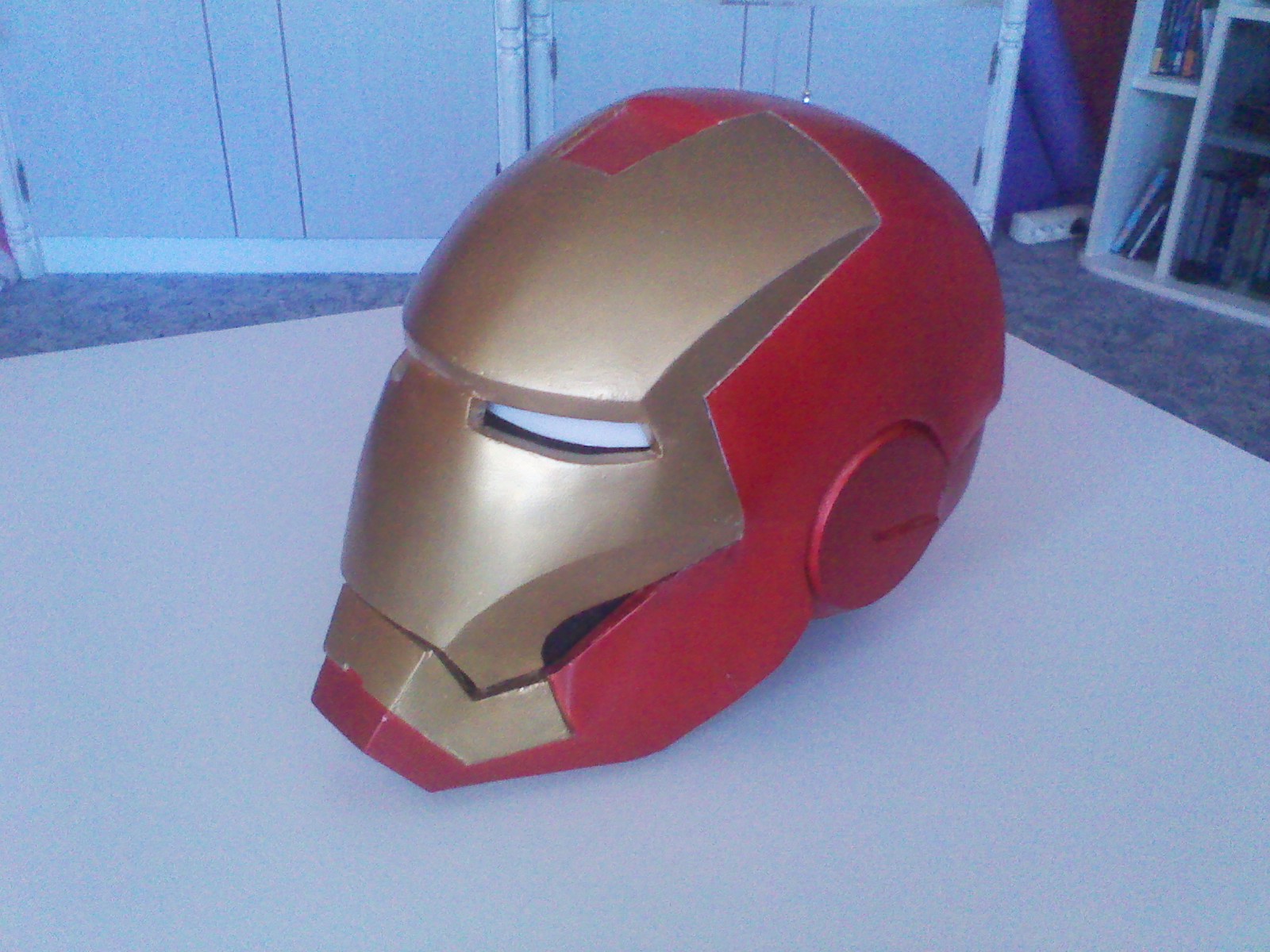

Congratulation! You have finished your own Iron Man helmet! :)
I hope you enjoyed this tutorial as I did making it.
If you have any questions leave a comment or send me a message.
