Introduction

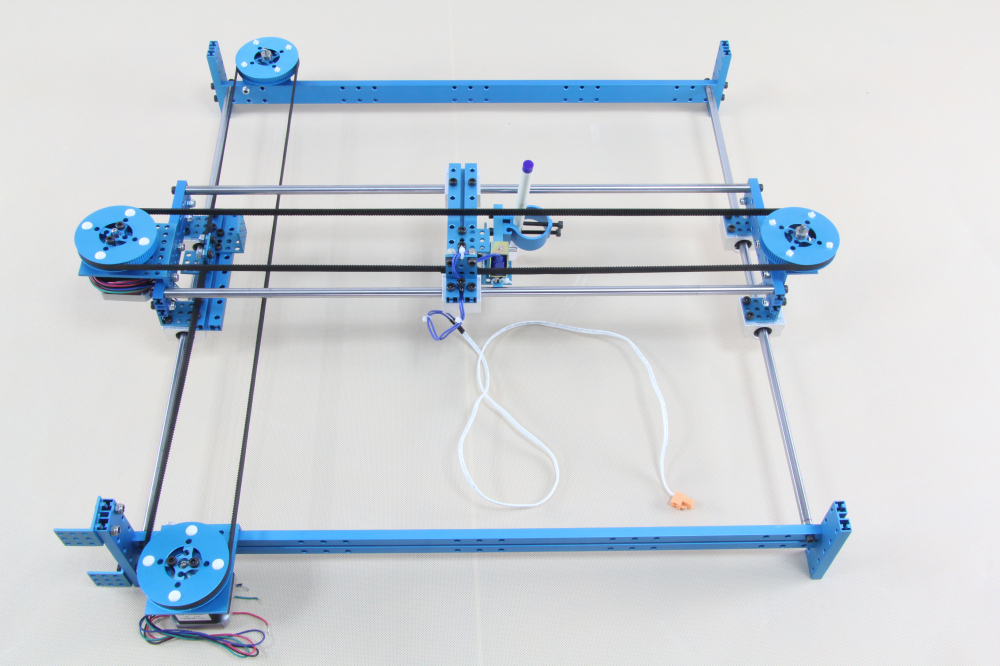

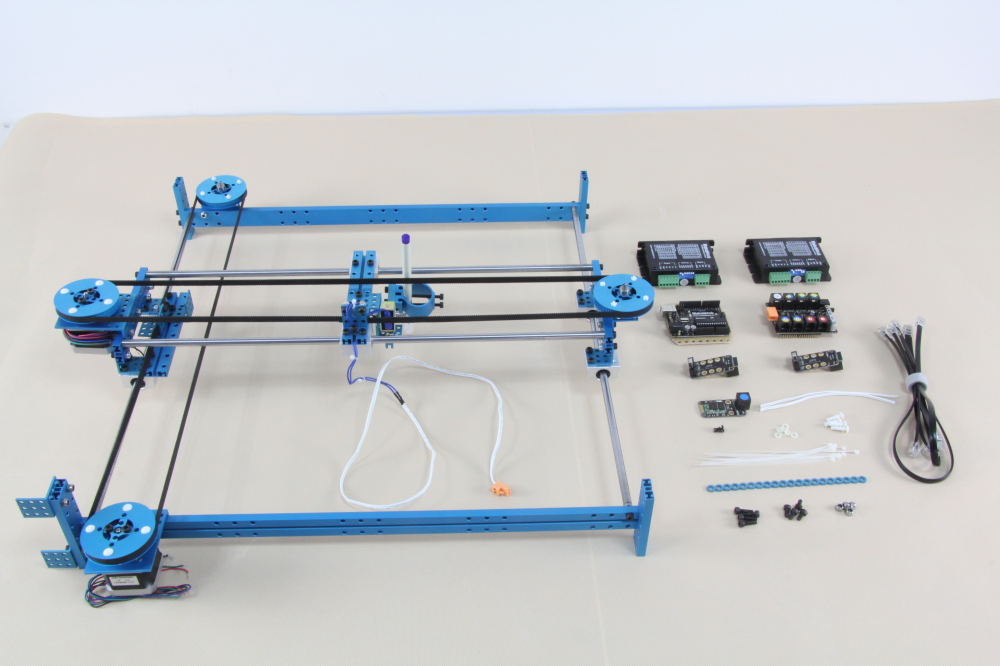

Last month, I made a XY-plotter by Makeblock and use it to built a Drawing Robot.
This Drawing Robot was built with two Linear Motion Shaft D8x480mm, two Long Beam0824, the timing belt, two stepper motors, two stepper motor driver, and a micro-controller Arduino. You can send a picture from the phone or you can take a picture by the phone and then send it to the robot by Bluetooth. After that the robot will draw what you send.
BUY NOW
The instruction will show you how to build a XY-plotter.
For the program process, please visit the user guide. It contains both the turtorials of how to use Android app to control XY-plotter, and how to use Gcode to control XY-plotter.
If you have any question about it, pleas visit the troubleshooting of XY-plotter to help yourself. Or you can just post your question on the forum, I will give a response in minutes.
learn more

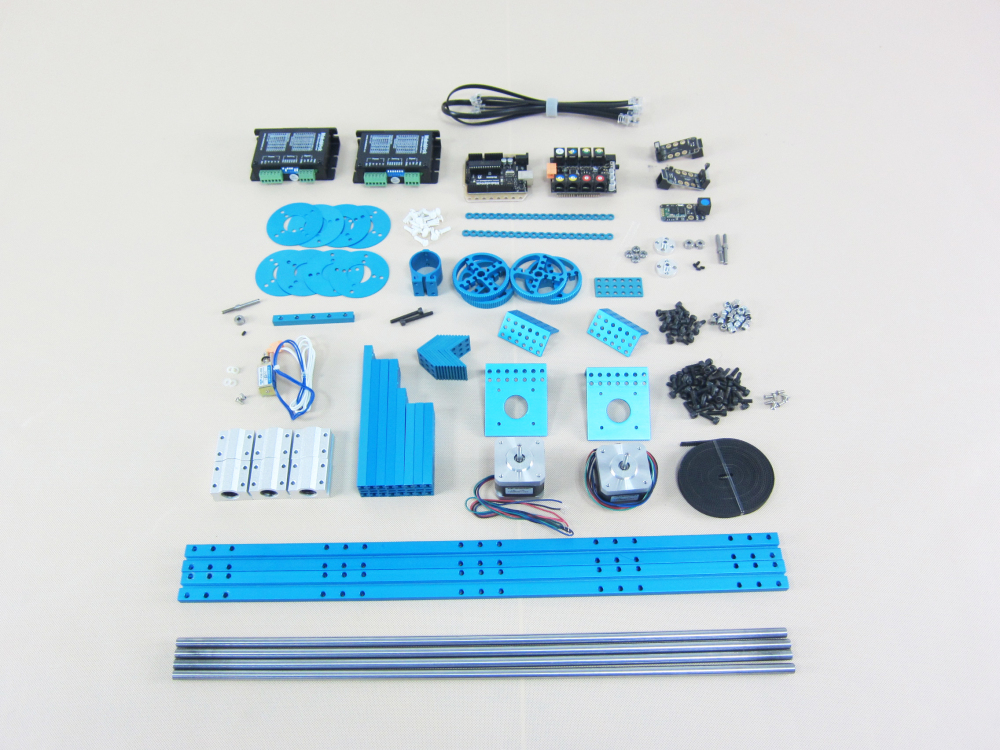

Materials List
Materials List:
4 × Linear Motion Shaft D8x480
6 × Linear Motion Slide Unit 8mm
2 × Beam 0824-496
1 × Beam 0824-144
3 × Beam 0824-128
1 × Beam 0824-96
3 × Beam 0824-80
1 × Beam 0808-80
1 × General Bracket
2 × Bracket 3x6
11 × Bracket 3x3
1 × Plate 3×6
2 × Stepper Motor Bracket
4 × Timing Pulley 90T
8 × Timing Pulley Slice 90T
1 × Open-end Timing Belt (3m)
2 × Link Rod
2 × Shaft Connector-4
3 × Threaded Shaft 4x31mm
3 × Shaft Collar 4mm
4 × Flange Bearing 4x8x3mm
8 × Headless Set Screw M3x5
15 × Countersunk Screw M3×8
20 × Plastic Rivet 4120
25 × Plastic Ring 4x7x2mm
5 × Plastic Ring 4x7x1mm
30 × Screw M4×8
55 × Screw M4×14
2 × Screw M4×30
40 × Nylon Lock Nut M4
10 × Nylon Cable Ties

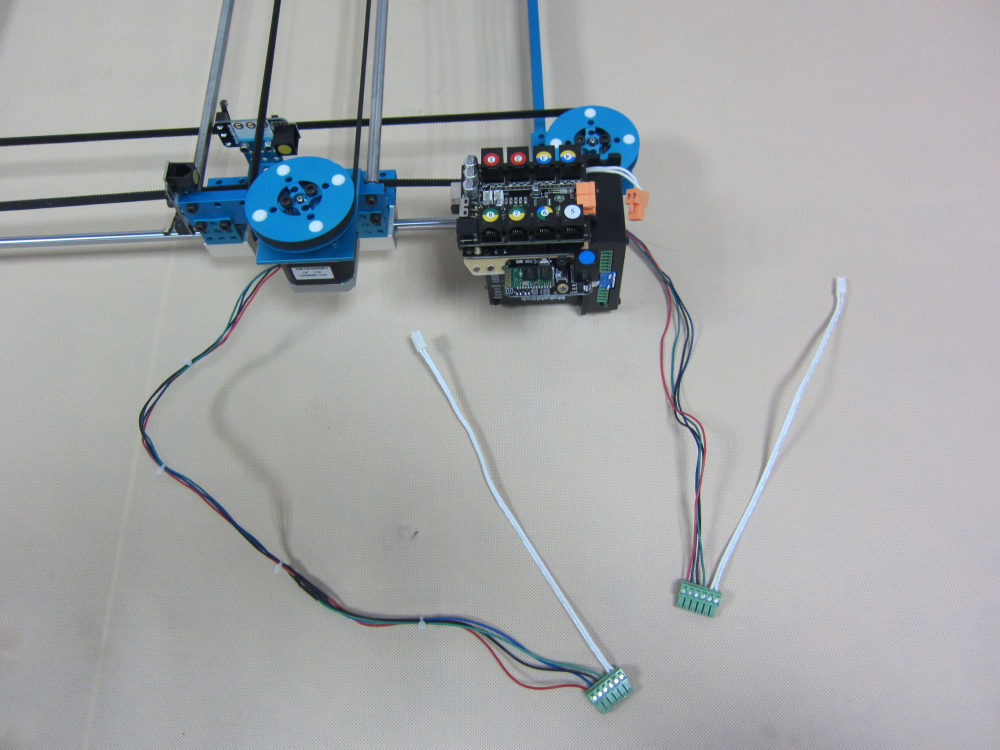

Electronic Modules List:
1 × Arduino
1 × Acrylic Arduino Bracket
1 × Me-BaseShield
1 × Solenoid - 12v
2 × Stepper Motor
2 × Stepper motor driver
1 × Me-Bluetooth modules
2 × Me-Limit Switch
3 × 6P6C RJ11 cable-20cm
2 × 6P6C RJ11 cable-50cm
Tools
Tools
1.5mm Hexagonal Screwdriver
3mm Hexagonal Screwdriver
Cross Screwdriver
Slotted Screwdriver
Pliers
Nylon CableTies
1.5mm Hexagonal Screwdriver
3mm Hexagonal Screwdriver
Cross Screwdriver
Slotted Screwdriver
Pliers
Nylon CableTies
Make the Holder
Materials List:
2 × Beam 0824-496
1 × Beam 0824-96
3 × Beam 0824-80
7 × Screw M4×14
Procedure:
1. Install the first Beam 0824-80 on Beam 0824-496 by using 2 Screw M4×14.
2. Install the second Beam 0824-80 on Beam 0824-496 with 2 Screw M4×14.
3. Install the third Beam 0824-80 on another Beam 0824-496 with 2 Screw M4×14.
4. Install the Beam 0824-96 on Beam 0824-496 with 1 Screw M4×14.
2 × Beam 0824-496
1 × Beam 0824-96
3 × Beam 0824-80
7 × Screw M4×14
Procedure:
1. Install the first Beam 0824-80 on Beam 0824-496 by using 2 Screw M4×14.
2. Install the second Beam 0824-80 on Beam 0824-496 with 2 Screw M4×14.
3. Install the third Beam 0824-80 on another Beam 0824-496 with 2 Screw M4×14.
4. Install the Beam 0824-96 on Beam 0824-496 with 1 Screw M4×14.
Build the Frame
Materials List:
2 × Linear Motion Shaft D8x480
4 × Linear Motion Slide Unit 8mm
4 × Screw M4×14
Procedure:
1. Install the 2 Linear Motion Shaft D8x480s on Beam 0824-496 by using 2 Screw M4×14.
2. Install 2 Linear Motion Slide Unit 8mm on each Linear Motion Shaft D8x480.
3. Install the 2 Linear Motion Shaft D8x480s on another Beam 0824-496 with 2 Screw M4×14.
2 × Linear Motion Shaft D8x480
4 × Linear Motion Slide Unit 8mm
4 × Screw M4×14
Procedure:
1. Install the 2 Linear Motion Shaft D8x480s on Beam 0824-496 by using 2 Screw M4×14.
2. Install 2 Linear Motion Slide Unit 8mm on each Linear Motion Shaft D8x480.
3. Install the 2 Linear Motion Shaft D8x480s on another Beam 0824-496 with 2 Screw M4×14.
Add Stepper Motor Driver Holder
Materials List:
2 × Bracket 3x3
4 × Screw M4×14
3 × Nylon Lock Nut M4
Procedure:
1. Install the first Bracket 3x3 to Beam 0824-96 on Beam 0824-496 by using 2 Screw M4×14 and a Nylon Lock Nut M4.
2. Install the second Bracket 3x3 to Beam 0824-96 on Beam 0824-496 by using 2 Screw M4×14 and 2 Nylon Lock Nut M4.
2 × Bracket 3x3
4 × Screw M4×14
3 × Nylon Lock Nut M4
Procedure:
1. Install the first Bracket 3x3 to Beam 0824-96 on Beam 0824-496 by using 2 Screw M4×14 and a Nylon Lock Nut M4.
2. Install the second Bracket 3x3 to Beam 0824-96 on Beam 0824-496 by using 2 Screw M4×14 and 2 Nylon Lock Nut M4.

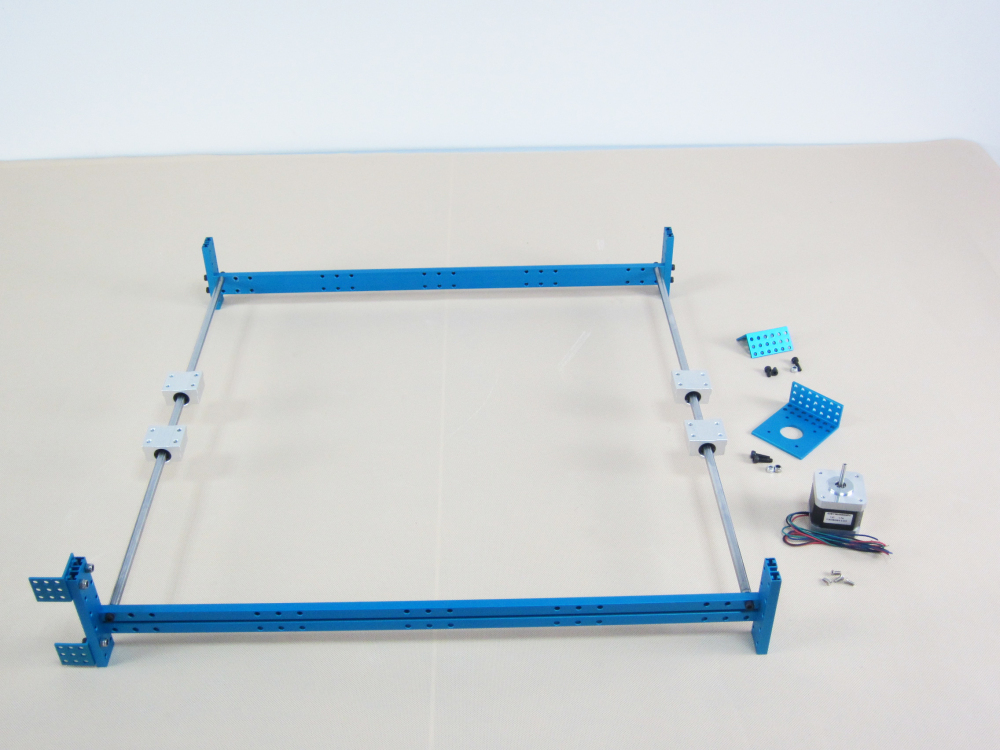

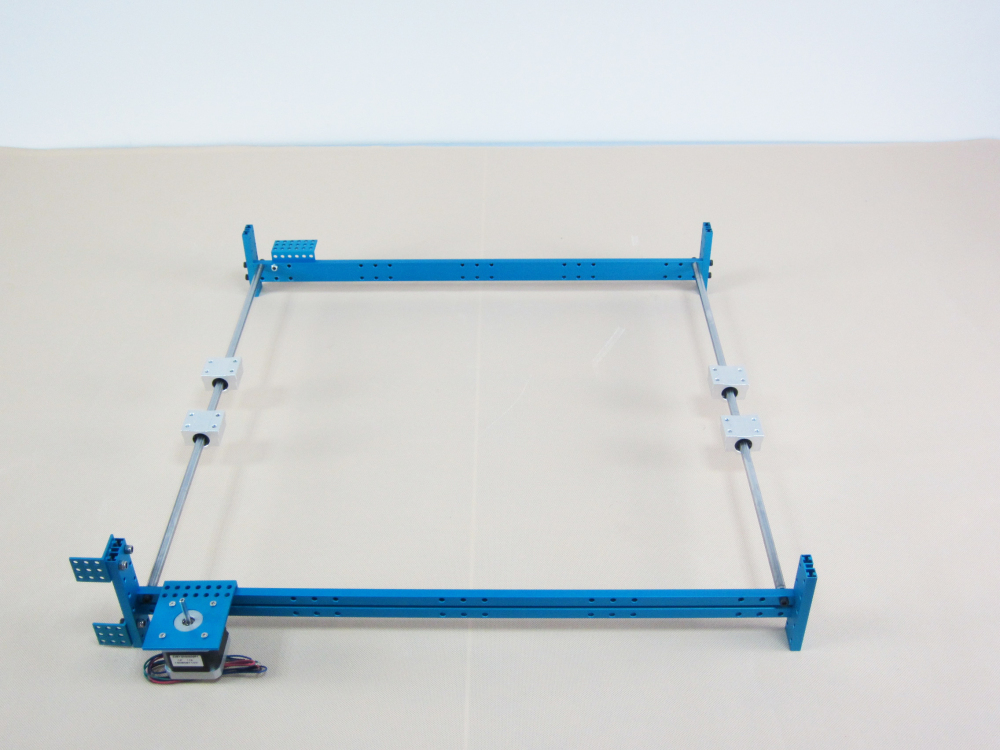

Add Stepper Motor
Materials List:
1 × Bracket 3x6
1 × Stepper Motor Bracket
4 × Countersunk Screw M3×8
2 × Screw M4×8
3 × Screw M4×14
3 × Nylon Lock Nut M4
1 × Stepper Motor
Procedure:
1. Install the Stepper Motor Bracket on Beam 0824-496 by using 2 Screw M4×14 and 2 Nylon Lock Nut M4.
2. Install the Stepper Motor to Stepper Motor Bracket with 4 Countersunk Screw M3×8.
3. Install the Bracket 3x6 on Beam 0824-496 by using 2 Screw M4×8, 1 Screw M4×14 and 1 Nylon Lock Nut M4.
1 × Bracket 3x6
1 × Stepper Motor Bracket
4 × Countersunk Screw M3×8
2 × Screw M4×8
3 × Screw M4×14
3 × Nylon Lock Nut M4
1 × Stepper Motor
Procedure:
1. Install the Stepper Motor Bracket on Beam 0824-496 by using 2 Screw M4×14 and 2 Nylon Lock Nut M4.
2. Install the Stepper Motor to Stepper Motor Bracket with 4 Countersunk Screw M3×8.
3. Install the Bracket 3x6 on Beam 0824-496 by using 2 Screw M4×8, 1 Screw M4×14 and 1 Nylon Lock Nut M4.

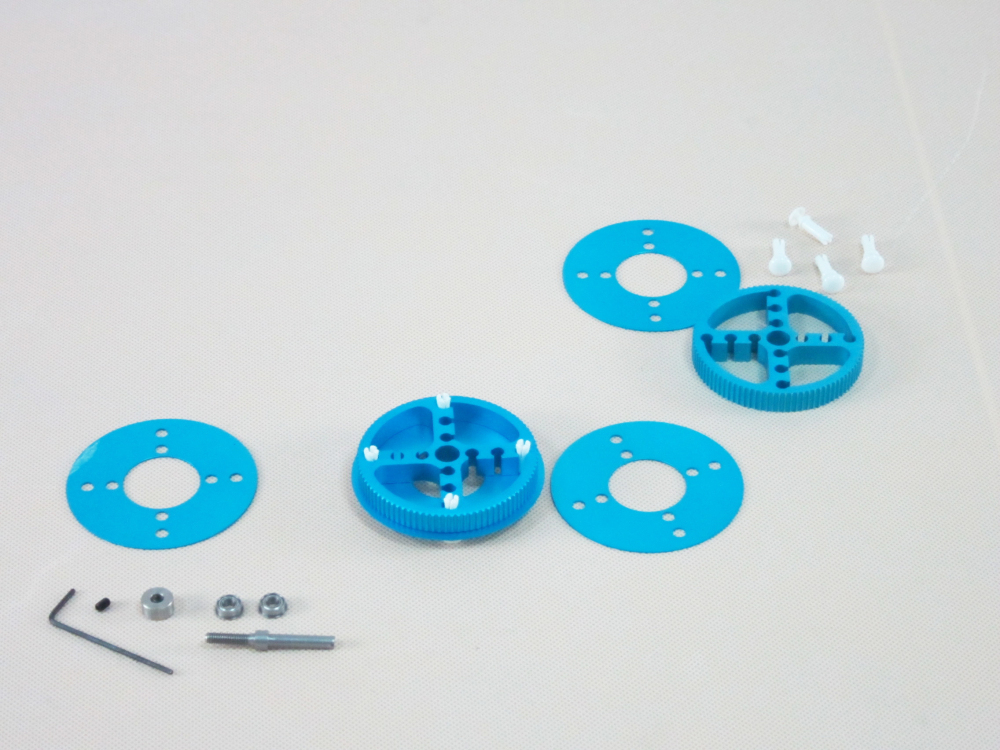

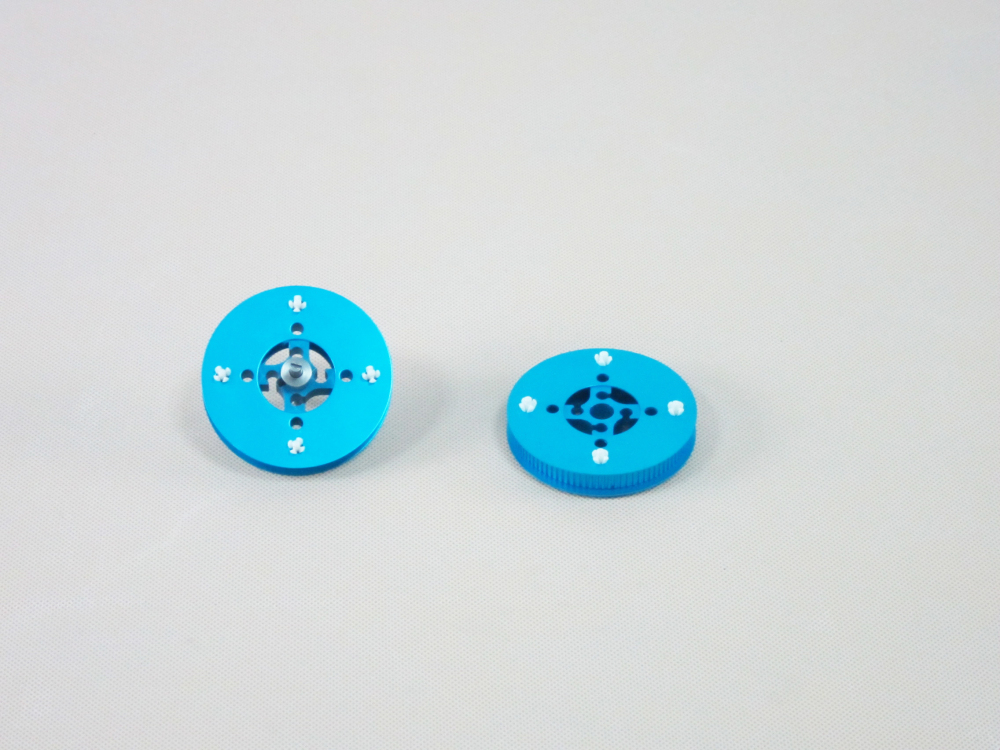

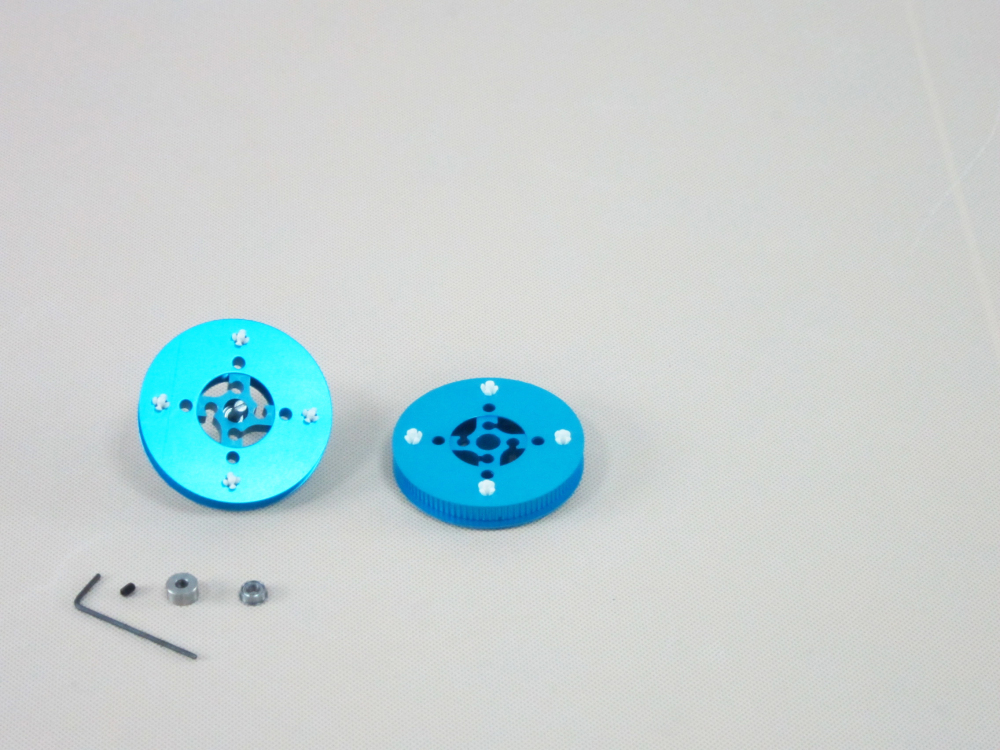

Make Timing Pulley
Materials List:
4 × Timing Pulley 90T
8 × Timing Pulley Slice 90T
2 × Threaded Shaft 4x31mm
2 × Shaft Collar 4mm
2 × Headless Set Screw M3x5
4 × Flange Bearing 4x8x3mm
16 × Plastic Rivet 4120
Procedure:
1. Insert 4 Plastic Rivet R4120 into the holes on the Timing Pulley Slice 90T.
2. Put a Timing Pulley 90T on the Timing Pulley Slice 90T.
3. Put another Timing Pulley Slice 90T on the Timing Pulley 90T and Press the Plastic Rivet R4120 to make them together.
4. Do the same as step1 to 3 discribe to make another Timing Pulley.
5. Insert the Threaded Shaft 4×31mm into the Flange Bearing 4×8×3mm.
6. Insert the Threaded Shaft 4×31mm with the Flange Bearing 4×8×3mm into the Timing Pulley 90T.
7. Insert the other Flange Bearing 4×8×3mm into the Timing Pulley 90T.
8. Put the Shaft Collar 4mm on the Threaded Shaft 4×31mm and insert a Headless Screw M3×5 into the Shaft Collar 4mm.
9. Do the same as step 1 to 8 discribe to make another two Timing Pulley.
4 × Timing Pulley 90T
8 × Timing Pulley Slice 90T
2 × Threaded Shaft 4x31mm
2 × Shaft Collar 4mm
2 × Headless Set Screw M3x5
4 × Flange Bearing 4x8x3mm
16 × Plastic Rivet 4120
Procedure:
1. Insert 4 Plastic Rivet R4120 into the holes on the Timing Pulley Slice 90T.
2. Put a Timing Pulley 90T on the Timing Pulley Slice 90T.
3. Put another Timing Pulley Slice 90T on the Timing Pulley 90T and Press the Plastic Rivet R4120 to make them together.
4. Do the same as step1 to 3 discribe to make another Timing Pulley.
5. Insert the Threaded Shaft 4×31mm into the Flange Bearing 4×8×3mm.
6. Insert the Threaded Shaft 4×31mm with the Flange Bearing 4×8×3mm into the Timing Pulley 90T.
7. Insert the other Flange Bearing 4×8×3mm into the Timing Pulley 90T.
8. Put the Shaft Collar 4mm on the Threaded Shaft 4×31mm and insert a Headless Screw M3×5 into the Shaft Collar 4mm.
9. Do the same as step 1 to 8 discribe to make another two Timing Pulley.
Add Timing Pulley
Materials List:
1 × Shaft Connector-4
1 × Headless Set Screw M3x5
2 × Screw M4×14
1 × Nylon Lock Nut M4
Procedure:
1. Install the Driven Pulley to tht Bracket 3x6 with a Nylon Lock Nut M4.
2. Insert a Headless Screw M3×5 into the Shaft Connector-4 and install the Shaft Connector-4 to the Stepper Motor.
3. Install the Driving Pulley on the Shaft Connector-4 with 2 Screw M4×14.
1 × Shaft Connector-4
1 × Headless Set Screw M3x5
2 × Screw M4×14
1 × Nylon Lock Nut M4
Procedure:
1. Install the Driven Pulley to tht Bracket 3x6 with a Nylon Lock Nut M4.
2. Insert a Headless Screw M3×5 into the Shaft Connector-4 and install the Shaft Connector-4 to the Stepper Motor.
3. Install the Driving Pulley on the Shaft Connector-4 with 2 Screw M4×14.

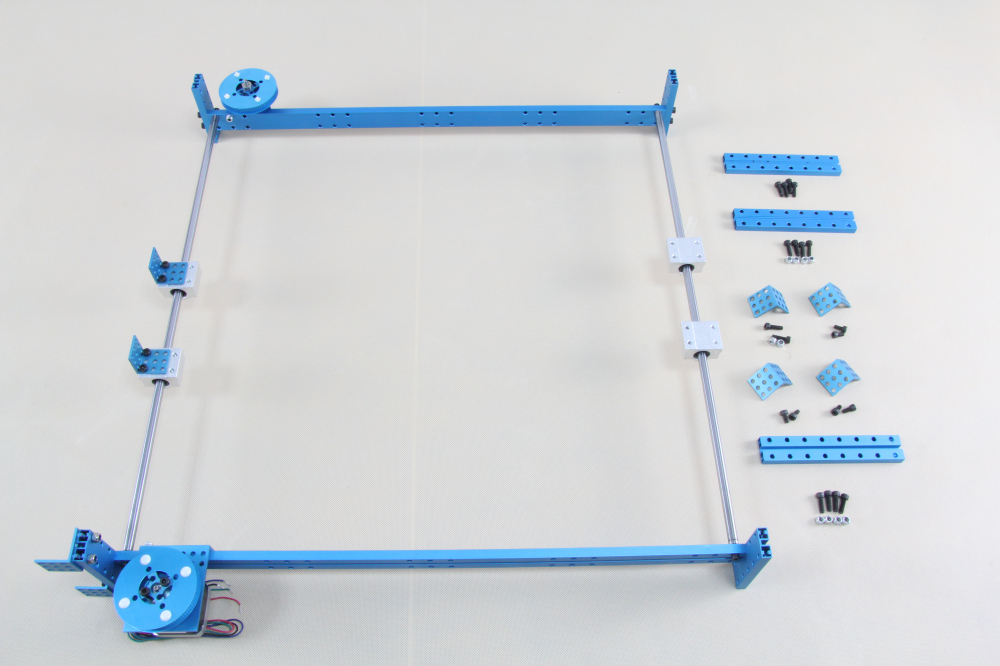

Add Y-axis
Materials List:
3 × Beam 0824-128
6 × Bracket 3x3
10 × Screw M4×8
14 × Screw M4×14
10 × Nylon Lock Nut M4
Procedure:
1. Install the first Bracket 3x3 on a Linear Motion Slide Unit 8mm with 2 Screw M4×8.
2. Install the second Bracket 3x3 on another Linear Motion Slide Unit 8mm at the same side with 2 Screw M4×8.
3. Install the first Beam 0824-128 on the two Linear Motion Slide Unit 8mm with Bracket 3x3 by using 4 Screw M4×14.
4. Install the second Beam 0824-128 on the Bracket 3x3 by using 4 Screw M4×14 and 4 Nylon Lock Nut M4.
5. Install the third Bracket 3x3 on the first Beam 0824-128 with 2 Screw M4×8.
6. Install the fourth Bracket 3x3 on the first Beam 0824-128 with 2 Screw M4×8 and 2 Nylon Lock Nut M4.
7. Install the fifth and the sixth Bracket 3x3 on 2 Linear Motion Slide Unit 8mm with 4 Screw M4×8.
8. Install the third Beam 0824-128 on the fifth and sixth Bracket 3x3 by using 4 Screw M4×14 and 4 Nylon Lock Nut M4.
3 × Beam 0824-128
6 × Bracket 3x3
10 × Screw M4×8
14 × Screw M4×14
10 × Nylon Lock Nut M4
Procedure:
1. Install the first Bracket 3x3 on a Linear Motion Slide Unit 8mm with 2 Screw M4×8.
2. Install the second Bracket 3x3 on another Linear Motion Slide Unit 8mm at the same side with 2 Screw M4×8.
3. Install the first Beam 0824-128 on the two Linear Motion Slide Unit 8mm with Bracket 3x3 by using 4 Screw M4×14.
4. Install the second Beam 0824-128 on the Bracket 3x3 by using 4 Screw M4×14 and 4 Nylon Lock Nut M4.
5. Install the third Bracket 3x3 on the first Beam 0824-128 with 2 Screw M4×8.
6. Install the fourth Bracket 3x3 on the first Beam 0824-128 with 2 Screw M4×8 and 2 Nylon Lock Nut M4.
7. Install the fifth and the sixth Bracket 3x3 on 2 Linear Motion Slide Unit 8mm with 4 Screw M4×8.
8. Install the third Beam 0824-128 on the fifth and sixth Bracket 3x3 by using 4 Screw M4×14 and 4 Nylon Lock Nut M4.
Add Linear Motion Shaft
Materials List:
2 × Linear Motion Shaft D8x480
2 × Linear Motion Slide Unit 8mm
4 × Screw M4×14
Procedure:
1. Install the first Linear Motion Shaft D8x480 on Beam 0824-128 with 1 Screw M4×14.
2. Install the second Linear Motion Shaft D8x480 on the same Beam 0824-128 with 1 Screw M4×14.
3. Install 2 Linear Motion Slide Unit 8mm on each Linear Motion Shaft D8x480.
4. Install the Linear Motion Shaft D8x480s to Beam 0824-128 on the other side with 2 Screw M4×14.
2 × Linear Motion Shaft D8x480
2 × Linear Motion Slide Unit 8mm
4 × Screw M4×14
Procedure:
1. Install the first Linear Motion Shaft D8x480 on Beam 0824-128 with 1 Screw M4×14.
2. Install the second Linear Motion Shaft D8x480 on the same Beam 0824-128 with 1 Screw M4×14.
3. Install 2 Linear Motion Slide Unit 8mm on each Linear Motion Shaft D8x480.
4. Install the Linear Motion Shaft D8x480s to Beam 0824-128 on the other side with 2 Screw M4×14.

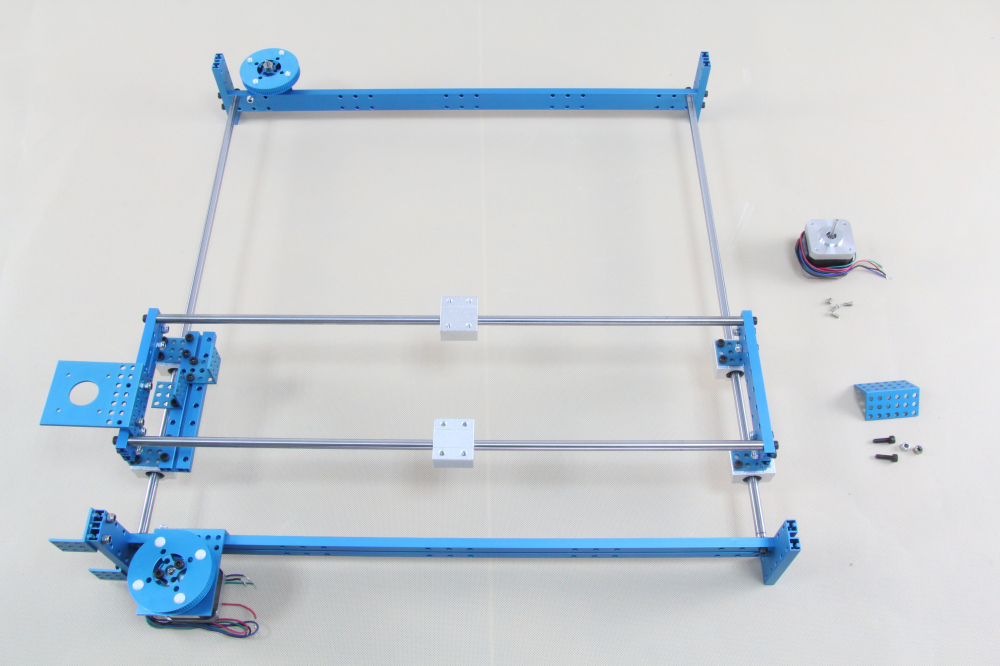

Add Stepper Motor
Materials List:
1 × Bracket 3x6
1 × Stepper Motor Bracket
1 × Stepper Motor
4 × Countersunk Screw M3×8
4 × Screw M4×14
4 × Nylon Lock Nut M4
Procedure:
1. Install the Stepper Motor Bracket on Beam 0824-496 by using 2 Screw M4×14 and 2 Nylon Lock Nut M4.
2. Install the Stepper Motor to Stepper Motor Bracket with 4 Countersunk Screw M3×8.
3. Install the Bracket 3x6 on Beam 0824-496 by using 2 Screw M4×8, 1 Screw M4×14 and 1 Nylon Lock Nut M4.
1 × Bracket 3x6
1 × Stepper Motor Bracket
1 × Stepper Motor
4 × Countersunk Screw M3×8
4 × Screw M4×14
4 × Nylon Lock Nut M4
Procedure:
1. Install the Stepper Motor Bracket on Beam 0824-496 by using 2 Screw M4×14 and 2 Nylon Lock Nut M4.
2. Install the Stepper Motor to Stepper Motor Bracket with 4 Countersunk Screw M3×8.
3. Install the Bracket 3x6 on Beam 0824-496 by using 2 Screw M4×8, 1 Screw M4×14 and 1 Nylon Lock Nut M4.

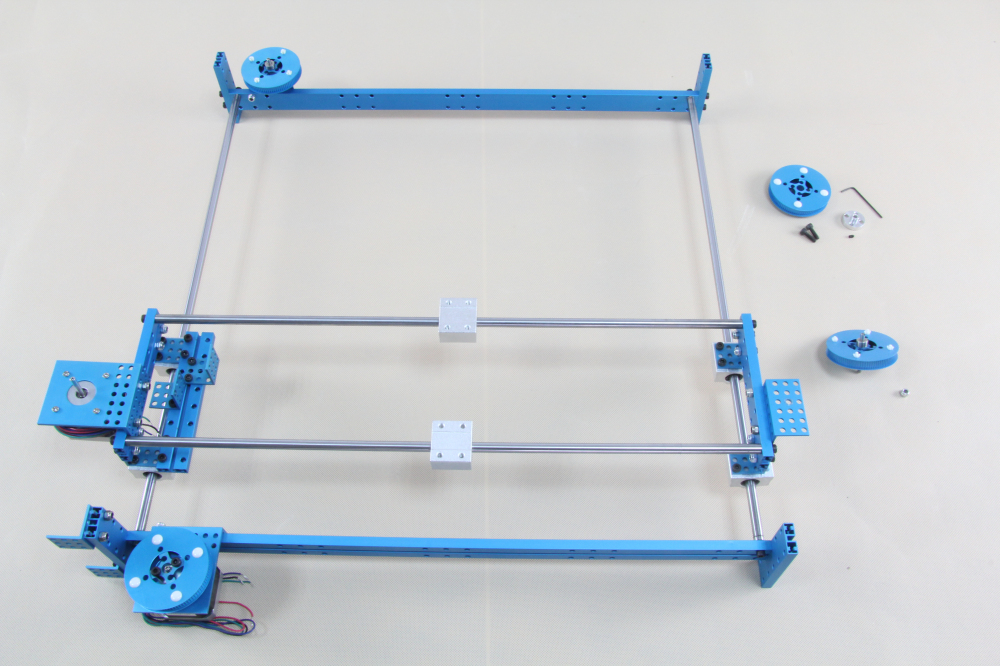

Add Timing Pulley
Materials List:
1 × Shaft Connector-4
1 × Headless Set Screw M3x5
2 × Screw M4×14
1 × Nylon Lock Nut M4
Procedure:
1. Install the Driven Pulley to tht Bracket 3x6 with a Nylon Lock Nut M4.
2. Insert a Headless Screw M3×5 into the Shaft Connector-4 and install the Shaft Connector-4 to the Stepper Motor.
3. Install the Driving Pulley on the Shaft Connector-4 with 2 Screw M4×14.
1 × Shaft Connector-4
1 × Headless Set Screw M3x5
2 × Screw M4×14
1 × Nylon Lock Nut M4
Procedure:
1. Install the Driven Pulley to tht Bracket 3x6 with a Nylon Lock Nut M4.
2. Insert a Headless Screw M3×5 into the Shaft Connector-4 and install the Shaft Connector-4 to the Stepper Motor.
3. Install the Driving Pulley on the Shaft Connector-4 with 2 Screw M4×14.

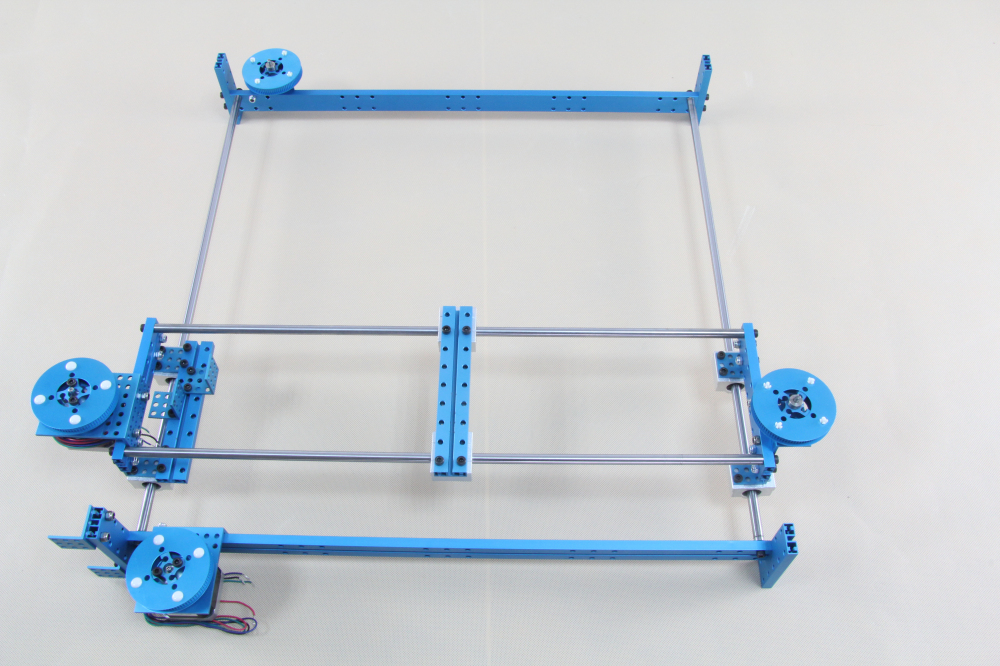

Add Drawing Mechanism Holder
Materials List:
1 × Beam 0824-144
1 × Bracket 3×3
2 × Screw M4×8
4 × Screw M4×14
Procedure:
1. Install the Beam 0824-144 on the 2 Linear Motion Slide Unit 8mm with 4 Screw M4×14.
2. Install the Bracket 3×3 on the Beam 0824-128 with 2 Screw M4×8.
1 × Beam 0824-144
1 × Bracket 3×3
2 × Screw M4×8
4 × Screw M4×14
Procedure:
1. Install the Beam 0824-144 on the 2 Linear Motion Slide Unit 8mm with 4 Screw M4×14.
2. Install the Bracket 3×3 on the Beam 0824-128 with 2 Screw M4×8.

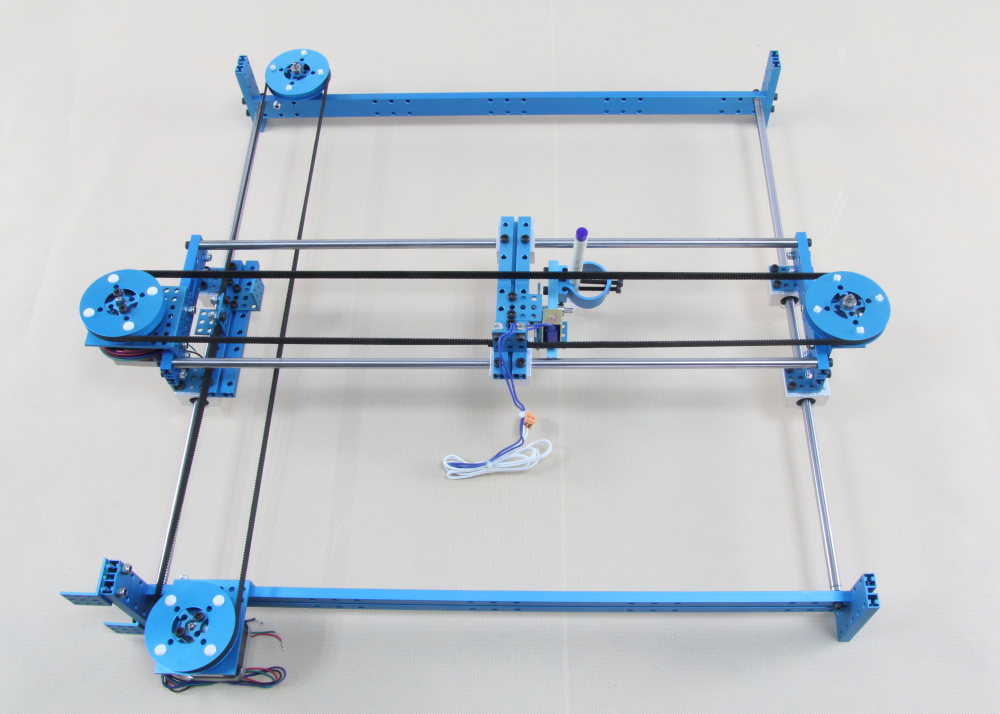

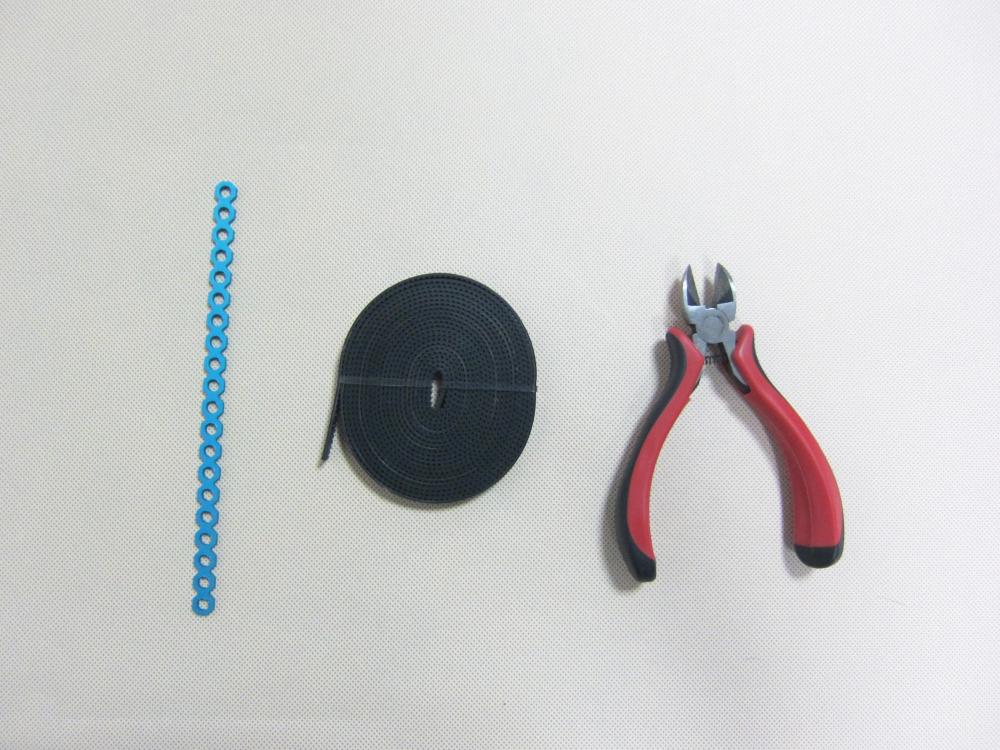

Add Timing Belt
Materials List:
1 × Open-end Timing Belt (3m)
1 × Link Rod
4 × Screw M4×8
4 × Nylon Lock Nut M4
Procedure:
1. Cut the Link Rod and the Timing Belt.
2. Install the Timing Belt on the Bracket 3×3 by the Link Rod and a Screw M4×8.
3. Install anotherTiming Belt.
1 × Open-end Timing Belt (3m)
1 × Link Rod
4 × Screw M4×8
4 × Nylon Lock Nut M4
Procedure:
1. Cut the Link Rod and the Timing Belt.
2. Install the Timing Belt on the Bracket 3×3 by the Link Rod and a Screw M4×8.
3. Install anotherTiming Belt.

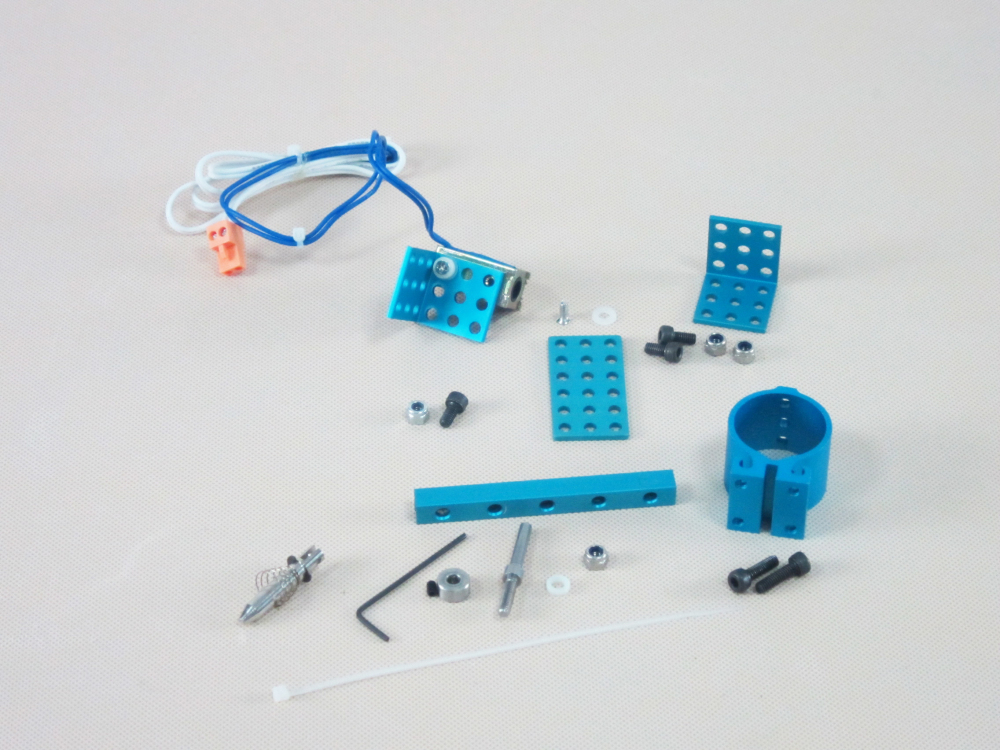

Build the Drawing Mechanism
Materials List:
1 × Solenoid - 12v
1 × Beam 0808-80
1 × General Bracket
2 × Bracket 3x3
1 × Plate 3×6
1 × Threaded Shaft 4x31mm
1 × Shaft Collar 4mm
1 × Headless Set Screw M3x5
2 × Countersunk Screw M3×8
2 × Plastic Ring 4x7x2mm
2 × Plastic Ring 4x7x1mm
3 × Screw M4×8
2 × Screw M4×14
4 × Nylon Lock Nut M4
1 × Nylon Cable Ties
Procedure:

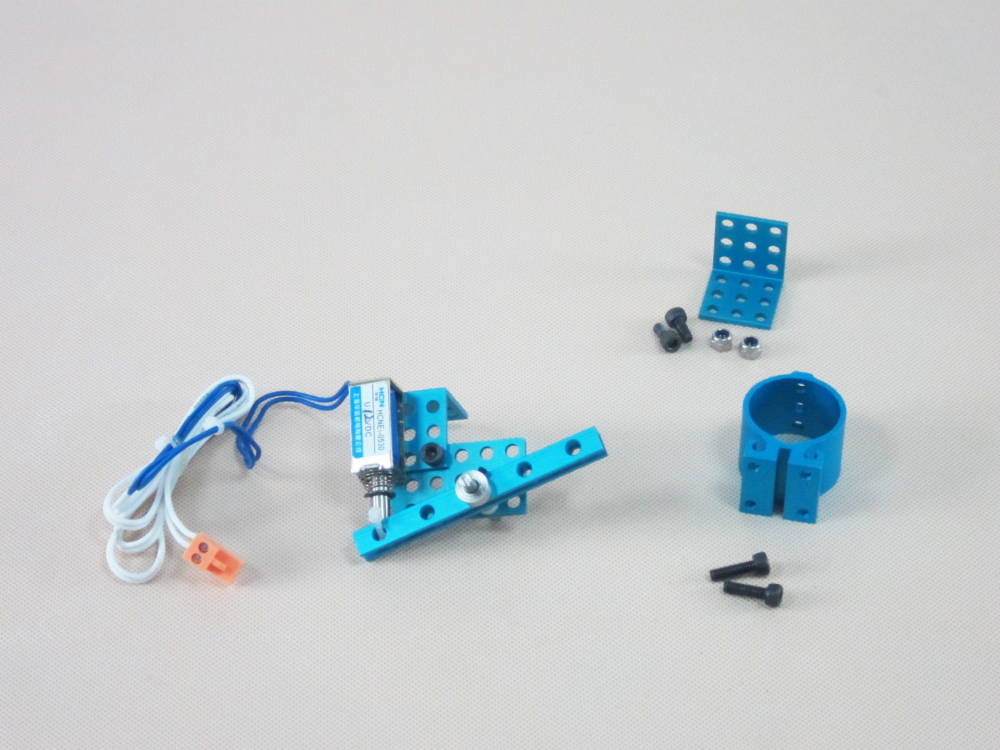

1. Install the Solenoid - 12v on the first Bracket 3x3 with a Countersunk Screw M3×8, a Plastic Ring 4x7x2mm and a Plastic Ring 4x7x1mm.
2. Install the Plate 3×6 on the first Bracket 3x3 and the Solenoid - 12v with a Countersunk Screw M3×8 and a Plastic Ring 4x7x1mm.
3. Install the first Bracket 3x3 on the Plate 3×6 with a Screw M4×8 and a Nylon Lock Nut M4.

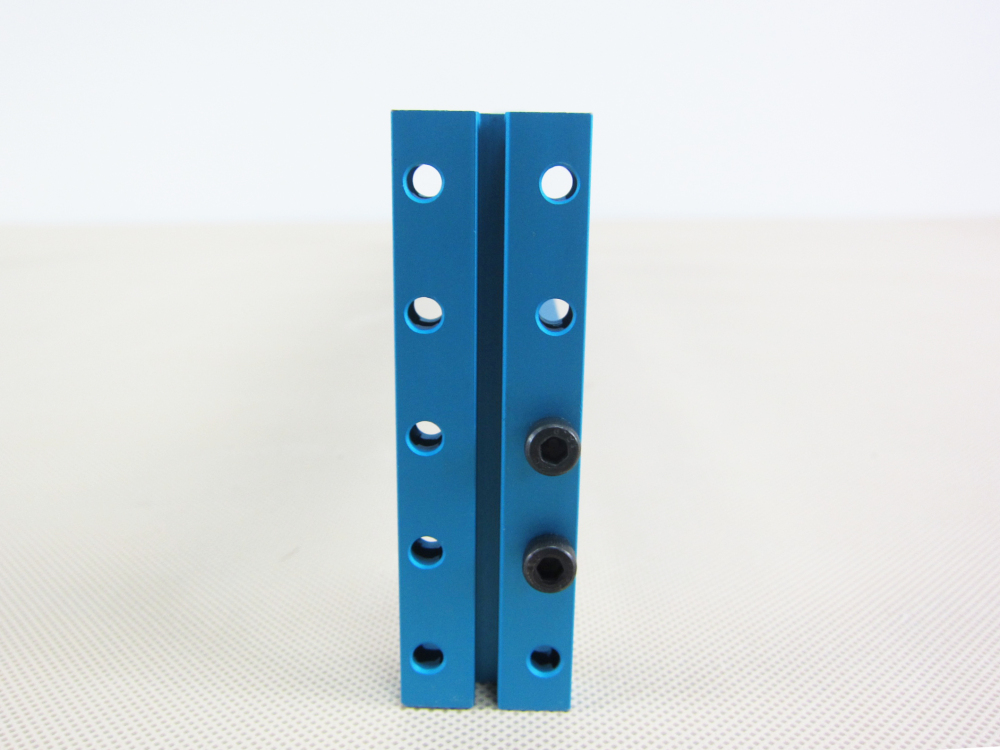

4. Insert the Threaded Shaft 4x31mm into the Beam 0808-80.
5. Put the Shaft Collar 4mm on the Threaded Shaft 4×31mm and insert a Headless Screw M3×5 into the Shaft Collar 4mm.
6. Install a Plastic Ring 4x7x2mm on the Threaded Shaft 4×31mm.
7. Insert the Threaded Shaft 4×31mm with the Beam 0808-80 into the hole of the Plate 3×6.
8. Install the Threaded Shaft 4×31mm with the Beam 0808-80 to the Plate 3×6 with a Nylon Lock Nut M4.
9. Install the Beam 0808-80 to the Solenoid - 12v by using a Nylon Cable Ties.
10. Install the second Bracket 3x3 on the Plate 3×6 with 2 Screw M4×8 and 2 Nylon Lock Nut M4.
11. Install the General Bracket to the Beam 0808-80 with 2 Screw M4×14.
1 × Solenoid - 12v
1 × Beam 0808-80
1 × General Bracket
2 × Bracket 3x3
1 × Plate 3×6
1 × Threaded Shaft 4x31mm
1 × Shaft Collar 4mm
1 × Headless Set Screw M3x5
2 × Countersunk Screw M3×8
2 × Plastic Ring 4x7x2mm
2 × Plastic Ring 4x7x1mm
3 × Screw M4×8
2 × Screw M4×14
4 × Nylon Lock Nut M4
1 × Nylon Cable Ties
Procedure:
1. Install the Solenoid - 12v on the first Bracket 3x3 with a Countersunk Screw M3×8, a Plastic Ring 4x7x2mm and a Plastic Ring 4x7x1mm.
2. Install the Plate 3×6 on the first Bracket 3x3 and the Solenoid - 12v with a Countersunk Screw M3×8 and a Plastic Ring 4x7x1mm.
3. Install the first Bracket 3x3 on the Plate 3×6 with a Screw M4×8 and a Nylon Lock Nut M4.
4. Insert the Threaded Shaft 4x31mm into the Beam 0808-80.
5. Put the Shaft Collar 4mm on the Threaded Shaft 4×31mm and insert a Headless Screw M3×5 into the Shaft Collar 4mm.
6. Install a Plastic Ring 4x7x2mm on the Threaded Shaft 4×31mm.
7. Insert the Threaded Shaft 4×31mm with the Beam 0808-80 into the hole of the Plate 3×6.
8. Install the Threaded Shaft 4×31mm with the Beam 0808-80 to the Plate 3×6 with a Nylon Lock Nut M4.
9. Install the Beam 0808-80 to the Solenoid - 12v by using a Nylon Cable Ties.
10. Install the second Bracket 3x3 on the Plate 3×6 with 2 Screw M4×8 and 2 Nylon Lock Nut M4.
11. Install the General Bracket to the Beam 0808-80 with 2 Screw M4×14.

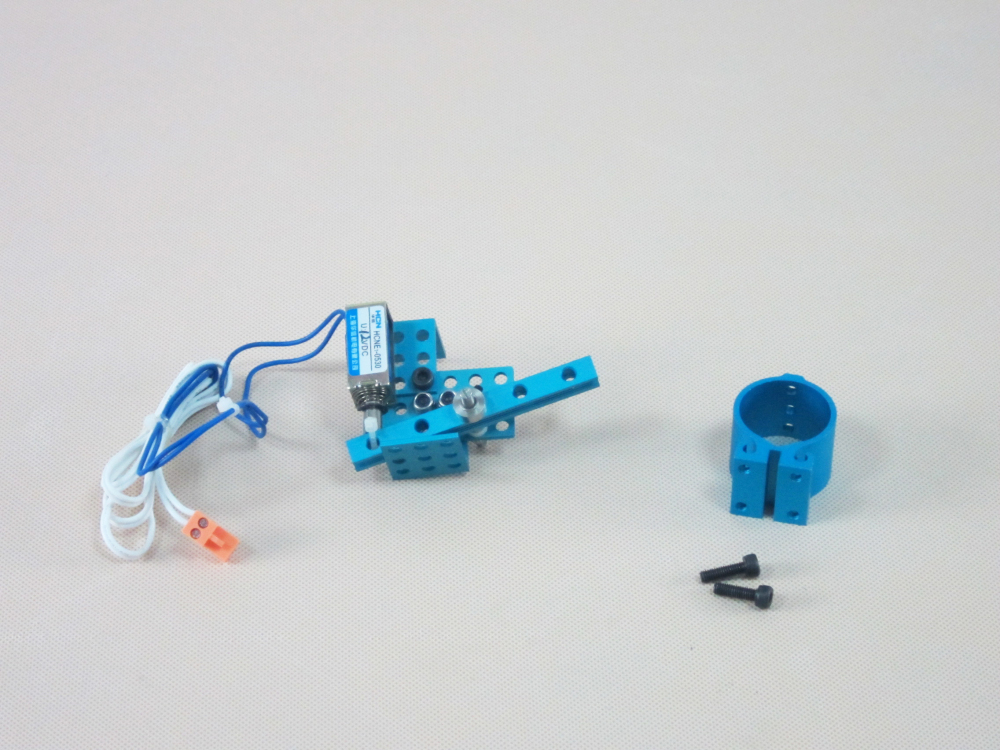

Add Drawing Mechanism
Materials List:
2× Screw M4×8
2 × Screw M4×30
Procedure:
1. Install the Drawing Mechanism on Beam 0824-144 by using 2 Screw M4×8.
2. Insert 2 into the General Bracket.
2× Screw M4×8
2 × Screw M4×30
Procedure:
1. Install the Drawing Mechanism on Beam 0824-144 by using 2 Screw M4×8.
2. Insert 2 into the General Bracket.
Add Electronic Modules
Materials List:
1 × Arduino
1 × Acrylic Arduino Bracket
1 × Me-BaseShield
2 × Stepper motor driver
1 × Me-Bluetooth modules
2 × Me-Limit Switch
3 × 6P6C RJ11 cable-20cm
2 × 6P6C RJ11 cable-50cm
4 × Plastic Rivet 4120
6 × Plastic Ring 4x7x2mm
1 × Link Rod
4 × Screw M4×8
4 × Screw M4×14
4 × Nylon Lock Nut M4
8 × Nylon Cable Ties
Procedure:
1. Install 2 to the Bracket 3×3 on Beam 0824-96 with 2 Screw M4×14 and 2 Nylon Lock Nut M4.

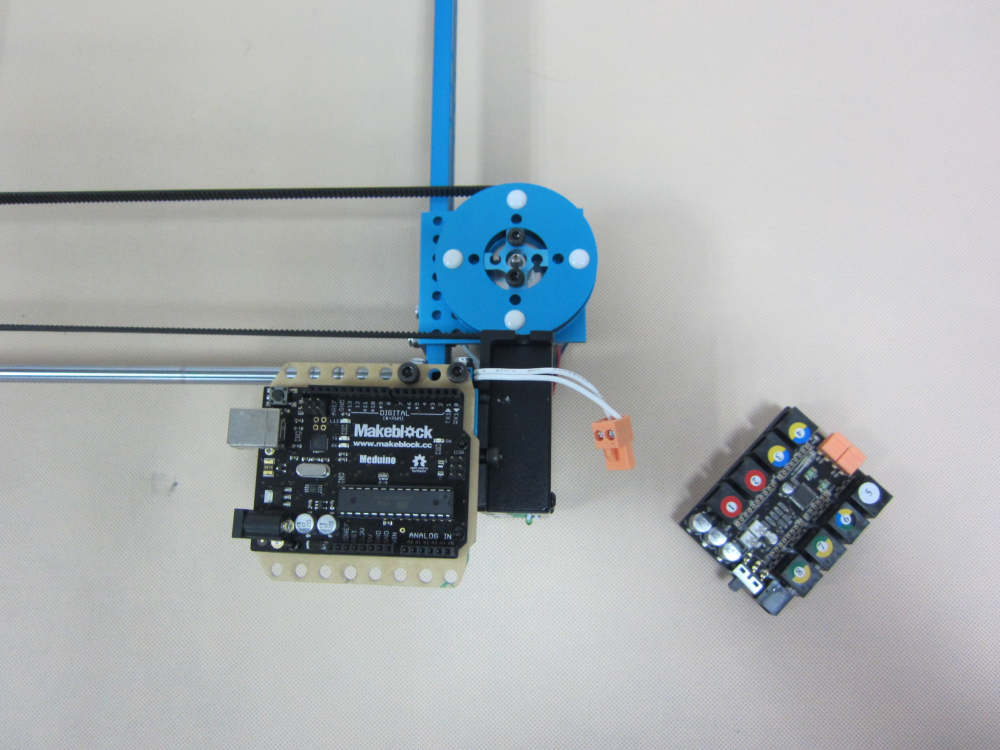

2. Install Meduino on Beam 0824-96 with 2 Screw M4×14 and 6 Plastic Ring 4x7x2mm.
3. Plug Me-Base ShIeld in Meduino.
4. Intall Me-Bluetooth.
5. Connect the first Me-Limit Switch on the Beam 0824-128 with 2 Screw M4×8.
6. Connect the second Me-Limit Switch on the Bracket 3×3 with 2 Screw M4×8 and 2 Nylon Cable Ties.

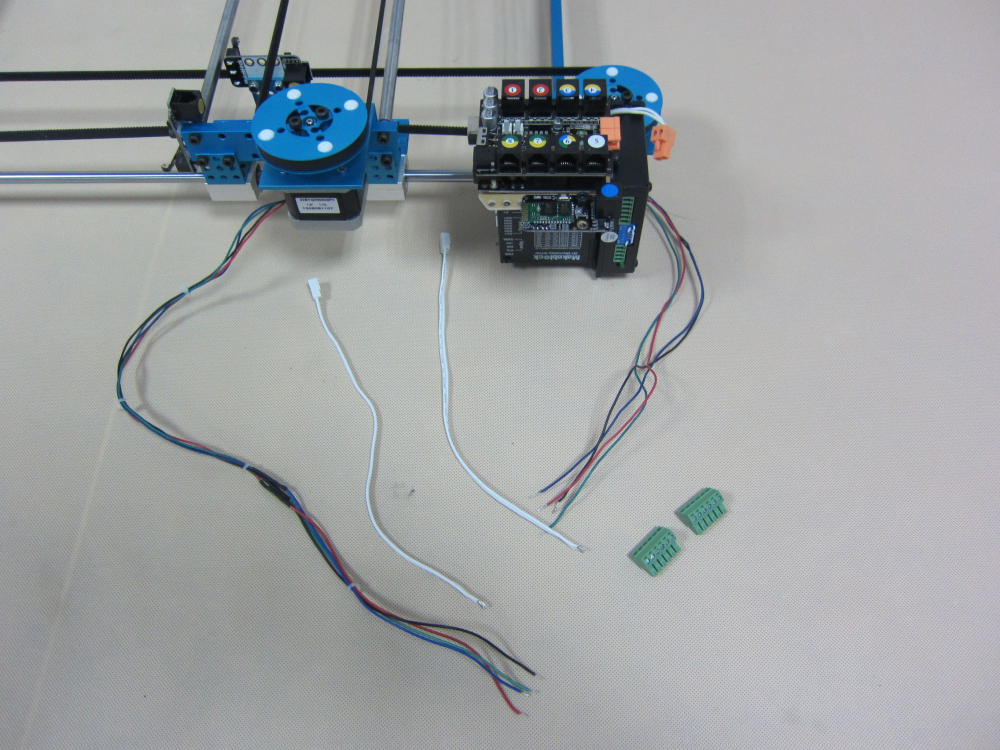

7. Connect the stepper motors to the stepper motor driver connector.

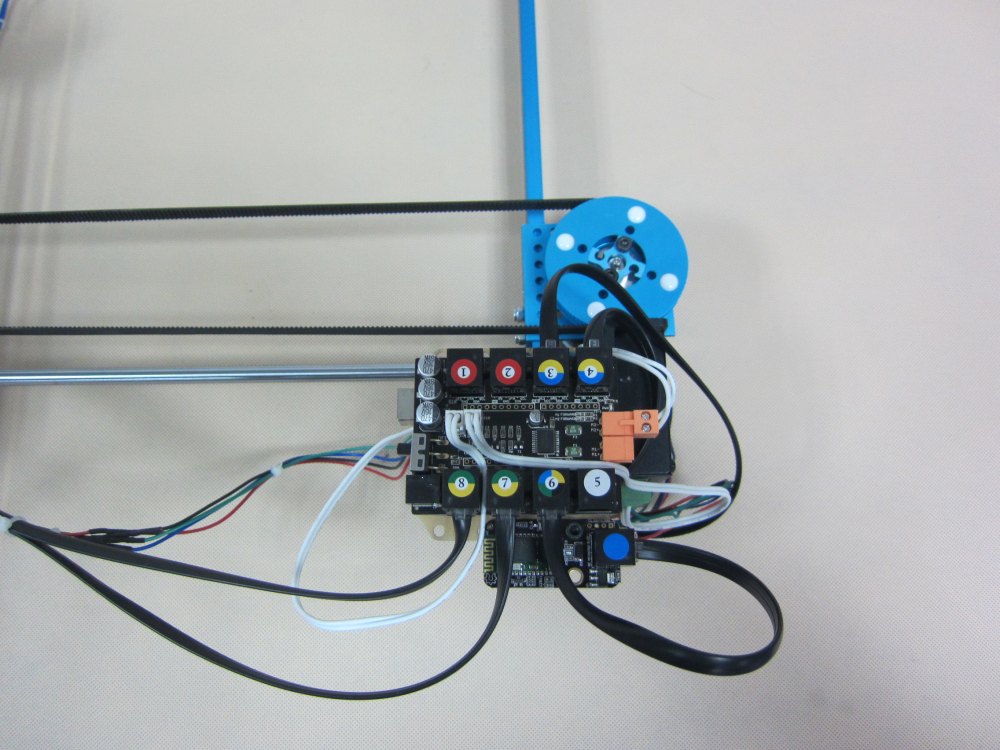

8. Connect all the electronic modules with Me-Base Shield.
1 × Arduino
1 × Acrylic Arduino Bracket
1 × Me-BaseShield
2 × Stepper motor driver
1 × Me-Bluetooth modules
2 × Me-Limit Switch
3 × 6P6C RJ11 cable-20cm
2 × 6P6C RJ11 cable-50cm
4 × Plastic Rivet 4120
6 × Plastic Ring 4x7x2mm
1 × Link Rod
4 × Screw M4×8
4 × Screw M4×14
4 × Nylon Lock Nut M4
8 × Nylon Cable Ties
Procedure:
1. Install 2 to the Bracket 3×3 on Beam 0824-96 with 2 Screw M4×14 and 2 Nylon Lock Nut M4.
2. Install Meduino on Beam 0824-96 with 2 Screw M4×14 and 6 Plastic Ring 4x7x2mm.
3. Plug Me-Base ShIeld in Meduino.
4. Intall Me-Bluetooth.
5. Connect the first Me-Limit Switch on the Beam 0824-128 with 2 Screw M4×8.
6. Connect the second Me-Limit Switch on the Bracket 3×3 with 2 Screw M4×8 and 2 Nylon Cable Ties.
7. Connect the stepper motors to the stepper motor driver connector.
8. Connect all the electronic modules with Me-Base Shield.
XY-Plotter Application for Android
See more details about the codes and app for Android here. It would tell you how to run the XY-plotter by Android app.
That's all. Have fun!
That's all. Have fun!
