How to Make a U and an R Out of PVC Pipe

Materials:

For U:
- Two 90 degree angles
- Two 10 inch PVC Pipe
- One 8 inch PVC Pipe

For R:
- Three 90 degree angles
- One 45 degree angle
- Two T
- Three 8 inch PVC Pipe
- Two 6 inch PVC Pipe
- Two 4 inch PVC Pipe

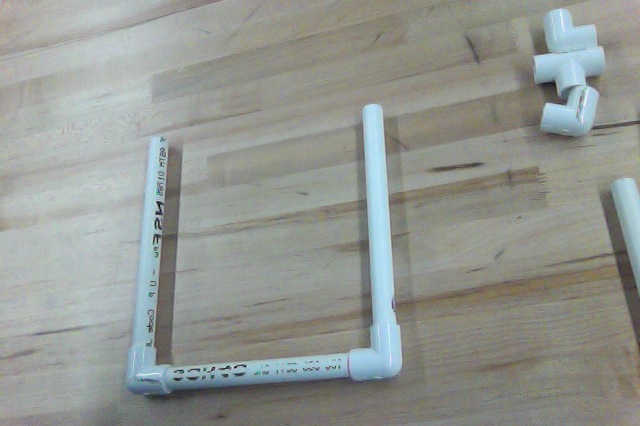

Creating the U

1) First you want to grab the 10 inch PVC Pipe and connect in to a 90 degree side outlet

2) Next you connect an 8 inch PVC pipe to the 90 degree angle to create an L shape

3) Then, connect another 90 degree side outlet to the 8 inch PVC pipe

4) Lastly, connect the final 10 inch PVC pipe to the 90 degree side outlet to create a U shape

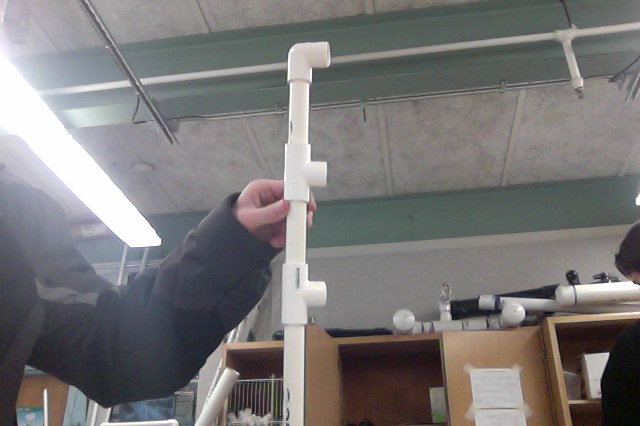

Creating the R

1) First connect a 6 inch PVC Pipe to a T side outlet

2) Next you want to connect a 4 inch PVC pipe to the other side of that T side outlet

3) Next, connect another T side outlet to the other side of the 4 inch PVC pipe

4) Connect the last 4 inch PVC pipe to the T side outlet

5) Connect a 90 degree side outlet to the other side of the 4 inch PVC pipe

6) Next, grab an 8 inch PVC pipe and connect that to the 90 degree side outlet

7) Connect another 90 degree side outlet to the other side of the 8 inch PVC pipe

8) Connect a 4 inch PVC Pipe to the 90 degree side outlet so it is facing down

9) Attach a 90 degree side outlet to the 4 inch PVC pipe

10) Connect another 8 inch PVC pipe to the T side outlet and the 90 degree side outlet to create the frame of the R

11) Attach the last 8 inch PVC pipe to the bottom T side outlet

12) Connect a 45 degree angle to the 8 inch PVC Pipe

13) Lastly, connect the 6 inch PVC pipe to the 45 degree angle creating your R
