How to Make a Mixtape: Awesome Mix Vol. 1 From Guardians of the Galaxy

Geoffrey O'Brian once said that "the mixtape was the most widely practiced American art form".

Though it has fallen out of favor compared to easily created iTunes playlists and CD-Rs, the gift of a mixtape meant that someone actually spent several hours waiting for a particular song on the radio or cuing up a record and hoping you didn't write over the end of the previous song.

The limitations of the cassette meant you couldn't easily skip over songs. So hours were spent, painstakingly poring over the track list and re-recording because you made a mistake. Each song signified something, juxtaposed with the order that it was in. Though the artists and styles may have varied widely, each tape had a unique theme.

With the overwhelming public reception to Guardians of the Galaxy and its unmistakable 70s (and 60s) soundtrack, perhaps it's time to bring back the art of the mixtape.

However, I want to go farther than what most people would imagine to do. This instructable is intended to recreate how Meredith Quill would have made the mixtape, combining 70s music with 80s tech.

I have also listed other common methods to record onto a cassette tape from easiest to more involved.

Method 1: Dubbing with a Microphone Attached to a Tape Recorder

Method 2: Dubbing with a Cassette Deck with Digital Files as the Source

Method 2: Dubbing with a Cassette Deck with Records as the Source

You can listen to the entire tape here:

http://youtu.be/m8Vz7-P8Mis

Most cassette tapes are 60 or 90 minutes which makes 30/45 minutes per side

The official soundtrack clocks in at 44 minutes and 34 seconds. Right away there are some problems over having blank tape at the end of each side no matter how it is divided up. Nobody envies the task of fast-forwarding to the end to ensure that the opposite side doesn't start in the middle.

There are 12 songs included on the soundtrack (plus 4 more related songs that I will explain). To minimize the amount of tape needed to fast-forward, I have chosen to spread the songs equally on each side.

Some things to consider over the official tracklist:

• Go by movie order. If you have trouble remembering context, check out the wikia page.

• Technically, "Ain't No Mountain High Enough" by Marvin Gaye & Tammi Terrell and "I Want You Back" from the Jackson 5 are from Awesome Mix Vol. 2, the tape that Peter Quill discovers near the end of the movie. However, no other songs are known from the tape so it may not be worthwhile to create a separate tape.
  • Something to remember is that both songs (including "Spirit in the Sky") are from the 60s. Everything "officially" on Awesome Mix Vol. 1 is from the 70s.

• "Spirit in the Sky" never plays in the movie itself, only in the trailer.

• Director James Gunn has mentioned two songs used in deleted scenes which will be included on the Blu-Ray release.
  • The blue-skinned Kree prison guard who confiscates Peter Quill’s treasured Walkman meddles with a tub of Play-Doh and dances through the prison halls listening to "Magic" by Pilot.
  • The synths and space-age tones of "Living Thing" by Electric Light Orchestra was used in a montage which was cut from the film.

• Two other songs were considered in place of David Bowie's "Moonage Daydream", but were not used.
  • "Wichita Lineman" by Glenn Campbell
  • "Mama Told Me Not to Come" by Three Dog Night

• As previously mentioned, a mixtape tracklist deliberately puts songs in a certain order. Most people believe it tells the story how Meredith Quill fell in and out of love with Peter's father.
  • Theory behind each song's meaning
  • Alternate takes on the theory

As other have commented, you may not know the artists, but you know the songs. Here are their original records.

Hooked on a Feeling

Blue Swede

EMI Records 3627

B-side: Gotta Have Your Love

1973

Go All the Way

Raspberries

Capitol Records 3348

B-side: With You in my Life

1972

Spirit in the Sky

Norman Greenbaum

Reprise Records 0885

B-side: Milk Cow

1969

Moonage Daydream

David Bowie

from the LP "The Rise and Fall of Ziggy Stardust and the Spiders from Mars"

RCA Victor Records LSP-4702

1972

Fooled Around and Fell in Love*

Elvin Bishop

Capricorn Records CPS 0252

B-side: Have a Good Time

1976

I'm Not in Love*

10cc

Mercury Records (Phonogram) 73678

Channel Swimmer

1975

I Want You Back

The Jackson 5

Motown Records M1157

B-side: Who's Lovin You

1969

Come and Get Your Love

Redbone

Epic Records 5-11035

B-side: Day to Day Life

1973

Cherry Bomb

The Runaways

Mercury Records (Phonogram) SFL-2121 (Japanese pressing)

B-side: Blackmail

1976

Escape (The Pina Colada Song)*

Rupert Holmes

Infinity Records INF 50,035

B-side: Drop It

1979

O-o-h Child

The 5 Stairsteps

Buddha Records BDA 165

B-side: Dear Prudence

1970

Ain't No Mountain High Enough

Marvin Gaye & Tammi Terrell

Tamla Records (Motown) T-54149

B-side: Give a Little Love

1967

Some caveats:

• All records are 45 rpm with the exception of "Moonage Daydream" which is taken from the LP album. This specific arrangement of the song was never commercially released as a single.
• Songs marked with an asterisk (*) use the longer LP version on the official soundtrack. Many of the songs were first released as singles and later added to an album. The others were cut down from the album version so that they could fit on a 3-4 minute single.
• "I Want You Back" and "Ain't No Mountain High Enough" are shown to be on Awesome Mix Vol. 2, but it would be impractical to make a tape with only two songs.
• "Spirit in the Sky" never plays in the movie, only in the theatrical trailer.
• "Cherry Bomb" reached No.1 on music charts in Japan and Scandinavia, but just barely reached the top 100 mark on Billboard in the US. It is the only single from the soundtrack to not reach Top 20 on Billboard in the US. As such, US pressings were not common, but would have looked like 10cc's "I'm Not in Love".
• Though the record matches what's on the official soundtrack, this website claims that the movie used a re-recorded version of "Come and Get Your Love": http://cultural-learnings.com/2014/08/10/awesome-m... Unfortunately, I can't verify pending the Blu-Ray release.

After a bit of searching, the cassette used in the film and the soundtrack cover is identified as a TDK CDing2 (not to be confused with CDing-II).

The identifying features are the loops visible from the top, the black C-clamps on the reels, and the pattern of dots along the center. However, the tape seems to alter throughout the movie indicating the use of multiple tapes.

As previously mentioned, 90-minute cassette tapes exist, but it would be odd for 44 minute soundtrack, basically leaving one side entirely blank and just barely fitting it all on one side or having a lot of blank tape on both sides.

I used the 60 minute tape which allows me to spread out the songs more evenly and include the bonus songs.

However, the movie states that Meredith Quill died in 1988, but the tape was first manufactured in 2001 for European release.

What was more common in the US in 1988 was the TDK D60 which is still manufactured today. If you don't have any spare tapes lying around, Best Buy, Radio Shack, and Fry's Electronics should still sell tapes.

The TDK CDing2 uses a Chromium Oxide (CrO2) for its emulsion as opposed to the more frequently used Ferric Oxide (Fe2O3). Something to keep in mind if your recording device has a Tape Select option.

You can learn more about different tape types in this instructable:
https://www.instructables.com/id/Cassette-Tape-1101...

Printing the Label

There are two known labels used in the film. Of course there's the famous album cover featuring Awesome Mix Vol. 1. It has two notched upper corners and rounded bottom corners.

Later in the film, Peter Quill discovers Awesome Mix Vol. 2 which has its own label. However, since the Blu-Ray release has not arrived, there are few extant pictures floating around. Thanks to this forum thread, I color-corrected the label and squared it up. It clearly shows lowercase handwriting and square bottom corners.

Oddly we never see the backside of each tape as Quill never seems to flip the tape over. Theoretically, there would be two tapes and four labels.

For me it's convenient to use one tape with the entire known soundtrack and put the labels from Vol. 1 and 2 on both sides. Not quite movie-accurate, but makes more practical sense.

For the labels I used Avery 5444 which should be available in most office supply stores. Basically whatever label paper that can comfortably hold a 2" x 4" rectangle should suffice.

I traced the label in Photoshop from the album cover. However the cover looks like it was cast with a strong yellow incandescent light which would look very dark and yellow if I directly cut it out. The label was probably originally white at some point, but slightly yellowed with age. So between white and yellow, I chose a beige or off-white background and a more saturated red as opposed to red-orange.

The files provided have been calibrated for size as if on a standard 8.5" x 11" sheet of paper. The image position is meant for the Avery 5444 label, but can easily be edited in Photoshop or Gimp for different arrangements. I have also attached the Photoshop file that I used.

I have not been able to find the Avery 5444 templates for Photoshop on the website (as advertised), but they are included in most editions of Microsoft Word. However, they do not let you exceed the "maximum allowable area".

Cutting

Probably the most difficult part. The labels are meant to be die-cut, so lines have to be perfectly straight. I used an Xacto-type blade and a steel ruler. I recommend a lot of practice to make sure you're not cutting off colored parts or making wobbly lines. I usually tackled the longer cuts, paying especially close attention to the center cut-out.

The Handwriting

I've provided the image in black and white to make it easier to trace.

There's two ways of going about this.

1) Tracing the handwriting in Photoshop and printing it with the label

2) Copying the handwriting with a pen

Since I like a little bit of verisimilitude, I went with the latter.

I picked up a lightbox from a toy store for cheap several years ago. It's proven invaluable for projects like these.

If you don't have one, there's plenty of easy instructables or you can lean against a window.

The pen color for both labels appears to be a shade of darkish blue.

I experimented with several fine point pen types on a "mistake label" to see how the shades turned out.

1) Ultra Fine Point Sharpie (Navy)

Not as commonly found as the Blue variant. Color is OK, but a bit too blobby if you're tracing slowly

2) Marvy Uchida LePen (Oriental Blue)

Color is slightly off, but the lines are consistent

3) Ultra Fine Point Sharpie (Blue)

Probably the most likely blue pen to find in an office supply store. Works in a pinch, but color is a bit too bright and the linework gets blobby if you move too slow.

4) Stabilo Point 88 Fineliner Pen (0.4mm) Night Blue Art No. 88/22

Color matches well and the linework is consistent. This is the pen I used.

This method recalls memories of calling in to the radio station and requesting to play a song and feverishly hoping the DJ wouldn't talk over the last few seconds and that your parent wouldn't call in the background.

As you might expect, results may be a bit lo-fi, but this method is readily accessible to most people with little effort.

Most tape recorders have a built-in microphone and record function.

Simply play the soundtrack through speakers and hold up the microphone and hit Record. Depending on the model you may have to depress Record and Play at the same time.

If your tape recorder has a Line-In port, you can hook up your computer or CD player to that.

I currently use a Realistic Minisette 19 Model No. 14-1054A manufactured in 1991 for Radio Shack.

The movie uses a Sony Walkman TPS-L2, manufactured in 1979, which does have a built-in microphone. Unfortunately, they were already collector's items and have skyrocketed in price as a result of the film.

If you don't have either a cassette deck or a record player, try raiding your parents' disused stereo/hifi cabinet or scour nearby thrift shops.

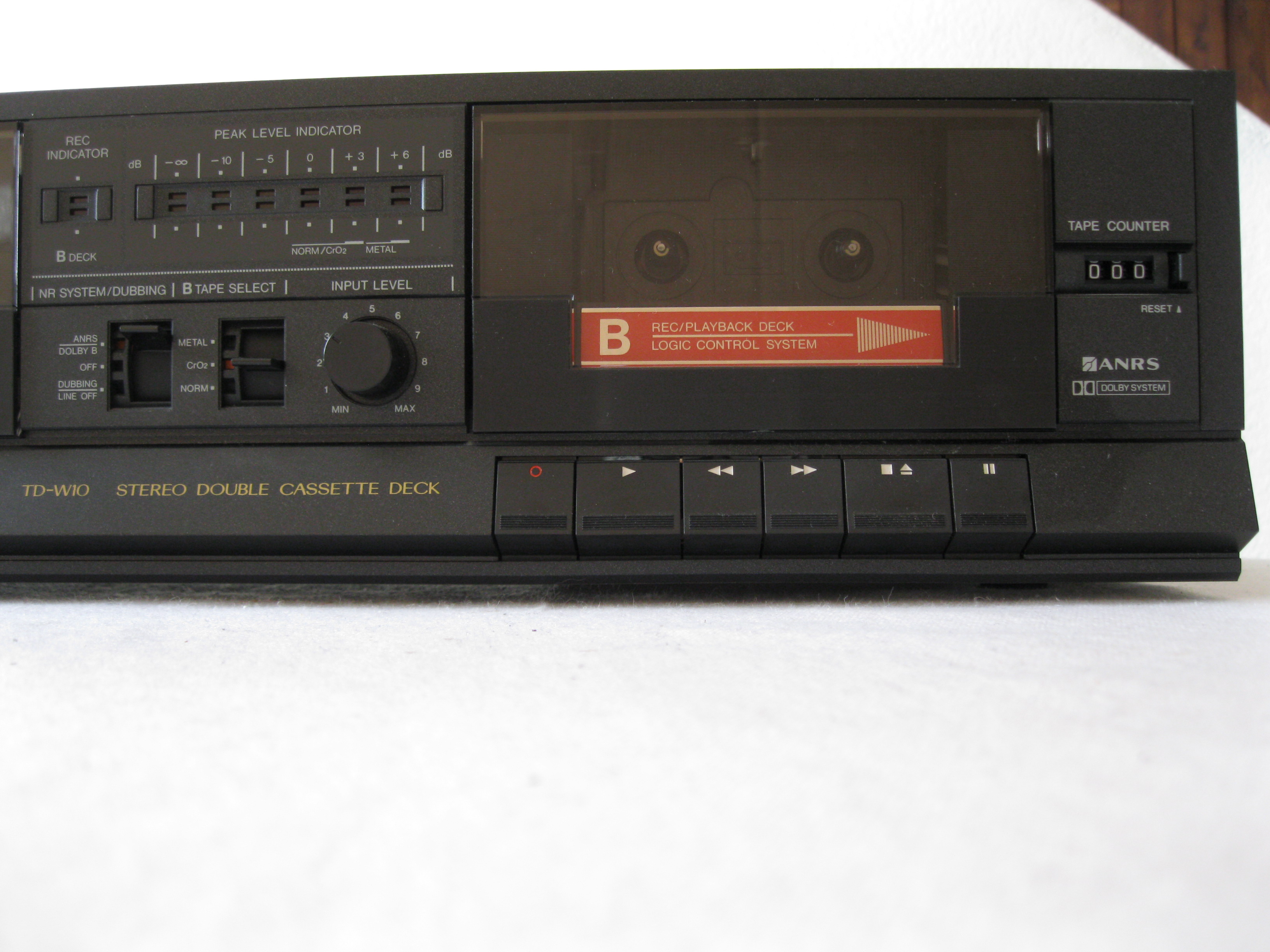

For this example, I will be going over the JVC TD-W10 Stereo Double Cassette Deck manufactured in 1985, just a few years before Meredith's death.

This technique is a little more involved but will give you a good quality transfer from your digital files to tape.

You can readily identify cassette decks by their viewing windows. Most only have one cassette loader for recording and playback.

The basic features are:

• FF/RW/STOP/PLAY/PAUSE buttons: Self-explanatory
• Tape Counter: Counts number of turns of the takeup reel not the minutes passed. May need to be calibrated for each machine
• Peak Level Readers: The more lights that light up, the more decibels.
• Recording Indicator: When this is on, you're recording
• Input Level: Adjusts the strength of the signal going to the tape

It may also have a

• Tape Type Select: The type of cassette being used to record/playback. Typically Metal, Chrome, Ferric.

  Also known as Type IV, Type II, and Type I respectively. See this instructable for more detail.

• Noise Reduction: Applies the Dolby Noise Reduction (NR) system to reduce tape hiss and background

  noise. See this page for more information.

If you've managed to acquire a cassette deck, you should also have:

• RCA male to 3.5mm male adapter

Recording

First read the manual for the cassette deck or look for it online. Otherwise you'll have to make decisions over which buttons are the logical equivalents.

Look on the back of the cassette deck. There should be RCA outlets for Input (Recording) and Output (Playback).

We will be using Input for Recording. Put the RCA plugs of the adapter into the outlets matching the left and right sockets (Red = Right).

For playback to a speaker that takes 3.5mm input, connect the RCA plugs to the Output (Playback) sockets.

Load a blank cassette into the deck. Press Play and wait until the clear leader tape on the takeup reel turns into black magnetic tape. Press Pause, this will hold the tape at the current position without ejecting it.

Queue up the playlist on your computer or CD player and connect the 3.5mm plug. If need adjust the volume on either the computer or the cassette deck.

Press Record (some models require pressing Play and Record) and quickly press Play on your computer or CD player.

It's good practice to record for a couple seconds and then play the tape back to see if the volume/input level needs to be adjusted.

If you've organized your tracklist effectively, the playlist will end just before the cassette runs out of tape. Repeat for the other side.

Playback

If you don't have access to a car's tape deck, a Walkman, or just want to use the cassette deck for playback you can connect RCA cables from the deck to powered speakers. If the speakers require a receiver or amplifier see the next step.

If you're lucky, that stereo cabinet also had a record player.

For this example, I will be going over the JVC AX-44 Stereo Integrated Amplifier manufactured in 1986, just a couple years before Meredith's death.

For the record player, I will go over the JVC AL-A10 Auto-Return Turntable System and a more modern turntable, the Numark PT-01 USB.

For the basics of a Cassette Deck use see the previous step.

You will also need:

• RCA Cables

RCA cables can easily be found in older home theater setups or readily bought in electronics stores. In a pinch, old CRT TVs use RCA inputs, stereo sets having 3 plugs and mono having 2. If you have 3 plugs, you can ignore the extra (typically yellow, the other being red and white).

Recording

If you've followed the previous step, you should have the tape wound up in the correct position.

Read the manual for the record player or look for it online. Otherwise you'll have to make decisions over which buttons are the logical equivalents.

Check if your record player has a built in pre-amplifier. A pre-amplifier boosts the weak electrical signal coming from the needle and raises it to line level. It also adds RIAA equalization.

Record players with built-in pre-amplifiers typically have a USB output for recording directly to the computer. If it does have a pre-amplifier, you can directly run RCA cables from the record player to the cassette deck.

If the record player does not have a built-in pre-amplifier, you'll need a receiver or a separate preamp. A receiver is able to take inputs from a Tuner, Phono(graph), Tape, and Aux(ilary) and route them through to power up speakers. It also contains the pre-amplifier needed to amplify the record player signal. You should be able to connect the record player's RCA cables to the appropriate RCA outlets on the back of the receiver (usually marked PHONO). Then connect another pair of RCA cables from TAPE (REC) on the receiver to INPUT (RECORD) of the cassette deck. Be careful not to connect it to TAPE (PLAY). Select PHONO on the front of the receiver.

Cue up the record on the record player. The cassette tape should be in record mode, but paused. Gently drop the needle on the lead-in groove of the record and release the pause button.

When the track has finished playing, press pause again lift the needle from the record.

It's good practice to record for a couple seconds and then play the tape back to see if the volume/input level needs to be adjusted.

Repeat for the next track until the end of the tape.

Note: If you want to playback from tape to digitize on the computer, the easiest way is to take the output from the headphone jack (usually 1/4") to the sound card via the microphone jack (3.5mm).

There may exist a 3.5mm Stereo Male to 1/4" Stereo Male Adapter Cable, but they're either uncommon or are only available in mono.

The following is a rather convoluted workaround, but it works.

• RCA male to 3.5mm male adapter
• 1/4-Inch Stereo Male to 2 RCA Female Y Adapter Plug (from previous step)

Plug the Adapter plug into the RCA cables and you can connect directly from 1/4" headphone jack to the 3.5mm microphone soundcard.

Congratulations! You're done!

All that rewinding and recording over is finished.

Write Protect Tabs

You just finished an entire mixtape. But what if you accidentally hit Record instead of Play? You'll record nonsense over parts of the song.

Prevent this by taking out the tabs on the top of the cassette (not the side with the tape). Remove the write-protect tabs with a small blunt instrument. For reference, look at the commercially produced tape on the bottom of Figure 3. It has indentations where on the mixtape, there are small, thin plastic overhangs. Remove those to ensure write-protection.

In case you decide that the entire mixtape needs a do-over, you can simply place scotch tape over the indentations in order to able to record on the tape again.

J-Card

The announcement of official Marvel Guardians of the Galaxy cassette tape of Awesome Mix Vol. 1 may make all of this work a moot point, but at least you learned how to operate a cassette deck, a record player, and a receiver, all this in addition to learning the lost art of the mixtape. Plus it shows a great rendition of a J-Card.

Oddly in, the movie we never see the tape being placed in its protective case. Since the label is occupied by the title of the mixtape, how else are we supposed to know what's on it?

Enter the J-card, named for the shape of the paper when view on its side. Using the same techniques for the label, we can copy the handwriting over so that you'll always knows exactly what's on this mixtape.

Want to listen to this mixtape to see how it turned out?

You can listen to the entire tape here (Youtube's copyright system prevents embedding the video)

http://youtu.be/m8Vz7-P8Mis
