How to Make AM Radio Jammer?
by Taha Emara in Circuits > Electronics
8100 Views, 36 Favorites, 0 Comments
How to Make AM Radio Jammer?
You can make Am radio jammer using simple components :
1 transistor 2n2222
1 resistor 1 mega ohm
1 resistor 470 ohm
1 ceramic capacitor 1 nf "102"
1 variable capacitor 5-250P from an old radio

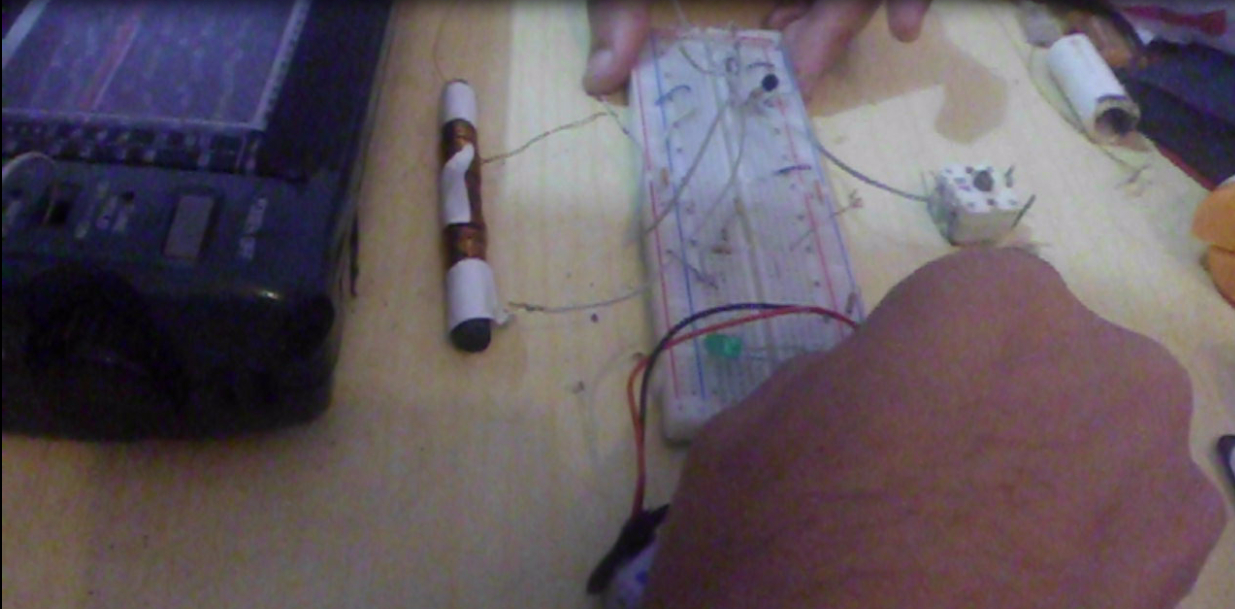

center tap coil with ferrite core 90 turns "45 -45" as shown in picture
9 volt battery
1 transistor 2n2222
1 resistor 1 mega ohm
1 resistor 470 ohm
1 ceramic capacitor 1 nf "102"
1 variable capacitor 5-250P from an old radio
center tap coil with ferrite core 90 turns "45 -45" as shown in picture
9 volt battery
