How to Install LED Scanner Knight Rider Light

You can find this product under LED Scanner Knight Rider Kit

1) Position the LED scanner bar so the wiring side is close to the car battery

2) Tie the LED scanner bar behind the grille using zip ties

3) Make sure do not bend the end wiring portion

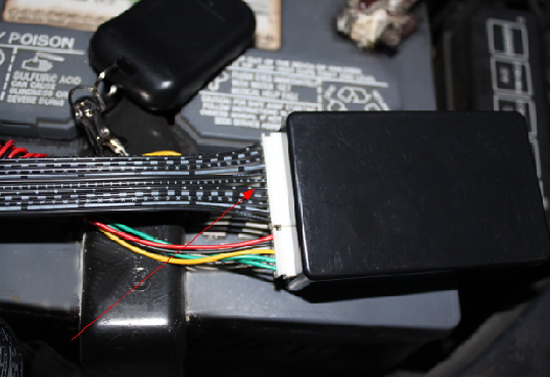

4) Connect the LED scanner bar to the control module

5) Hide the LED scanner bar control module near the battery so it will keep completely dry

6) Connect only the RED and BLACK wires to battery positive and negative and leave other three wires absent

7) Enjoy the LED scanner bar!

================

Wiring configuration and special notes for the LED knight rider lights
