How to Fix TV Remote Buttons

by gaurav47 in Circuits > Remote Control

2357 Views, 10 Favorites, 0 Comments

How to Fix TV Remote Buttons

Certain buttons on a TV remote can get worn out over time. In my case it was the channel up and channel down buttons. The contacts on the bottom of the button are likely worn out. This is how I fixed mine.

Snip a Small Piece of Wire From a Copper Wire

In the photo, the small speck in between the spool of wire and the wire cutters is the piece of wire snipped off for use.

Pound the Piece of Wire Into a Little Copper Disc.

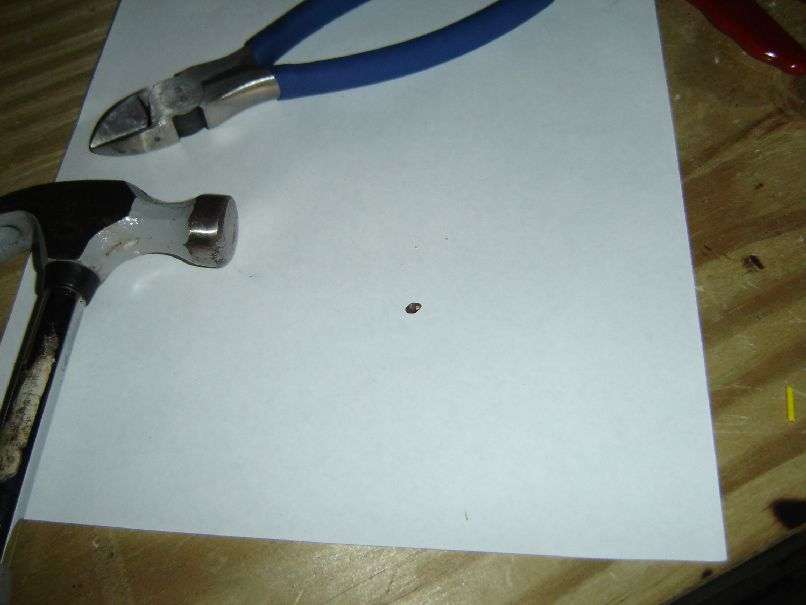

With smooth faced hammer, pound the tiny piece of wire into a flat round itty bitty disc. The dot in the middle of the paper is the copper disc pounded out from the wire in the last photo. If the shape is too elongated, trim it with the wire cutters.

Disasemble the Remote Control

Using a screwdriver, pry the remote control apart and pull apart the pieces. The screw driver may need to be very small, such as a jewelers screwdriver. On underside of the buttons, there are conducting contact pads that can wear out. Sometimes they only need to be cleaned. This how to addresses a worn contact pad.

Glue the Copper Plates Over the Worn Button Contacts

In this photo I've glued small copper plates over the contact pads on the underside of two buttons that were worn. Channel up and channel down. Let the glue dry. I've found that a good strong glue is necessary. I used Gorilla Glue.

Put Everything Back Together and Click Away!

Happy surfing!
