How to Build an Awesome Sidewalk With Recycled Lumber for Only $50.00

by Vyger in Workshop > Home Improvement

147665 Views, 358 Favorites, 0 Comments

How to Build an Awesome Sidewalk With Recycled Lumber for Only $50.00



        After reading that title you might wonder, why would anyone make a sidewalk out of wood? Well, there are a few very good reasons for doing it.


  A little history

      More than 25 years ago my wood sidewalk started out as an experiment to see how practical it might be. We needed some kind of walkway for the country house we had just moved into. I thought of using the traditional concrete but in the climate that I live (Northeastern Montana) cement sidewalks have some problems. The ground here moves around a lot. It shrinks in the hot dry summers, sometimes making cracks that are 4 inches wide. In the winter it freezes 6 to 8 feet down so the ground heaves up a lot. Between the shrinking in the summer and freezing in the winter concrete does a lot of cracking. Also cement stays cold and frozen all winter whereas wood warms up and the ice melts off of it anytime it gets above freezing. It was also the least expensive of my available choices. So I built a wood sidewalk. It lasted far longer than I ever thought it would, more than 25 years.  But all things deteriorate and my sidewalk has been in need of replacing for a while now. Once again I found myself debating about what to use. I had been looking into making my own pavers but in the end I went back to wood, especially when I got used redwood for free.

My challenges for this project were:

   Come up with a design that could use all the different sizes of redwood I salvaged without producing a lot of waste.

    Resurface the older weathered wood so it matched with everything.

    Create a good-looking, practical sidewalk at a reasonable cost.

By the way, I have included a lot of comments and extra info in the pictures so be sure to check any yellow outlined squares in them.

The Wood

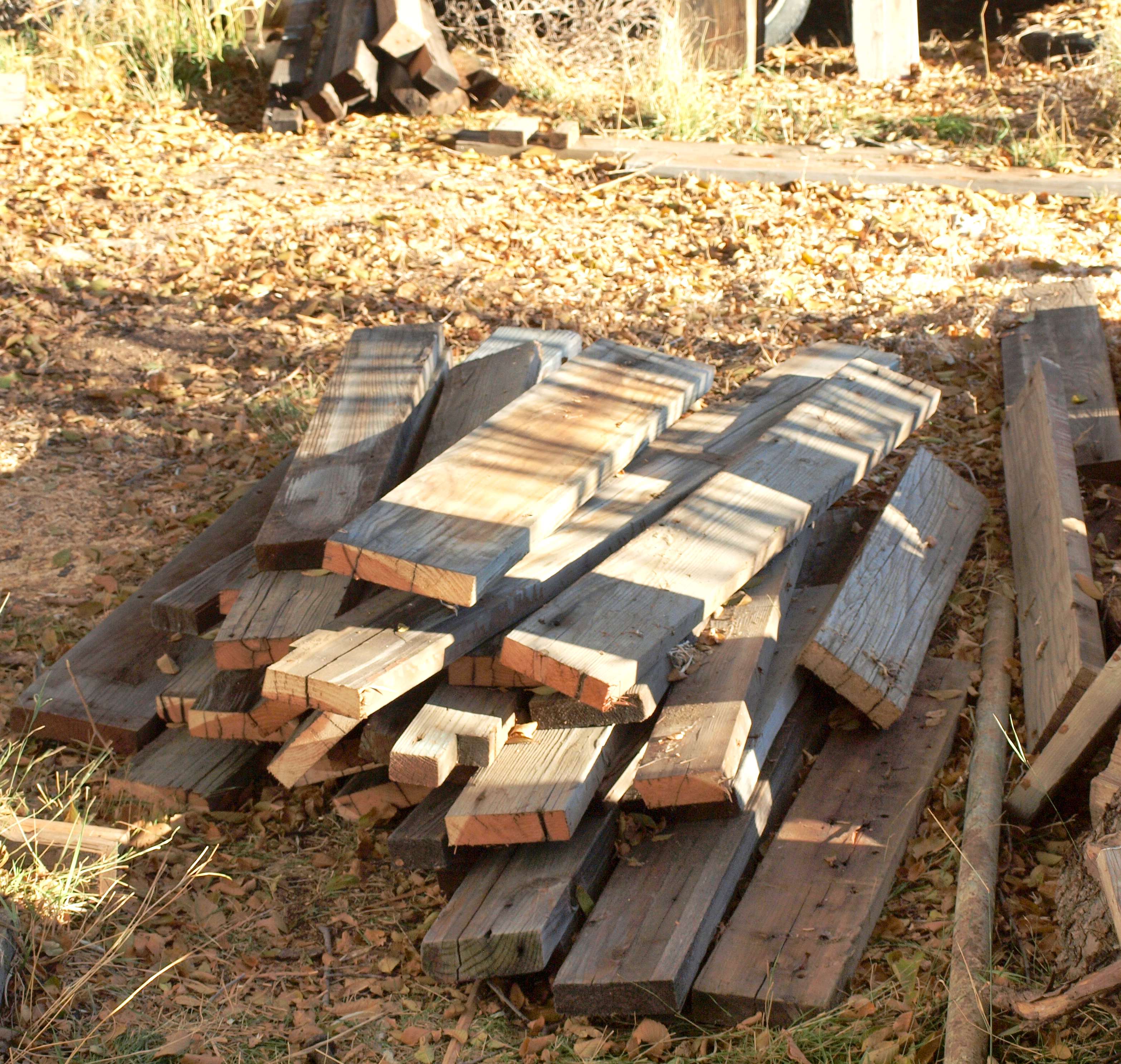

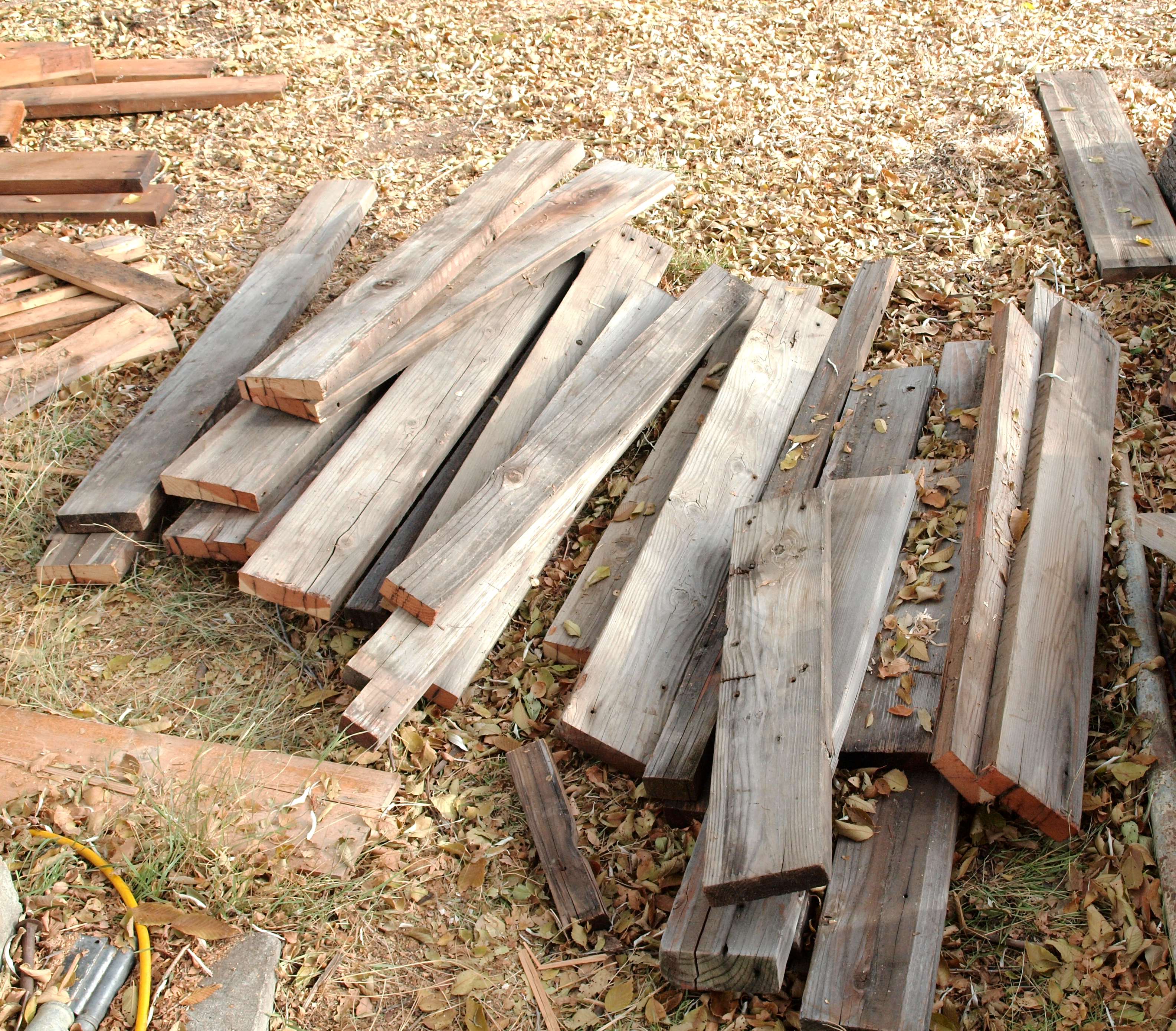

     I heat a lot with firewood so I am always on the lookout for wood. Lumbar scraps and discarded wood burns just as good as anything else, so when a friend of mine told me he had a pile of wood from a flood cleanup I went to look.  I was soon the owner of a large collection of used redwood that normally would have gone to the dump. I acquired a second pile from an old redwood deck that was torn down and replaced. Now I had the wood I needed for my sidewalk, except that it was not all nice standard same size pieces. It was a mix of 2x4, 2x6, and 2x8’s with varied lengths from 8 feet long to 12 inches.  In addition The wood from the old deck was very weathered on the top side from years of exposure.

The Tools




I have a 30-year-old Craftsman table saw that played a pretty major role in this project. Another key tool is a wood planer. Craftsman sells one almost identical to the one I used for this project. The reason I bought this one was that it was on sale with free shipping and at 65 pounds that made a difference. If the Craftsman one had been on sale I would have bought it instead. I also used an 8½ inch miter saw, a cordless drill for driving screws, a circular saw for some of the difficult cuts of the longer boards and a square and tape measure, hammer, dirt moving tools, lots of miscellaneous things. Lastly I used a Dremel which is featured in another of my Instructables here: https://www.instructables.com/id/Dremel-fix-for-problem-screws/

 My saw went out of production long ago but Sears  does have some nice looking new ones that probably work better than mine. Here is a reasonable priced one. http://www.sears.com/shc/s/p_10153_12605_00928462000P

Here is a craftsman planer very much like mine. You should wait to buy it until  you can get free shipping which they do every now and again. Or order it and pick it up in a store.
http://www.sears.com/shc/s/p_10153_12605_00921758000P?prdNo=1&blockNo=1&blockType=G1



Just as a general principle I would rather spend the money on the tools to do the job and have the tools left over afterwards for other projects rather than spend a lot for materials that you don't need the  tools for to begin with.

The Cost Breakdown


    The Final cost breakdown for this project is as follows. And yes I did it cheap.

Six boxes of deck screws. The original price on each box was $7.50 per box but I got them all when a local hardware store went out of business and auctioned everything off. So I bought three large boxes of various packages of screws for $20.00. That would put the final price for the screws I used at about $5.00.

      1/2 gallon of deck sealer which I also bought at the auction. I bought four gallons for $20.00, so about $3.00 for the amount I used.

      A gallon of diesel fuel which I mixed with used motor oil to treat the underside of the wood and support pieces as a preservative.  About $3.00 (More on this later)

      2 trips in my pickup to get the free redwood, using roughly 6 gallons of gas, or about $18.00 for transportation.

      Finally, I ruined the blades on my planer after hitting a number of hidden screws in the wood, which is a hazard of working with used wood. The blades are double-sided, so I could use the other side, which means only half the blade was worn out. I bought a set of replacement blades for $28.00, figuring half of that for this project is $14.00.



The total was $43.00. Just to be safe I rounded it up to $50.00.That's pretty reasonable for the results that I got. Of course I am not counting my slave labor. But remember, you must feed slaves even though  you don't pay them, hence the BBQ grill.

A Close Shave

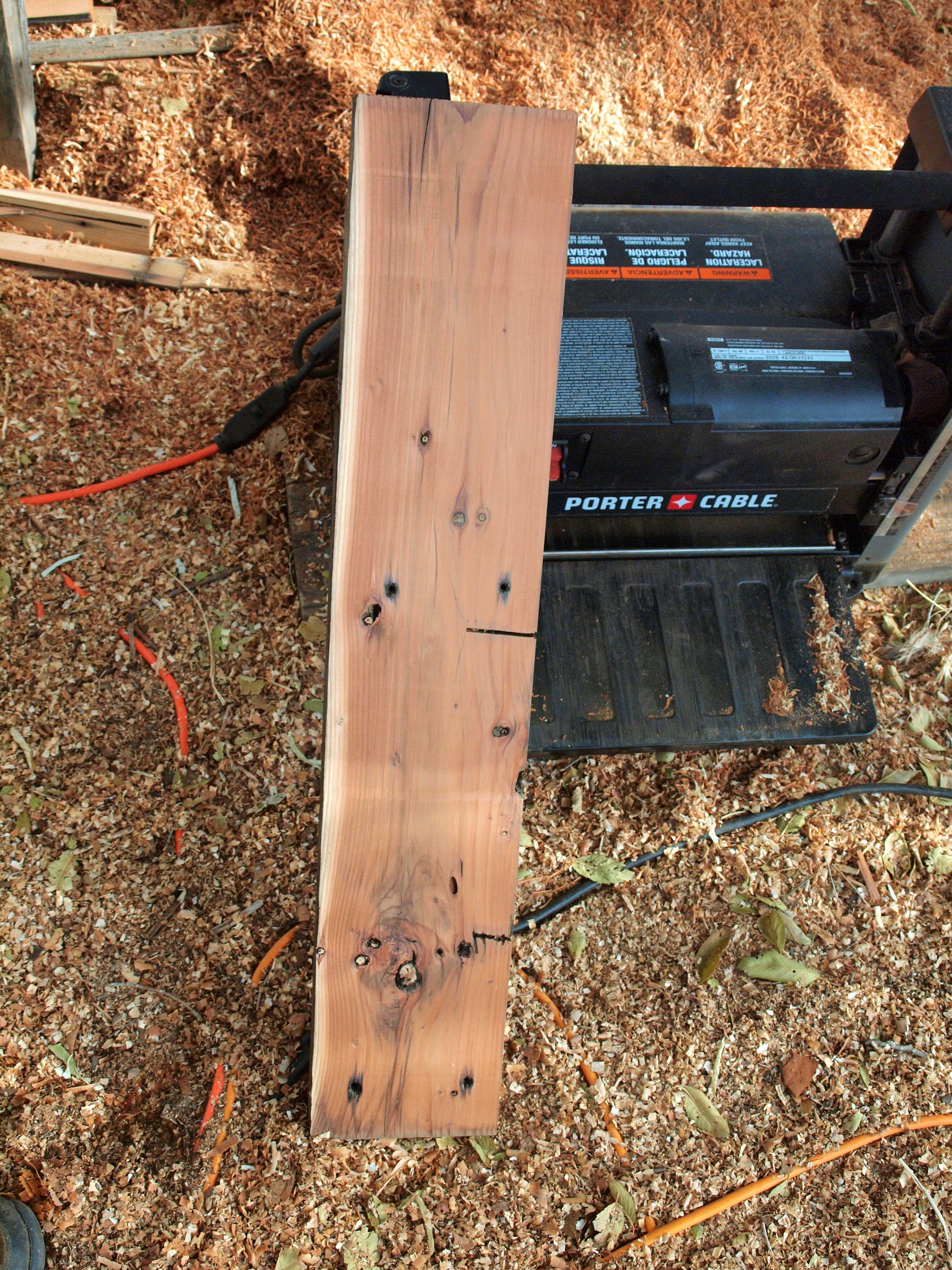

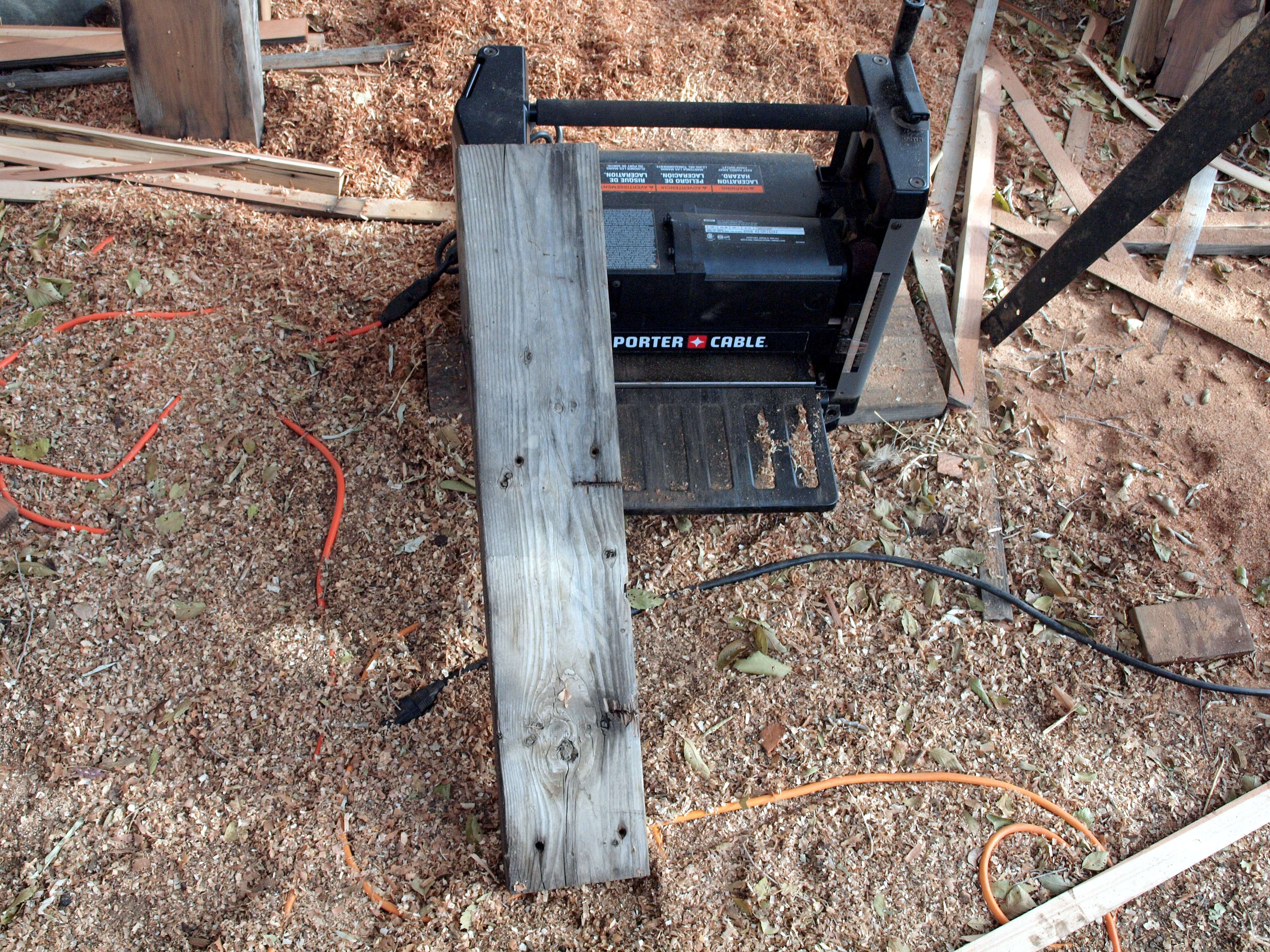

    A wood planer shaves off the top layer of the wood to expose the good wood underneath. It is very important to check the lumber for any hidden screws or nails. The plane spins at very high-speed, and if it hits a metal object in the wood it takes a notch out of all the blades. From then on you will see a line down anything you plane where those blades are damaged. You can run the wood through again to take off the line but if you get to many dings in the blades you will have a real problem. I start with the board just clearing the blades and work the depth down from there. It usually takes at least three passes to get it looking good.  Remember that you are going to have to plane all the boards to the same size in order to avoid having some boards sticking up above others.  Decide from the start which side is going to be the top. I usually run the bottom of the board through the plane at least once to take off any high spots but you don’t have to worry about cutting it down to fresh wood as it’s not going to show. A plane makes big piles of chips and sawdust very quickly. Have a plan for dealing with it. I rototill all my sawdust into the garden so it’s recycled.
(See my Instructable “Shred and Till”)
https://www.instructables.com/id/Shred-and-Till/

Oh, and watch out for lead paint on old boards. If you suspect that they may have it dispose of them. If you plane them the lead will go everywhere in the fine dust from the planer

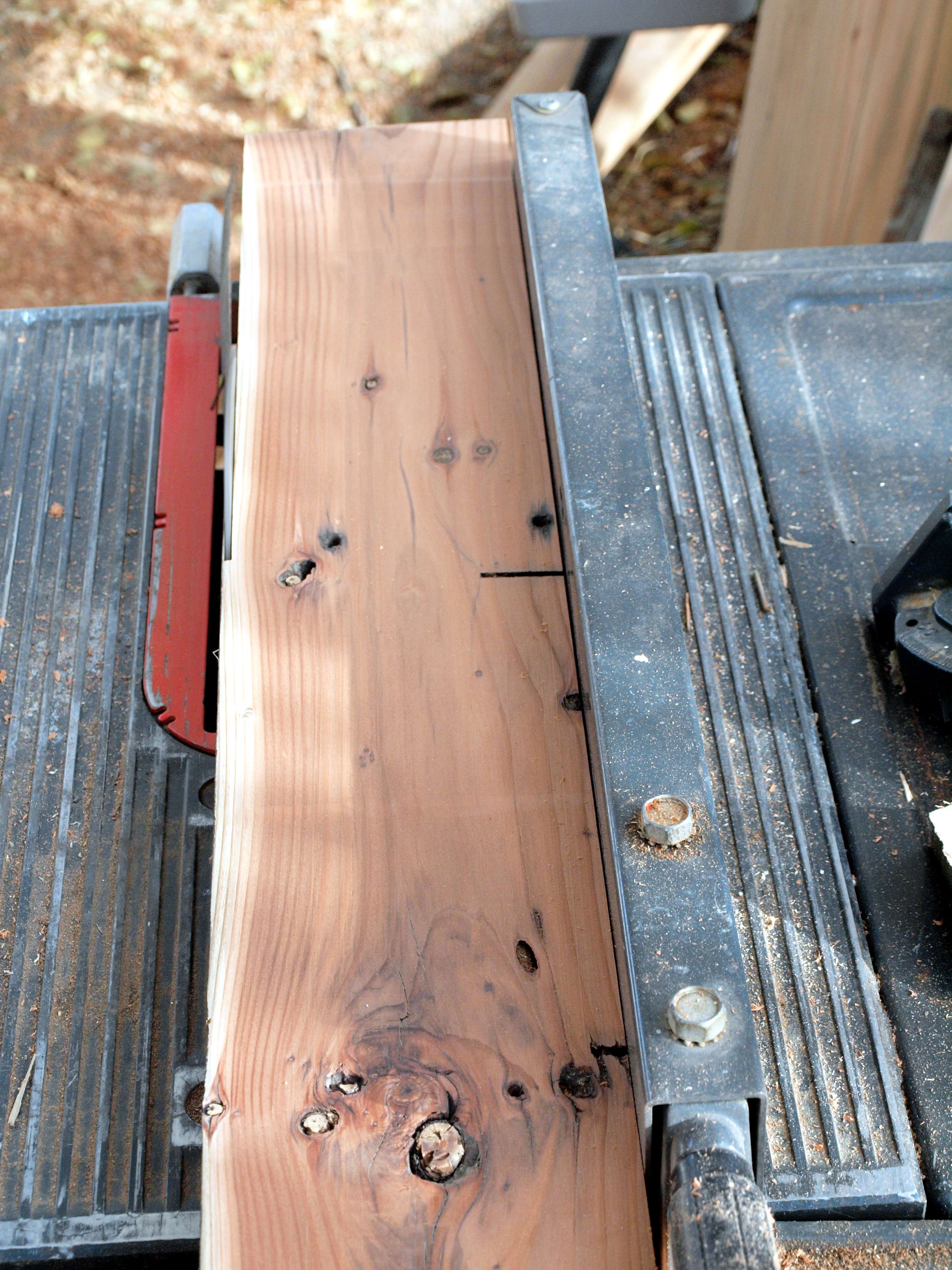

The Table Saw

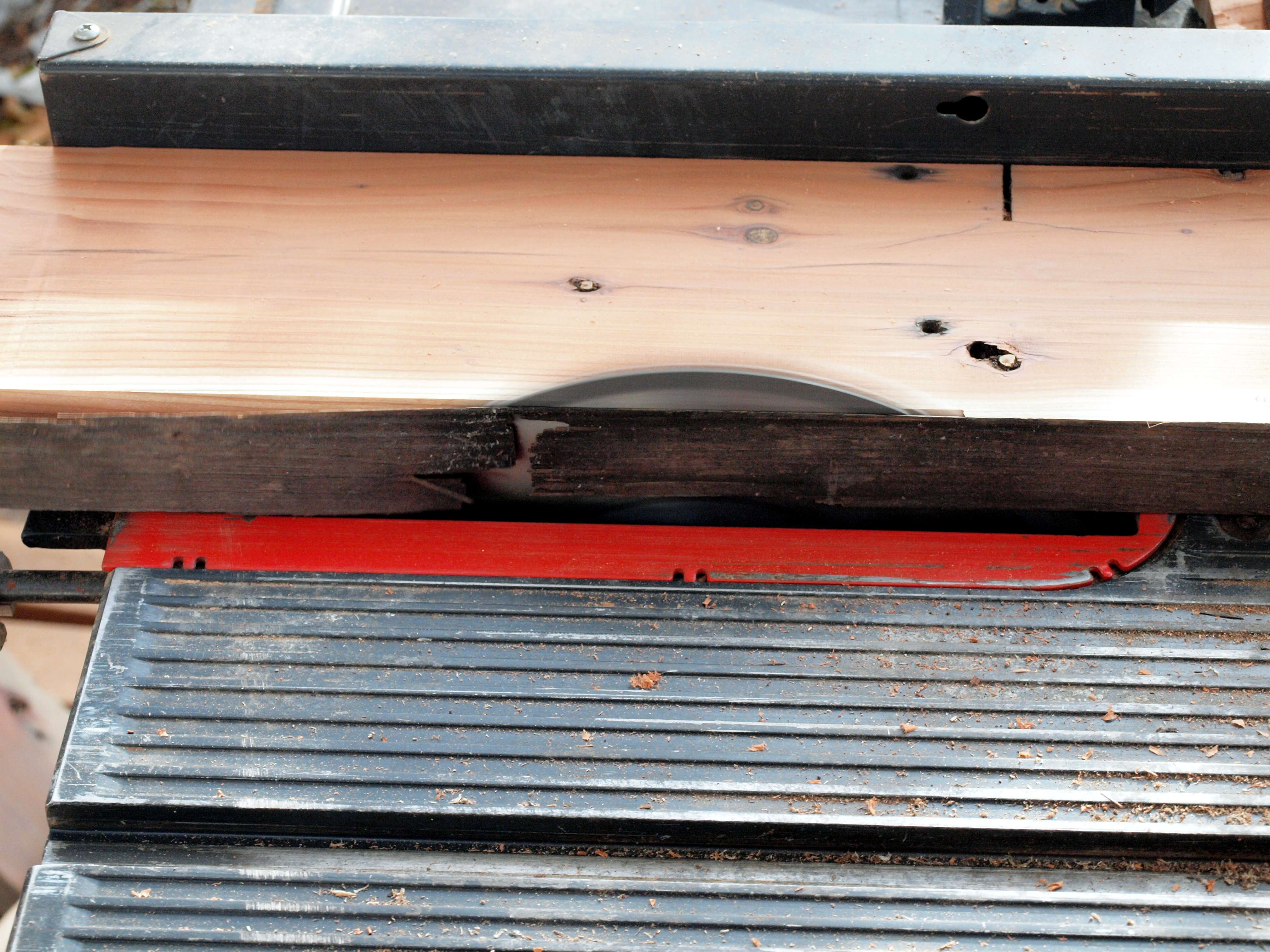

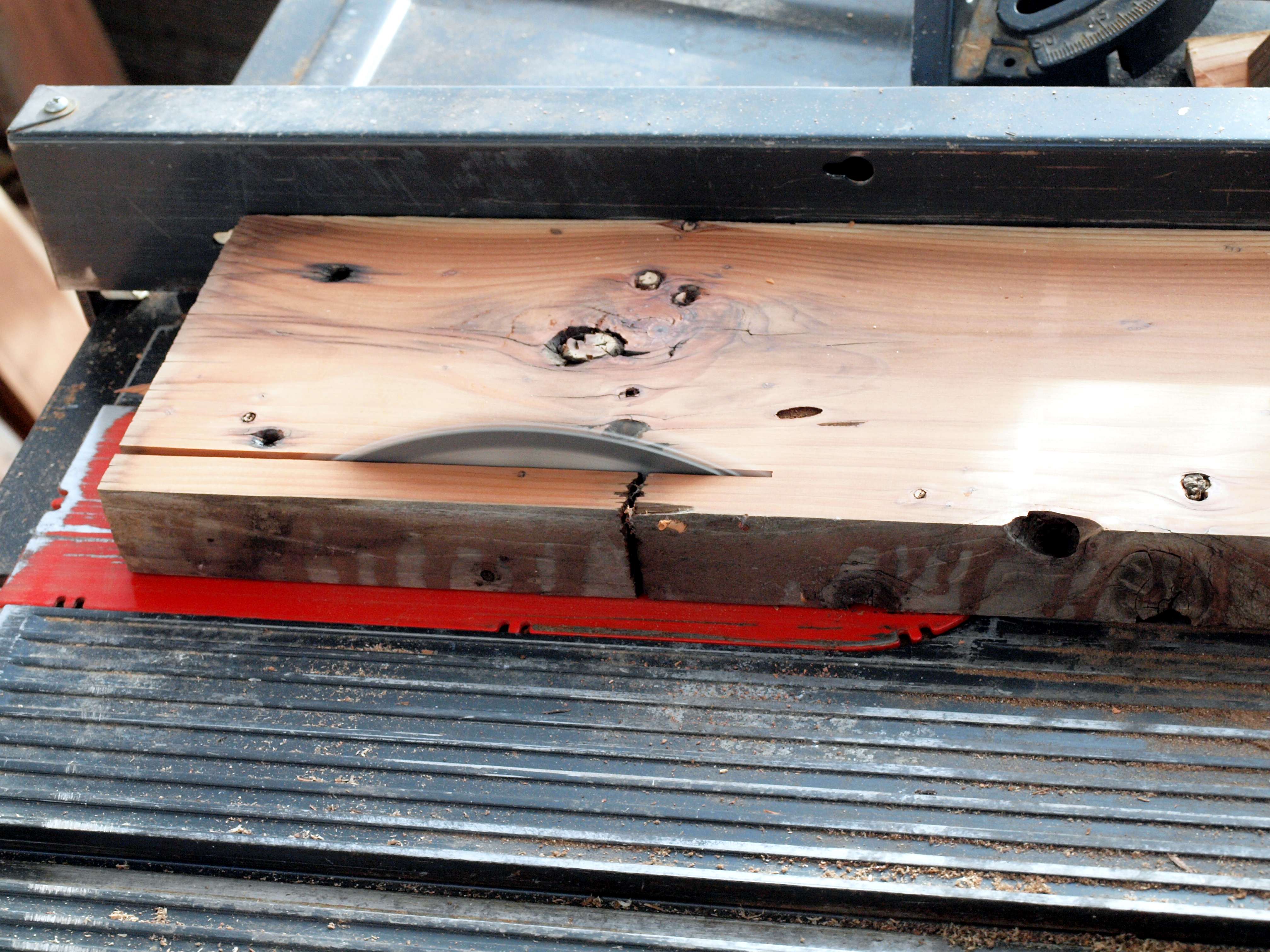

Some of my boards were badly worn on the edges. A few had  been steps and so they were very rounded from being  walked on. You can use the table saw on these to cut 2x6’s down to 2x4’s. Also 2x8’s can become 2x6’s. Start by cutting off the worst edge; don’t just try to cut it down completely in one pass. Next run the board again and square up the other edge. You now should have a good flat square side that will work against the rip fence. Measure and set the fence for the final dimension (3 ½ inches for a 2x4) and again cut off the worst edge to make your 2x4. I was only able to salvage half of the one in the picture because of the big knot. In addition be aware of any screw or nail holes in the board, if you can trim them out while cutting down the board, so much the better. Sometimes the holes actually line up with where you need them to be and you can just reuse the hole.

 Important: A Note about Safety

 All new table saws come with guards on the blades. Mine did, but it broke many years ago so that is why it’s not on there. I do not recommend running the saw without the guard. These blades are so sharp and so fast that you will see you finger lying on the ground and wonder what it is before you even realize that yours is gone. I had a friend who sliced his finger right down the middle before he had a chance to pull his hand back.  They sewed it back together but it never worked the same because of the damage to the joints. Treat this saw with absolute respect and you should have no problems. Never lose track of where that blade is when it is running. Also remember that table saws love to throw stuff—they can launch a hunk of wood with great speed. It’s called kickback. Make sure you are not in the line of fire. Mine threw a chunk of wood through a window once.  Always use sharp blades. A dull blade will tear up the wood and smoke and char the kerf. I always use carbide tipped blades; they are definitely worth the money.

The Layout and Designe

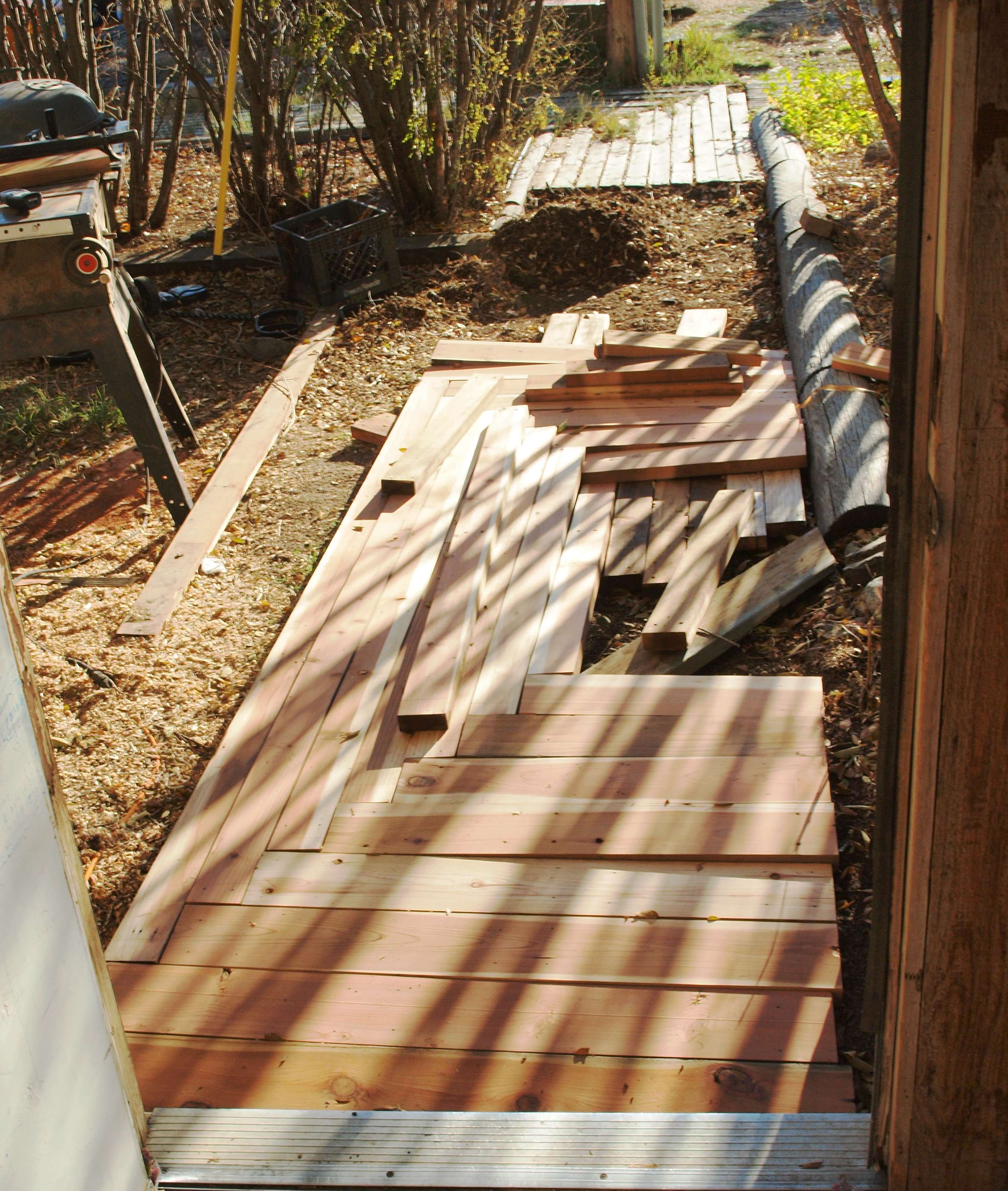

I tried a number of different patterns but quickly decided on this one. It made best use of the sizes of wood that I had and from the first layouts I did I thought it looked really interesting. It did make for some difficult cuts for the supporting boards, but that is just all part of the challenge.

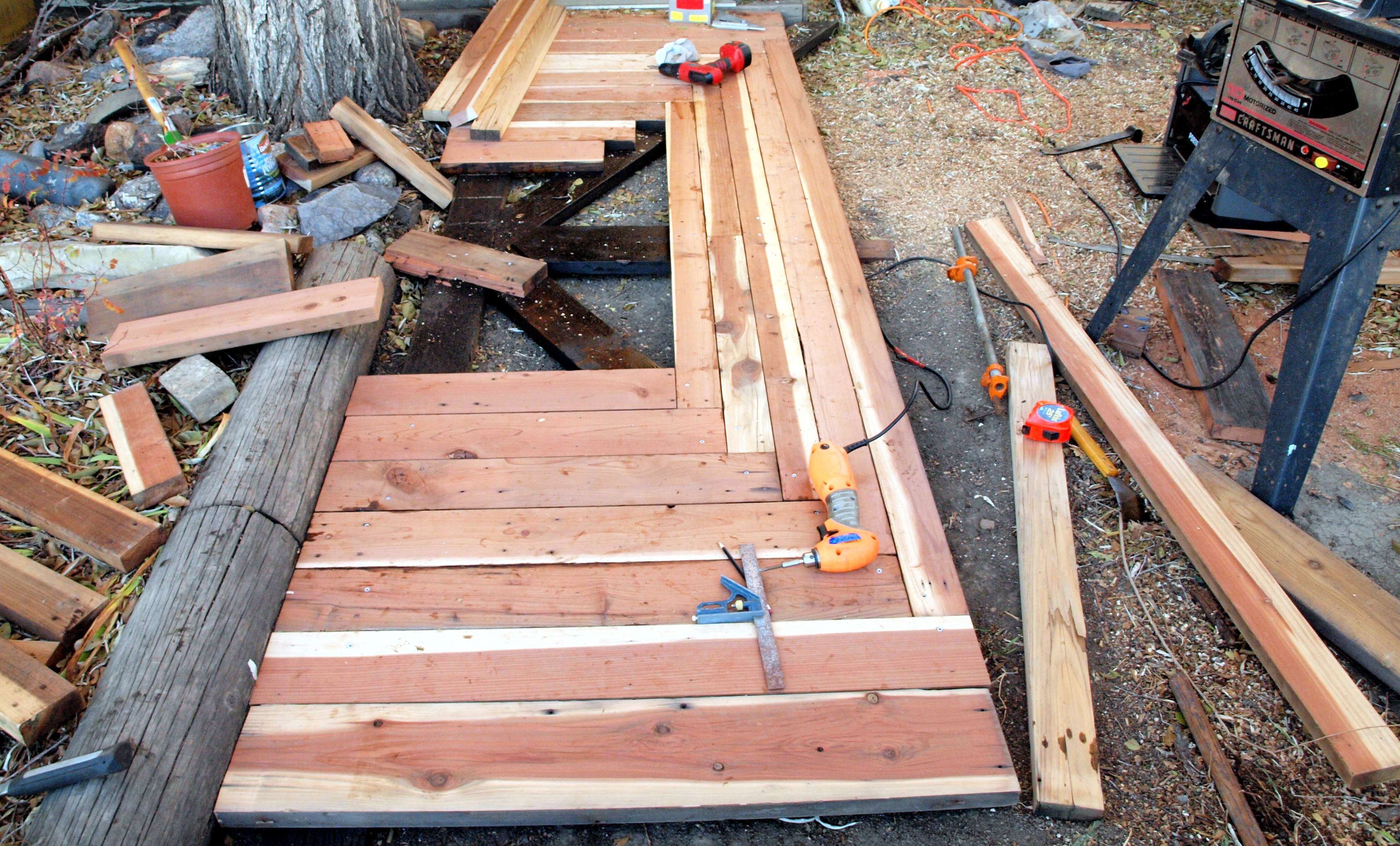

I made this in sections, the length of each section was determined by the length of the longest 2x4  board that I had since they were the ones going lengthwise. The sections can come apart just by taking off the connecting 2 x 6"s where they come together. By doing this the sections are small enough that I can stand them up on edge if I need to get underneath them.The sidewalk sections are free floating. They are not attached to the ground. The support boards rest on bricks that can be adjusted to get it level.

 For the supporting boards you can use the boards that are in the poorest condition. This is one of the reasons you should sort out your wood and decide what will be used for what.  The support boards don’t need to be planed. However if they are going to be in contact with or close proximity to the ground they should be treated.

   I have tried commercial wood preservatives and some of them just don’t seam to work very good. Something that does work though is a mix of used motor oil and a half to a third part diesel fuel. This has been in use around this area for a very long time. I learned that they used to use it to treat wooden wagons. Some use it to treat flatbed trailers that are left out in the elements for years. I know from my own experience it works and is cheap. The oil penetrates into the wood and appears to seal it from moisture. It’s that simple. Oil and water don’t mix so if the wood is saturated with oil no water will get in. No water means no rot, and also the bugs really don’t like to chew on it. The diesel fuel thins the oil and acts as a transport agent to move it deeper into the wood.  I have seen fence posts that were treated with oil still in the ground after 30 years.  Very little oil transfers to the ground so it’s not a pollution problem. One down side to it is that it smells for while. It takes time for the diesel fuel to evaporate but if you live where I do that’s not a problem. It also is more flammable than just plain wood until it weathers for a while, but again that is not usually a problem for outside landscaping projects.

      To apply it just paint it on with an old paint brush and let it soak into the wood. Pay special attention to the ends of the boards and any holes or cracks in the boards. Weathered wood with lots of cracks actually works very good for this because it gives the oil more places to soak in. If you have the time to wait you should let it stand for a few days until most of it soaks in. If you are in a hurry you can use it right away, but it might get a little messy.


Complex Joints

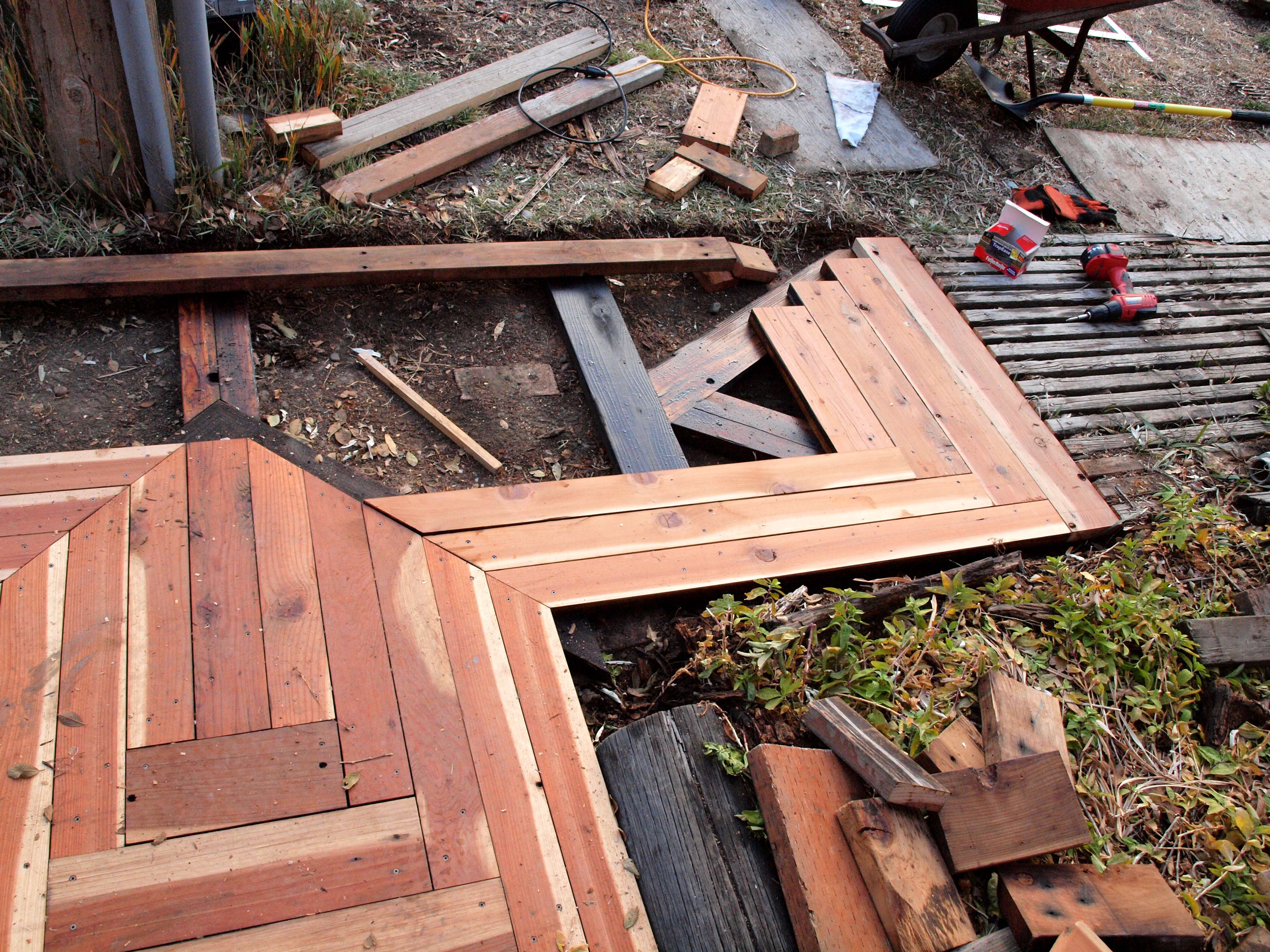

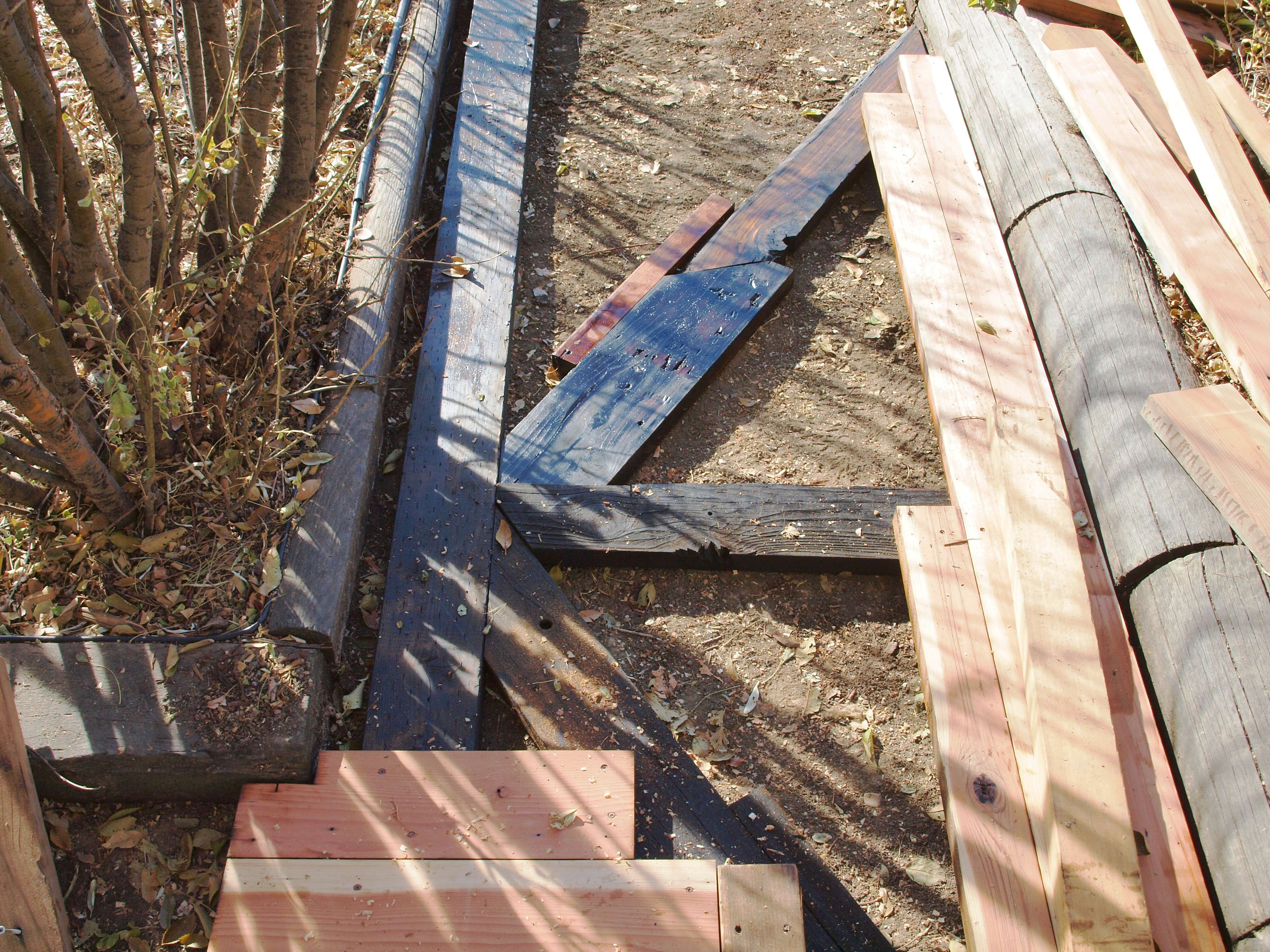

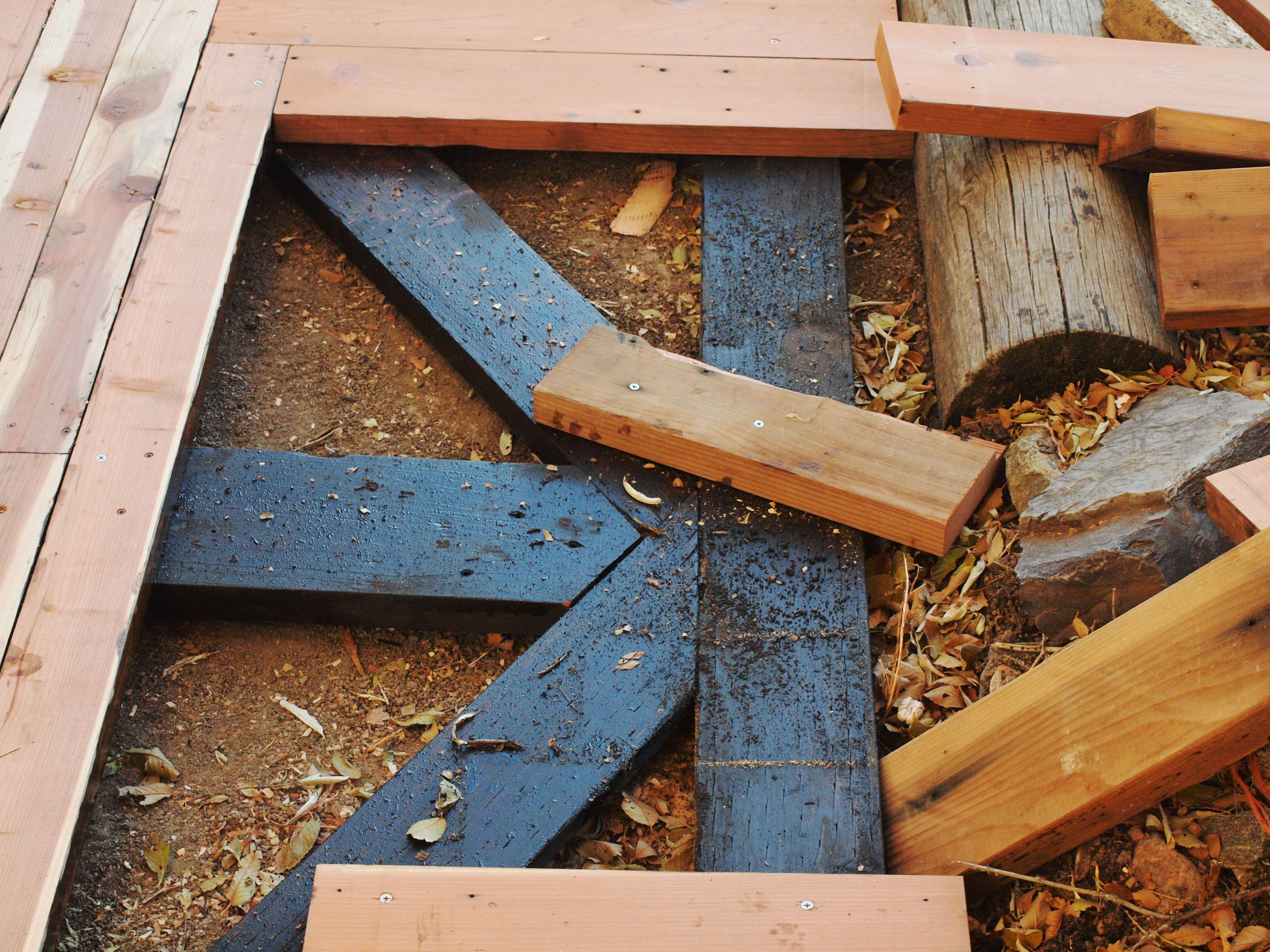

I made the support boards so they were under each place where the ends of the top boards came together. Since I was using this pattern the support boards did not meet at a 45 degree angle.  You can cut these types angles and pieces by laying one board on top of the other and marking it for the cut. You don’t need to try and draw the angles with a protractor, just align everything and mark them  and make the cut. These joints were the only places that I used my circular saw.

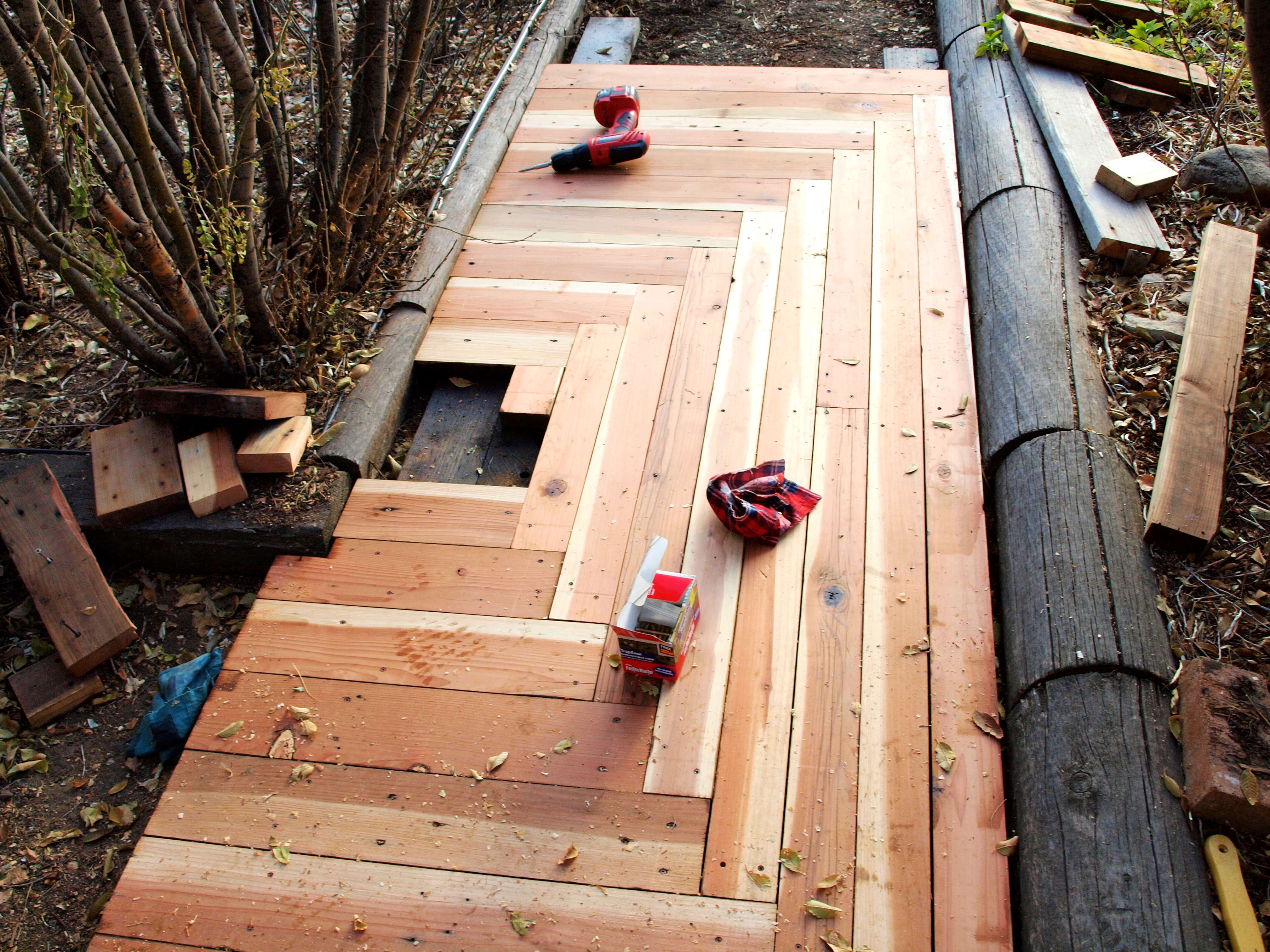

Section Two


  For the next section I reversed the pattern I was using which created an even more interesting look. Keep in mind that since there were no standard sized lumbar pieces  I had to measure and cut each board to fit its specific place.

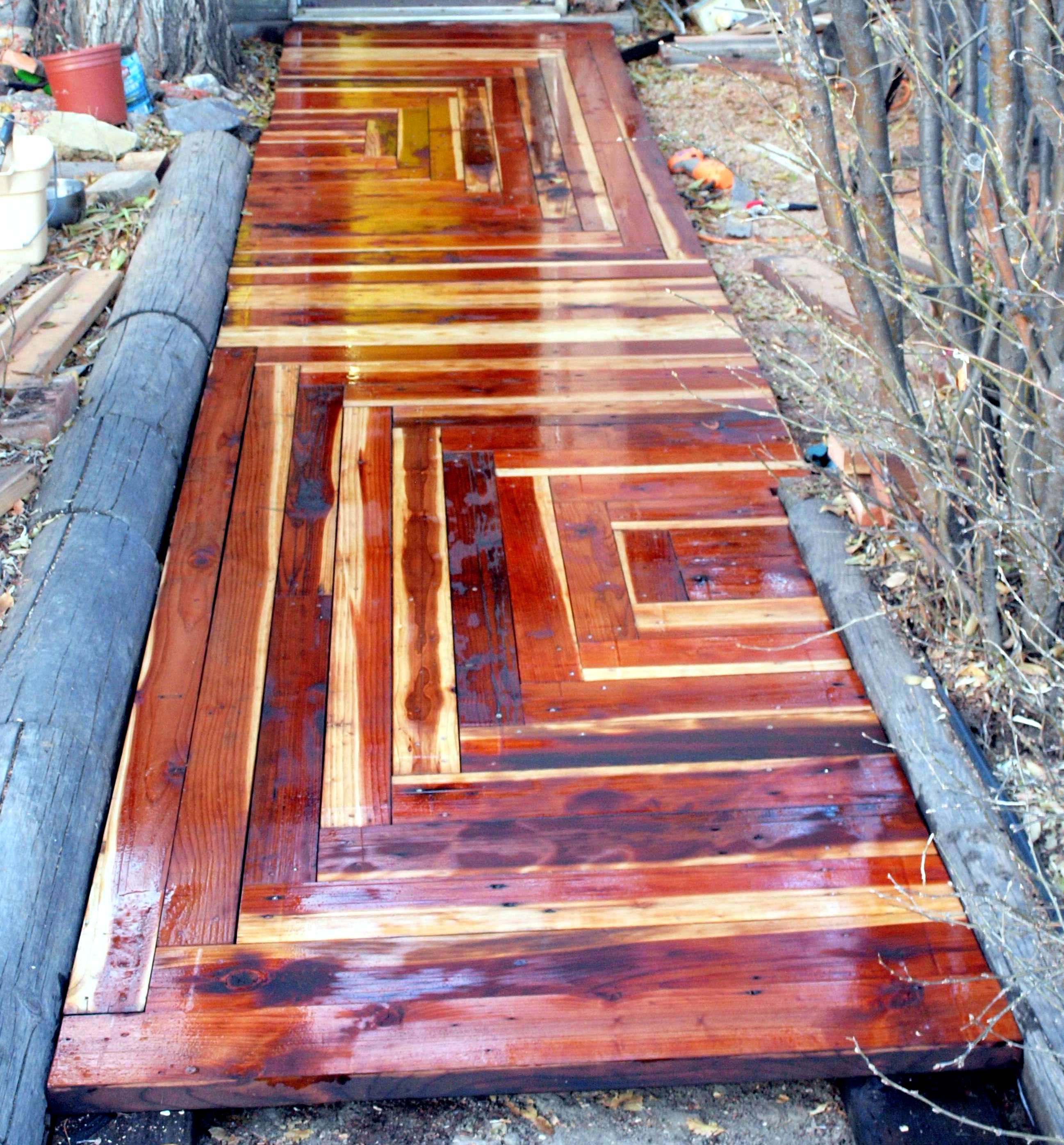

Sealer

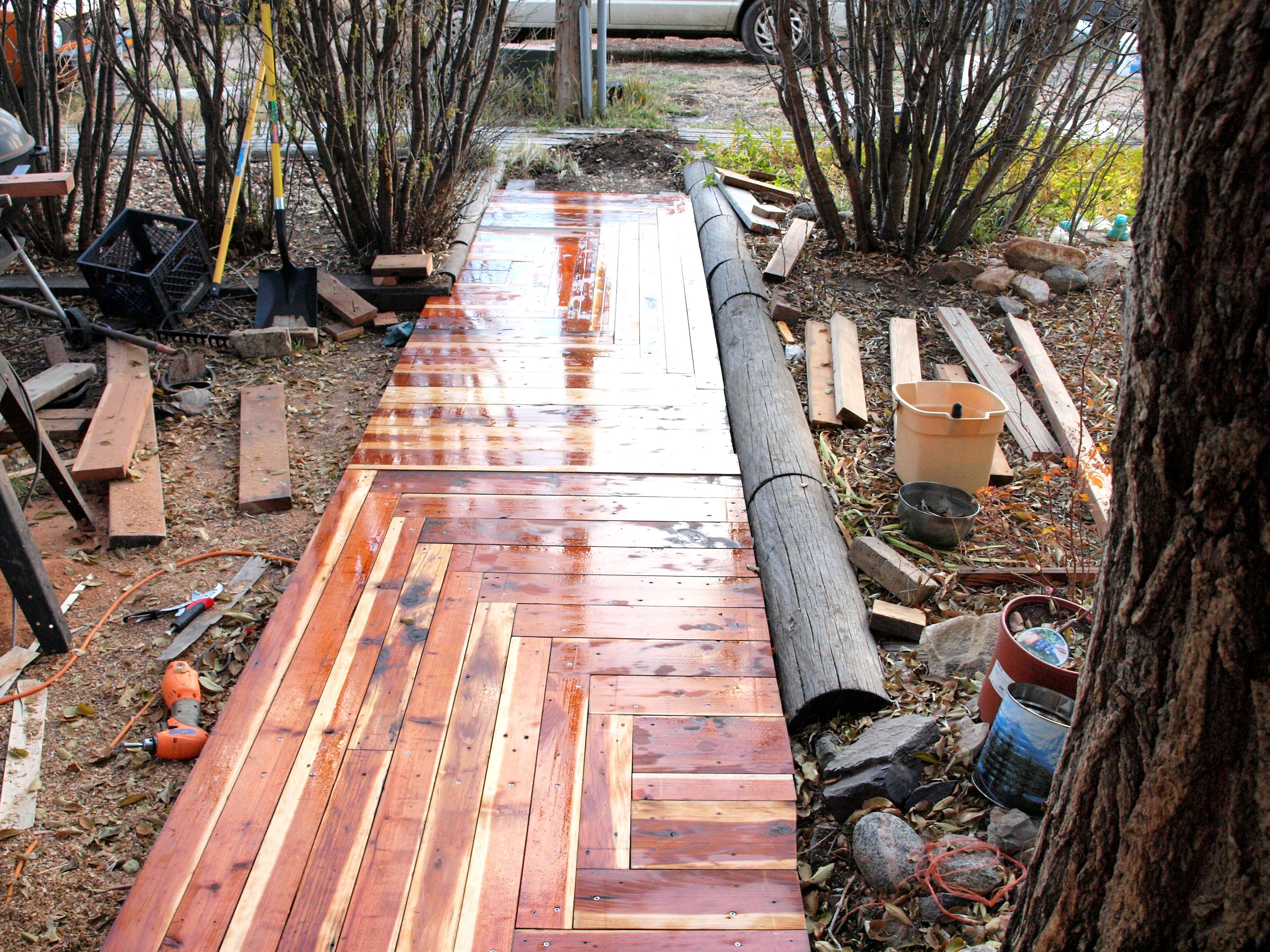

After completing the first 2 sections I put the sealer on it. I didn't want it to get wet before I had a chance to seal it. The wet sealer looks really impressive. To  bad it doesn't stay that way. It really shows off the redwood color.

Section Three

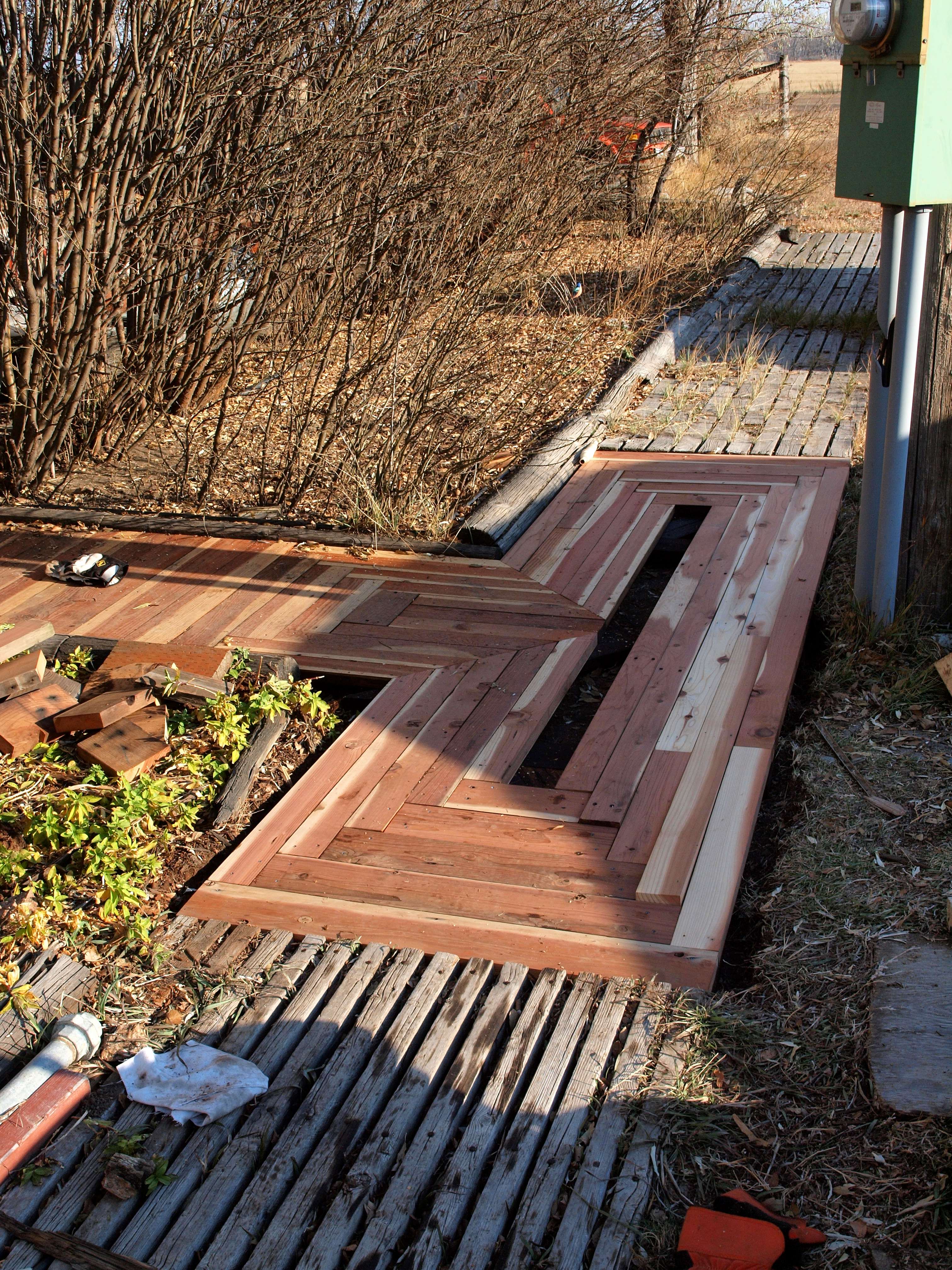

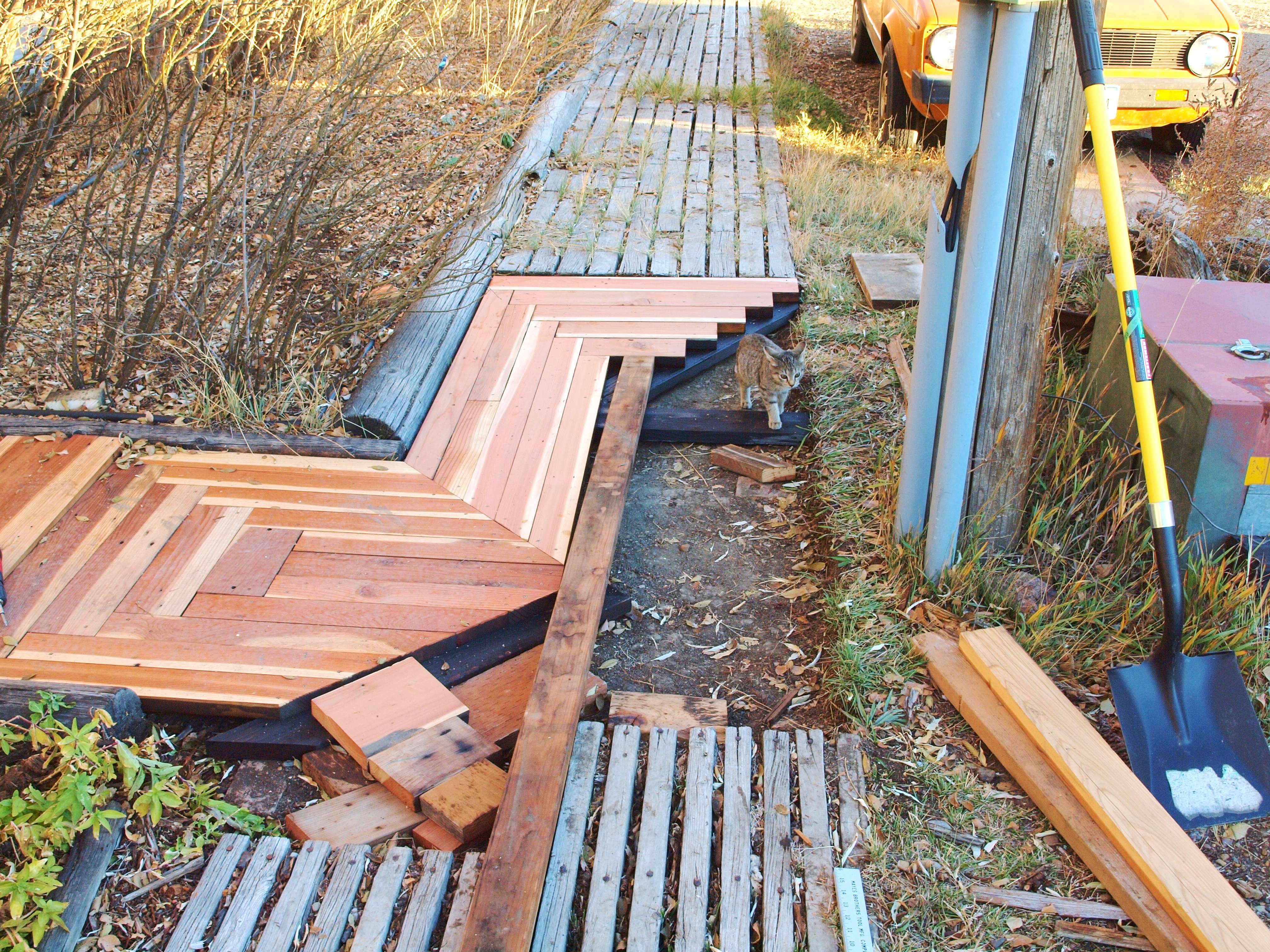

Because this next section turns both right and left I had to change the pattern a little and send it in both directions.

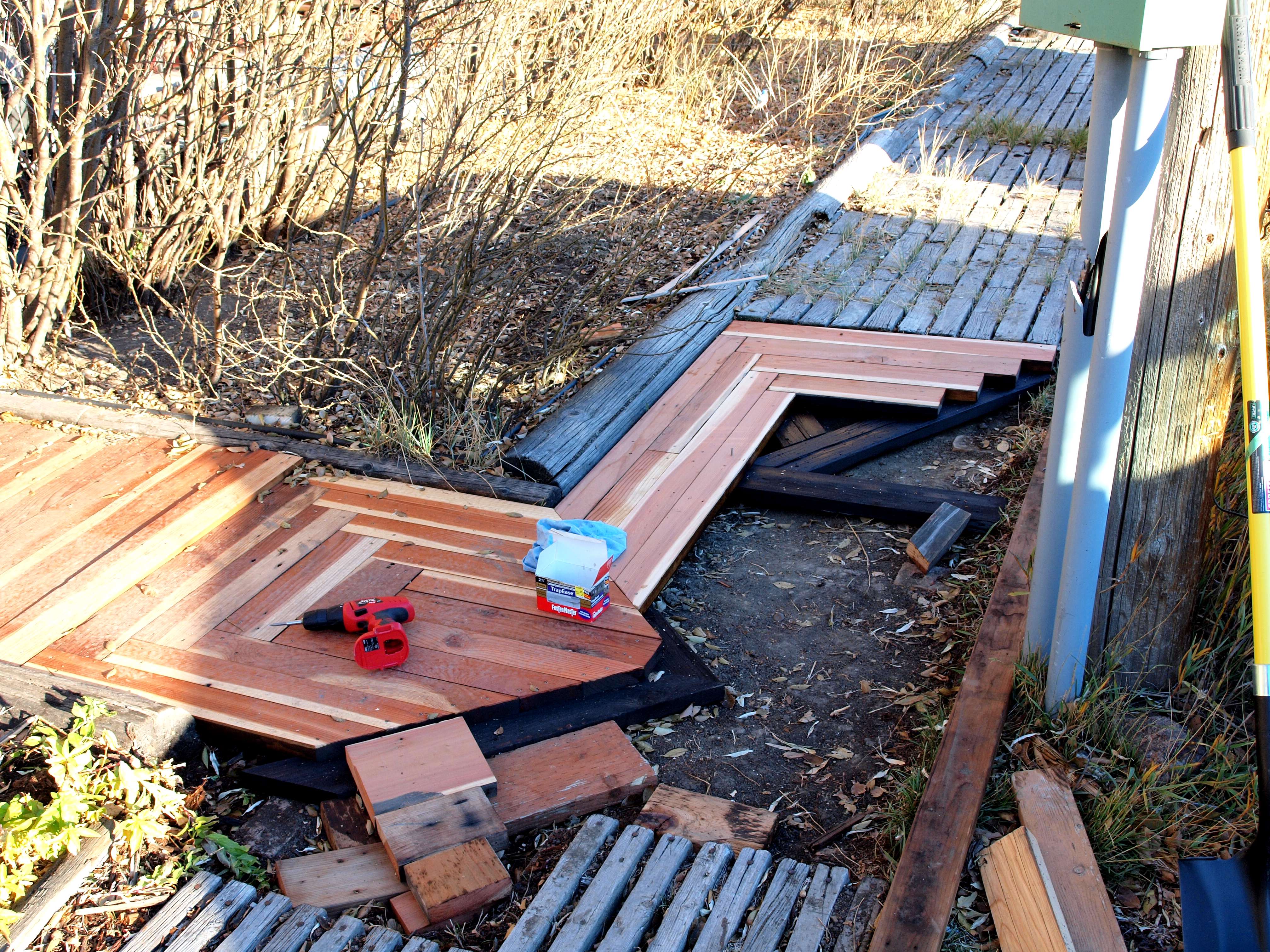

Section Three to the Left.


Again using interesting angles

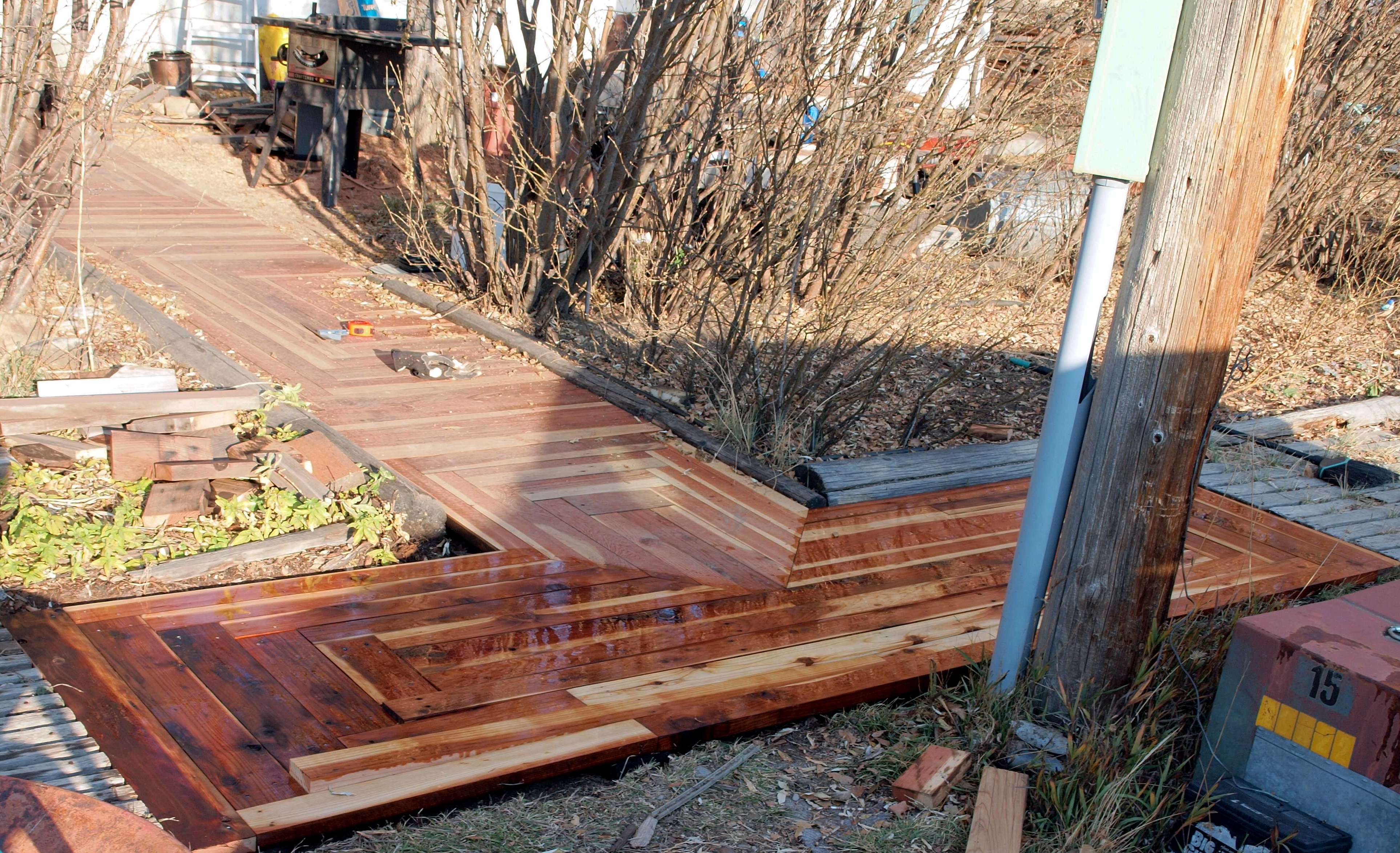

Section Three to the Right

Now the split going to the right.

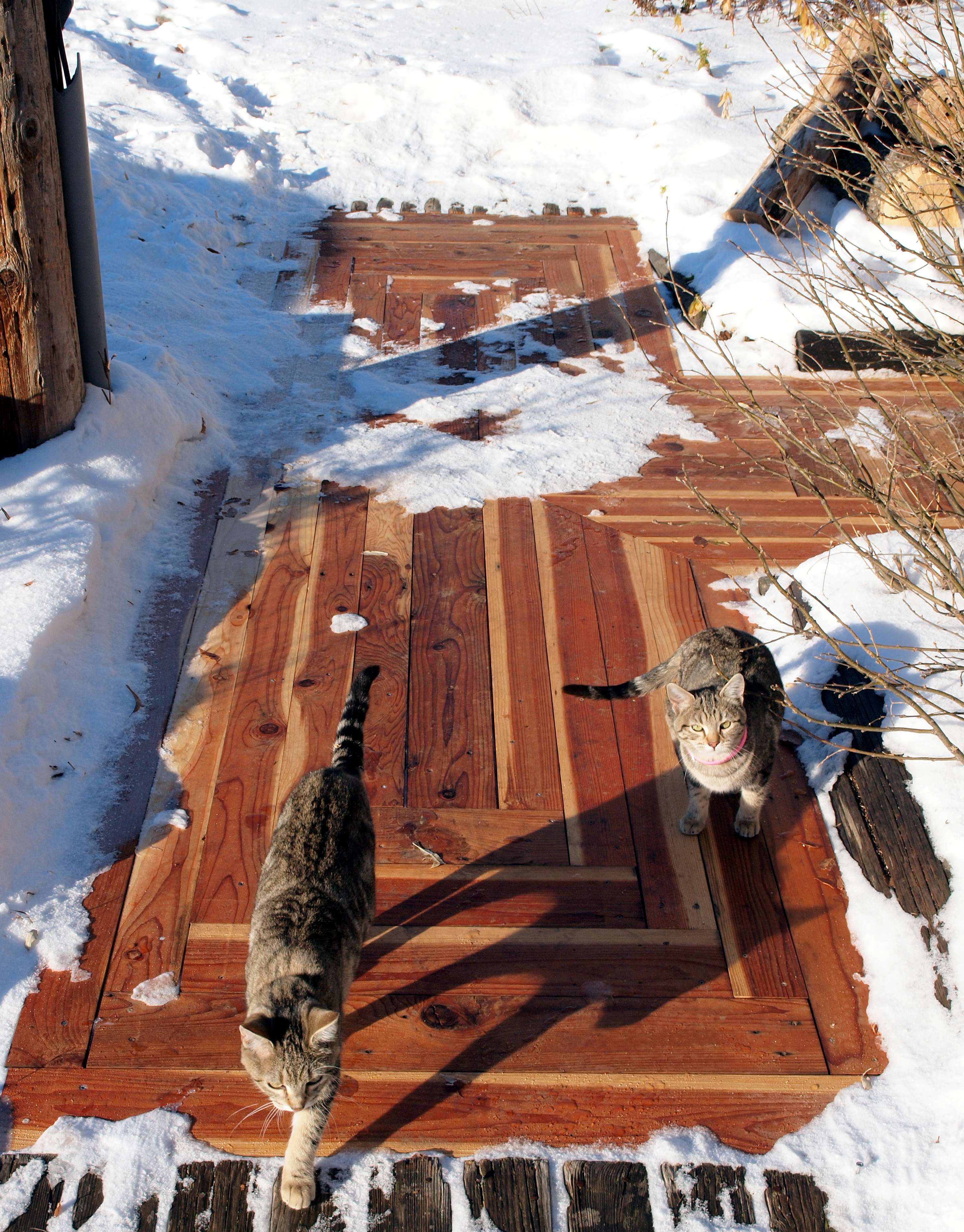

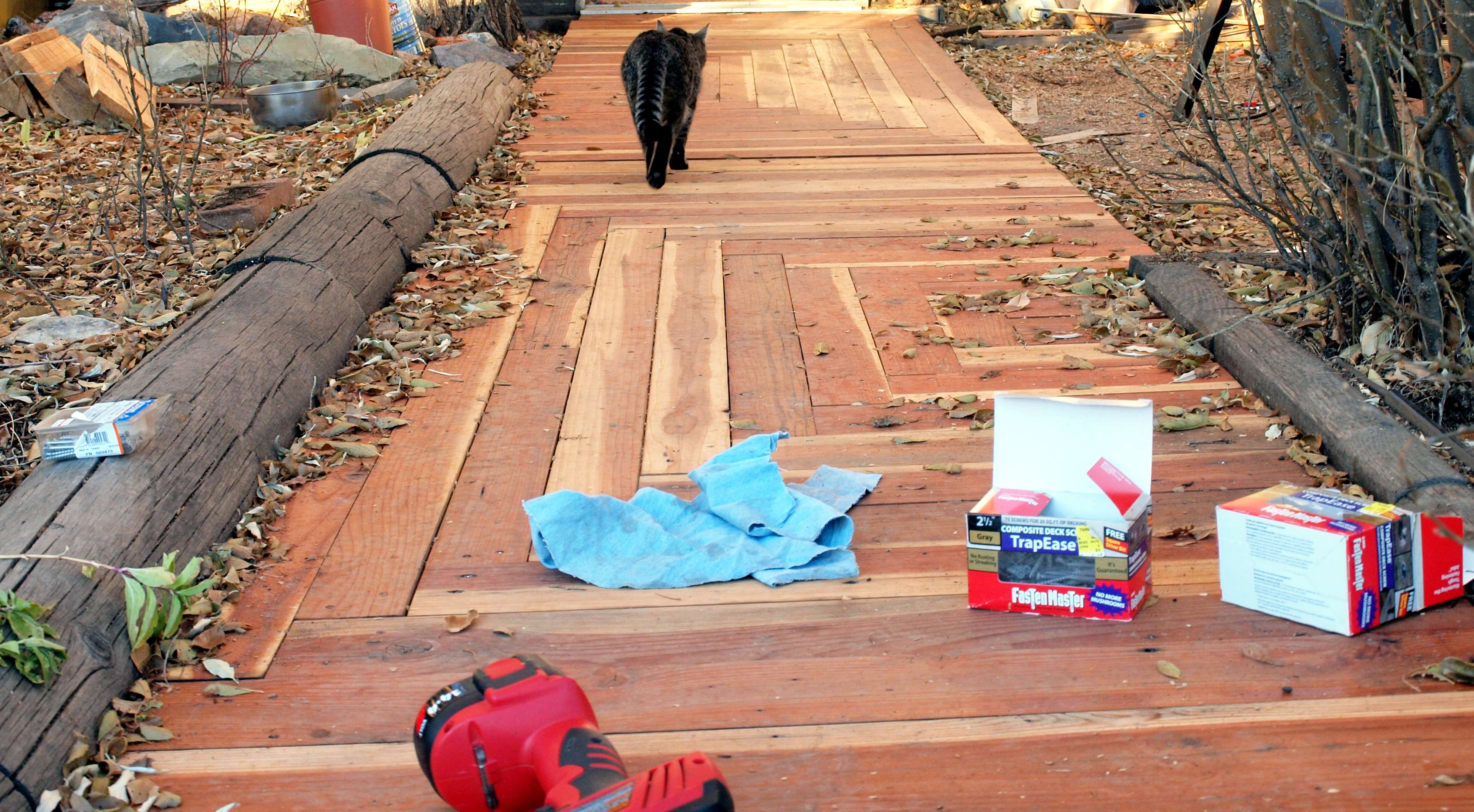

Finished for the Season.


I  screwed the last boards down and declared my project finished and it started snowing 3 days later. I would love to replace the remaining section along my driveway but I only have a little bit of redwood left. Maybe by next summer I will scrounge up some more. In the meantime I am happy with my results.

I also plan to replace the logs along the flower bed, they are rotting away and it needs something new. Who knows maybe I can reclaim some of the ground from the bushes and get flowers growing again.

Maybe in 20 years if this has to be replaced again I will try something different but for the moment I think its great and the price was definitely right.
