DIY Bench for a Banquette
![Finished bench with banquette.jpg](/proxy/?url=https://content.instructables.com/FT1/L4SJ/HUU1CCGR/FT1L4SJHUU1CCGR.jpg&filename=Finished bench with banquette.jpg)
![Bench Plan overview.jpg](/proxy/?url=https://content.instructables.com/F2G/TINT/HUU1C27R/F2GTINTHUU1C27R.jpg&filename=Bench Plan overview.jpg)
![Pieces of bench with dimensions.jpg](/proxy/?url=https://content.instructables.com/F6Z/LOI4/HUU1C27U/F6ZLOI4HUU1C27U.jpg&filename=Pieces of bench with dimensions.jpg)
I needed a simple bench for banquette seating in my dining room and I couldn't find one that would work with my dining room table so I thought it would be fun to make one out of 3/4" MDF. I had all my pieces cut at the hardware store so all I had to do was put the pieces together.
I used 1 x 4'x8' sheet of 3/4" MDF because I needed the rest of the MDF for another project but you can fit the pieces for the bench in 2 x 2'x4' sheets ($25) and the lattice was about $5 so that's $30 for the materials. I already had the primer, paint, and screws on hand.
I'll outline the main steps here but you can also see the entire building process in detail in this video:

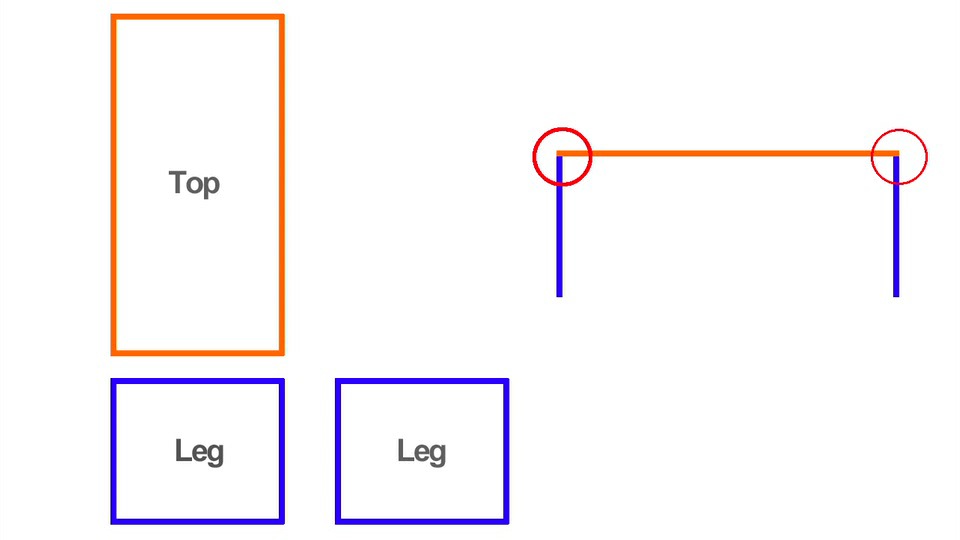

Attach the Legs to the Top
![Bench Step 1 Diagram.jpeg](/proxy/?url=https://content.instructables.com/FI5/LOFX/HUU1C22P/FI5LOFXHUU1C22P.jpg&filename=Bench Step 1 Diagram.jpeg)
![Bench Step 1.jpeg](/proxy/?url=https://content.instructables.com/FZN/2ZWK/HUU1C22X/FZN2ZWKHUU1C22X.jpg&filename=Bench Step 1.jpeg)
![Step 1 Bench screw legs in place.jpeg](/proxy/?url=https://content.instructables.com/F4J/OXCN/HUU1C23Q/F4JOXCNHUU1C23Q.jpg&filename=Step 1 Bench screw legs in place.jpeg)

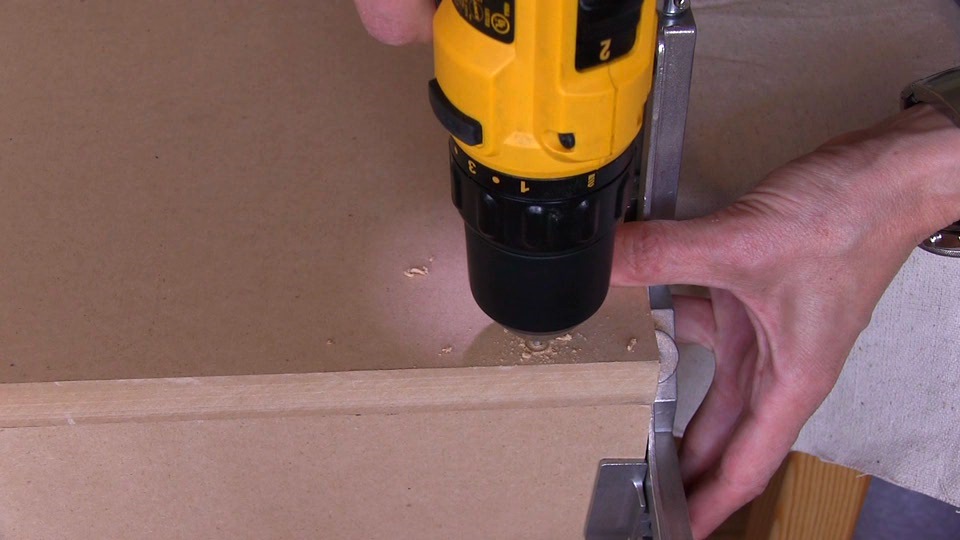

I put glue on the top edge of the leg and used corner clamps to hold it to the top. I drilled pilot holes to prevent splitting and screwed the pieces together, sinking the screw heads below the surface.
Screwing in Place the Back Piece
![Step 2 Bench screw in place back piece.jpeg](/proxy/?url=https://content.instructables.com/FC3/ETQN/HUU1C22T/FC3ETQNHUU1C22T.jpg&filename=Step 2 Bench screw in place back piece.jpeg)
I screwed in place the back piece flush with the top and the legs, following the same steps as for the legs.
Attach the Front Piece
![Step 3 Bench mark location of front piece on leg.jpeg](/proxy/?url=https://content.instructables.com/FZN/APG5/HUU1C22Q/FZNAPG5HUU1C22Q.jpg&filename=Step 3 Bench mark location of front piece on leg.jpeg)
![Step 3 BEnch glue together front piece.jpeg](/proxy/?url=https://content.instructables.com/F60/5WWV/HUU1C22W/F605WWVHUU1C22W.jpg&filename=Step 3 BEnch glue together front piece.jpeg)
![Step 3 Bench mark location of front piece on leg.jpeg](/proxy/?url=https://content.instructables.com/FC3/QS7F/HUU1C372/FC3QS7FHUU1C372.jpg&filename=Step 3 Bench mark location of front piece on leg.jpeg)
![Step 3 Bench front piece sliding in.jpeg](/proxy/?url=https://content.instructables.com/F7W/X50D/HUU1C34R/F7WX50DHUU1C34R.jpg&filename=Step 3 Bench front piece sliding in.jpeg)
![Step 3 Bench clamp Front Piece.jpeg](/proxy/?url=https://content.instructables.com/FUP/V4VH/HUU1C21W/FUPV4VHHUU1C21W.jpg&filename=Step 3 Bench clamp Front Piece.jpeg)
![Step 3 Bench front piece screw in place.jpeg](/proxy/?url=https://content.instructables.com/FVI/DE7O/HUU1C21V/FVIDE7OHUU1C21V.jpg&filename=Step 3 Bench front piece screw in place.jpeg)

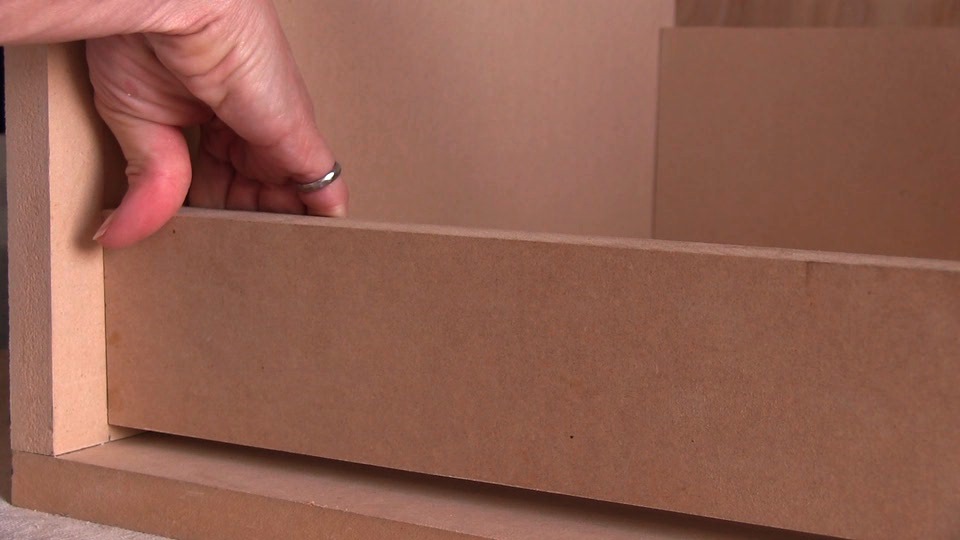

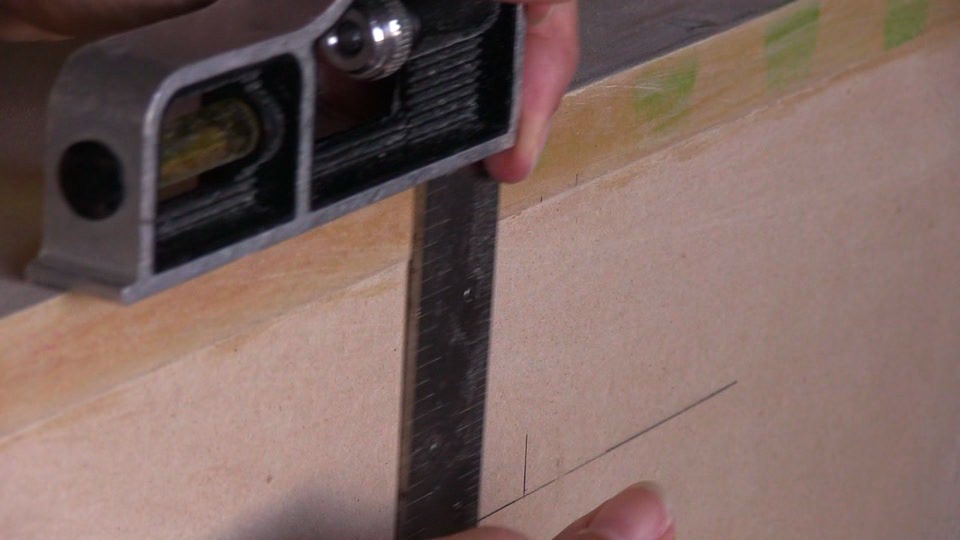

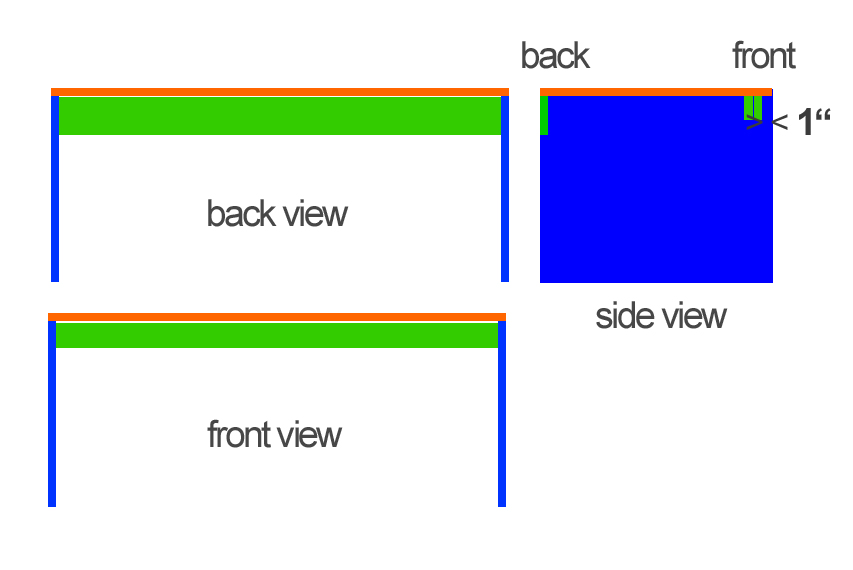

To have more support at the front of the bench, I glued together 2 MDF pieces to make one thicker piece, using clamps to make sure they bonded very well together. I wanted the front piece to be recessed by about 1 inch so I used a combination square to mark the location of the front piece on the inside of the legs, making it easy to slide front piece in the right spot. I added glue to the edge and clamped it. I screwed it into place from the top and the side, making sure to avoid the screw that was already there from joining the top to the legs.
Add Decorative Molding
![Step 4 Bench lattice marking location.jpeg](/proxy/?url=https://content.instructables.com/FJ1/Z25I/HUU1C23B/FJ1Z25IHUU1C23B.jpg&filename=Step 4 Bench lattice marking location.jpeg)
![Step 4 Bench lattice first piece on.jpeg](/proxy/?url=https://content.instructables.com/F9A/AUAL/HUU1C23A/F9AAUALHUU1C23A.jpg&filename=Step 4 Bench lattice first piece on.jpeg)
![Step 4 Bench lattice putting on second piece.jpeg](/proxy/?url=https://content.instructables.com/FZ4/APQX/HUU1C3O7/FZ4APQXHUU1C3O7.jpg&filename=Step 4 Bench lattice putting on second piece.jpeg)

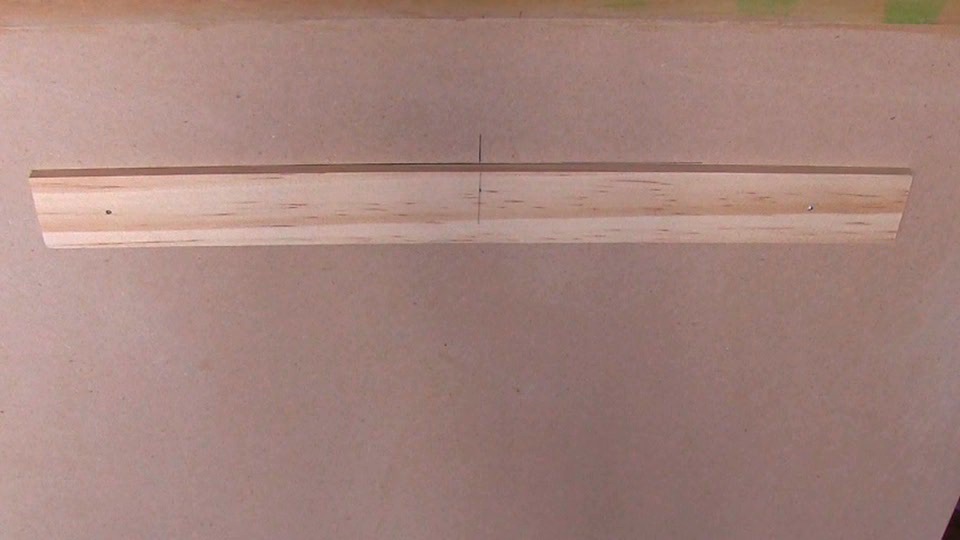

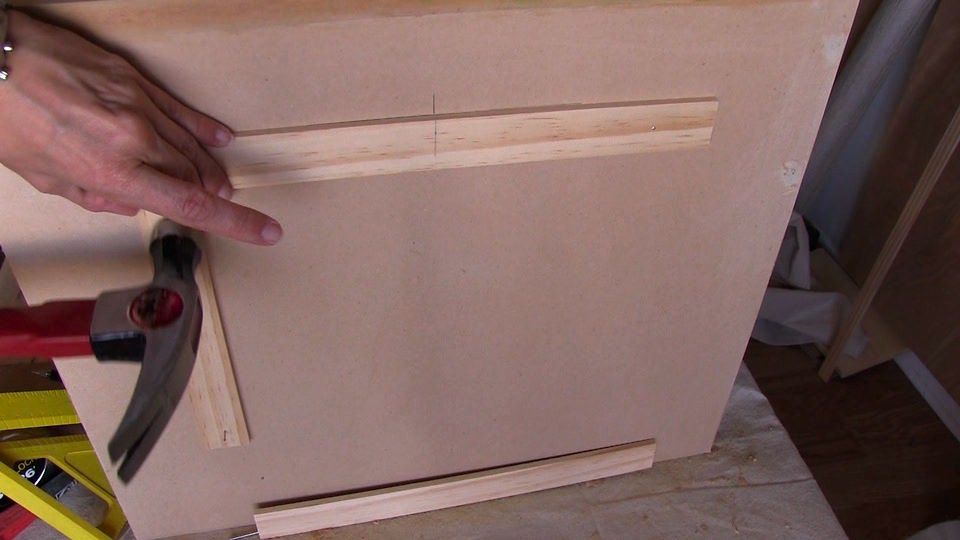

To give a little bit more interest to the sides of the bench, I added decorative molding made with 1 1/4" lattice. I used a combination square to mark the location of the top piece of lattice, and I also marked the middle of the lattice piece, making it easy to nail exactly in the right spot. I pre-nailed the nails into the lattice to save my fingers!
Prep the Bench for Painting
![Step 5 bench prepping with wood filler.jpeg](/proxy/?url=https://content.instructables.com/FVJ/KWNZ/HUU1C7Z8/FVJKWNZHUU1C7Z8.jpg&filename=Step 5 bench prepping with wood filler.jpeg)
![Step 5 Bench prepping for paint glue.jpeg](/proxy/?url=https://content.instructables.com/FAI/1PPB/HUU1C236/FAI1PPBHUU1C236.jpg&filename=Step 5 Bench prepping for paint glue.jpeg)
I filled in the screw heads with wood filler and sanded that down. To give a nice finish to the edges, I brushed them with wood glue diluted with a bit of water, waited for that to dry and sanded it down. I repeated that a couple of times until the edges were nice and smooth. This prevents the paint from getting sucked into the edges and leaves a nice smooth surface for painting.
Painting
![Step 6 Bench painting.jpeg](/proxy/?url=https://content.instructables.com/FBR/CPUP/HUU1C235/FBRCPUPHUU1C235.jpg&filename=Step 6 Bench painting.jpeg)
![Step 7 Finished Bench no cushion.jpeg](/proxy/?url=https://content.instructables.com/F7P/435E/HUU1C234/F7P435EHUU1C234.jpg&filename=Step 7 Finished Bench no cushion.jpeg)
![Finished Bench with cushion.jpg](/proxy/?url=https://content.instructables.com/FXS/NXJK/HUU1C23M/FXSNXJKHUU1C23M.jpg&filename=Finished Bench with cushion.jpg)

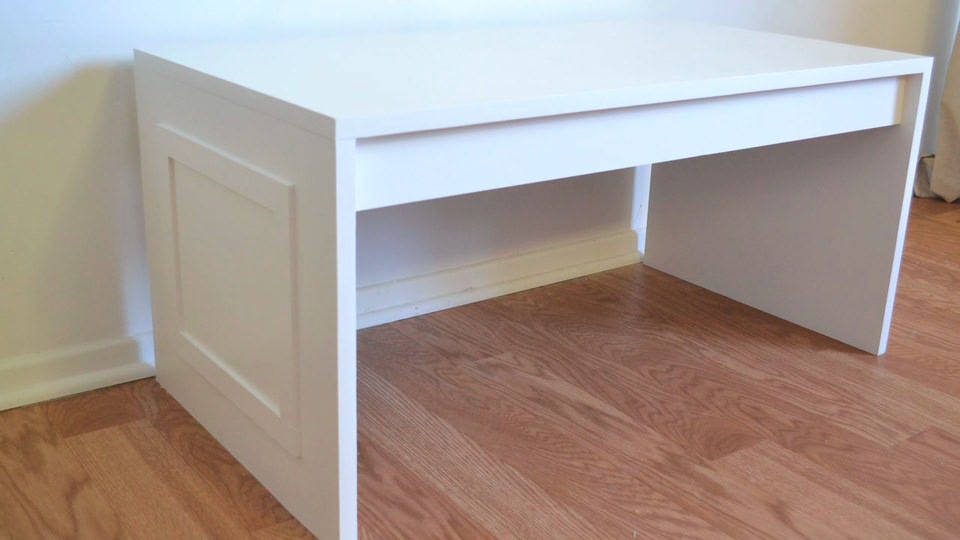

I primed the bench and then painted it with a couple of coats of paint and voila, a finished bench! I wanted the bench to be more comfy to sit on so I made a no-sew cushion - you can see how I made it in this video:
And you can get a complete list of materials, tools and supplies you need to make the cushion here: http://www.engineeryourspace.com/how-to-build-a-bench-for-a-banquette/
