How to Use the Yellow ESC With Arduino

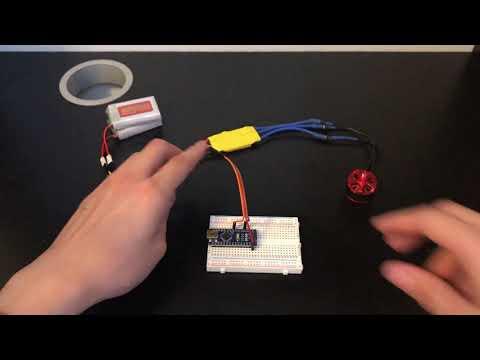

This yellow ESC is a very decent ESC you can get for a cheap price. But there is very little info on how to use it. When I ordered my it didn't even come with a manual. So, I decided to make this Instructable to let people know how to use it, like how to set the throttle range, and how to get into program mode without a ESC program card. Hope this Instructable and video helps you.

List of materials you might need. Keep in mind if you have a RC transmitter and Receiver you can fellow the same steps as well, just without the wiring part. The arduino code and the ESC manual is in the attachment.

• Yellow ESC: https://www.banggood.com/custlink/DKKRBsFNru
• Arduino Nano: https://www.banggood.com/custlink/3mmRP34z5S
• Brushless Motor: https://www.banggood.com/custlink/KK3E0Qtspb
• Lipo Battery: https://www.banggood.com/custlink/DKKRBs5QVR
• Potentiometer: https://www.banggood.com/custlink/D3mY6QPAVt
• Toggle Switch: https://www.banggood.com/custlink/D3mR6bFNHA
• Half Breadboard: https://www.banggood.com/custlink/v3Kh6QtbIj
• Jumper Wires: https://www.banggood.com/custlink/GG3Y6sFAie
• Bullet Banana Connectors: https://www.banggood.com/custlink/vD3YBsVQVu
• Heat shrink Tubes: https://www.banggood.com/custlink/KvKy0sFAZC

Note: careful when wiring up the batteries you don't want to short circuit them
