How to Use the HeatShield Shield

This instructable will describe the proper method for using the Heatshield(TM) Shield to protect sensitive components from heat during the rework process. It will demonstrate this process both for a BGA component and for taller parts and connectors.

For more information visit http://www.solder.net/products/heatshields/

Materials Needed:

• Board to be reworked
• Heatshield(TM)
• Heat resistant tape
• Scissors to cut Heatshield to size

First, use a pair of scissors to cut the HeatShield(TM) to the size needed to cover the BGA.

Using Kaptn(TM) tape, secure the shield down with heat resistant tape to ensure that it remains in place.

Add tape around the edges of the component to prevent hot air from getting in underneath the shield and potentially damaging the device.

For taller devices and connectors, cut a long, rectangular piece of Heatshield(TM) to protect the connector.

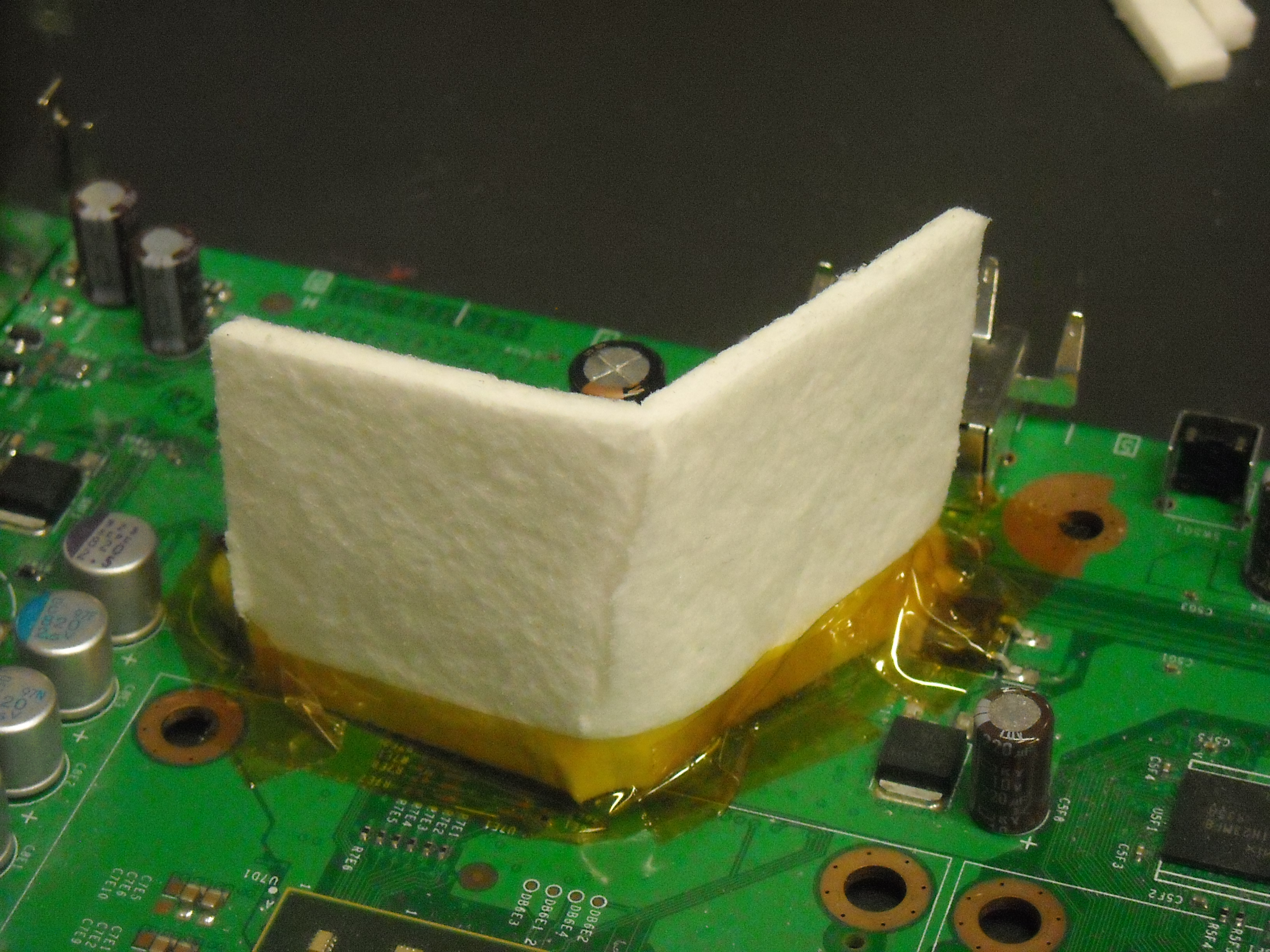

Wrap the HeatShiel(TM) around the connector and affix it to the board with heat resistant tape to protect the component or components from heat.
