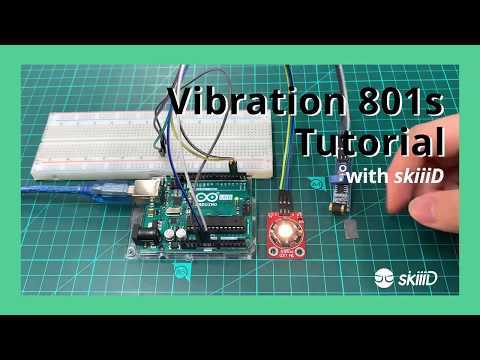

How to Use Vibration 801s With SkiiiD
A tutorial to develop Vibration 801s with skiiiD.
Launch SkiiiD
Launch skiiiD and select New button
Select Arduino UNO
Select ① Arduino Uno and then click ② OK button
*This is Tutorial, and we use Arduino UNO. Other boards(Mega, Nano) have the same process.
Add Component
Click '+' (Add Component Button) to search and select the component.
Saerch or Find a Component
① Type 'Vibration' on the search bar or find the Vibration 801s on the list.
Select Vibration 801s
② Select Vibration 801s Module
Pin Indication and Configuration
#4 then you can see ③ pin indication. (You can configure it.)
*This module has 3 pins to connect
skiiiD Editor automatically indicate pin setting *configuration available
[Default Pin Indication for Vibration 801s] in case of Arduino UNO
GND: GND
Dout: 2
VCC: 5V
After configuring pins ④ click ADD button on the right below side
Check Added Module
⑤ Added Module has appeared on the right panel
SkiiiD Code of Vibration 801s
skiiiD Code is intuitive function-based codes. This is based on skiiiD libraries
isVibrated()
"If vibration is detected return true, else return false."
Contact and Feedback
We are working on components and boards libraries. Feel free to use it and feedback us, please. Below is contact methods
email: contact@skiiid.io
twitter: https://twitter.com/skiiiD_official
Youtube: https://www.youtube.com/channel/UCfS2RQL3m3hVoHkF...
skiiiD user forum: https://www.facebook.com/groups/skiiiD/
Comments are fine too!
