How to Use Ultrasonic HC-SR04 With "skiiiD"

Tutorial to use Ultrasonic HC-SR04 module with "skiiiD."

Before start, there is a basic tutorial for how to use skiiiD

https://www.instructables.com/id/Getting-Started-With-SkiiiD-Editor/

#1 Launch skiiiD and select New button

#2 Select ①Arduino Uno and then click ②OK button

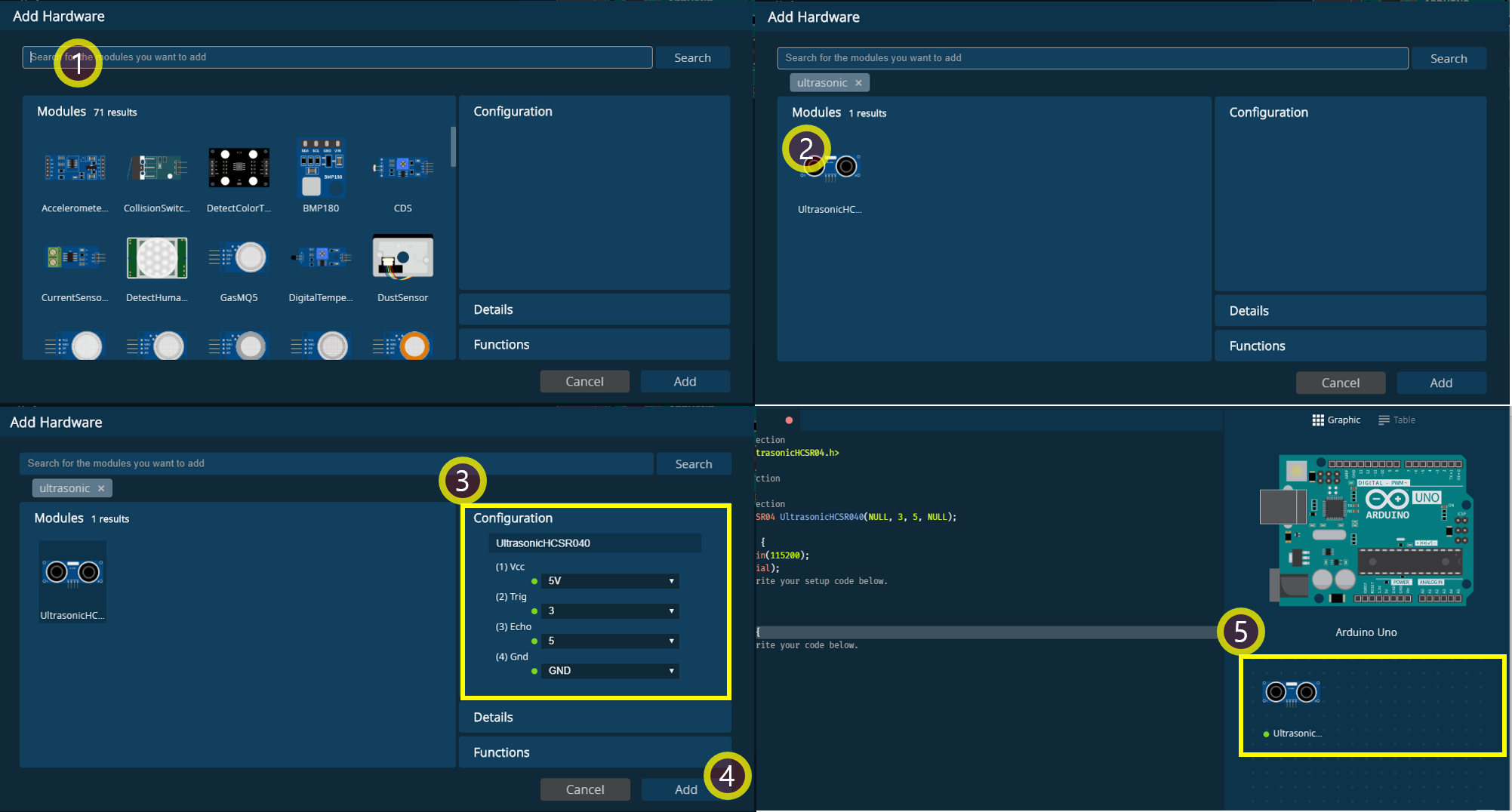

#1 Click '+' (Add Component Button) to search and select the component.

#2 ① search Ultrasonic Module on the search bar and

#3 ②Click Joystick Module,

#4 then you can see ③ pin indication. (You can configure it.)

#5 ④ click ADD button

#6 ⑤ Added Module has appeared on right pane on the editor page.

#1 skiiiD library provides 2 functions

1) getDistance - As it says, get distance from the module to an obstacle.

2) getDuration - this function measures the travel time of ultrasonic from module to an obstacle.

We are working on components and boards libraries.

Feel free to use it and welcome to feedback. Below is contact methods
