How to Use Soil Moisture Sensore Using Arduino

Soil Moisture sensor is a sensor that can be used to measure moisture in the soil. Suitable for making prototypes of Smart farming projects, Irrigation controllers projects , or IoT Agriculture projects.

This sensor has 2 probes. Which is used to measure soil resistance.

When the soil is moist or wet the resistance will be different than when the soil is dry. The sensor will read the resistance in each circumstance and convert it into humidity data.

The following components are required:

• Soil Moisture Sensor
• Arduino Nano
• Wire Jumper

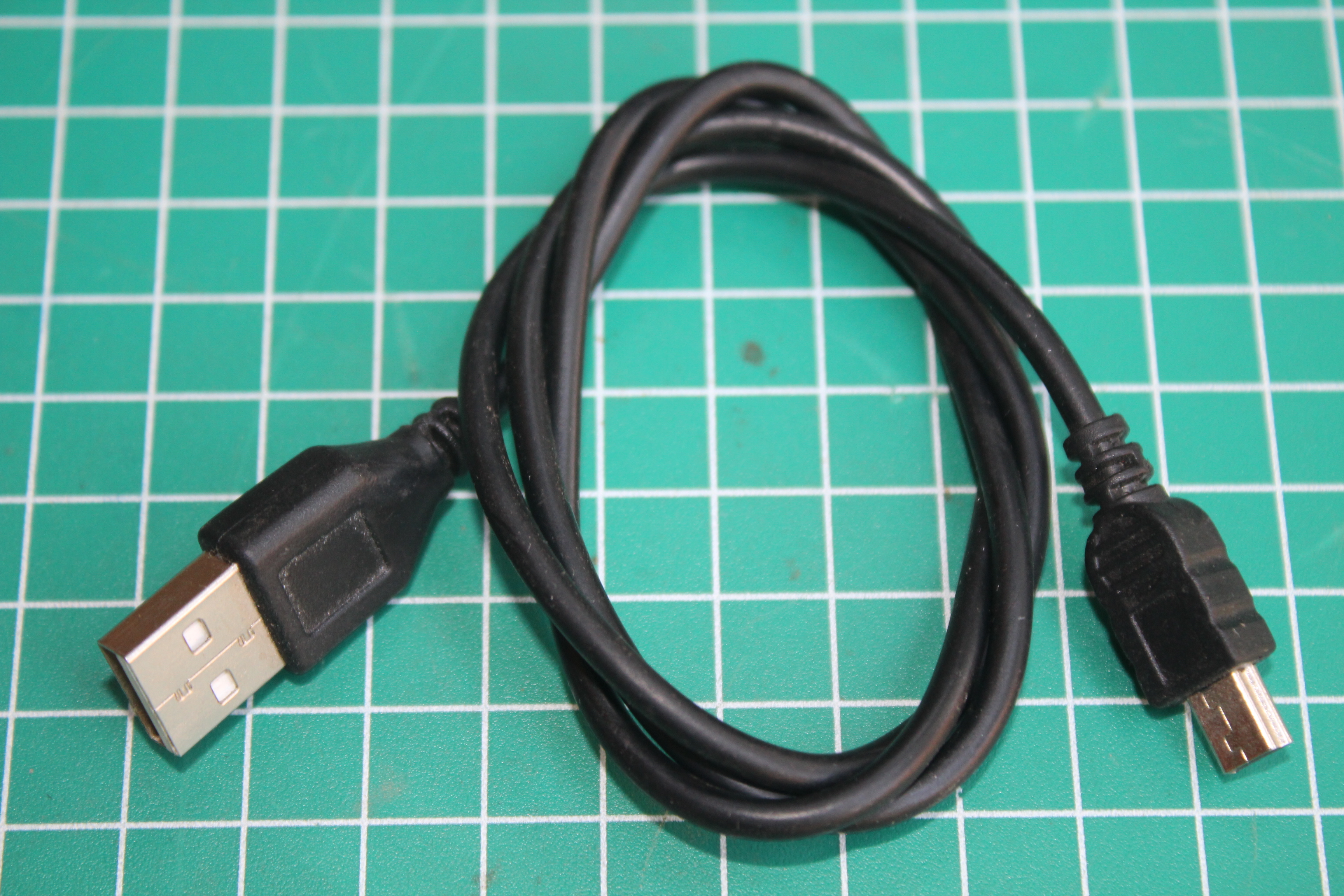

• USB mini
• A bottle of water

Connect the Arduino board to Soil Moisture Sensore. See the picture or instruction that I wrote below:

Soil Moisture to Arduino

VCC ==> +5V

GND ==> GND

AO ==> A0

Soil moisture sensors can be directly read without using an additional library. You can use analog input to read the sensor value.

This is the Sketch that I made to read the sensor value:

int sensorPin = A0;   // select the input pin for the potentiometer
int sensorValue = 0;  // variable to store the value coming from the sensor
void setup() {
  Serial.begin(9600);

}
void loop() {
  // read the value from the sensor:
  sensorValue = analogRead(sensorPin);
  Serial.println(sensorValue);
  delay(1000);

}

or download the file I include below

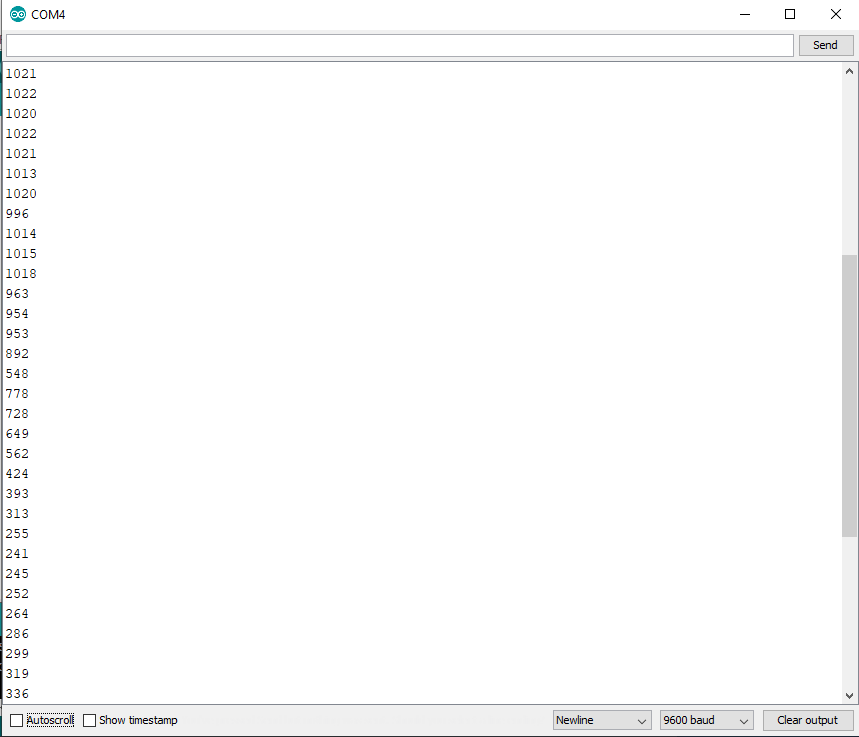

When I put the sensor outside the bottle, the displayed value is around 700 to 1023.

When I put the sensor in a water bottle, the displayed value is around 250 to 700.

can be concluded that:

• a value of 250 to 700 means moist
• value 700 to 1023 means dry

You can calibrate it, when you try it
