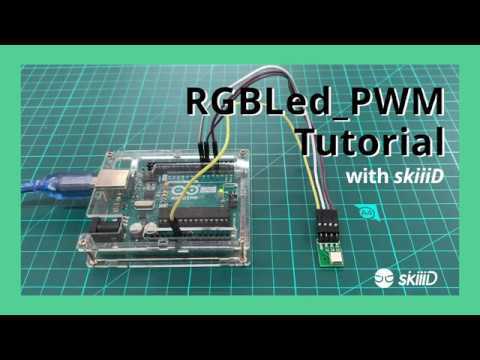

How to Use RGBLed_PWM With SkiiiD

This project is an instruction of "how to use RGBLed_PWM with Arduino via skiiiD

Before start, below is a basic tutorial for how to use skiiiD https://www.instructables.com/id/Getting-Started-With-SkiiiD-Editor/

Launch skiiiD and select New button

Select ① Arduino Uno and then click ② OK button

*This is Tutorial, and we use Arduino UNO. Other boards(Mega, Nano) have the same process.

Click '+' (Add Component Button) to search and select the component.

① Type 'RGBLed' on the search bar or find the Buzzer module on the list.

② Select RGBLed_PWM Module

then you can see ③ pin indication. (You can configure it.)

*This module has 4 pins to connect

skiiiD Editor automatically indicate pin setting *configuration available

[Default Pin Indication for Button Module] in case of Arduino UNO

Red: 3

Green: 5

Blue: 6

GND: GND

After configuring pins ④ click ADD button on the right below side

⑤ Added Module has appeared on the right panel

skiiiD Code is intuitive function-based codes. This is based on skiiiD libraries

on() - Turn on LED.

Variable 'r','g','b': Change brighntess of "red", "green", "blue" LED.

Variable brightness : Change brighness of all LED, default : 100."

Example - on(255,255,255,100); = turns on white LED light with full brightness

off() - Turn off LED.

Toggle() - Toggle. Switch turn on states to off or vice versa.

Variable 'r','g','b': Change brighntess of \"red\", \"green\", \"blue\" LED.

Variable brightness : Change brighness of all LED, default : 100."

blink() - Blink LED.

Variable 'r','g','b': Change brighntess of \"red\", \"green\", \"blue\" LED.

Variable interval : Time interval between blink LED, default : 1,000ms

Variable brightness : Change brighness of all LED, default : 100.

fadeIn() - Gradual increase the intensity of LED light during the time interval.

Variable 'r','g','b': Change brighntess of \"red\", \"green\", \"blue\" LED.

Variable interval : Time interval until LED increasing the intensity to maximum, default : 1,000ms

Variable brightness : Change brighness of all LED, default : 100.

fadeOut() - Gradual decrease the intensity of LED light during the time interval.

Variable interval : Time interval until LED decreasing the intensity to minimum, default : 1,000ms

Variable brightness : Change brighness of all LED, default : 100.
