How to Use LaserKY008 With SkiiiD

This project is an instruction of "how to use Segment 3642BH with Arduino via skiiiD

Before start, below is a basic tutorial for how to use skiiiD https://www.instructables.com/id/Getting-Started-With-SkiiiD-Editor/

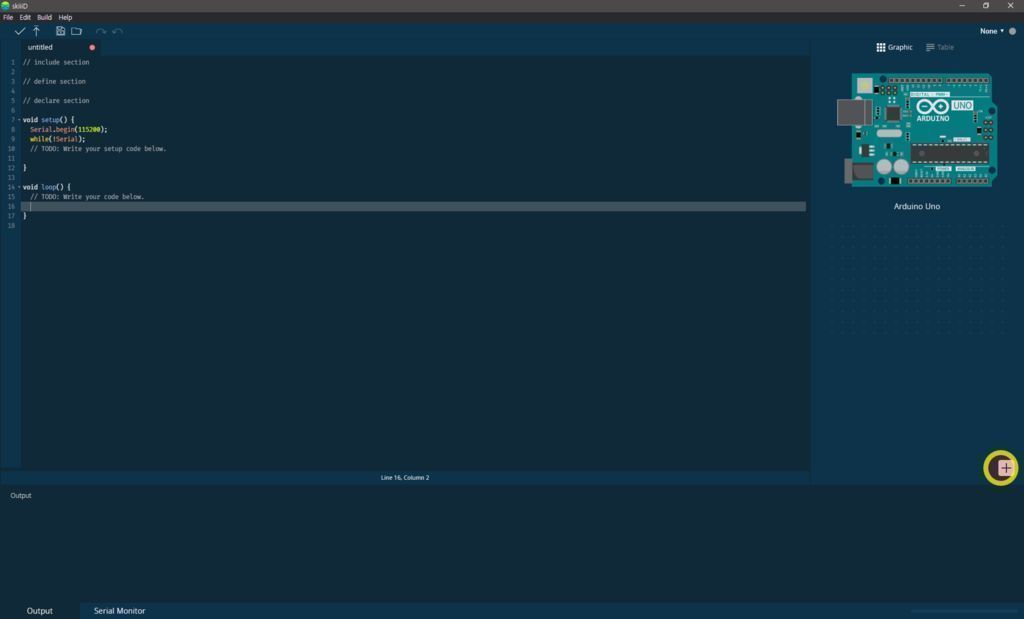

Launch skiiiD and select New button

Select ① Arduino Uno and then click ② OK button

*This is Tutorial, and we use Arduino UNO. Other boards(Mega, Nano) have the same process.

Click '+' (Add Component Button) to search and select the component.

① Type 'Laser' on the search bar or find the LaserKY008 on the list.

② Select LaserKY008 Module

then you can see ③ pin indication. (You can configure it.)

*This module has 3 pins to connect

skiiiD Editor automatically indicate pin setting *configuration available

[Default Pin Indication for LaserKY008 Module] in case of Arduino UNO

VCC: 5v

S: 3

GND: GND

After configuring pins ④ click ADD button on the right below side

⑤ Added Module has appeared on the right panel

skiiiD Code is intuitive function-based codes. This is based on skiiiD libraries

on()

"Turn on the laser."

off()

"Turn off the laser."

toggle()

"Toggle. Switch turn on states to off or vice versa."

blink()

"Blink laser. Set a time interval between blinking laser by entering a number on variable 'time'.\nThe default variable 'time' is 1000ms."

We are working on components and boards libraries. Feel free to use it and feedback us, please. Below is contact methods
