This guide covers how to use the HC-05 Bluetooth module with a Raspberry Pi Pico board using MicroPython. The HC-05 is a Bluetooth module that can be used to wirelessly communicate with other Bluetooth devices, such as smartphones, laptops, and other microcontrollers. We'll go over how to set up the HC-05 and how to use it with a Raspberry Pi Pico.
Components Required
You need to ensure that you have the following components below before going through this tutorial.
- Raspberry Pi Pico
- HC05 Bluetooth Module
- Jumper Wire
- Breadboard

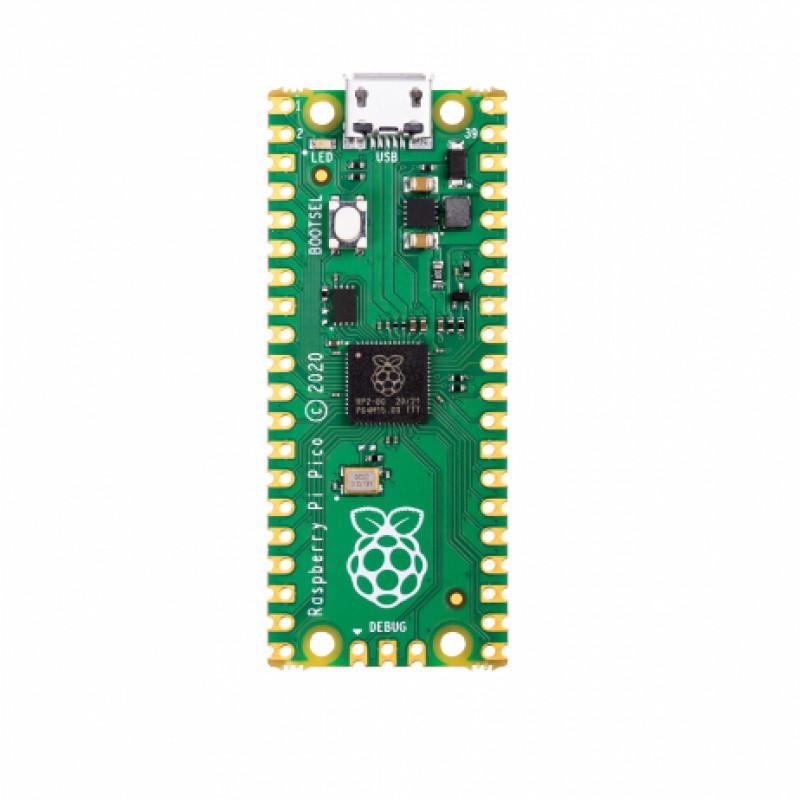

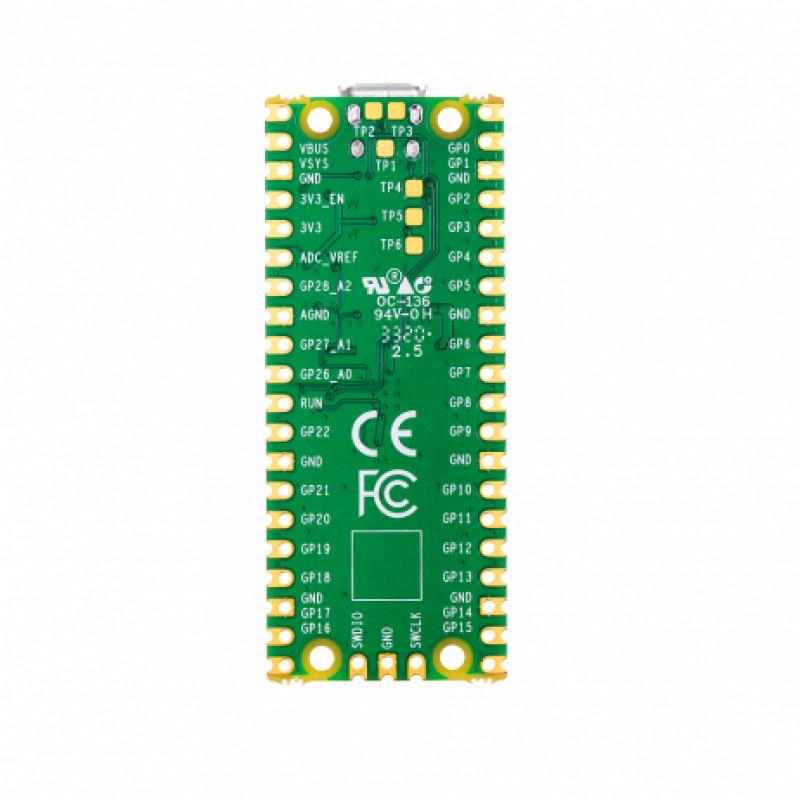

Raspberry Pi Pico
Raspberry Pi Pico is a newly launched microcontroller by Rasberry Pi. Its tiny, fast, and versatile microcontroller board is based on an RP2040 chip designed by Raspberry Pi. Pico is a low-cost and flexible development platform with the below specifications.
Specifications :
- RP2040 microcontroller chip designed by Raspberry Pi
- Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
- 264KB on-chip SRAM
- 2MB on-board QSPI Flash
- 26 multifunction GPIO pins, including 3 analogue inputs
- 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
- 1 × USB 1.1 controller and PHY, with host and device support
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
- Supported input power 1.8–5.5V DC
- Operating temperature -20°C to +85°C
- The castellated module allows soldering directly to carrier boards
- Drag-and-drop programming using mass storage over USB
- Low-power sleep and dormant modes
- Accurate on-chip clock
- Temperature sensor
- Accelerated integer and floating-point libraries on-chip
Getting Started Raspberry Pi Pico – Pinout, Specs – Beginner Guide

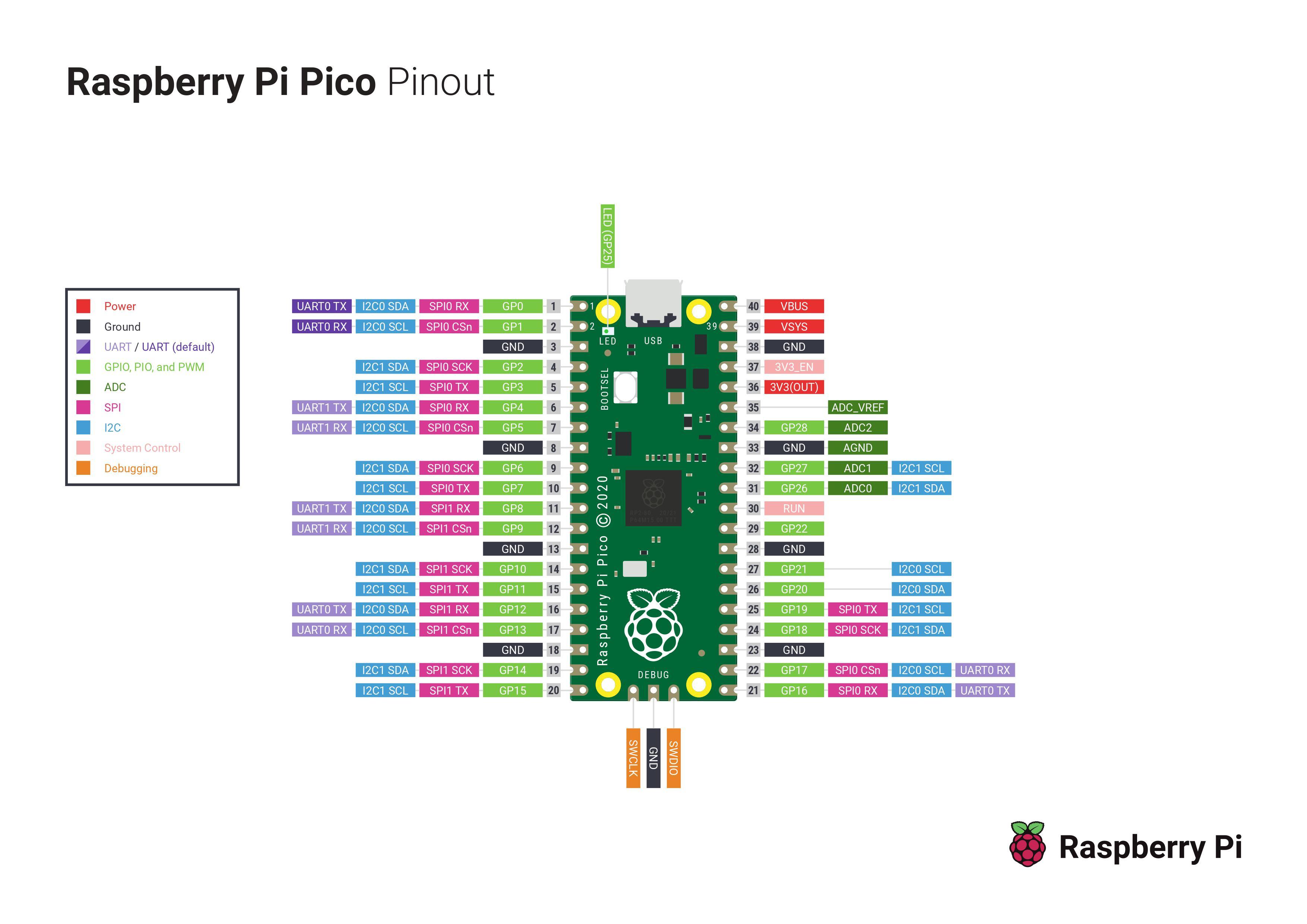

Raspberry Pi Pico Pinout
The Raspberry Pi Pico pinout shows that it has a total of 40 pins including GND and Vcc pins. as Power, ground, UART, GPIO, PWM, ADC, SPI, I2C, system control, and Debugging pins.
Downloads
Getting Started With Micropython :
- Press and hold the BOOTSEL pin then plug in the USB port to the PC.
- Download the Micropython UF2 file by clicking the below link.
- Release the BOOTSEL pin once connected pico is connected to the PC.
- It will mount as mass storage named "RPI-RP2"
- Drag and drop the downloaded micro python UF2 file on RPI-RP2 storage, it will reboot automatically the pico board.
- your pico is now running micropython.
Download the UF2 file From Micropython Official Site

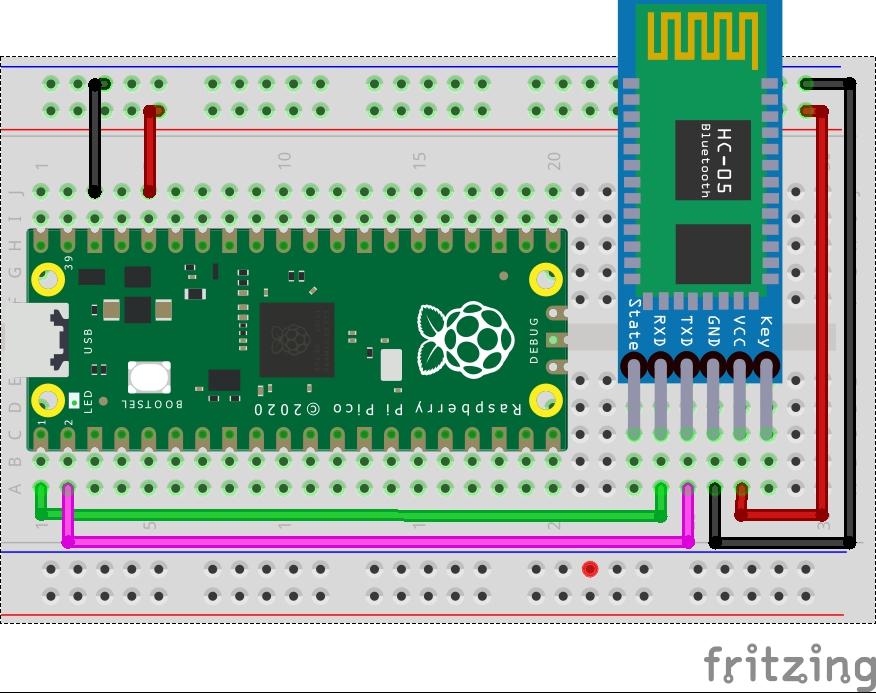

Circuit Diagram
The circuit diagram of the Raspberry Pi Pico and Bluetooth module is very easy. VCC and GND pins of the HC05 Bluetooth module are connected with the Raspberry Pi Pico 3.3V and GND pins. TXD and RXD pins of the Bluetooth module are connected with the GP0 and GP1 pins of the Raspberry Pi Pico.
Vcc -------> 3.3V or 5V
GND --------> GND
RX ----------> GPIO 0
TX ----------> GPIO 1
Micropython Code - Bluetooth Module With Raspberry Pi Pico
Copy the following code and paste it into the IDE. Check Also Getting Started With Raspberry Pi Pico With Thonny IDE Check How to use thonny IDE with Raspberry Pi Pico
Main.py
#Diyprojectslab.com
from machine import Pin, UART
uart = UART(0, 9600)
led = Pin(13, Pin.OUT)
while True:
if uart.any() > 0:
data = uart.read()
print(data)
if "on" in data:
led.value(1)
print('LED on \n')
uart.write('LED on \n')
elif "off" in data:
led.value(0)
print('LED off \n')
uart.write('LED off \n')
Downloads
Download & Install Bluetooth Terminal App
You need to download the Serial Bluetooth Terminal App from the Google Play store and install it in your smartphone.
Conclusion

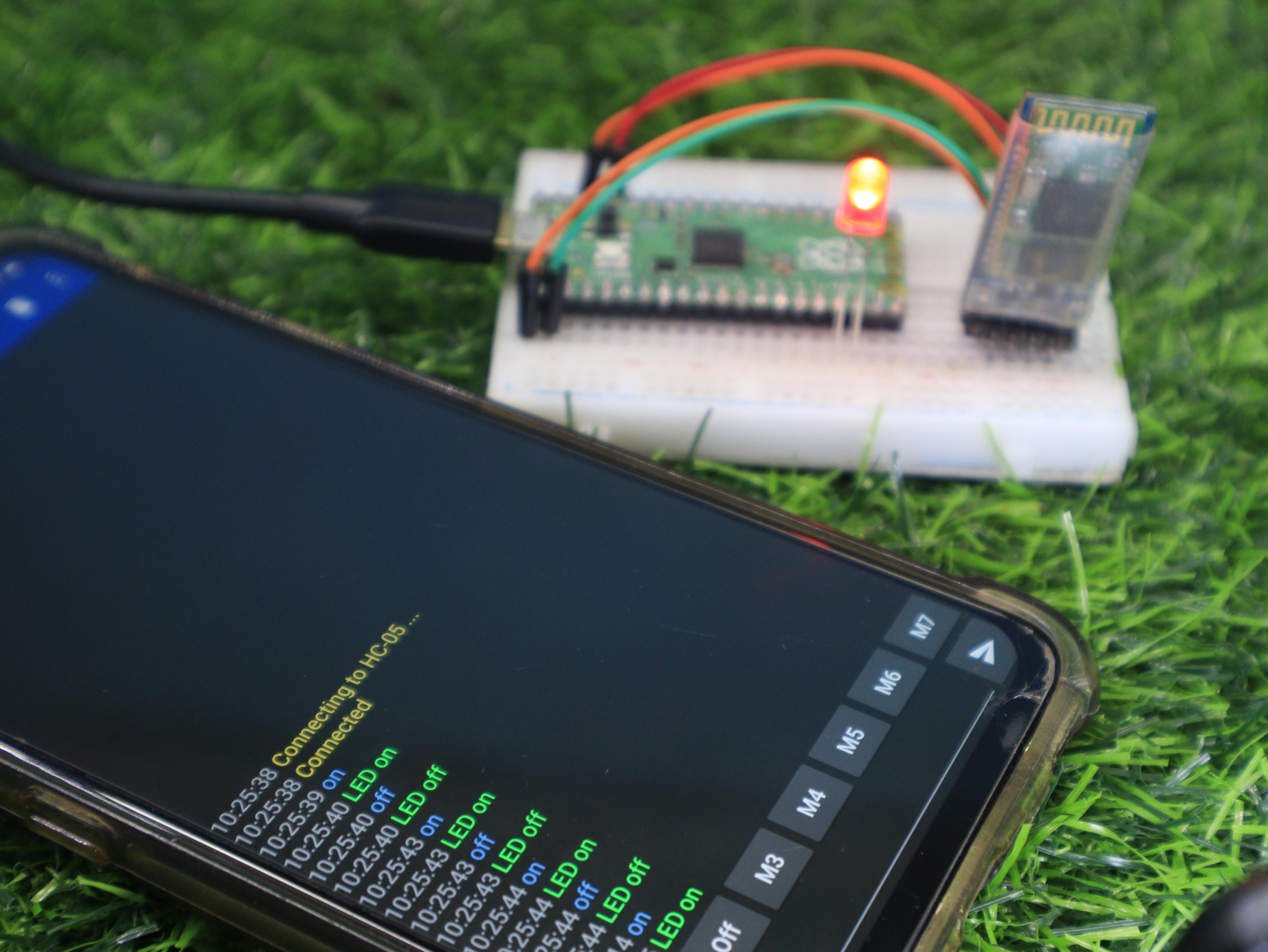

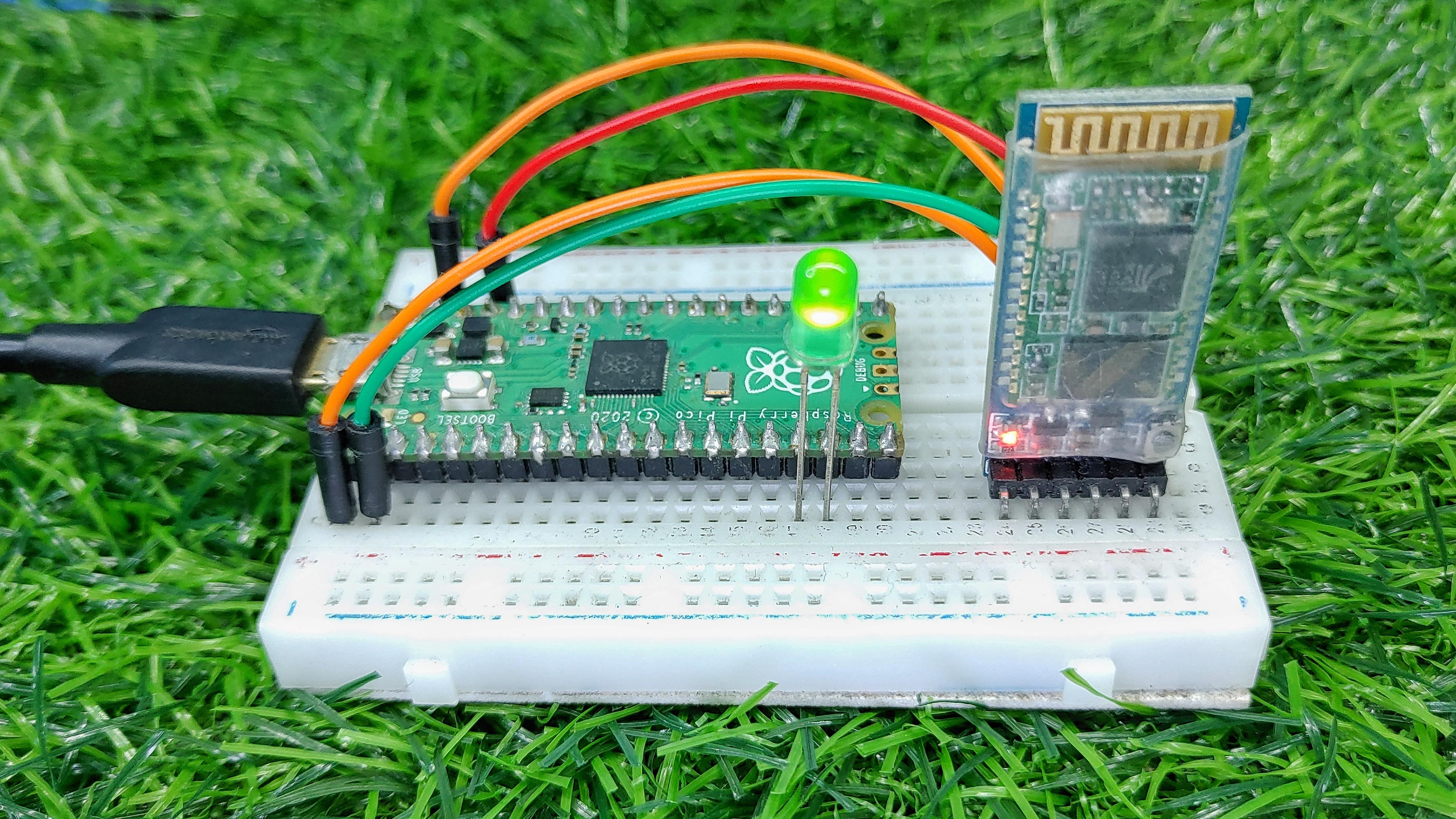

Finally, we check every command which is received from the Android phone and then accordingly turn ON and turn OFF the LED. It shows everything is working properly. now we are done here.
