How to Use Collision Switch XD206 With SkiiiD

A tutorial to develop Collision Switch XD206 with skiiiD.

Launch SkiiiD

Launch skiiiD and select New button

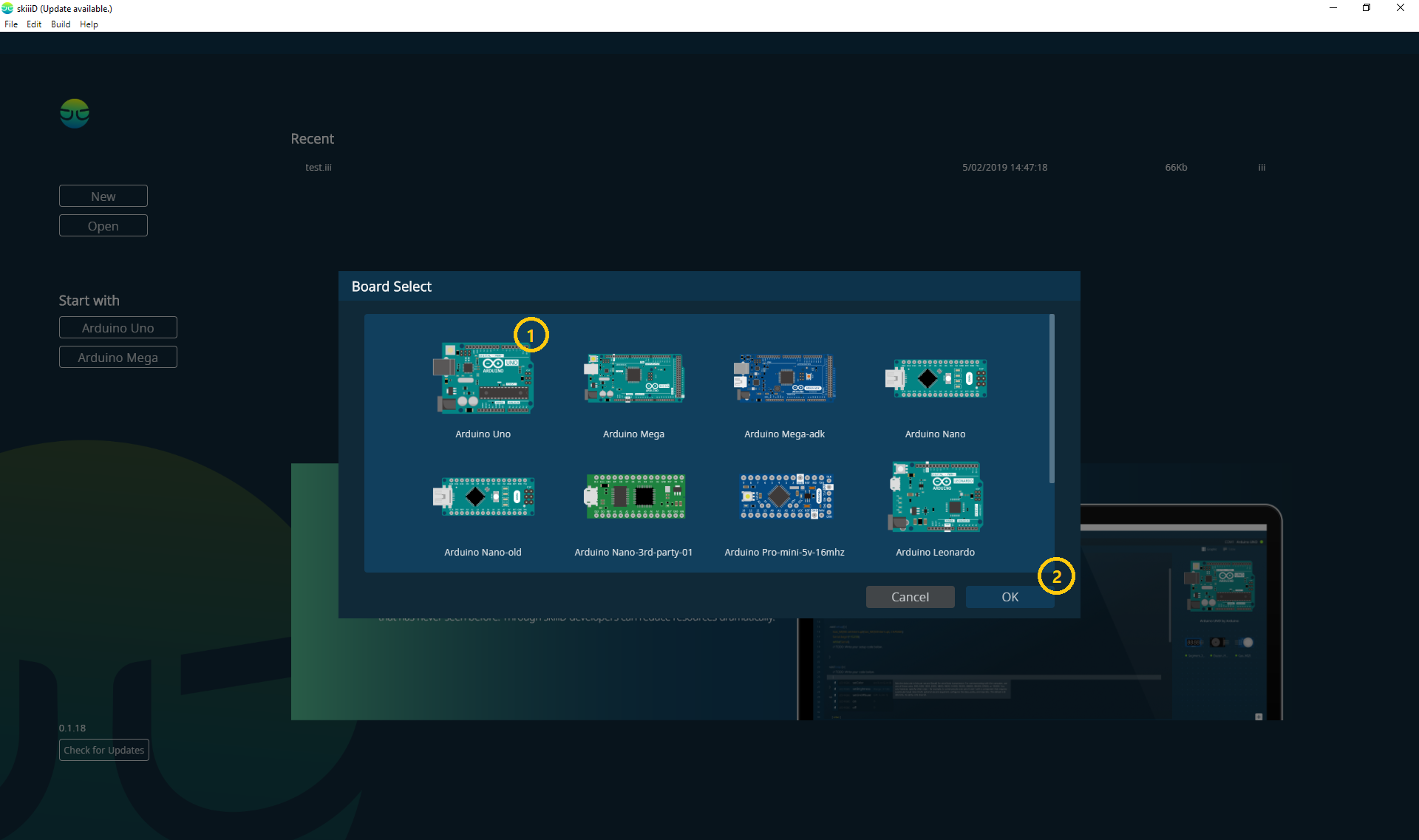

Select ① Arduino Uno and then click ② OK button

*This is Tutorial, and we use Arduino UNO. Other boards(Mega, Nano) have the same process.

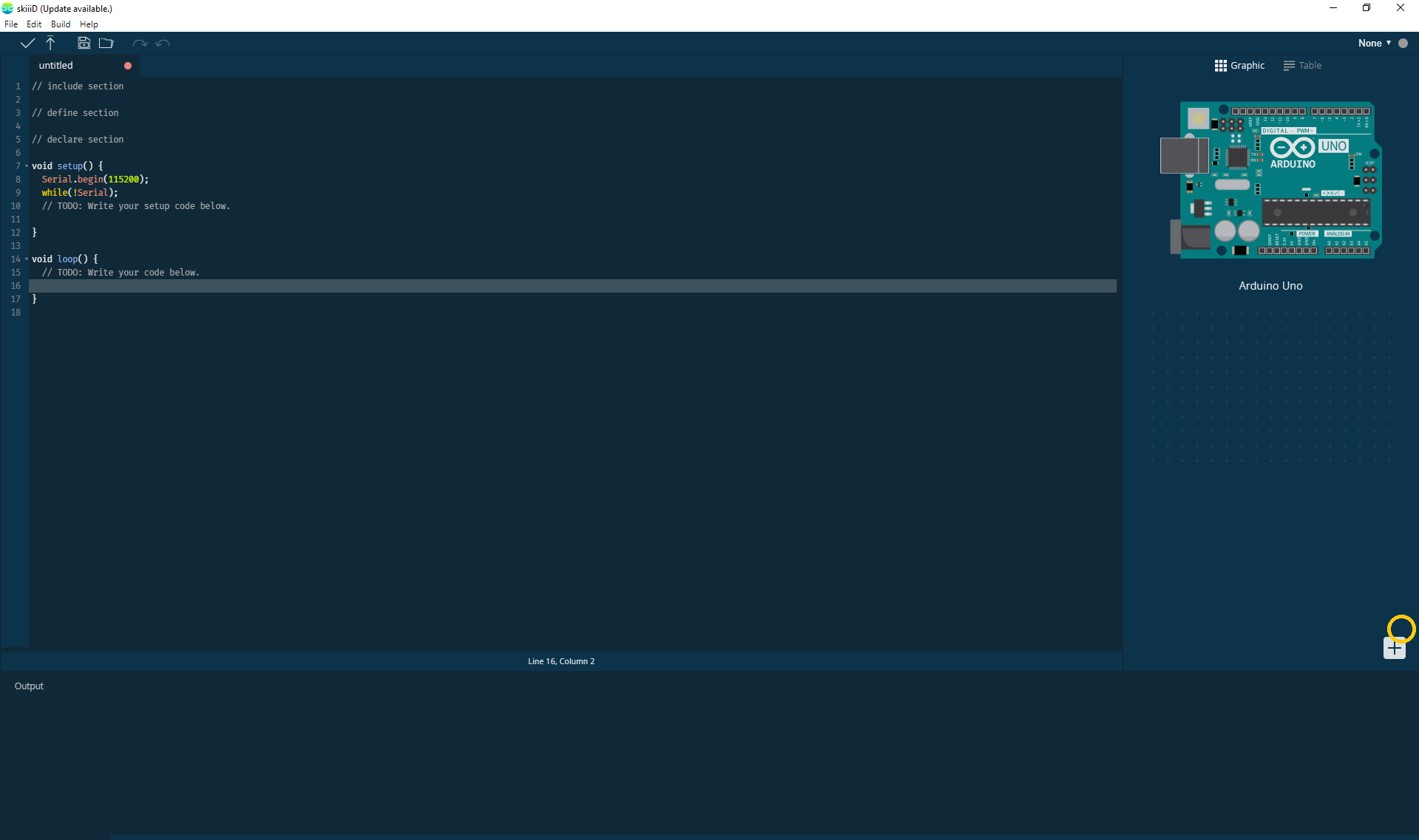

Click '+' (Add Component Button) to search and select the component.

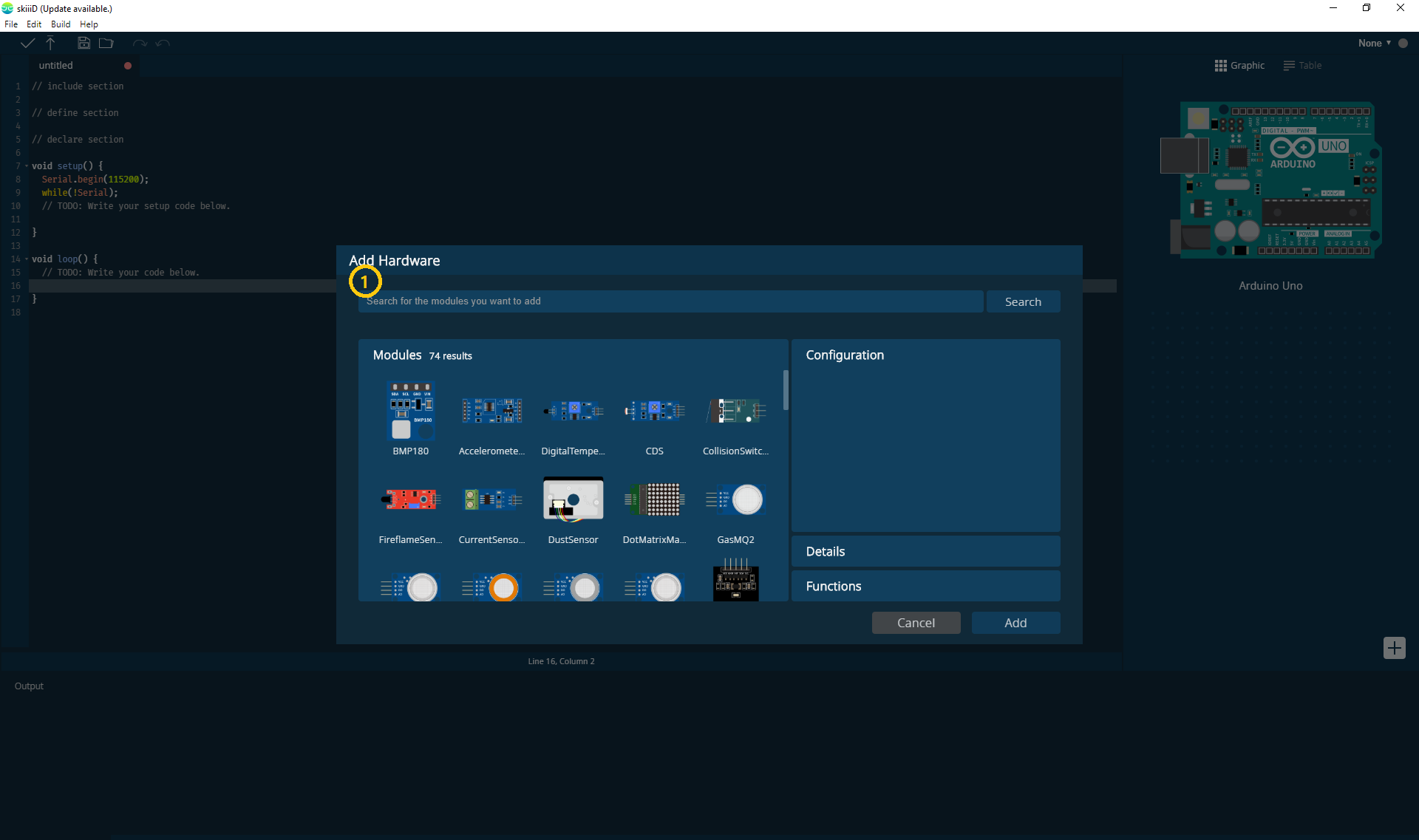

① Type 'collision' on the search bar or find the Collision Switch XD206 on the list.

② Select Collision Switch XD206 Module

then you can see ③ pin indication. (You can configure it.)

*This module has 3 pins to connect

skiiiD Editor automatically indicate pin setting *configuration available

[Default Pin Indication for Collision Switch XD206 Module] in case of Arduino UNO

OUT: 2

GND: GND

VCC: 5V

After configuring pins ④ click ADD button on the right below side

⑤ Added Module has appeared on the right panel

skiiiD Code is intuitive function-based codes. This is based on skiiiD libraries

void CollisionSwitchXD2060Interrupt0() {

if(digitalRead(2) == HIGH) {

// When triggerd

} else {

// When released

}

We are working on components and boards libraries. Feel free to use it and feedback us, please. Below is contact methods

email: contact@skiiid.io

Comments are fine too!
