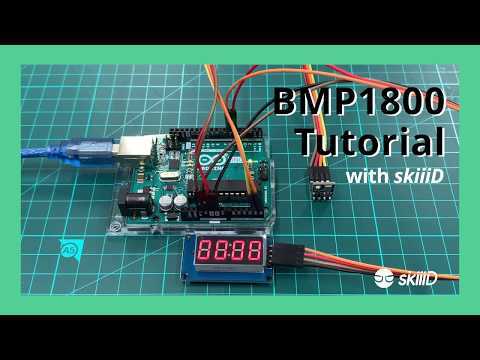

How to Use BMP180 With SkiiiD

A tutorial to develop BMP180 via "skiiiD."
Launch SkiiiD

Launch skiiiD and select New button
Select Arduino UNO

Select ① Arduino Uno and then click ② OK button
*This is Tutorial, and we use Arduino UNO. Other boards(Mega, Nano) have the same process.
Add Component

Click '+' (Add Component Button) to search and select the component.
Search or Find a Component

① Type 'BMP' on the search bar or find the BMP180 on the list.
Select BMP180
 2_18_2020 4_21_04 PM.png)
② Select BMP180 Module
Pin Indication and Configuration
 2_18_2020 4_22_56 PM.png)
then you can see ③ pin indication. (You can configure it.)
*This module has 4 pins to connect
skiiiD Editor automatically indicate pin setting *configuration available
[Default Pin Indication for BMP180 Module] in case of Arduino UNO
5V: 3.3V
GND: GND
SCL: A5
SDA: A4
After configuring pins ④ click ADD button on the right below side
Check Added Module
 2_18_2020 4_26_01 PM.png)
⑤ Added Module has appeared on the right panel
SkiiiD Code of BMP180 Module
 2_18_2020 4_47_58 PM.png)
skiiiD Code is intuitive function-based codes. This is based on skiiiD libraries
getPressure()
"Method that allows identifying current absolute or relative pressure.
If set mode as 0, return relative pressure value.
If set mode as 1, return relative pressure value.
The default of mode is 0."
getTemperature()
"Method that allows identifying current Celsius, Fahrenheit, or Absolute temperature.
If set mode as 0, return Celsius temperature value.
If set mode as 1, return Fahrenheit temperature value.
If set mode as 2, return Absolute temperature value.
The default of mode is 0."
getAltitude()
"Method that allows converting altitude value to meter or feet unit.
If set mode as 0, return altitude value to meter.
If set mode as 1, return altitude value to feet.
The default of mode is 0."
Contact and Feedback
We are working on components and boards libraries. Feel free to use it and feedback us, please. Below is contact methods
email: contact@skiiid.io
