How to Use Arduino As USB to TTL (Serial) Converter | Easy Tutorial

by Tatsu Technologies in Circuits > Arduino

37713 Views, 5 Favorites, 0 Comments

How to Use Arduino As USB to TTL (Serial) Converter | Easy Tutorial

How to use Arduino as USB to TTL (Serial) converter | Easy Tutorial

Require Hardware:

  • Arduino Board
  • BreadBoard
  • Jumper Wires

See the Video Properly

See the video for you better understanding, now you can know more stuffs in further steps

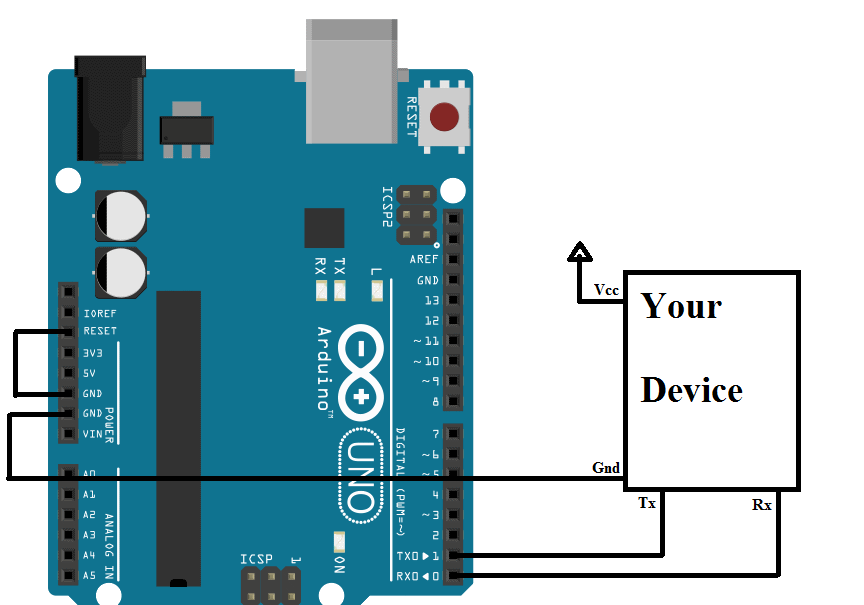

See the Connection


  • Short your Reset pin with GND.
  • connect Rx to Rx
  • connect Tx to Tx
  • Vcc to Vcc

What Would Be Effects?

When you short Reset to GND then Micro-controller will disable

Only FTDI chip is work in Arduino Board

Check in Arduino IDE

Open Serial Terminal
