The Rubik’s Cube, a timeless 3D puzzle, has captivated minds for decades with its vibrant colors and mechanical ingenuity. While solving the cube is a common challenge, designing one from scratch offers a unique opportunity to explore the intersection of geometry, engineering, and 3D modeling. With the rise of user-friendly 3D design tools like SelfCAD, creating a digital version of the Rubik’s Cube has become more accessible than ever. This article will guide readers through the step-by-step process of designing a fully functional Rubik’s Cube using SelfCAD, demonstrating how modern technology can be used to recreate a classic object through creative and technical skill.

To access the interactive tutorial of this article, visit

https://www.selfcad.com/tutorials/672zu6i1p545q1s1g104335556x2g236t2n2

Once you’ve launched the editor;

From the File Menu on the Top Toolbar click Import; Click Load object from Tutorial button to add object

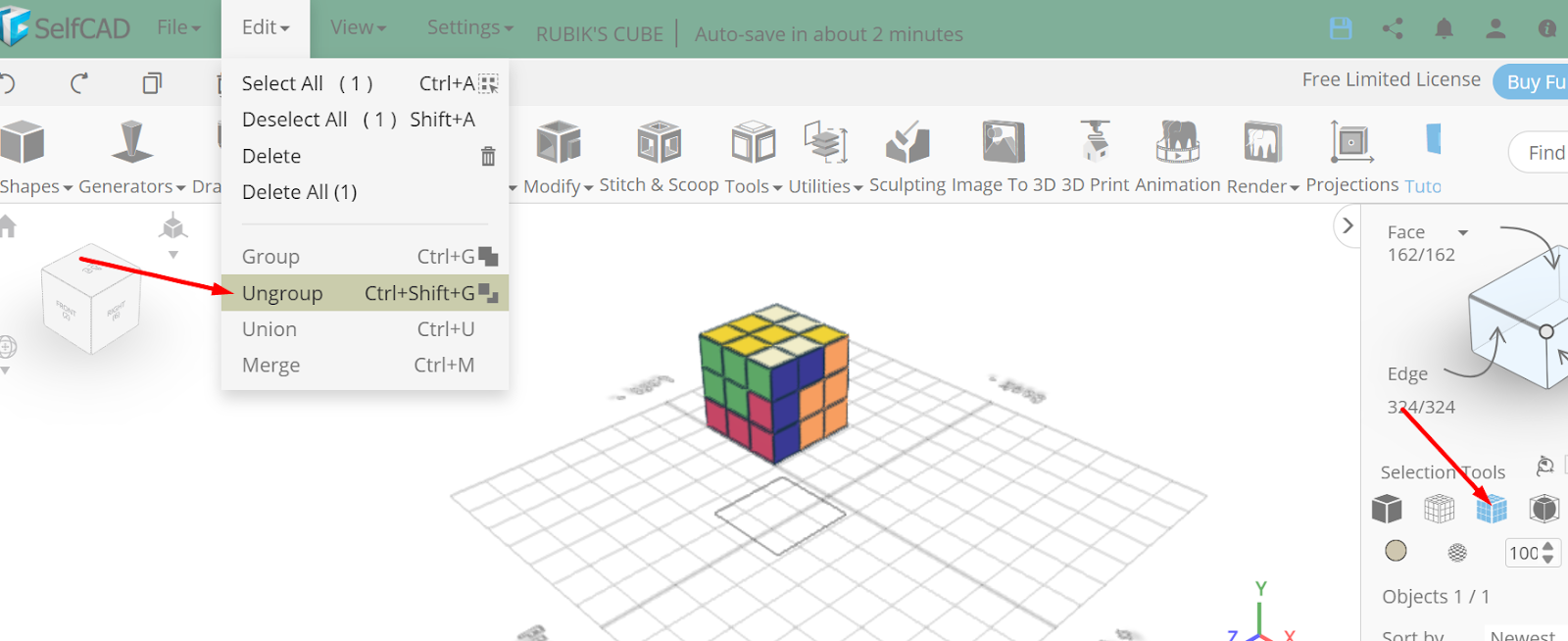

Click Solid+Wireframe button to set rendering mode; From the Edit Menu on the Top Toolbar choose Ungroup

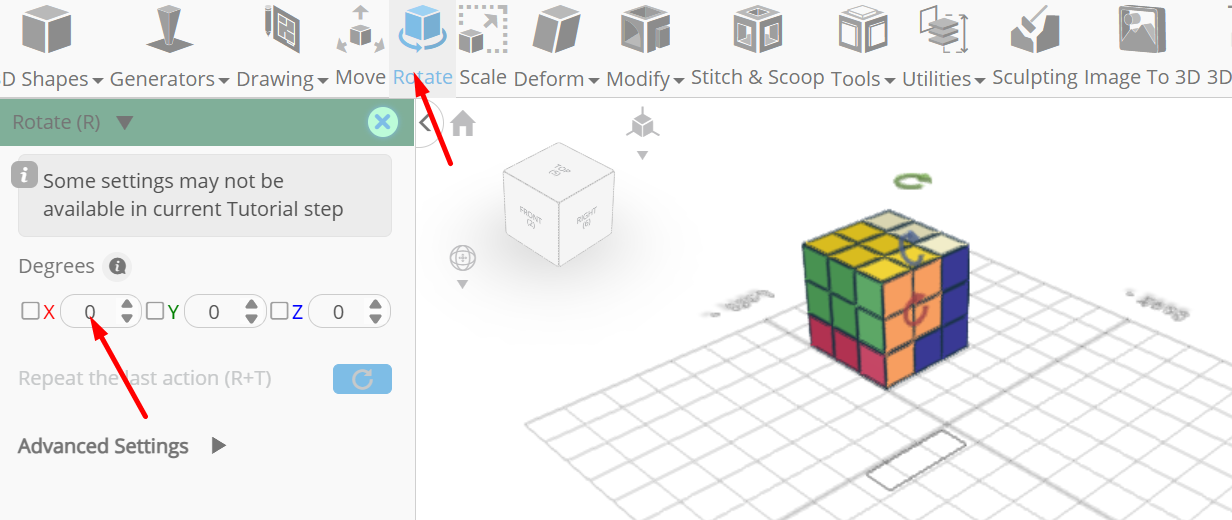

Click on mesh 2(6, 7, 2, 3, 8, 1, 4, 5) to deselect; Click Rotate on the Toolbar. Set x to 180

Click ‘x’ to close Transformation panel

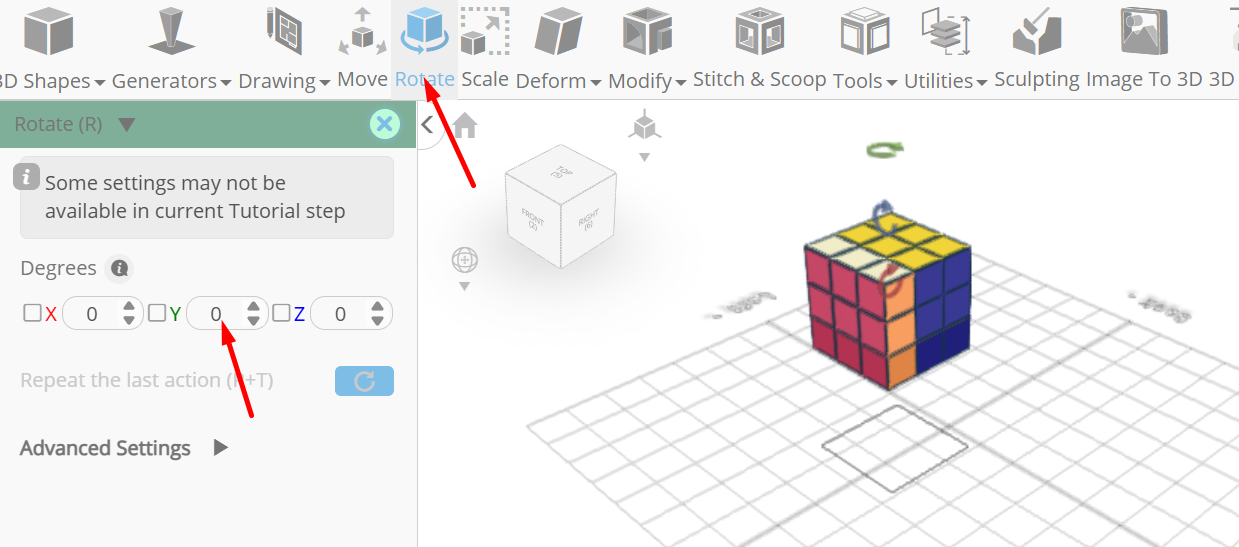

Click on mesh 2(6, 7, 2, 3, 8, 1, 4, 5) to deselect; Click Rotate on the Toolbar. Set y to 180

Click ‘x’ to close Transformation panel

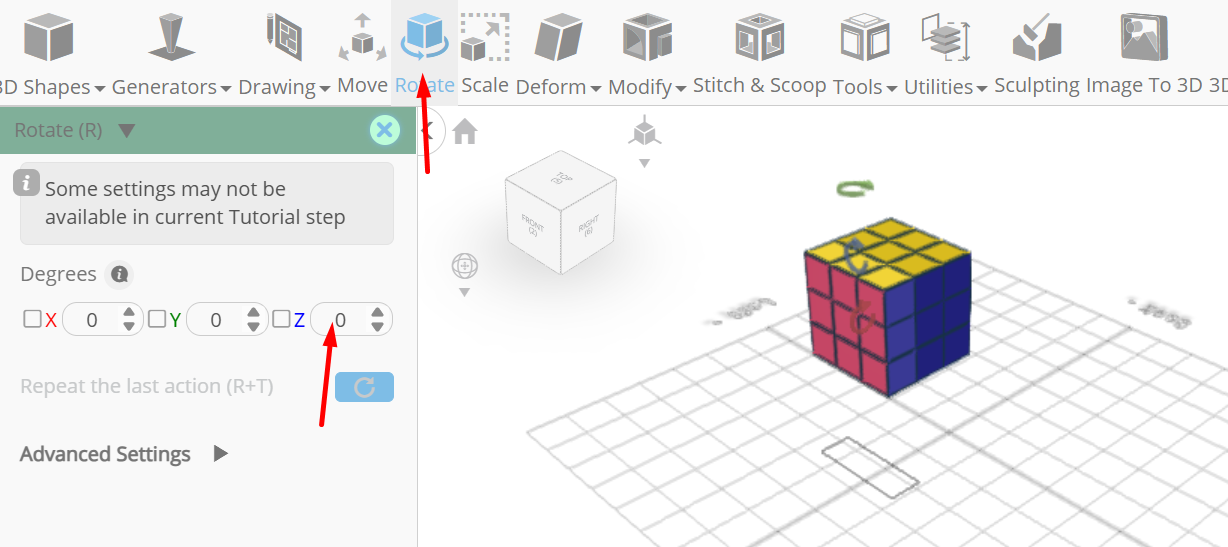

Click on mesh 2(8), 2(8), 2(8) to select it. Click on mesh 2(1, 1, 5, 4, 5, 4, 5) to deselect; Click Rotate on the Toolbar. Set z to 180

Click ‘x’ to close Transformation panel
