How to Send Sound Using a Laser

We've all heard of it, but most of us didn't know what it was all about, sending sound using the light channel? ... well technically .... yes... but not really. All you really are doing is changing the intensity of the light. This light hits a solar cell which creates energy out of the intensity of the light. And IN TURN it creates sound.

This project has so many different applications, from the whole "cable is to short to reach", now you have no limitations on how far you can transmit the sound, or the Wires all over the room problem. Use your imagination and figure additonal ones out :)

Sound from a speaker is really just energy at different levels that makes a speaker turn into sounds that we can hear.... we'll explain everything in a few minutes. Watch this video if you don't feel like reading or go to our next step.

Alright unless you want to make this a permanent project we recommend you use alligator clips. They will help you out in the long run.

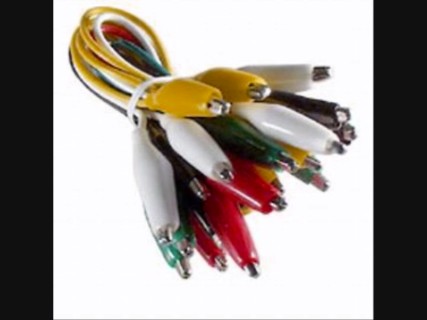

So you will need several alligator clips

A laser pointer

an Altoids Can (optional)

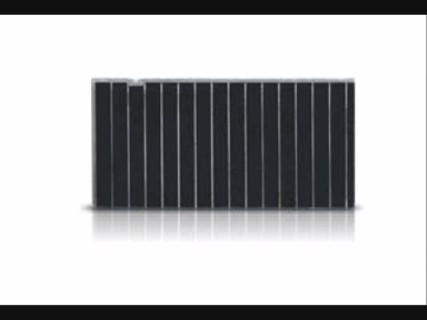

A solar cell

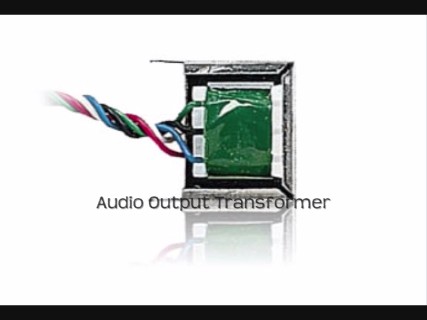

an Audio Output Transformer

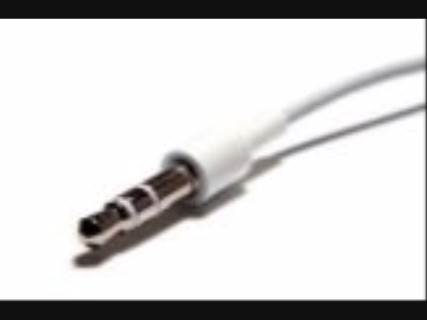

An Audio phone jack

and a battery pack

Easy to get enough at Ebay or your local Radio Shack

Alright this is a short one, Grab one of your Alligator clips and place them on the inside of your laser there is a small spring in there you will attach a black alligator clip to that. That.s your negative.

On the outside casing you will attach a red one, any where on the outside shell would work this will be your positive.

that's It here :) Nothing more to see

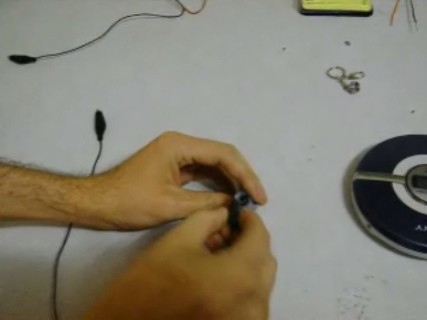

Alright so next you need to get the Audio Output Transformer ready. using one of your head phone jacks go ahead and break into the cable and get the two strings out from the inside, your positive and the negative, polarity doesn't really matter on this so just separate both cables.

Using alligator clips  you will attach one of the cables to the Red strip on the Output receiver and the other end of your jack to the White Output receiver.

and... that's bout it for this step too :P  move along

Okay you need to get a 4.5 volt battery source, since our battery holder holds 4 batteries we had to rig it up with a jumper cable to only allow 3 batteries to work. You can do this by adding 1 dead battery to the source, or by using a jumper cable to connect two terminals together a + and a - ...

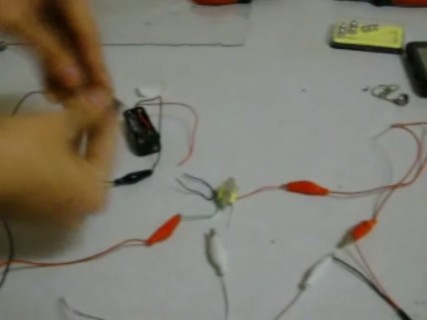

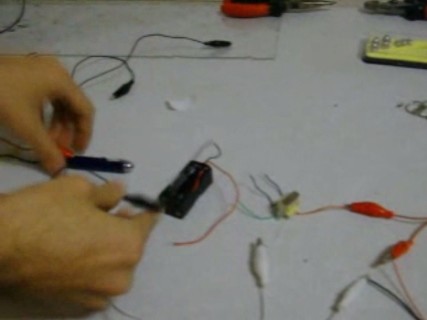

Now once that is one, you will hook the positive battery terminal to the black terminal to your transformer, the negative terminal will go to the black wire coming out of your laser (the alligator attached to the spring) .

The Positive terminal of your laser (red alligator clip attached to the shell) will go to the green wire on your transformer.

The middle transformer cable is unused.

The actual receiver is very simple, you need to attach the solar cell to an audio jack by again exposing the wires from the audio jack and attaching them to the positive and negative terminal in the solar cell.

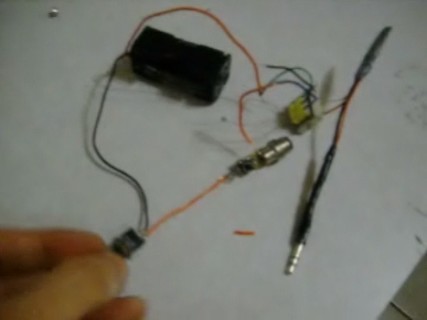

This completes the whole system now just hook up the solar cell to the radio receiver and then attach the laser transmitter to your CD player and test for sound, light up the laser and aim it towards the solar cell.

Now if you want to make this a more permanent structure, attach everything using a soldering gun and place everything inside of the Altoids Can.

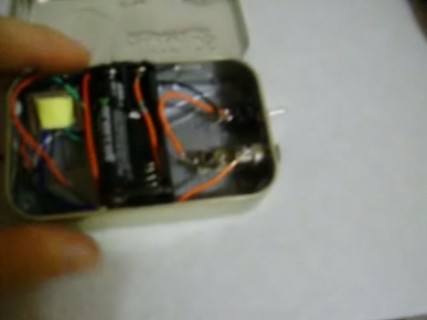

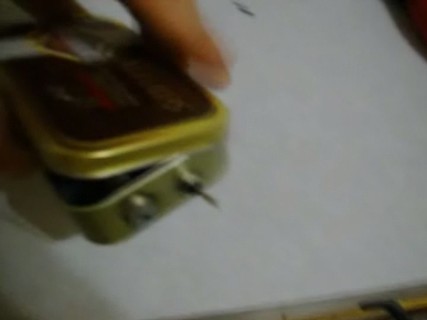

So here we soldered everything together and we placed it inside of an Altoids can, we even added a switch to help us out so we don't have to press the button to send sound. if you watch the video, you can see it works great :) we really loved it!

Thanks for taking the time to read this :)
