Doing the Homework
Finding something your interested in laying out in the weeds at an empty farm does not mean that you can just take it. You need to ask and get permission, otherwise your a thief. If you want to have a good reputation and be welcome in an area you need to work with the people who own the land and who live there. Maybe to them the old cars parked out in back are just junk, but its their junk, and most of the time if you talk with them they will be reasonable and negotiate with you for what you are interested in. So I needed to find an owner to talk to.
As the satellite pictures show, there was nothing happening at this place for a long time.
In many states, Montana included, property ownership is a matter of public record. This means if you know were a piece of land is located you can find out who owns it and who is paying the taxes on it. Montana has a web site that is pretty advanced and lets you research ownership. So I was able to find out the name of the owner and where they are located. It turns out the owner of this place lives in North Dakota. After some searching I had a phone number so this spring when the snow melted I started calling.
It took several calls but I finally got in touch with the owners. It turns out they just bought the land the year before and they were only using it for farming. I talked to a very nice lady about the old tiller parked there and after talking to her husband she said that if I could get some value out of it they were more than happy to let me have it. So I got permission to salvage the tiller and the cost was just the gas money to go and get it.
So I enlisted the help of a friend and his truck and we drove out and loaded up my "new" tiller. When I had the chance to look it over I found that this model is a few generations older than mine was. From what I can tell this model came out in the mid 1970's but if I could get it to run it would work for what I needed. It took a ramp and a come-a-long to get it into the truck. The tires actually still had some air in them, but not much.
And now the challenge of making it work again began.
As the satellite pictures show, there was nothing happening at this place for a long time.
In many states, Montana included, property ownership is a matter of public record. This means if you know were a piece of land is located you can find out who owns it and who is paying the taxes on it. Montana has a web site that is pretty advanced and lets you research ownership. So I was able to find out the name of the owner and where they are located. It turns out the owner of this place lives in North Dakota. After some searching I had a phone number so this spring when the snow melted I started calling.
It took several calls but I finally got in touch with the owners. It turns out they just bought the land the year before and they were only using it for farming. I talked to a very nice lady about the old tiller parked there and after talking to her husband she said that if I could get some value out of it they were more than happy to let me have it. So I got permission to salvage the tiller and the cost was just the gas money to go and get it.
So I enlisted the help of a friend and his truck and we drove out and loaded up my "new" tiller. When I had the chance to look it over I found that this model is a few generations older than mine was. From what I can tell this model came out in the mid 1970's but if I could get it to run it would work for what I needed. It took a ramp and a come-a-long to get it into the truck. The tires actually still had some air in them, but not much.
And now the challenge of making it work again began.
Start With the Penetrating Oil --- Put It on Everything
I put air in the tires and then evaluated what I would need to do. Everything that was supposed to move didn't. The throttle cable was rusted and frozen in place. The tiller had been parked with the engine engaged to the transmission. That was frozen. The engine itself appeared to be OK. It still had oil in it and there was no water in the oil, a good sign. So the first task was to spray penetrating oil everywhere.
You can get oil into a throttle cable by tipping it up and spraying it into the hole the cable goes down. After a few days the oil travels the length of the cable and loosens it up. Be careful that you don't force this to hard or the steal wire will break and you will have to replace the entire thing. Start with just little movements and work it until you get the full range back.

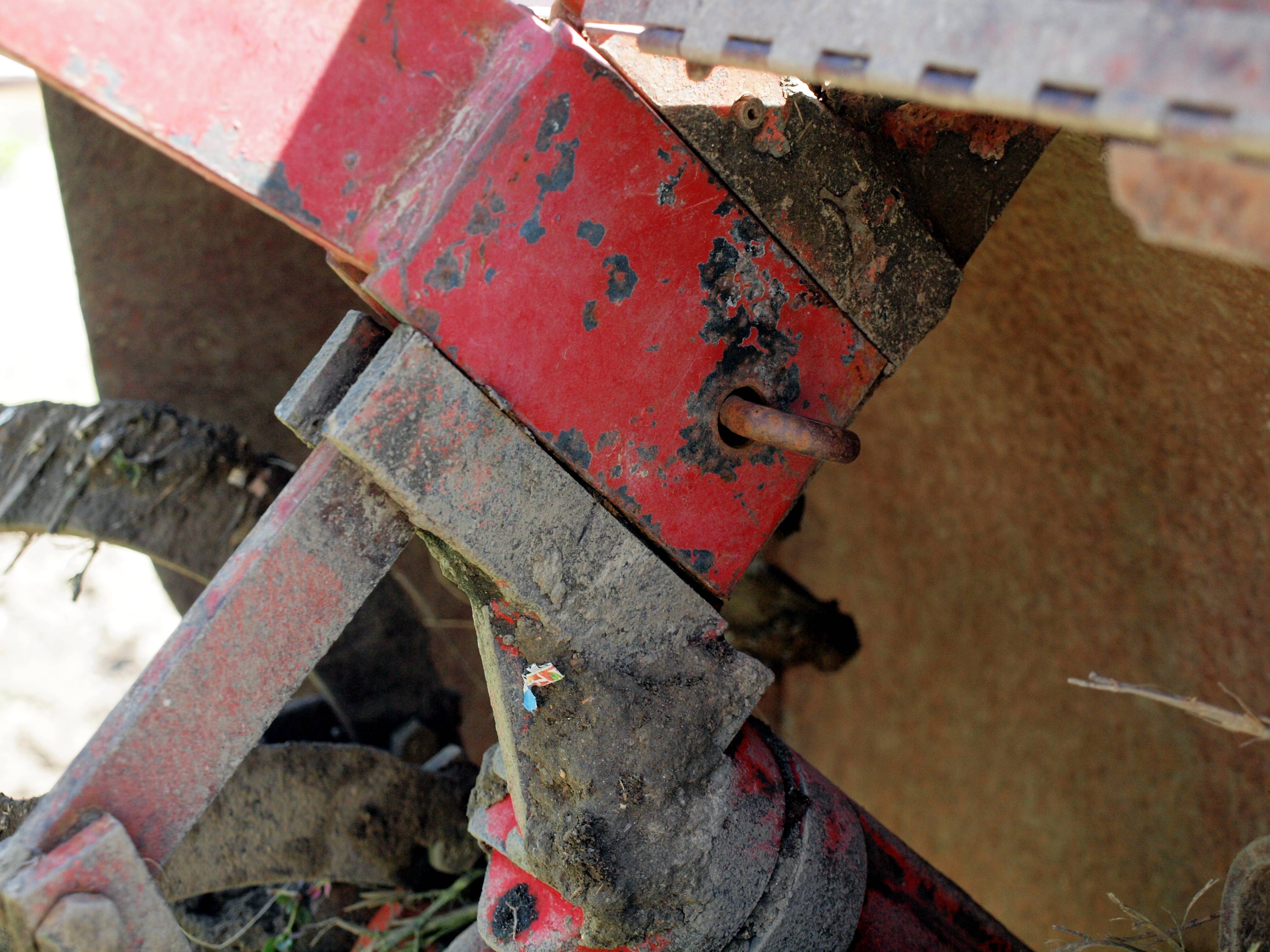

They way this tiller works, the engine actually slides up and down on 2 steal posts and loosens or tightens the belts that connect it to the transmission. The long lever and yoke work on a fulcrum so its pretty easy to engage the engine. The posts were rusted in place, the lever locking wheel was rusted and frozen and the engine belts were tight so I could not disengage the engine. After several days of putting penetrating oil on it I removed the bolts that lock the posts in place, took a hammer and hammered them down until they moved enough to free the engine. More oil, more hammering, more oil ---- slowly I was able to get the posts gliding again. Finally just a few hammer taps would move them up and down. So finally the engine was free so I could work on it.
You can get oil into a throttle cable by tipping it up and spraying it into the hole the cable goes down. After a few days the oil travels the length of the cable and loosens it up. Be careful that you don't force this to hard or the steal wire will break and you will have to replace the entire thing. Start with just little movements and work it until you get the full range back.
They way this tiller works, the engine actually slides up and down on 2 steal posts and loosens or tightens the belts that connect it to the transmission. The long lever and yoke work on a fulcrum so its pretty easy to engage the engine. The posts were rusted in place, the lever locking wheel was rusted and frozen and the engine belts were tight so I could not disengage the engine. After several days of putting penetrating oil on it I removed the bolts that lock the posts in place, took a hammer and hammered them down until they moved enough to free the engine. More oil, more hammering, more oil ---- slowly I was able to get the posts gliding again. Finally just a few hammer taps would move them up and down. So finally the engine was free so I could work on it.
The Engine
This tiller has a 7 HP Tecumseh engine with an electric start motor. My other one didn't have electric start. The battery for this one is long dead. The case was cracked open from freezing and thawing and the plastic was powdering from the UV exposure. I just removed the whole bracket and battery assembly. I can always get a replacement battery later if I want to go with the electric start.
The engine spun with no trouble and after removing the spark plug I could feel the compression from the spark plug hole. I didn't bother to test what the compression was, it was either going to start or it wasn't. The fuel line was rotted away so that had to be replaced. I changed the oil, which didn't look to bad considering how old it was. I also changed the spark plug, cleaned the air filter and treated the starting rope with a lot of silicone spray. These starter ropes get stiff with age and I found that if you treat them with silicone lubricant it makes them softer. The silicone apparently works into the rope fiber and lubricates it without making dirt stick to it. Spray it really good, up close, until everything is treated and wet with silicone, then let it dry. Working the rope usually loosens it up after the silicone has soaked in. Because the tiller had sat for so long I took the precaution of ordering a carburetor kit for it. There are companies on eBay that sell them pretty reasonably. The model number of the engine was stamped on the cowling of the engine so I could order the right kit. It turned out to be a good thing that I took this step. When I dismantled the carburetor I found the bowl seal was all cracked. If I had tried to just add gas and go it would have leaked all over. There was a sticky residue in the bottom left over from the gas that had evaporated. I cleaned everything with carburetor cleaner and flushed out every orifice I could find. Then I installed the kit parts, set the screws according to the directions and put it all back together.

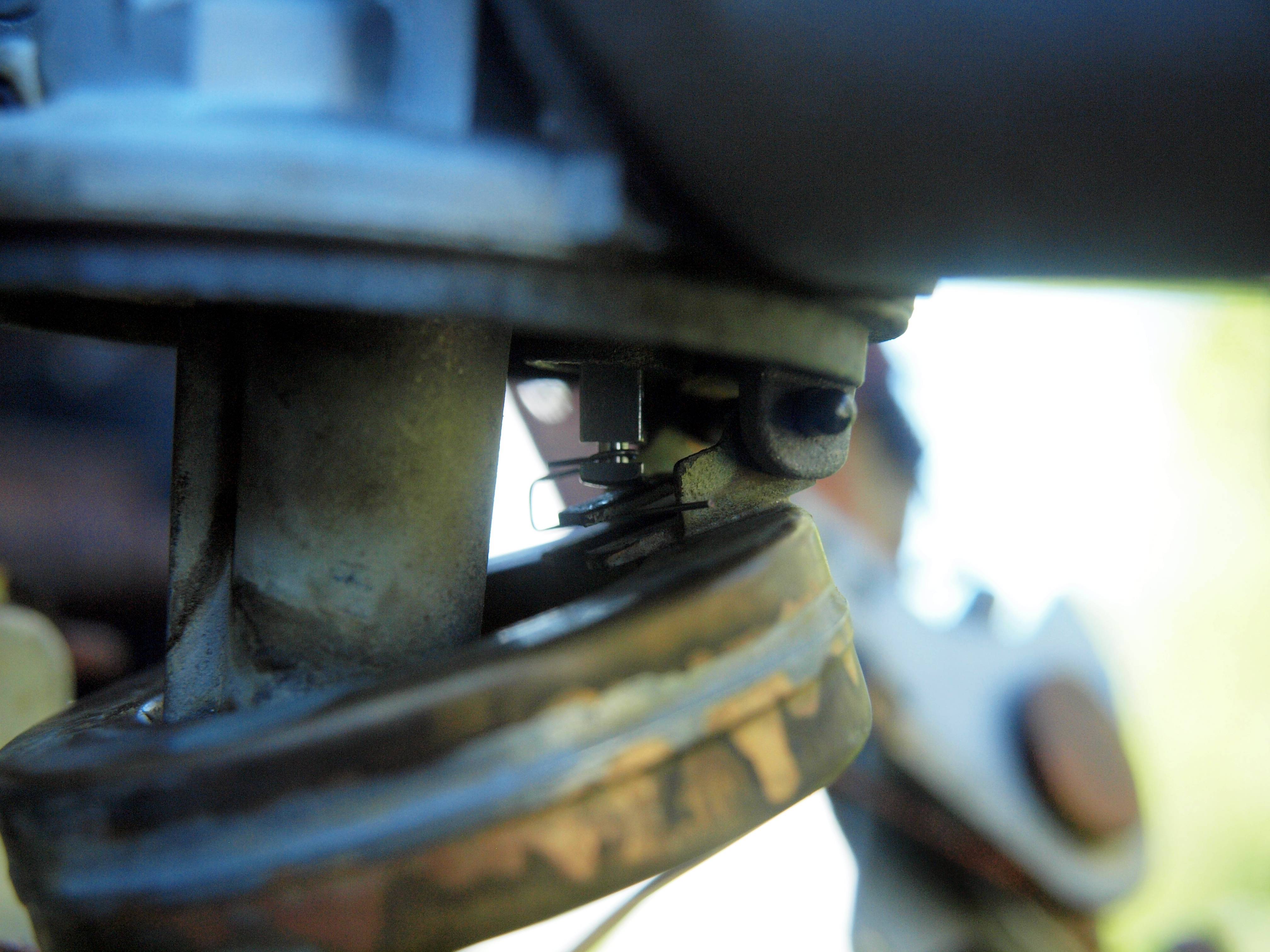

I used a car battery and jumper cables to spin the little starter motor. It spun pretty easily. The way it works is when it spins the front part shoots out using a spiral groove to engage the gears on the flywheel. That part was pretty dry and stuck so I sprayed it a bunch of silicone and it worked a lot better.
After doing all of this the engine was ready to try and start.
The engine spun with no trouble and after removing the spark plug I could feel the compression from the spark plug hole. I didn't bother to test what the compression was, it was either going to start or it wasn't. The fuel line was rotted away so that had to be replaced. I changed the oil, which didn't look to bad considering how old it was. I also changed the spark plug, cleaned the air filter and treated the starting rope with a lot of silicone spray. These starter ropes get stiff with age and I found that if you treat them with silicone lubricant it makes them softer. The silicone apparently works into the rope fiber and lubricates it without making dirt stick to it. Spray it really good, up close, until everything is treated and wet with silicone, then let it dry. Working the rope usually loosens it up after the silicone has soaked in. Because the tiller had sat for so long I took the precaution of ordering a carburetor kit for it. There are companies on eBay that sell them pretty reasonably. The model number of the engine was stamped on the cowling of the engine so I could order the right kit. It turned out to be a good thing that I took this step. When I dismantled the carburetor I found the bowl seal was all cracked. If I had tried to just add gas and go it would have leaked all over. There was a sticky residue in the bottom left over from the gas that had evaporated. I cleaned everything with carburetor cleaner and flushed out every orifice I could find. Then I installed the kit parts, set the screws according to the directions and put it all back together.
I used a car battery and jumper cables to spin the little starter motor. It spun pretty easily. The way it works is when it spins the front part shoots out using a spiral groove to engage the gears on the flywheel. That part was pretty dry and stuck so I sprayed it a bunch of silicone and it worked a lot better.
After doing all of this the engine was ready to try and start.
StartMeUP
Lube Job
With the engine now fired up and running I had to get the rest of the tiller back in working order.
The transmission or drive-train of this tiller is all enclosed. Its probably one of the reasons they last for so long. The entire main mechanism is in a steal housing which is filled with gear oil. The oil in this one may even be the original oil because it was something that was rarely changed, so I needed to change it. When I opened the drain hole to drain it some very nasty looking gear oil came out along with a bunch of water. After it emptied, I closed up the drain and poured some diesel fuel into the housing to flush it out. I rocked it back and forth to slosh the fuel around and clean it a little and then drained it again. I left it open for a few days to help eliminate any left over fuel or water.
The inlet for the gear oil is on the top of the transmission in the same hole the bolt for handlebars is threaded into. It is not air tight as it is intended to allow venting if the fluid expands because of running the tiller and getting warm. I think this is also how the water got in. When it was buried in snow and the snow melted it would have allowed some of the water to run into the filler hole.
I filled up the transmission with new gear oil and then reassembled the rest of the parts. To find the set hole in the posts the engine glides on I put in an Allan wrench and used it as a feeler as I tapped the posts. When the hole lined up you could feel it with the wrench. I put the set screws in and then reassembled the yoke and lever mechanism. It moved pretty easily and the engine could now be moved into and out of gear. So it was all ready to try out finally.
The transmission or drive-train of this tiller is all enclosed. Its probably one of the reasons they last for so long. The entire main mechanism is in a steal housing which is filled with gear oil. The oil in this one may even be the original oil because it was something that was rarely changed, so I needed to change it. When I opened the drain hole to drain it some very nasty looking gear oil came out along with a bunch of water. After it emptied, I closed up the drain and poured some diesel fuel into the housing to flush it out. I rocked it back and forth to slosh the fuel around and clean it a little and then drained it again. I left it open for a few days to help eliminate any left over fuel or water.
The inlet for the gear oil is on the top of the transmission in the same hole the bolt for handlebars is threaded into. It is not air tight as it is intended to allow venting if the fluid expands because of running the tiller and getting warm. I think this is also how the water got in. When it was buried in snow and the snow melted it would have allowed some of the water to run into the filler hole.
I filled up the transmission with new gear oil and then reassembled the rest of the parts. To find the set hole in the posts the engine glides on I put in an Allan wrench and used it as a feeler as I tapped the posts. When the hole lined up you could feel it with the wrench. I put the set screws in and then reassembled the yoke and lever mechanism. It moved pretty easily and the engine could now be moved into and out of gear. So it was all ready to try out finally.
Back in Business
I started it up, put it in gear and rolled out to the garden. Everything worked! I had to adjust the tightness of the belts and fine tune the gas mixture to the engine but I was able to work the ground. I spent a few hours of tilling before I finally got my confidence that it was going to hold up. I worked up a row and then attached my furrow attachment and cut a furrow. No problems. It has a little less power than my old one so it gets a little slow in the hard spots but as a replacement I am happy with it.
Over he next week I was able to plant everything so this season is off and running, a little late but still in the game.
Over he next week I was able to plant everything so this season is off and running, a little late but still in the game.
Future Work
After a few hours of work I found that the front seal to the transmission is leaking gear oil pretty badly. And then I found the rear one where the tines are is leaking also. SO those will have to be replaced. In addition the belts stretched out after a while and I had to adjust it as far as possible to keep the belts tensioned tightly to the engine. None of these things are a surprise. It just means that I will have to do some more rebuilding work on it. This season the big challenge was to just find out if it would run and work. Now that I know it does I can worry about getting replacement parts and making it better.
One thing I am NOT going to do is paint it. In fact I may just sprinkle oil and dirt on it and tie a few dirty rags to the handle bars. If I painted it up all nice and bright Troy Built Red for sure some lowlife would try and tiller nap it. So the uglier it looks the better. Maybe I should add some scorch marks to it with a torch so it looks like it caught on fire. I have an old horse trailer that I think is going to end up being its parking place. I can lock the trailer. Of course they may just steal the whole trailer with the tiller in it. I guess I have to lock the trailer tongue too.
There is one big improvement I am making, I now have a CCTV camera system. So if there is a next time I will have the lowlifes on camera. Smile!!!
