How to Replace a Shattered IPhone Screen

Almost every smartphone owner has at some stage dropped one of their phones and broken the screen. A replacement by the manufacturer costs a fortune but it is actually quite simple to replace the screen yourself. You can buy a replacement screen for your phone through a number of online stores, eBay has a large number of electronics suppliers which stock replacement screens.

This instructable shows you the step by step process to replace your iPhone screen yourself. Although this change is performed on an iPhone 6, the 6s is almost exactly the same and the iPhone 7 is quite similar too.

Here is a full video of the change being done on an iPhone 6:

A sequenced step by step guide in line with the video can be found here: http://www.the-diy-life.com/how-to-replace-a-shatt...

What You Will Need To Replace Your iPhone Screen

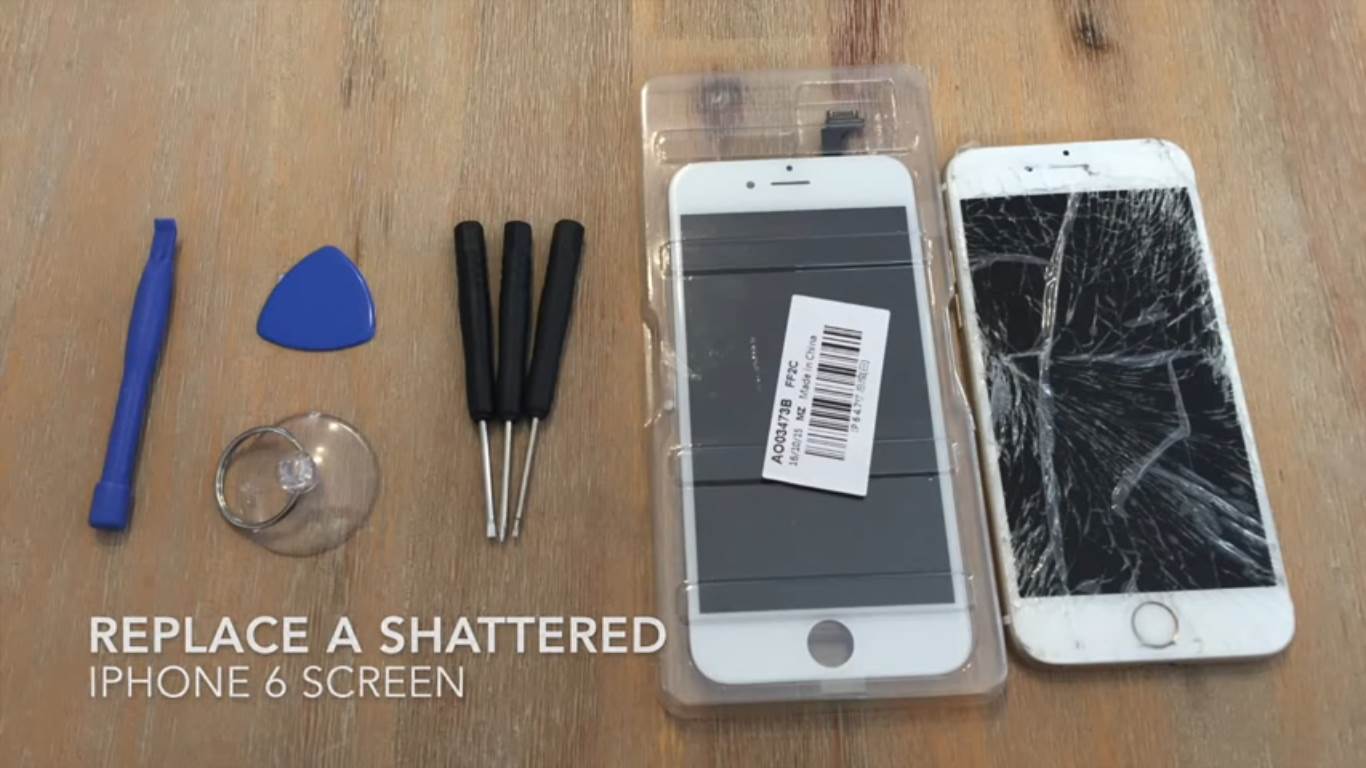

• Replacement Screen - Buy Replacement Screen & Tool Kit
• Pentelobe Screwdriver
• Small Star/Philips Screwdriver
• Prying Tool
• Screen Prying Tool
• Screen Puller

If you look around online, most of the suppliers which stock replacements screens will add a small toolset (pictured in the video and cover picture) for a small fee or even for free, it is worthwhile getting the toolkit.

Replacing your iPhone screen is done in four stages, first you will remove the old screen, then remove all of the components from the old screen, install them on the new screen and finally install and connect the new screen to your iPhone.

It is worthwhile keeping a piece of paper and a pen handy to make a sketch of the inside of the phone and which screws your have removed from where. The screws are all different sizes and lengths and need to go back into the same hole you removed them from. Rather spend a bit more time taking the phone apart and keep track of the components, it will make your life a lot easier when putting it back together.

First start by switching your iPhone off, this ensures that you don’t short circuit anything when clipping and unclipping connectors.

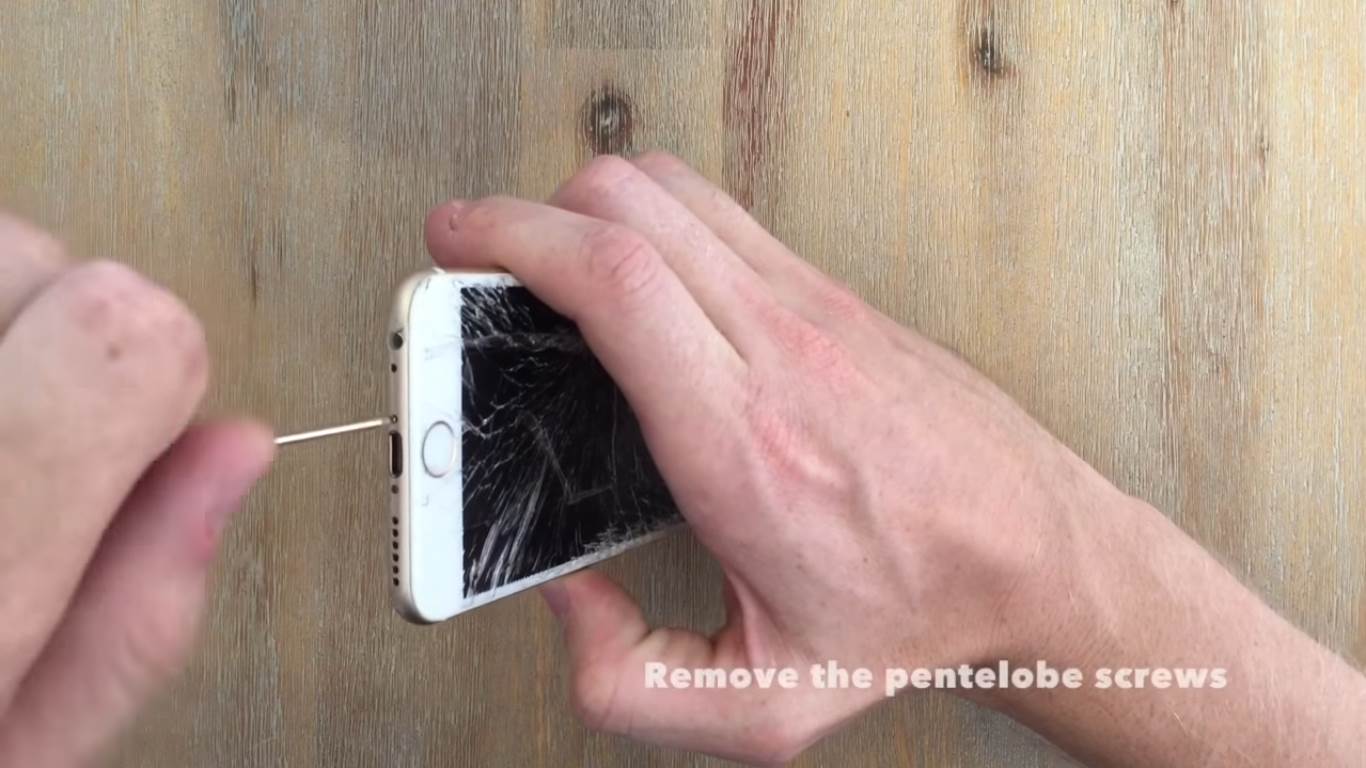

Now use the pentelobe screwdriver in your toolkit to remove the two screws at the bottom of you phone.

Once the screws have been removed, pry the screen away from the body. If the screen is not totally shattered, using the screen pulling suction cup to help you lift the screen from the body of the phone. The screen prying tool helps to slot in between the screen and the body and pull the screen away.

Near the top of the phone, there is a silver cover plate which keeps the connectors to the screen locked in place. Unscrew and remove the screws and the cover plate.

Now use the smaller prying tool to unclip the four connectors on the ribbon cables to the screen. These connectors snap into place much like Lego’s. Once the ribbon cable connectors are unclipped, you can remove the screen from the body of the phone.

The screen you have bought will most likely come without any of the additional electronic components mounted onto it, you will have to move these across from your old screen onto your new screen.

First start by removing the camera, sensor and earpiece. Remove the screws and cover plate which secure the camera.

Now remove the camera, sensor and ear piece, they should come away easily with the cover plate removed.

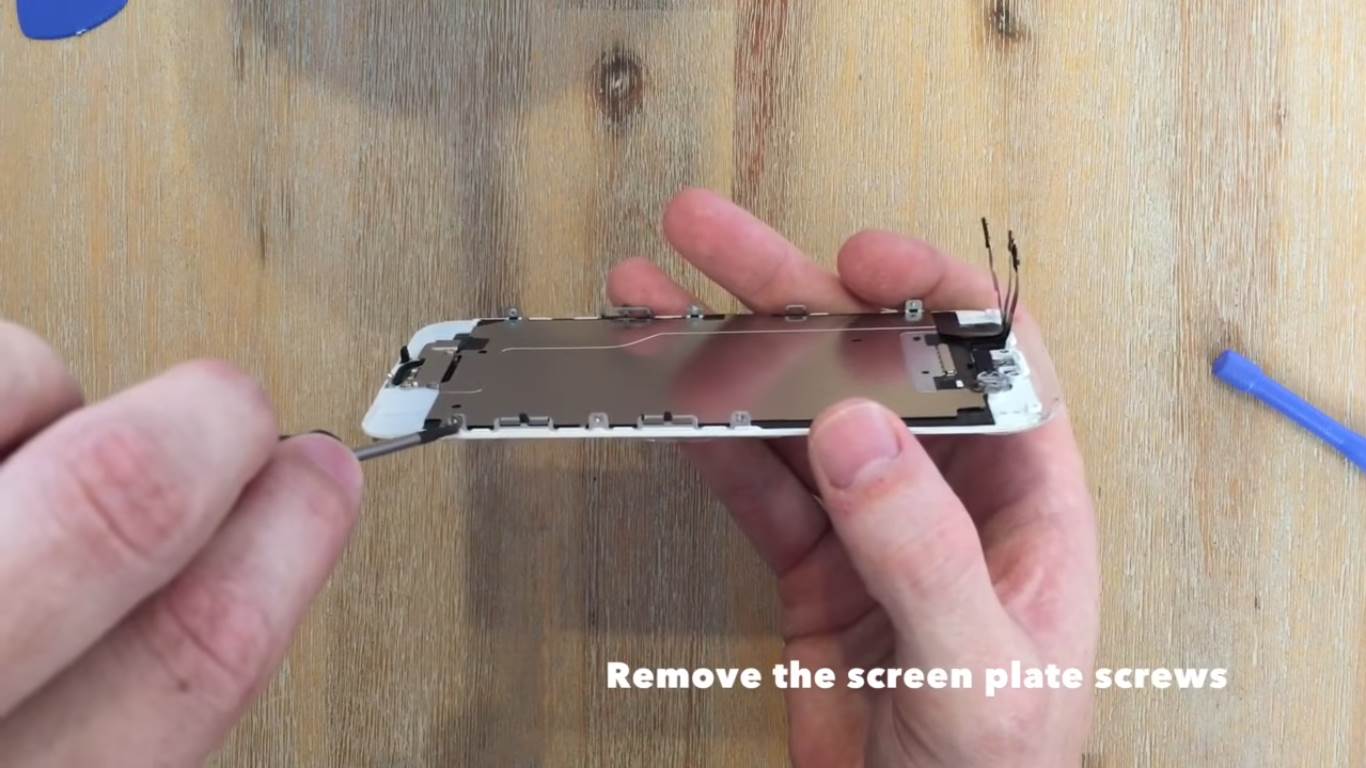

You need to remove the screws to the silver cover plate on the back of the screen, this houses the ribbon cable to the fingerprint sensor and home button. Remove the screws around the perimeter of this cover, the cover will remain in place until the fingerprint sensor is removed.

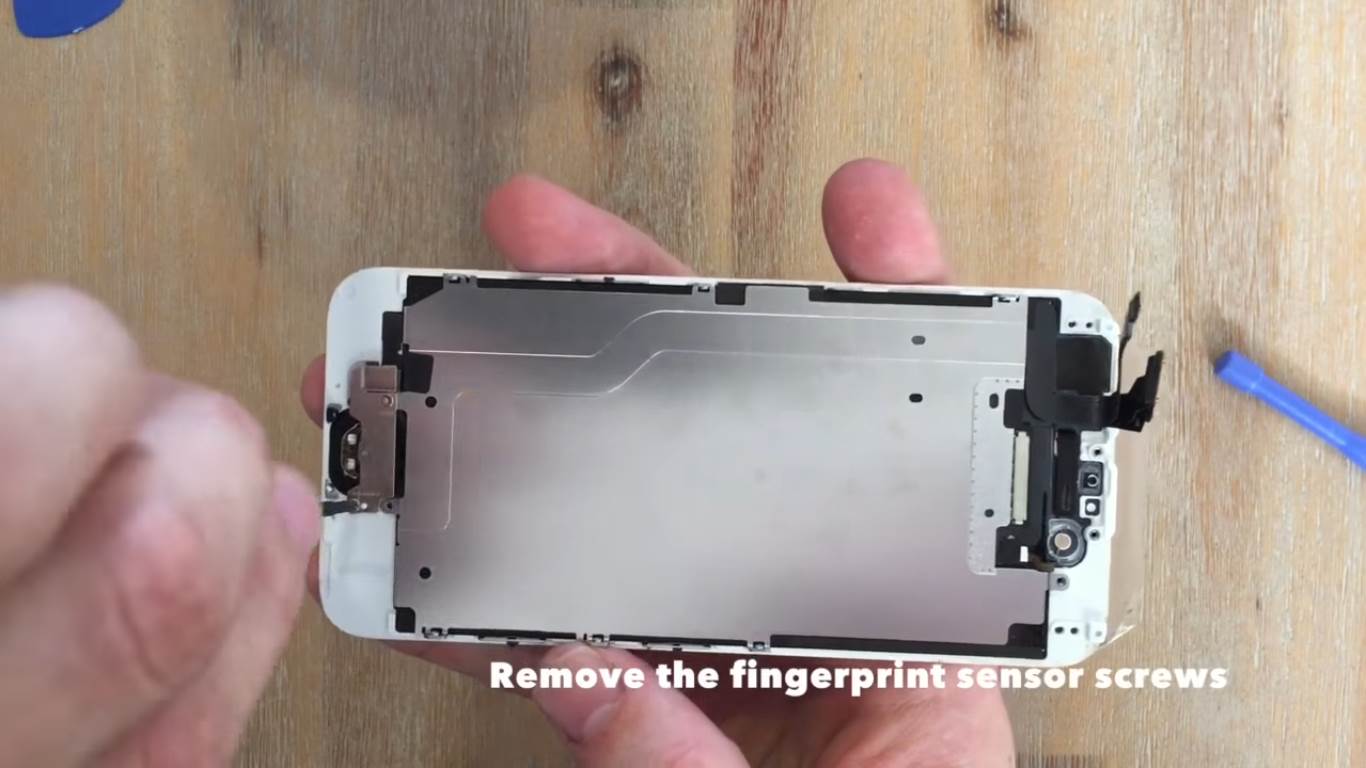

Next, remove the cover plate over the fingerprint sensor. Unclip the connector to the fingerprint sensor ribbon cable, this is the same type of connector used to clip the other ribbon cables and it just snaps off using the prying tool.

Now you can remove the fingerprint sensor. It is stuck on by its rubber mounting which is sticky on one side. Simply pull it off with your fingers or with a flat screw driver. It should still be sticky enough to stick onto the new screen.

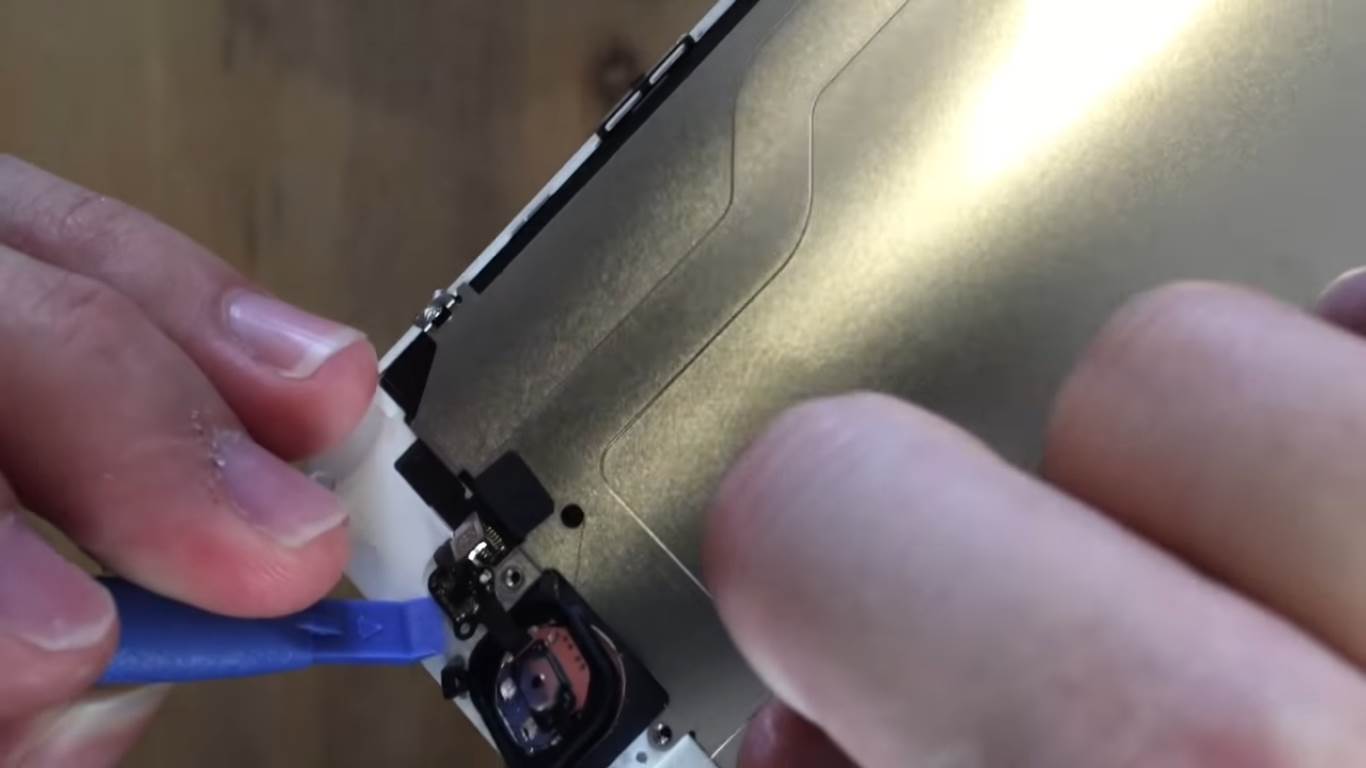

Unclip the fingerprint sensors electronics which are held in place with a small white peg. Use the prying tool to lift it off of the peg.

Now you can remove the screen cover plate.

The last items to remove are the small plastic locators for the camera and for the sensor near the earpiece. Remove these with a tweezer or small screwdriver.

Installing the components on the new screen is quite easy once you know how they came off the old screen, just follow the steps in reverse.

First replace the plastic locators for the camera and sensor.

Now replace the camera and sensor. The small white pegs act as a location guide and the components fit into the plastic locators.

Replace the earpiece and then screw the silver cover plate back into place.

Next, stick the fingerprint sensor onto the new screen with the sticky side of the rubber mounting. Clip the electronics in place over the white plastic peg.

Clip the ribbon cable connector in.

Now replace the fingerprint sensor cover plate and screw in the screws.

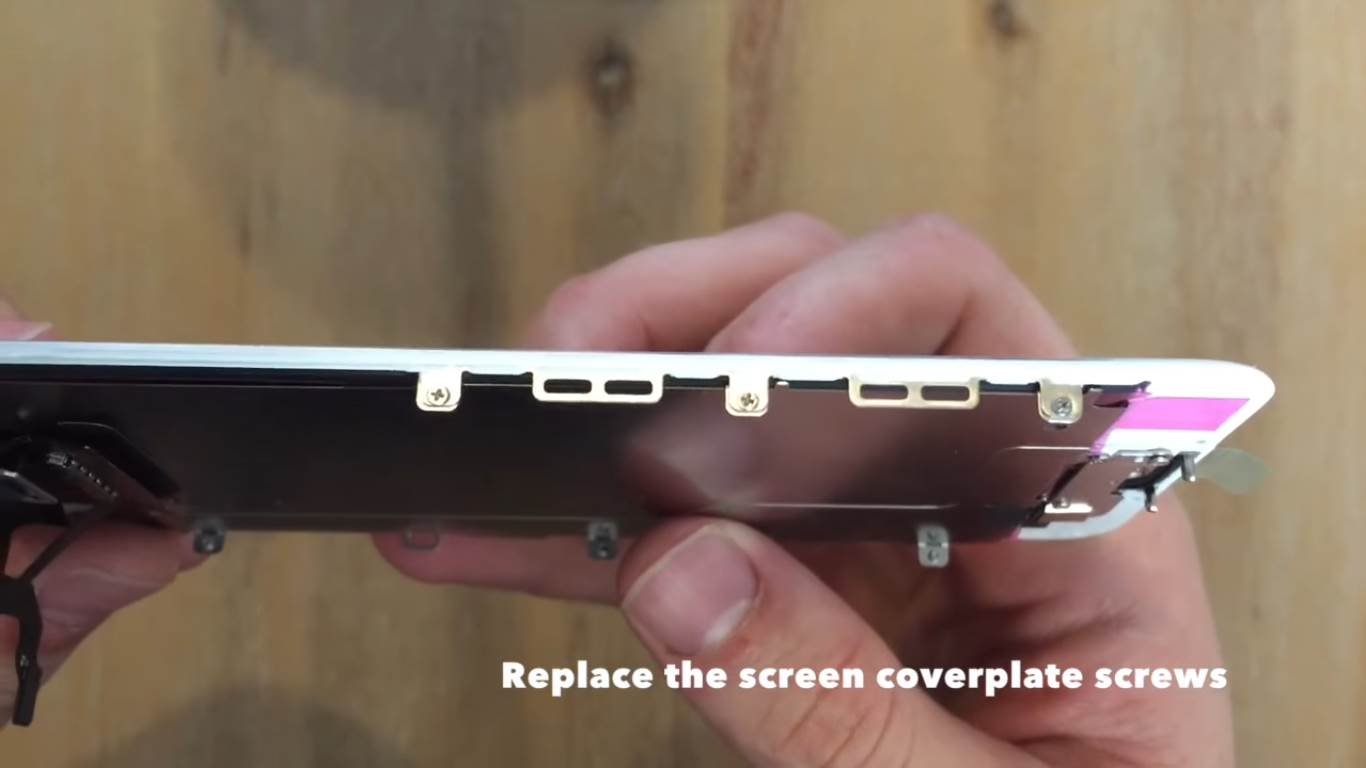

Replace the screen cover plate and screw in the screws around the perimeter.

The screen is now ready to be reinstalled on the body of the phone.

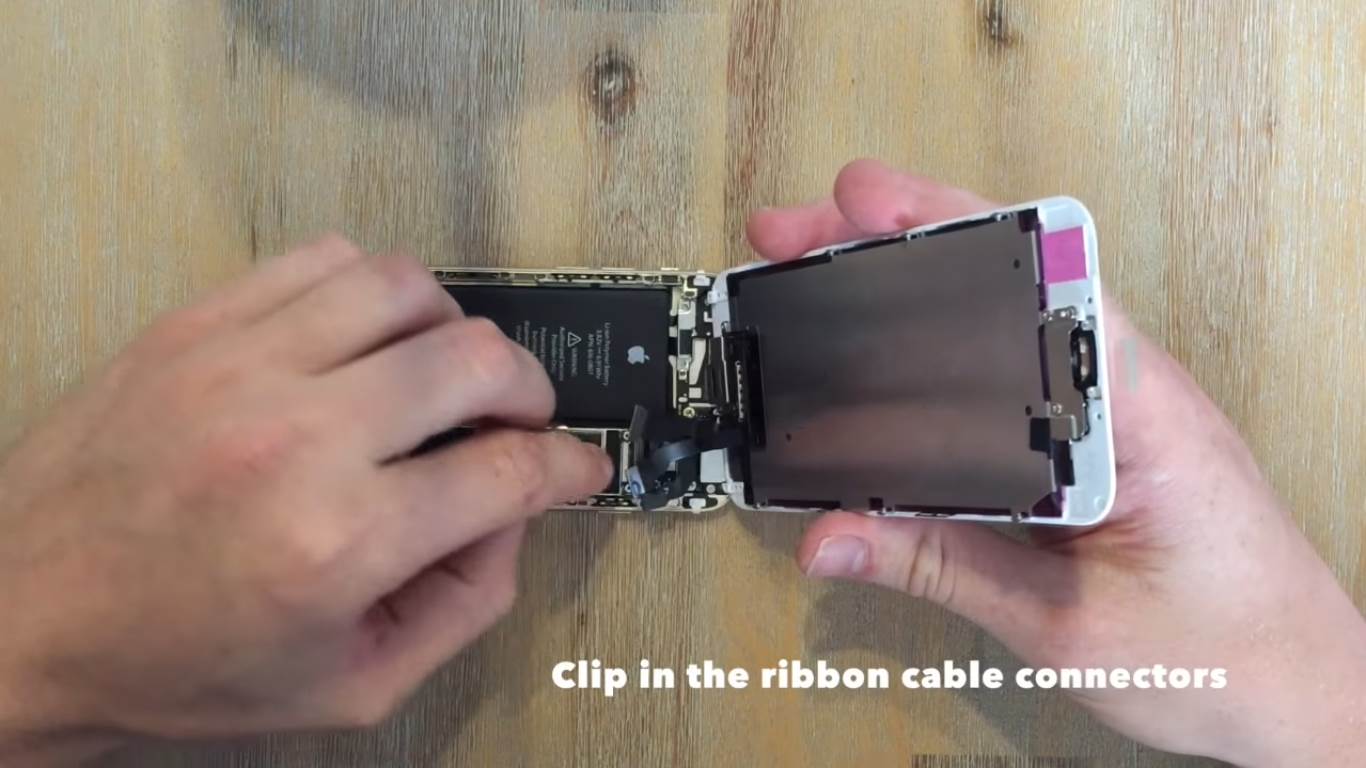

Start installing the new screen by clipping in the four ribbon connectors. Each one is a different size and shape so it should be easy to see which one goes where.

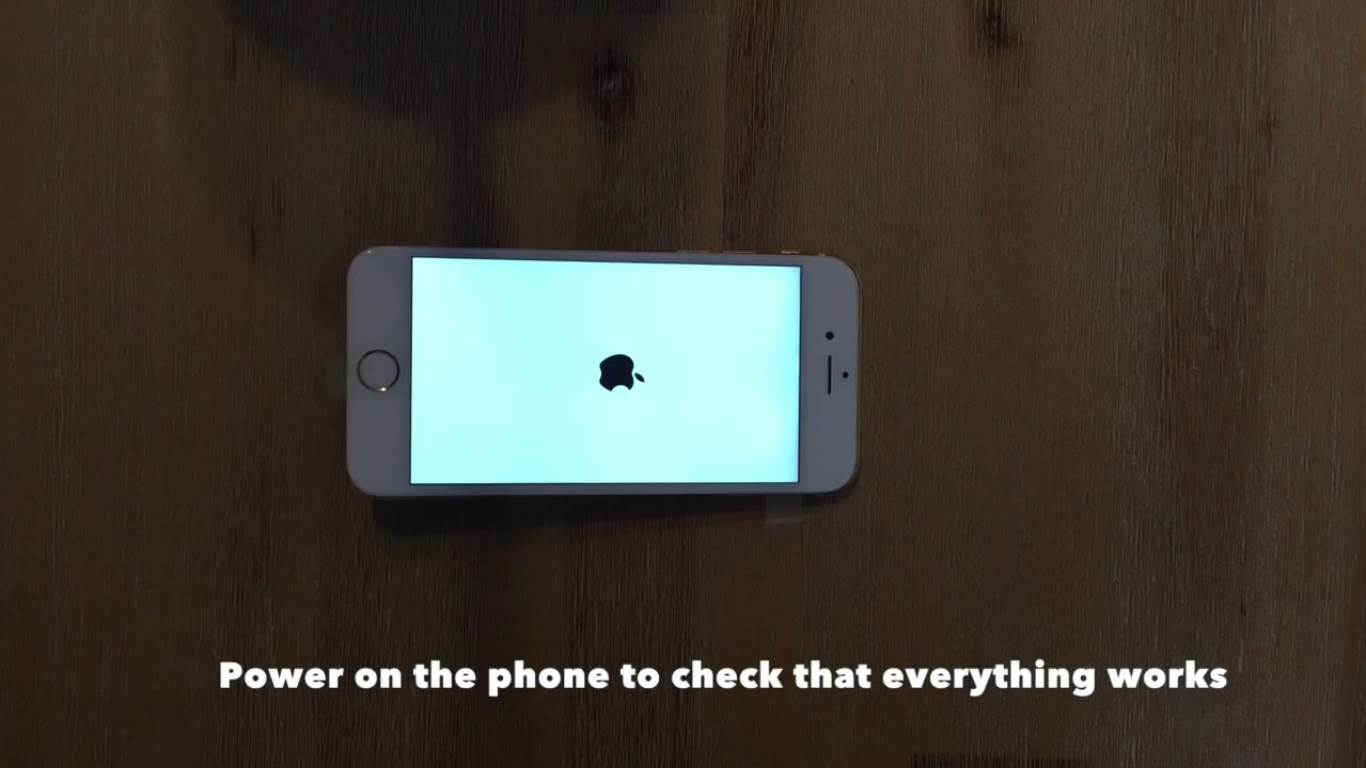

Fold the screen down gently and rest it on top of the body. Now you should check that everything which you have connected is working correctly. Power on the phone and make sure that the screen displays correctly, the touch sensor works, the fingerprint sensor and home button work as well as the front camera alignment. If anything doesn’t work then it is likely due to a fault in the ribbon cable connections, try unclipping and reconnecting them.

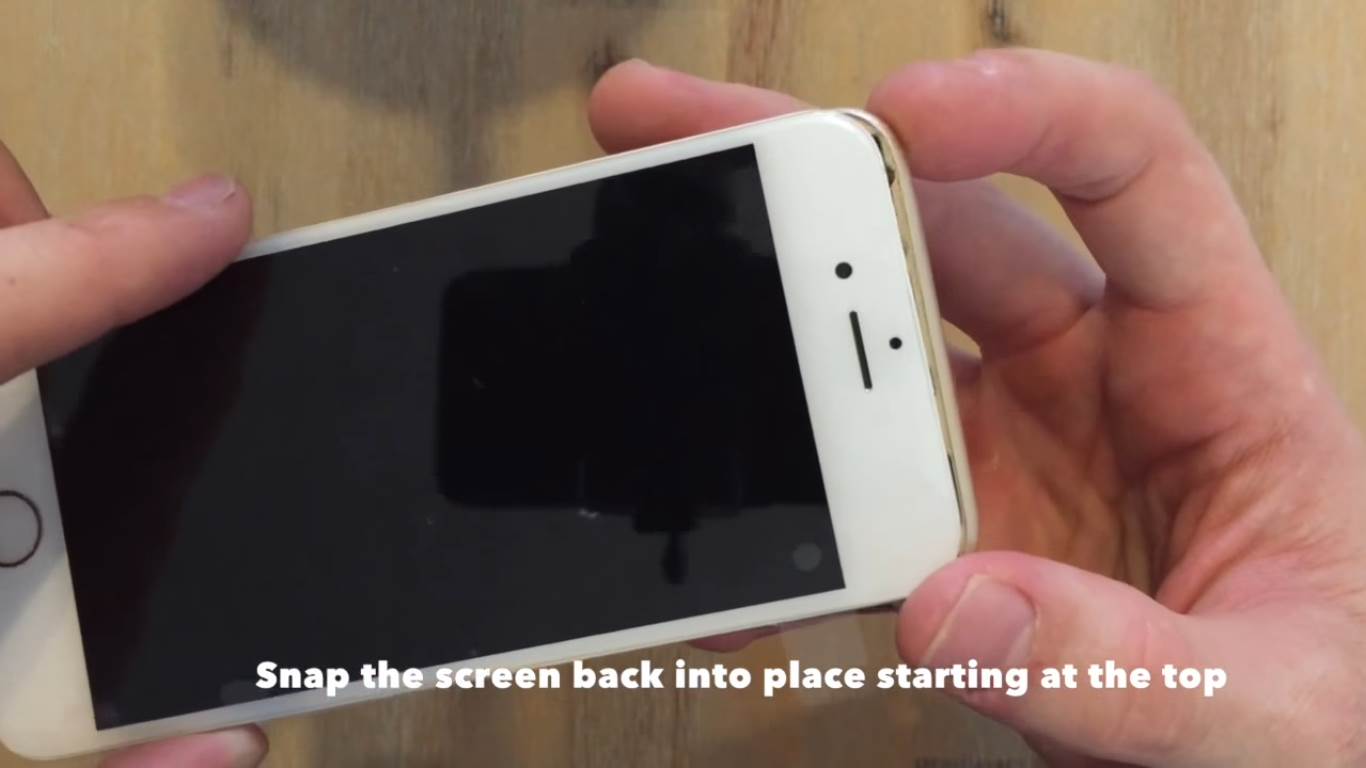

Once everything works, turn the phone off again and then begin securing the screen. At the top of the screen as two plastic clips which slide into the body of the phone. The screen can then be pressed into place from the top down.

Snap the bottom into place and align the screw holes. Finally slide the pentelobe screws in and screw them in.

You have now successfully replaced your phone screen!

Power the phone back on and it is ready to use again.
